Results:

Photo Mfr. Part # Availability Price Quantity Datasheet Packaging Series ProductStatus Frequency Impedance Bandwidth InsertionLoss FilterType MountingType Size/Dimension

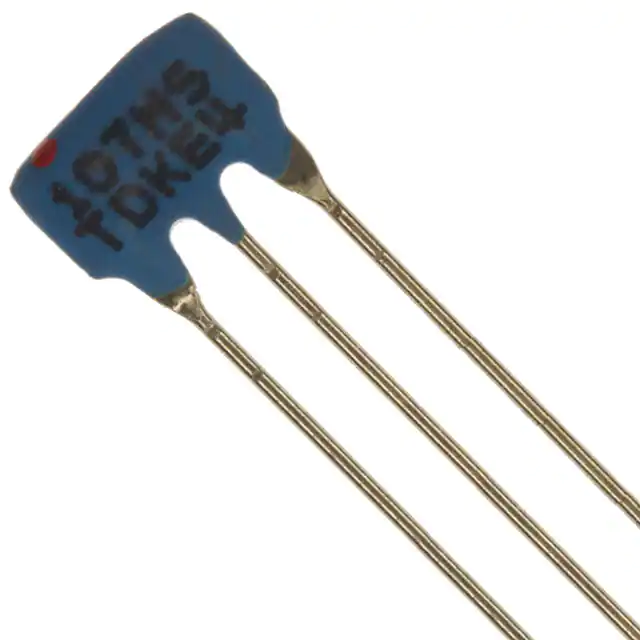

FFE1070MS10RBL

FFE1070MS10RBL

CER FILTER 10.7MHZ BAND PASS

TDK Corporation

2,901

0.00

RFQ

FFE1070MS10RBL

Datasheet

Cut Tape (CT),Tape & Box (TB)

FFE

Obsolete

10.7MHz Center

-

180 kHz

7dB

Band Pass

Through Hole

0.315 L x 0.157 W (8.00mm x 4.00mm)
