Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	ForMeasuring	SensorType	Current-Sensing	NumberofChannels	Output	Sensitivity	Frequency	Linearity	Accuracy	Voltage-Supply	ResponseTime	Current-Supply(Max)	OperatingTemperature	Polarization	MountingType

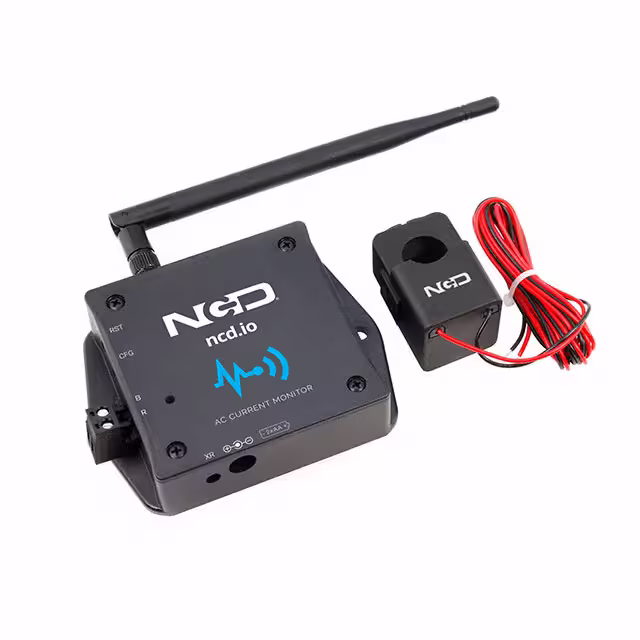

	PR52-7 AC CURRENT MONITOR National Control Devices	3,751	189.95	RFQ	Datasheet	Box	PR52	Active	AC	Current Sensor	100A	1	Wireless	-	50Hz ~ 100kHz	±1%	±2%	2V ~ 3.8V	100ms	-	-40°C ~ 85°C	-	Chassis Mount

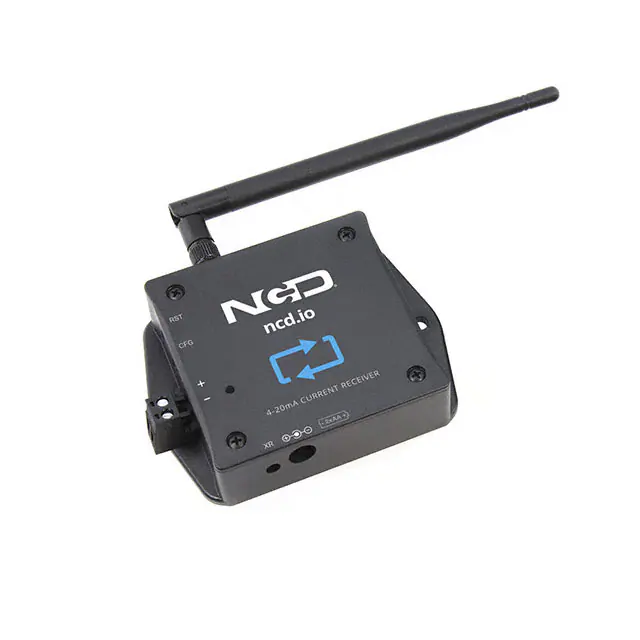

	PR52-9 4-20MA CURRENT RECEIVER National Control Devices	2,648	199.95	RFQ	Datasheet	Box	PR52	Active	-	-	-	-	Ratiometric, 4mA ~ 20mA	-	-	-	-	2V ~ 3.8V	-	-	-40°C ~ 85°C	-	Chassis Mount

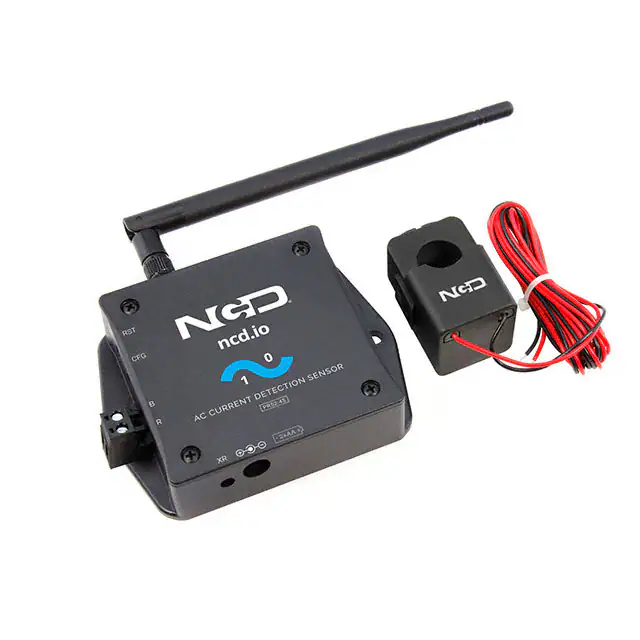

	PR52-45 AC CURRENT DETECTION SENSOR National Control Devices	3,986	199.95	RFQ	Datasheet	Box	PR52	Active	AC	Current Sensor	100A	1	Wireless	-	50Hz ~ 100kHz	±1%	±2%	2V ~ 3.8V	100ms	-	-40°C ~ 85°C	-	Chassis Mount

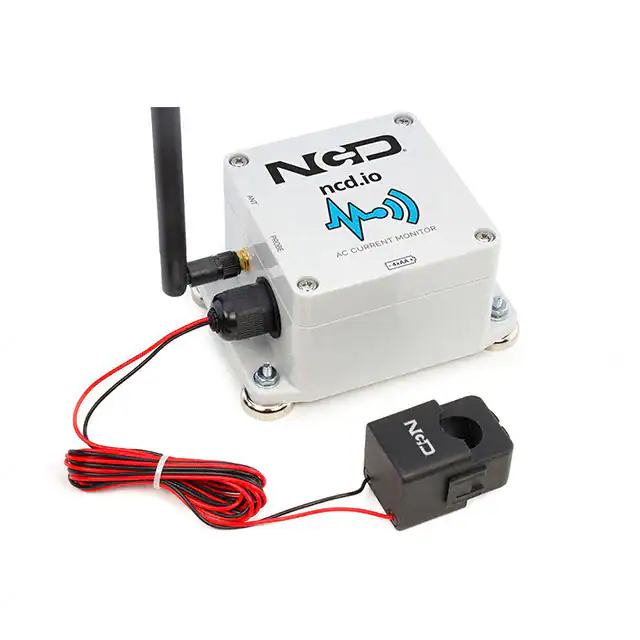

	PR55-4A WIRELESS AC CURRENT MONITOR National Control Devices	3,986	229.95	RFQ	Datasheet	Box	PR55	Active	AC	Current Sensor	100A	1	Wireless	-	50Hz ~ 100kHz	±1%	±2%	2V ~ 3.8V	100ms	-	-40°C ~ 85°C	-	Chassis Mount

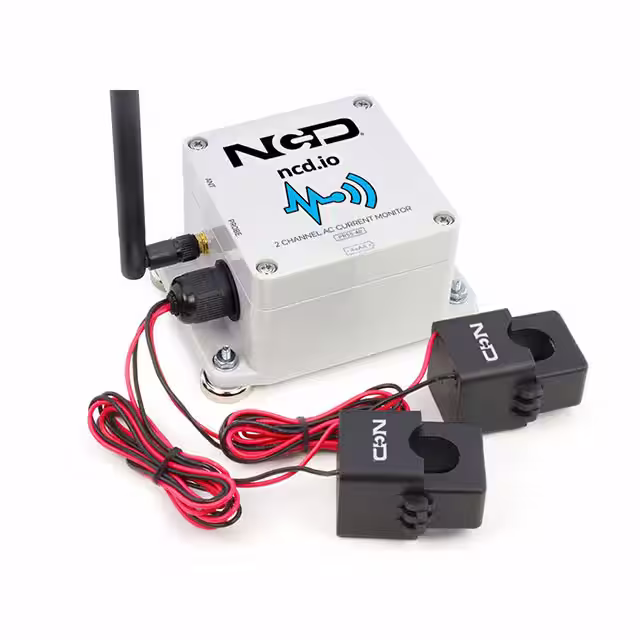

	PR55-4B 2-CHANNEL AC CURRENT MONITOR National Control Devices	3,974	249.95	RFQ	Datasheet	Box	PR55	Active	AC	Current Sensor	100A	2	Wireless	-	50Hz ~ 100kHz	±1%	±2%	2V ~ 3.8V	100ms	-	-40°C ~ 85°C	-	Chassis Mount

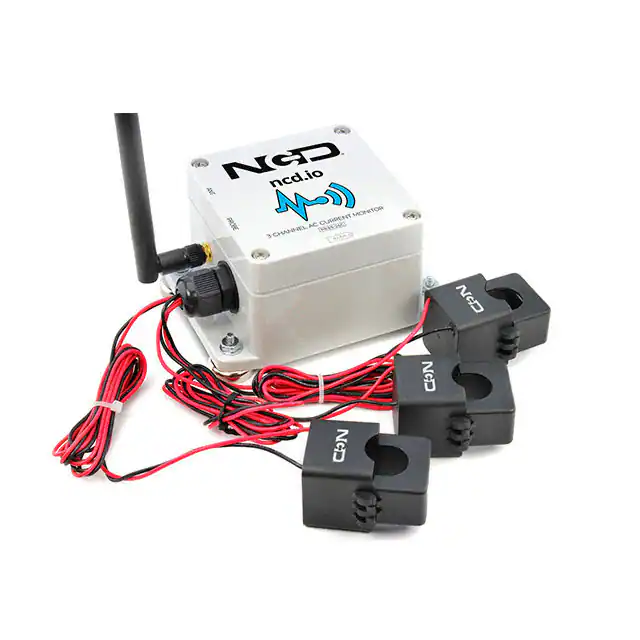

	PR55-26C 3-CHANNEL CURRENT MONITOR National Control Devices	3,909	289.95	RFQ		Box	PR55	Active	AC	Current Sensor	100A	3	Wireless	-	50Hz ~ 100kHz	±1%	±2%	2V ~ 3.8V	100ms	-	-	-	Chassis Mount
