Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	ForMeasuring	SensorType	Current-Sensing	NumberofChannels	Output	Sensitivity	Frequency	Linearity	Accuracy	Voltage-Supply	ResponseTime	Current-Supply(Max)	OperatingTemperature	Polarization	MountingType
	855-805/2000-1001 PLUG-IN CURRENT TRANSFORMER PRC WAGO Corporation	3,649	229.02	RFQ	Datasheet	Box	-	Active	DC	Transformer w/Conditioning	2000A	1	-	-	-	-	-	-	-	-	-5°C ~ 50°C	-	Chassis Mount

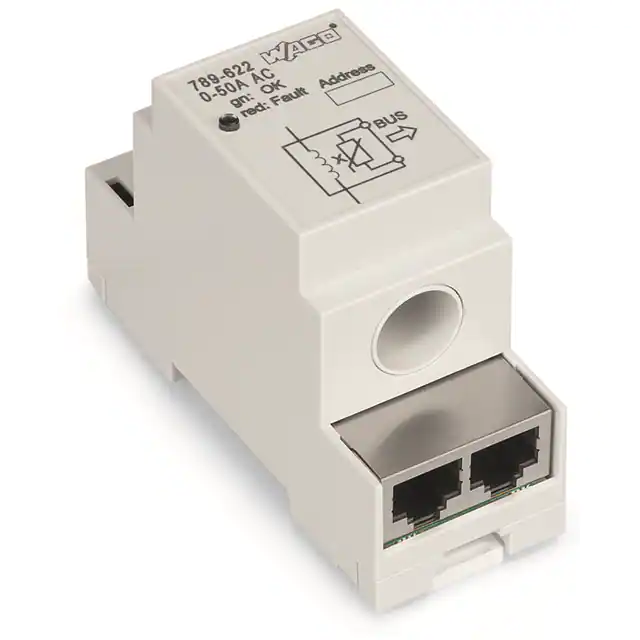

	789-622 CURRENT SIGNAL CONDITIONER; CURR WAGO Corporation	2,115	332.04	RFQ	Datasheet	Box	-	Active	DC	Current Sensor	50A	1	-	-	-	-	-	24V	-	-	-20°C ~ 70°C	-	DIN Rail

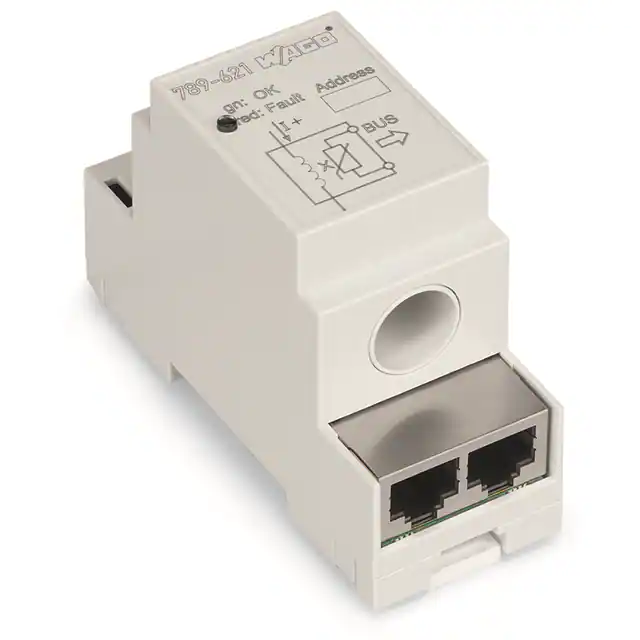

	789-621 CURRENT SIGNAL CONDITIONER; CURR WAGO Corporation	3,927	341.59	RFQ	Datasheet	Box	-	Active	DC	Current Sensor	140A	1	-	-	-	-	-	24V	-	-	-20°C ~ 70°C	-	DIN Rail

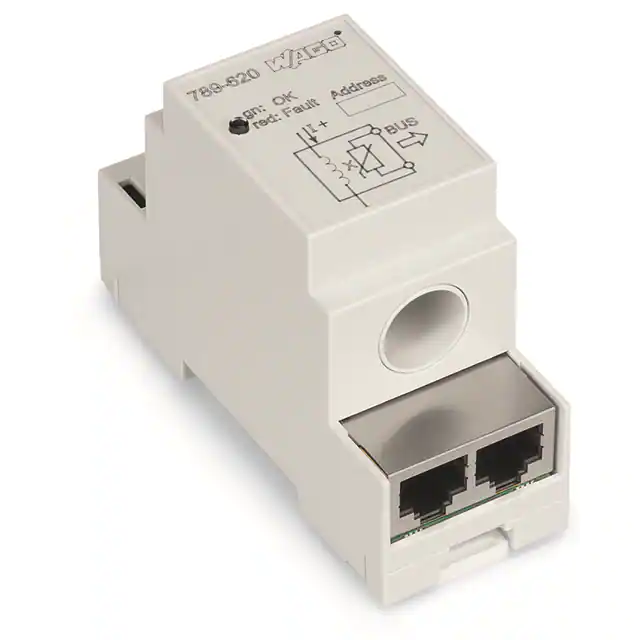

	789-620 CURRENT SENSOR WITH BUS CONNECTI WAGO Corporation	2,869	414.86	RFQ	Datasheet	Box	-	Active	DC	Current Sensor	80A	1	-	-	-	-	-	-	-	-	-20°C ~ 70°C	-	DIN Rail
