Results:

Photo Mfr. Part # Availability Price Quantity Datasheet Packaging Series ProductStatus Technology Type IsolatedPower NumberofChannels Inputs-Side1/Side2 ChannelType Voltage-Isolation CommonModeTransientImmunity(Min) DataRate PropagationDelaytpLH/tpHL(Max) PulseWidthDistortion(Max) Rise/FallTime(Typ) Voltage-Supply OperatingTemperature MountingType

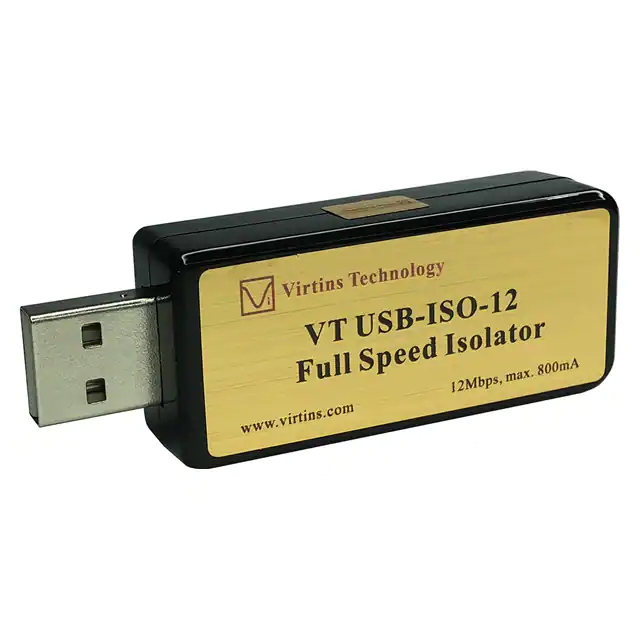

VT-USB-ISO-12

VT-USB-ISO-12

USB FULL SPEED ISOLATOR >800MA

Virtins Technology

3,497

79.95

RFQ

Retail Package

ISO

Active

-

USB

Yes

1

-

Bidirectional

2500VDC

-

12Mbps

-

-

-

5V

40°C ~ 50°C

-

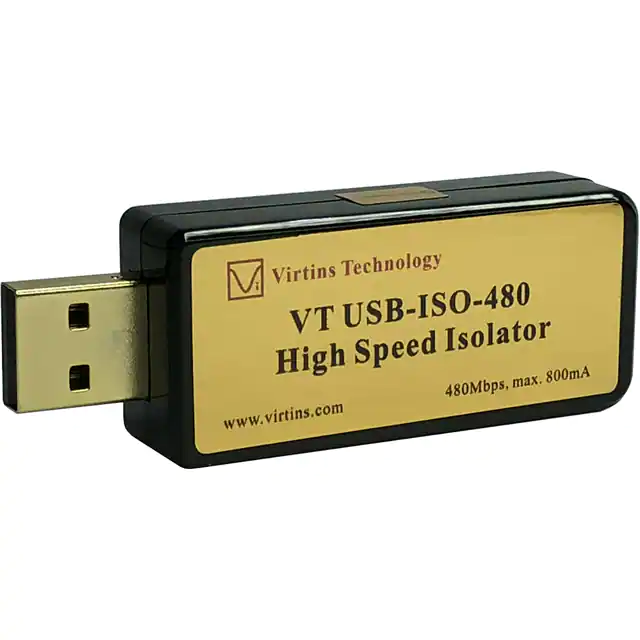

VT-USB-ISO-480

VT-USB-ISO-480

USB HIGH SPEED ISOLATOR >800MA

Virtins Technology

2,402

159.95

RFQ

Retail Package

ISO

Active

-

USB

Yes

1

-

Bidirectional

2500VDC

-

480Mbps

-

-

-

5V

40°C ~ 50°C

-
