Photo Mfr. Part # Availability Price Quantity Datasheet Packaging Series ProductStatus DiodeType Voltage-PeakReverse(Max) Current-Max Capacitance@VrF Resistance@IfF PowerDissipation(Max) OperatingTemperature

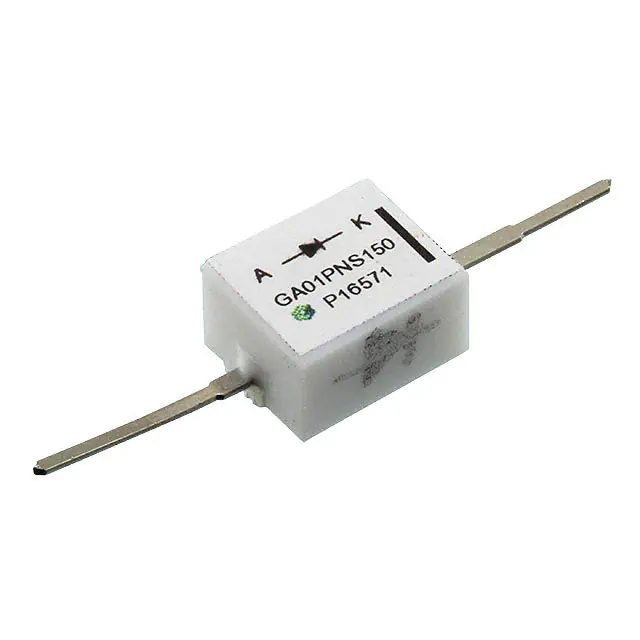

GA01PNS150-220

GA01PNS150-220

RF DIODE PIN 15000V

GeneSiC Semiconductor

2,073

561.00

RFQ

GA01PNS150-220

Datasheet

Tube

-

Active

PIN - Single

15000V

1 A

7pF @ 1000V, 1MHz

-

-

-55°C ~ 175°C (TJ)

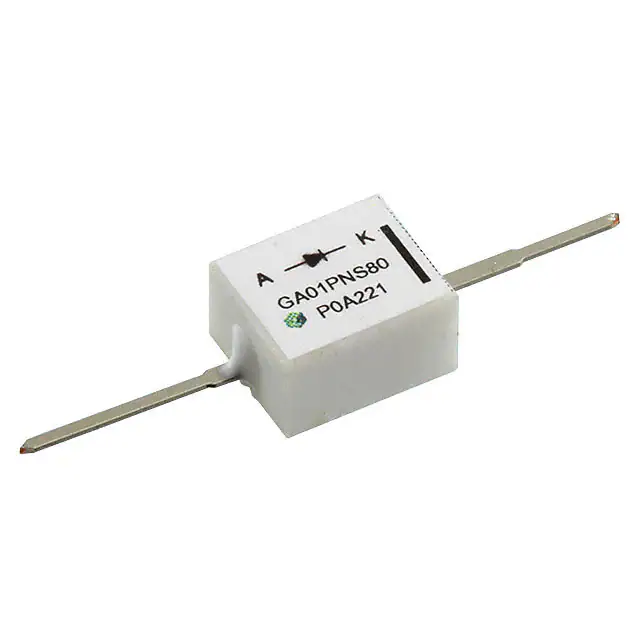

GA01PNS80-220

GA01PNS80-220

RF DIODE PIN 8000V

GeneSiC Semiconductor

2,778

349.80

RFQ

GA01PNS80-220

Datasheet

Tube

-

Active

PIN - Single

8000V

2 A

4pF @ 1000V, 1MHz

-

-

-55°C ~ 175°C (TJ)

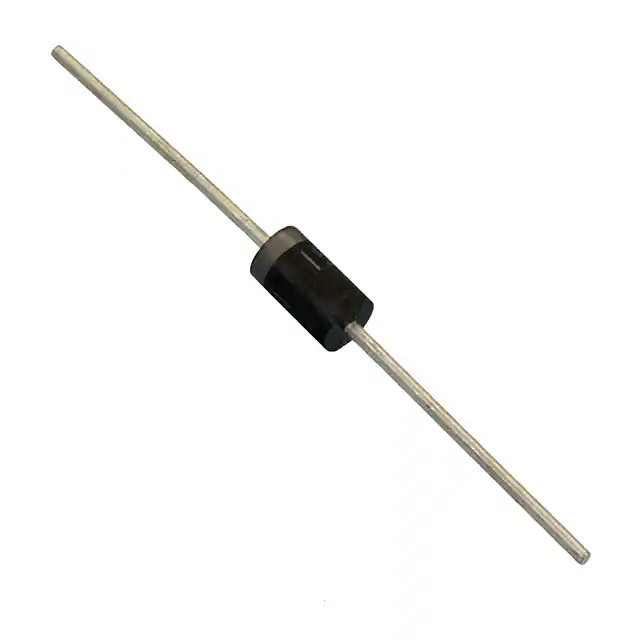

GA01PNS150-201

GA01PNS150-201

SIC DIODE 15000V 1A DO-201

GeneSiC Semiconductor

3,229

561.00

RFQ

GA01PNS150-201

Datasheet

Bulk

-

Active

PIN - Single

15000V

1 A

22pF @ 1V, 1MHz

-

-

-55°C ~ 175°C (TJ)
