Results:

Photo Mfr. Part # Availability Price Quantity Datasheet Packaging Series ProductStatus DiodeType Voltage-PeakReverse(Max) Current-Max Capacitance@VrF Resistance@IfF PowerDissipation(Max) OperatingTemperature

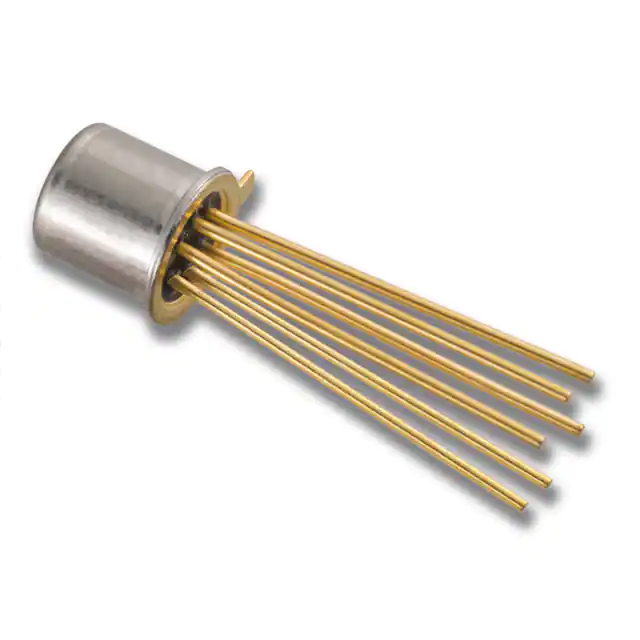

ID101 TO-71 6L

ID101 TO-71 6L

LOW LEAKAGE, MONOLITHIC DUAL, PI

Linear Integrated Systems, Inc.

3,957

5.31

RFQ

Bulk

-

Active

Standard - 2 Independent

30V

20 mA

1pF @ 10V, 1MHz

-

300 mW

-55°C ~ 150°C (TJ)

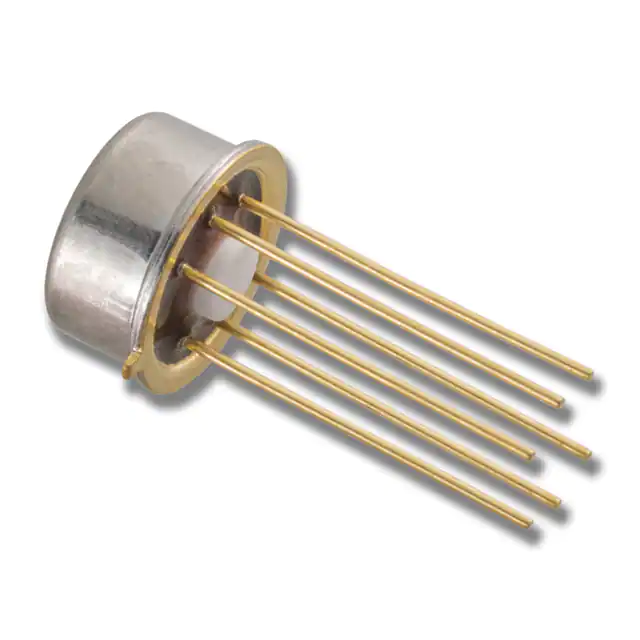

ID100 TO-78 6L

ID100 TO-78 6L

LOW LEAKAGE, MONOLITHIC DUAL, PI

Linear Integrated Systems, Inc.

2,545

5.50

RFQ

Bulk

-

Active

Standard - 2 Independent

30V

20 mA

1pF @ 10V, 1MHz

-

300 mW

-55°C ~ 150°C (TJ)
