Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	EncoderType	OutputType	PulsesperRevolution	Voltage-Supply	ActuatorType	Detent	BuiltinSwitch	MountingType	Orientation	TerminationStyle
	FS210 FLEXSENSE TRANS INCRE ENCODER TT Electronics/Optek Technology	490	24.15	RFQ	Datasheet	Bulk	FlexSense® I	Active	Optical	Digital, Quadrature (Analog)	Programmable	2.97V ~ 3.6V	Codewheel Not Included	No	No	Surface Mount	Vertical	SMD (SMT) Tab
	FS310 FLEXSENSE REFLEC INCRE ENCODER TT Electronics/Optek Technology	465	25.60	RFQ	Datasheet	Bulk	FlexSense® I	Active	Optical	Digital, Quadrature (Analog)	Programmable	2.97V ~ 3.6V	Codewheel Not Included	No	No	Surface Mount	Vertical	SMD (SMT) Tab

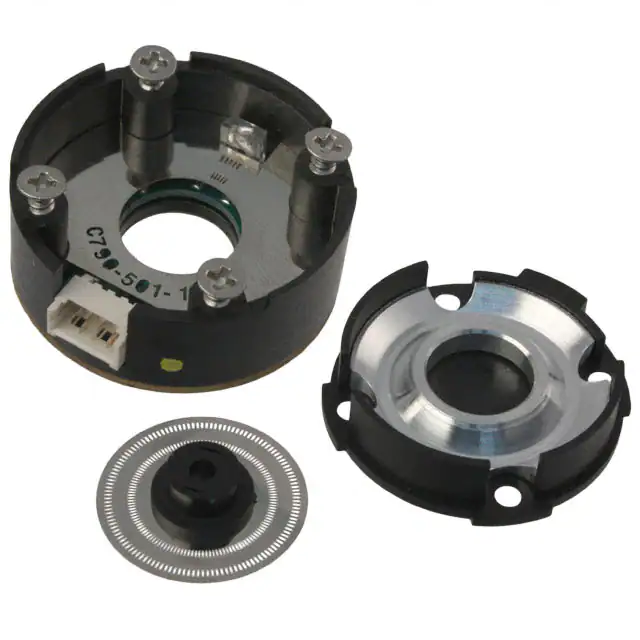

	OPE1275H-128 ROTARY ENCODER OPTICAL 128PPR TT Electronics/Optek Technology	3,552	0.00	RFQ	Datasheet	Box	OPE	Obsolete	Optical	Tachometer	128	5V	2mm Open Center	No	No	Chassis Mount, Motors	Vertical	Terminal Pins

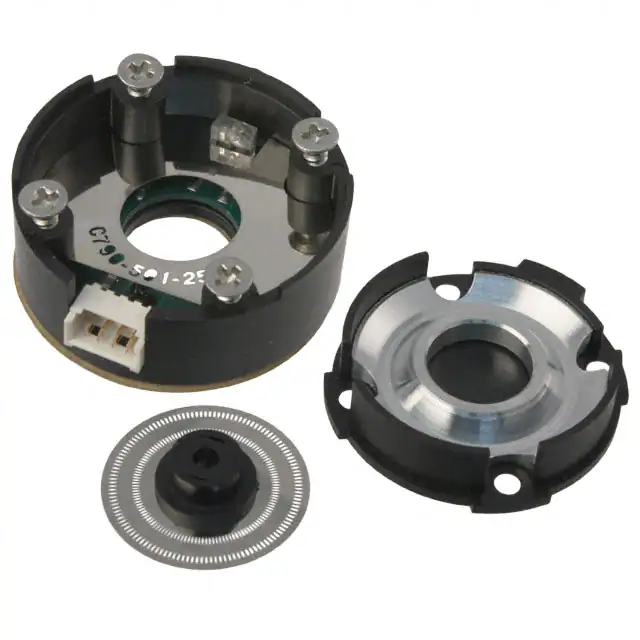

	OPE1275H-256 ROTARY ENCODER OPTICAL 256PPR TT Electronics/Optek Technology	3,572	0.00	RFQ	Datasheet	Box	OPE	Obsolete	Optical	Tachometer	256	5V	2mm Open Center	No	No	Chassis Mount, Motors	Vertical	Terminal Pins
	OPE1275S-128 ROTARY ENCODER OPTICAL 128PPR TT Electronics/Optek Technology	3,203	0.00	RFQ	Datasheet	Box	OPE	Obsolete	Optical	Tachometer	128	5V	1/4 Dia Flatted End	No	No	Panel Mount	Vertical	Terminal Pins

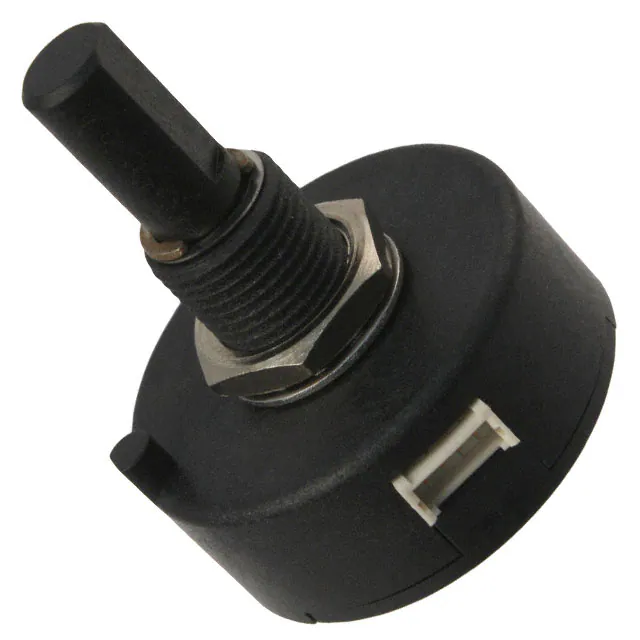

	OPE1275S-256 ROTARY ENCODER OPTICAL 256PPR TT Electronics/Optek Technology	3,298	0.00	RFQ	Datasheet	Box	OPE	Obsolete	Optical	Tachometer	256	5V	1/4 Dia Flatted End	No	No	Panel Mount	Vertical	Terminal Pins

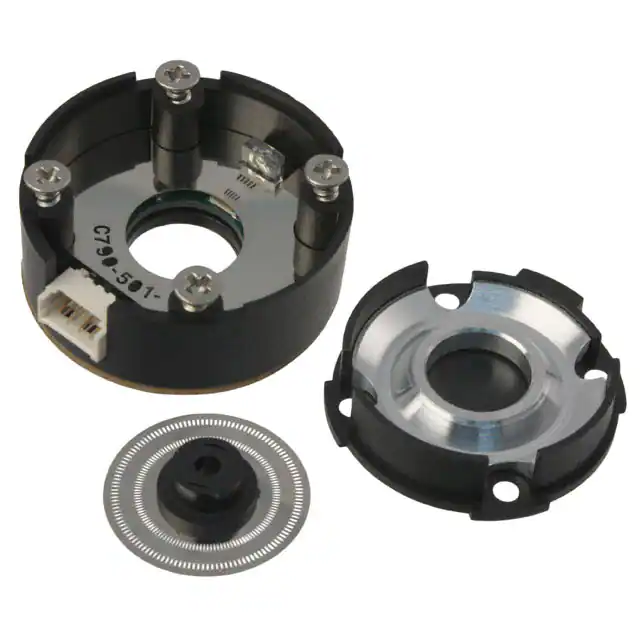

	OPE2275H-128 ROTARY ENCODER OPTICAL 128PPR TT Electronics/Optek Technology	2,882	0.00	RFQ	Datasheet	Box	OPE	Obsolete	Optical	Quadrature (Incremental)	128	5V	2mm Open Center	No	No	Chassis Mount, Motors	Vertical	Terminal Pins

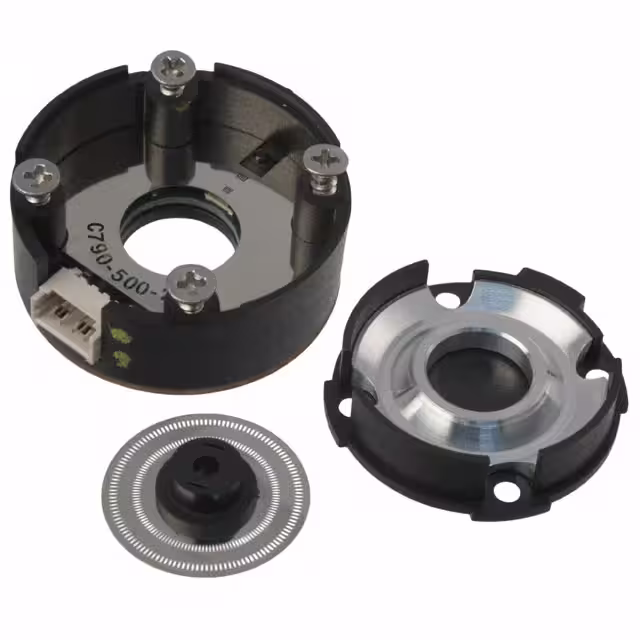

	OPE2275H-256 ROTARY ENCODER OPTICAL 256PPR TT Electronics/Optek Technology	2,518	0.00	RFQ	Datasheet	Box	OPE	Obsolete	Optical	Quadrature (Incremental)	256	5V	2mm Open Center	No	No	Chassis Mount, Motors	Vertical	Terminal Pins

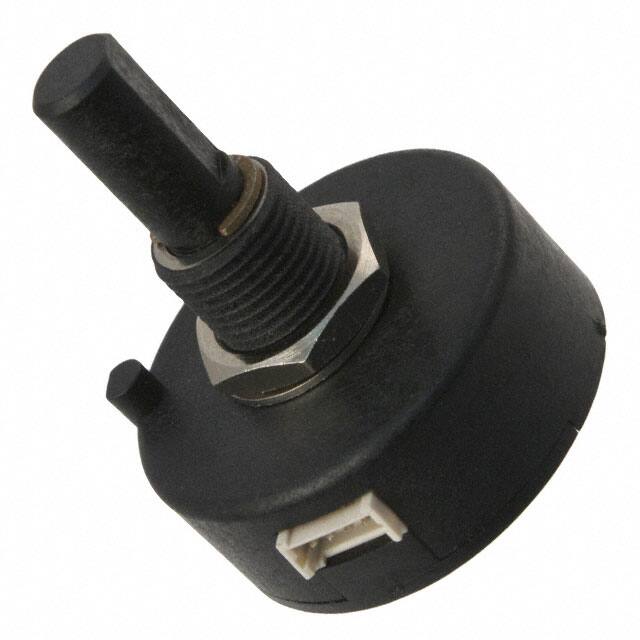

	OPE2275S-128 ROTARY ENCODER OPTICAL 128PPR TT Electronics/Optek Technology	3,942	0.00	RFQ	Datasheet	Box	OPE	Obsolete	Optical	Quadrature (Incremental)	128	5V	1/4 Dia Flatted End	No	No	Panel Mount	Vertical	Terminal Pins
	OPE2275S-256 ROTARY ENCODER OPTICAL 256PPR TT Electronics/Optek Technology	2,154	0.00	RFQ	Datasheet	Box	OPE	Obsolete	Optical	Quadrature (Incremental)	256	5V	1/4 Dia Flatted End	No	No	Panel Mount	Vertical	Terminal Pins
