Photo Mfr. Part # Availability Price Quantity Datasheet Packaging Series ProductStatus EncoderType OutputType PulsesperRevolution Voltage-Supply ActuatorType Detent BuiltinSwitch MountingType Orientation TerminationStyle

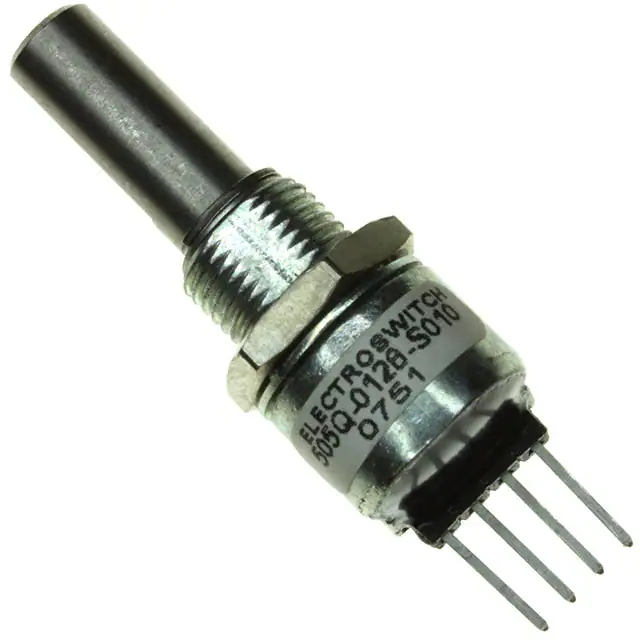

505Q-0128-S010

505Q-0128-S010

ROTARY ENCODER MAGNETIC 128PPR

2,993

121.20

RFQ

505Q-0128-S010

Datasheet

Box

500

Active

Magnetic

Quadrature (Incremental)

128

5V

1/4 Dia Flatted End

No

No

Panel, PCB Through Hole

Vertical

PC Pin

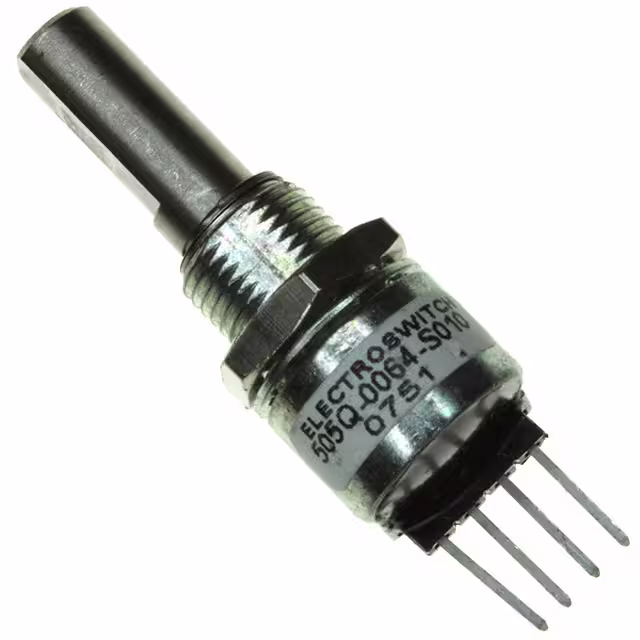

505Q-0064-S010

505Q-0064-S010

ROTARY ENCODER MAGNETIC 64PPR

2,745

228.01

RFQ

505Q-0064-S010

Datasheet

Box

500

Active

Magnetic

Quadrature (Incremental)

64

5V

1/4 Dia Flatted End

No

No

Panel, PCB Through Hole

Vertical

PC Pin

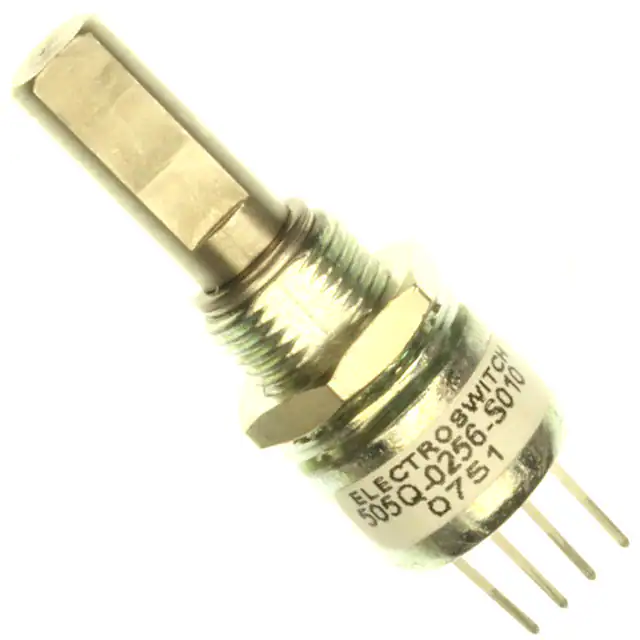

505Q-0256-S010

505Q-0256-S010

ROTARY ENCODER MAGNETIC 256PPR

2,508

228.01

RFQ

505Q-0256-S010

Datasheet

Box

500

Active

Magnetic

Quadrature (Incremental)

256

5V

1/4 Dia Flatted End

No

No

Panel, PCB Through Hole

Vertical

PC Pin
