Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FilterType	NumberofLines	Impedance@Frequency	CurrentRating(Max)	DCResistance(DCR)(Max)	Ratings	OperatingTemperature	MountingType	Height(Max)	Size/Dimension
	0805RB-421XMRC FERRITE BEAD COILCRAFT	2,278	1.59	RFQ		Strip	0805RB	Active	Power Line	1	420 Ohms @ 100 MHz	850mA	245mOhm	-	-40°C ~ 85°C	Surface Mount	0.049 (1.25mm)	0.090 L x 0.068 W (2.29mm x 1.73mm)
	0805RB-222XMRC FERRITE BEAD COILCRAFT	3,982	1.59	RFQ		Strip	0805RB	Active	Power Line	1	2.2 kOhms @ 100 MHz	350mA	1.2Ohm	-	-40°C ~ 85°C	Surface Mount	0.049 (1.25mm)	0.090 L x 0.068 W (2.29mm x 1.73mm)
	0805RB-152XMRC FERRITE BEAD COILCRAFT	3,077	1.59	RFQ		Strip	0805RB	Active	Power Line	1	1.5 kOhms @ 100 MHz	425mA	1.16Ohm	-	-40°C ~ 85°C	Surface Mount	0.049 (1.25mm)	0.090 L x 0.068 W (2.29mm x 1.73mm)
	0805RB-221XMRC FERRITE BEAD COILCRAFT	3,437	1.59	RFQ		Strip	0805RB	Active	Power Line	1	220 Ohms @ 100 MHz	1A	180mOhm	-	-40°C ~ 85°C	Surface Mount	0.049 (1.25mm)	0.090 L x 0.068 W (2.29mm x 1.73mm)
	0805RB-601XMRC FERRITE BEAD COILCRAFT	3,954	1.59	RFQ		Strip	0805RB	Active	Power Line	1	600 Ohms @ 100 MHz	700mA	385mOhm	-	-40°C ~ 85°C	Surface Mount	0.049 (1.25mm)	0.090 L x 0.068 W (2.29mm x 1.73mm)
	0805RB-751XMRC FERRITE BEAD COILCRAFT	3,460	1.59	RFQ		Strip	0805RB	Active	Power Line	1	750 Ohms @ 100 MHz	650mA	405mOhm	-	-40°C ~ 85°C	Surface Mount	0.049 (1.25mm)	0.090 L x 0.068 W (2.29mm x 1.73mm)
	0805RB-272XMRC FERRITE BEAD COILCRAFT	3,439	1.59	RFQ		Strip	0805RB	Active	Power Line	1	2.7 kOhms @ 100 MHz	325mA	1.32Ohm	-	-40°C ~ 85°C	Surface Mount	0.049 (1.25mm)	0.090 L x 0.068 W (2.29mm x 1.73mm)
	0805RB-121XMRC FERRITE BEAD COILCRAFT	2,816	1.59	RFQ		Strip	0805RB	Active	Power Line	1	120 Ohms @ 100 MHz	1.2A	130mOhm	-	-40°C ~ 85°C	Surface Mount	0.049 (1.25mm)	0.090 L x 0.068 W (2.29mm x 1.73mm)
	0805RB-151XMRC FERRITE BEAD COILCRAFT	3,761	1.59	RFQ		Strip	0805RB	Active	Power Line	1	150 Ohms @ 100 MHz	1.1A	150mOhm	-	-40°C ~ 85°C	Surface Mount	0.049 (1.25mm)	0.090 L x 0.068 W (2.29mm x 1.73mm)

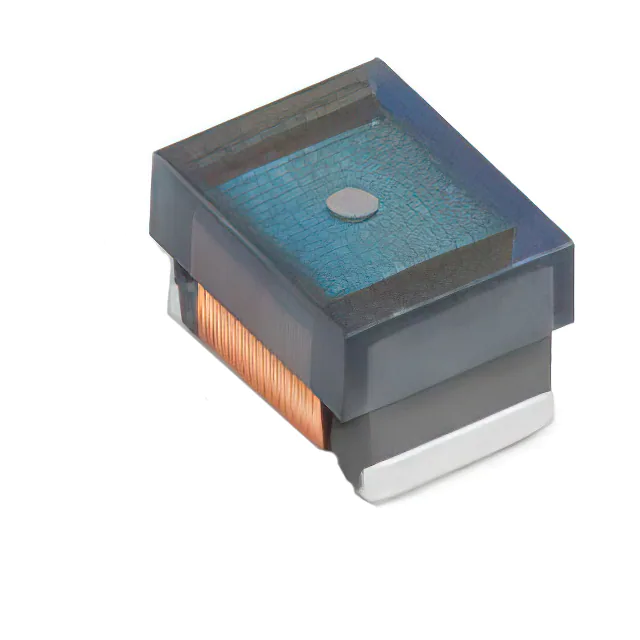

	0805RB-102XMRC FERRITE BEAD COILCRAFT	2,355	1.59	RFQ		Strip	0805RB	Active	Power Line	1	1 kOhms @ 100 MHz	450mA	810mOhm	-	-40°C ~ 85°C	Surface Mount	0.049 (1.25mm)	0.090 L x 0.068 W (2.29mm x 1.73mm)
	0805RB-471XMRC FERRITE BEAD COILCRAFT	2,496	1.59	RFQ		Strip	0805RB	Active	Power Line	1	470 Ohms @ 100 MHz	800mA	295mOhm	-	-40°C ~ 85°C	Surface Mount	0.049 (1.25mm)	0.090 L x 0.068 W (2.29mm x 1.73mm)
	0805RB-331XMRC FERRITE BEAD COILCRAFT	3,412	1.59	RFQ		Strip	0805RB	Active	Power Line	1	330 Ohms @ 100 MHz	900mA	235mOhm	-	-40°C ~ 85°C	Surface Mount	0.049 (1.25mm)	0.090 L x 0.068 W (2.29mm x 1.73mm)
