Photo Mfr. Part # Availability Price Quantity Datasheet Packaging Series ProductStatus MountingType FuseSize CurrentRating(Amps) ForUseWith/RelatedProducts FuseType FuseholderType NumberofCircuits Voltage Orientation TerminationStyle ContactMaterial

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	MountingType	FuseSize	CurrentRating(Amps)	ForUseWith/RelatedProducts	FuseType	FuseholderType	NumberofCircuits	Voltage	Orientation	TerminationStyle	ContactMaterial

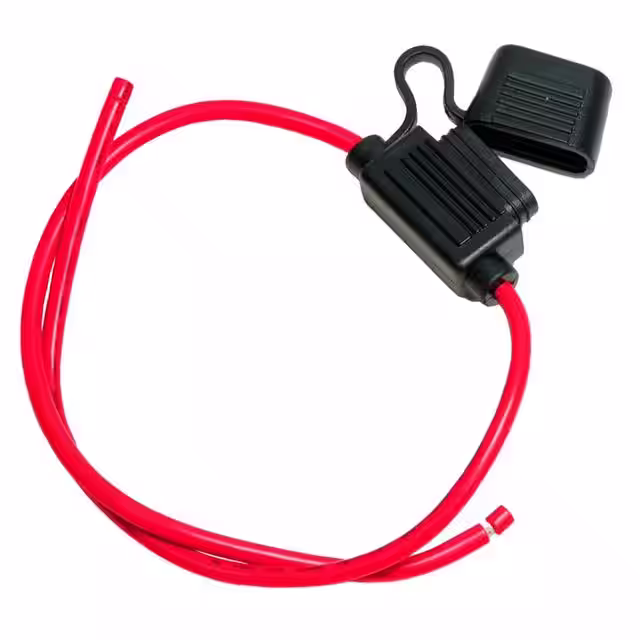

	901028 FUSE HOLDER ATO 18 RED WIRE Egis Mobile Electric	3,736	3.32	RFQ	Datasheet	Bulk	-	Active	Free Hanging (In-Line)	1.600 L x 0.520 W (40.64mm x 13.21mm)	-	-	Blade	Holder	1	600V	Horizontal and Vertical	Wire Leads	Copper

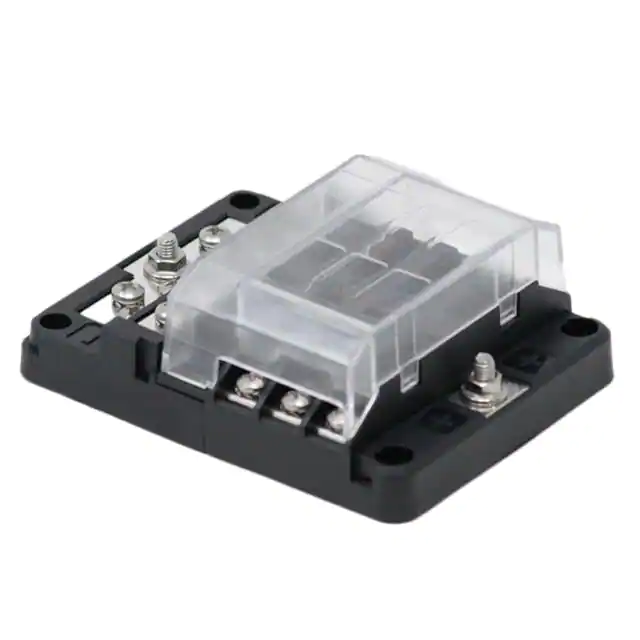

	8025B 6 CIRCUIT FUSE BLOCK W/GROUND Egis Mobile Electric	3,472	30.90	RFQ	Datasheet	Bulk	-	Active	Chassis Mount	-	100 A	-	Bolt Down	Block	6	24V	Horizontal and Vertical	Screw Terminal	Steel
