Photo Mfr. Part # Availability Price Quantity Datasheet Packaging Series ProductStatus Type OutputType ActuatorMaterial TerminationStyle Frequency Voltage-Supply MustOperate MustRelease OperatingTemperature

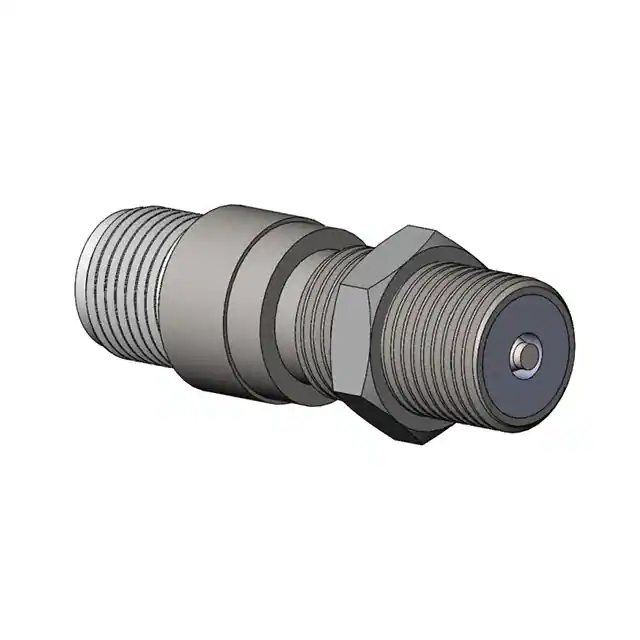

005-225

005-225

VR SENSOR, REPLACES 3030AN, MADE

Smith Systems, Inc.

2,096

70.00

RFQ

005-225

Datasheet

Box

5000

Active

VRS (Passive)

Sine Wave

Ferrous Metals, Gear Tooth

Connector

-

-

-

-

-55°C ~ 150°C (TA)

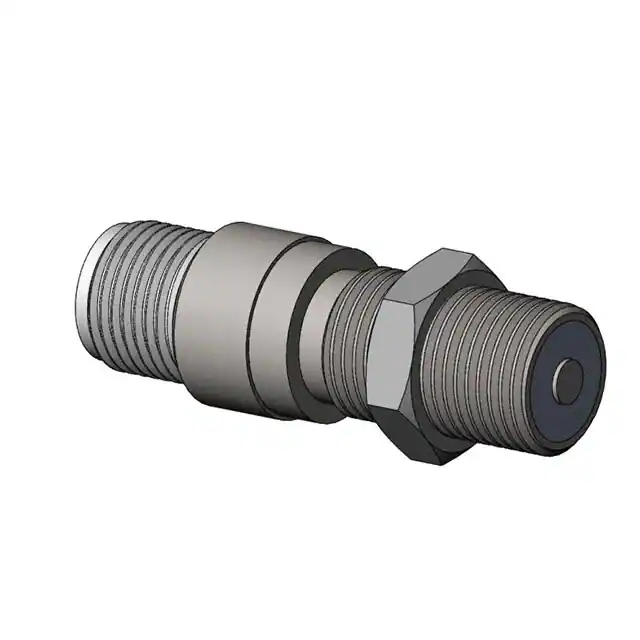

005-130

005-130

VR SENSOR, REPLACES 3040AN, MADE

Smith Systems, Inc.

2,746

75.00

RFQ

005-130

Datasheet

Box

5000

Active

VRS (Passive)

Sine Wave

Ferrous Metals, Gear Tooth

Connector

-

-

-

-

-55°C ~ 150°C (TA)
