Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	OutputType	ActuatorMaterial	TerminationStyle	Frequency	Voltage-Supply	MustOperate	MustRelease	OperatingTemperature

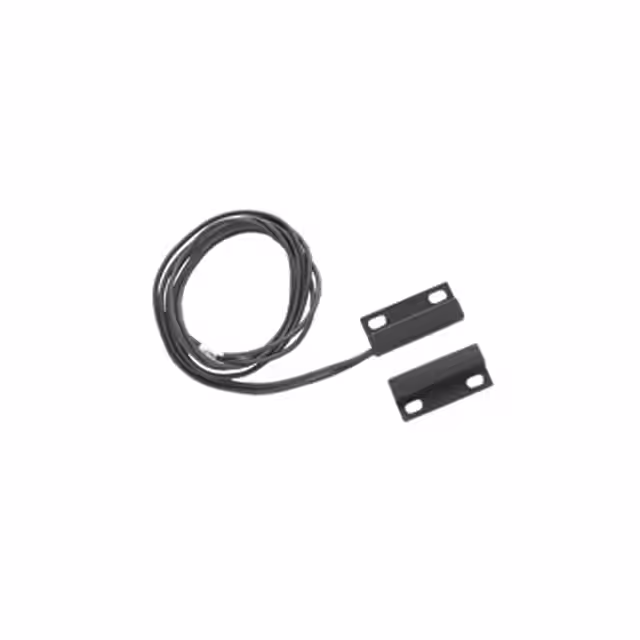

	54-636 SW-MAG REED FLANGE MNT NTE Electronics, Inc	200	2.82	RFQ	Datasheet	Bulk	-	Active	Reed Switch	SPST-NO	Magnet	Wire Leads	-	-	-	-	-

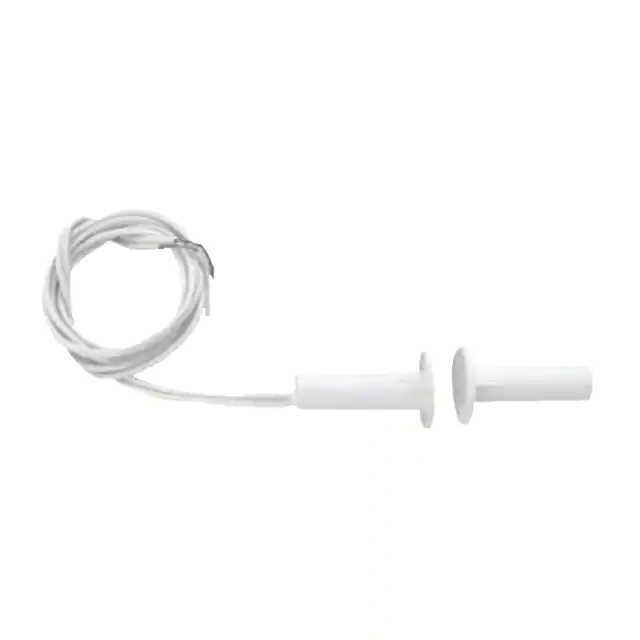

	54-628 SW-MAG REED RECESSED MNT NTE Electronics, Inc	160	3.02	RFQ	Datasheet	Bulk	-	Active	Reed Switch	SPST-NO	Magnet	Wire Leads	-	-	-	-	-

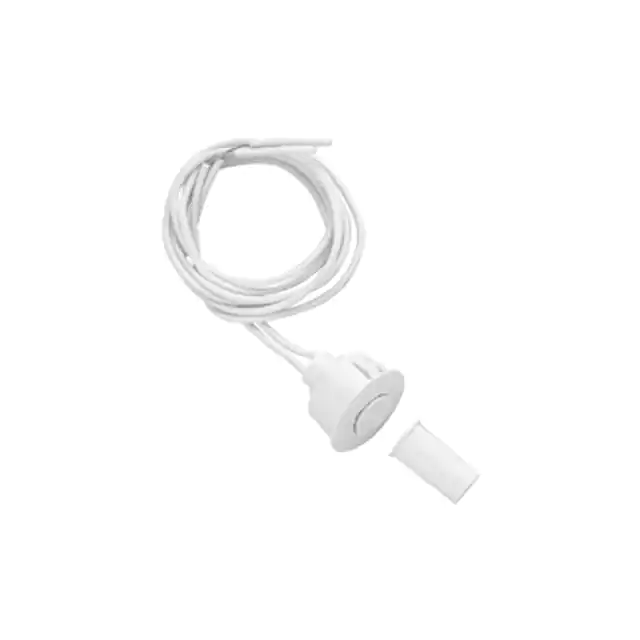

	54-631 SW-MAG REED RECESSED MNT NTE Electronics, Inc	288	3.28	RFQ	Datasheet	Bulk	-	Active	Reed Switch	SPST-NO	Magnet	Wire Leads	-	-	-	-	-

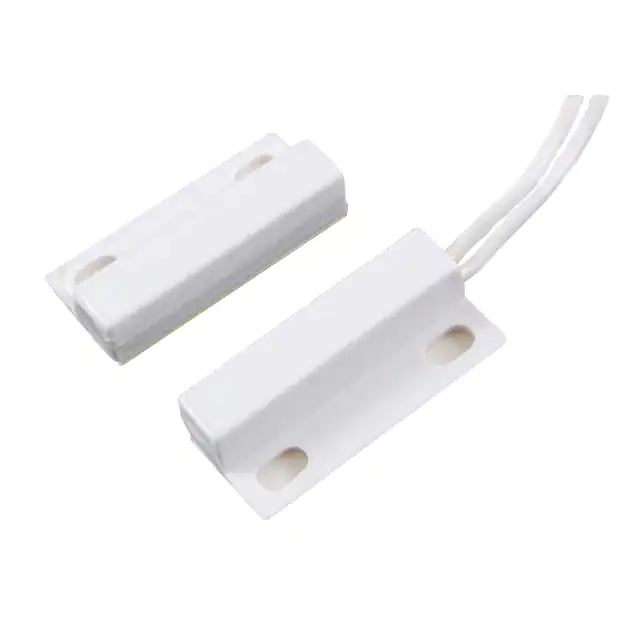

	54-630 SW-MAG REED FLANGE MNT NTE Electronics, Inc	2,556	3.68	RFQ	Datasheet	Bulk	-	Active	Reed Switch	SPST-NO	Magnet	Wire Leads	-	-	-	-	-

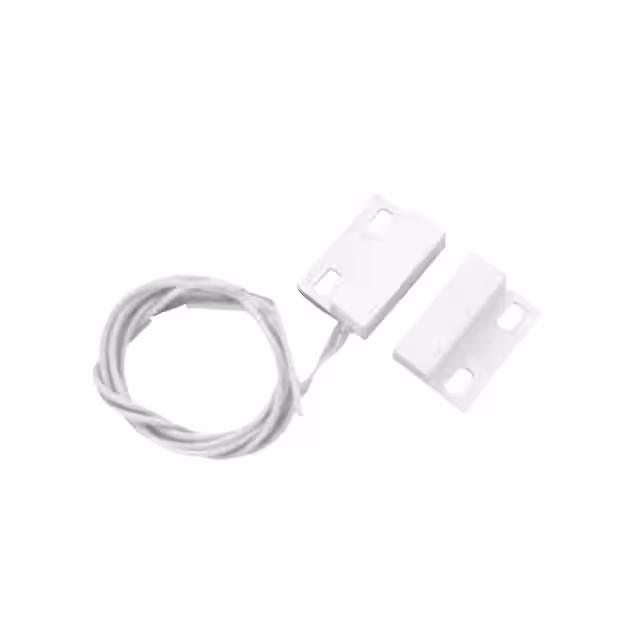

	54-632 SW-MAG REED FLANGE MNT NTE Electronics, Inc	232	4.08	RFQ	Datasheet	Bulk	-	Active	Reed Switch	SPST-NO	Magnet	Wire Leads	-	-	-	-	-

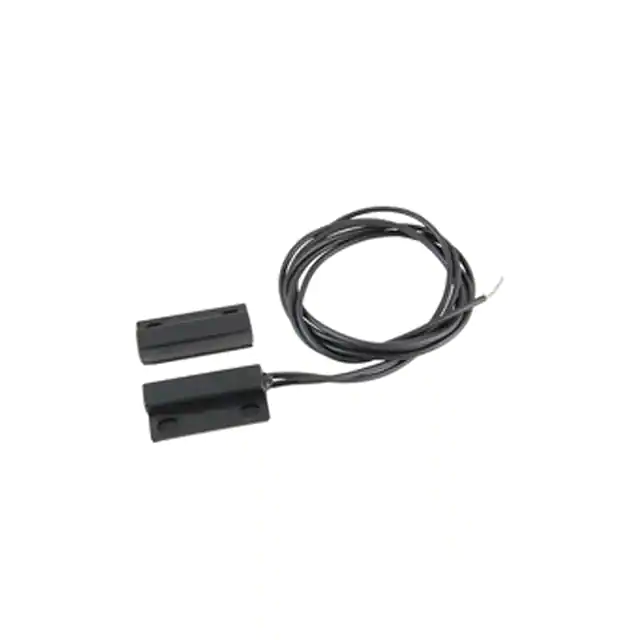

	54-637 SW-MAG REED FLANGE MOUNT NTE Electronics, Inc	2,088	4.11	RFQ	Datasheet	Bulk	-	Active	Reed Switch	SPST-NO	Magnet	Wire Leads	-	-	-	-	-

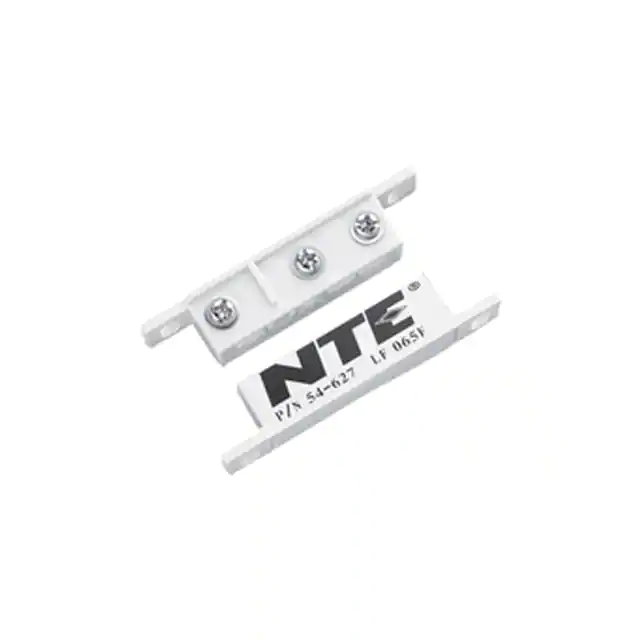

	54-627 MAGNETIC ALARM SWITCH NTE Electronics, Inc	2,769	10.61	RFQ	Datasheet	Bulk	-	Active	Reed Switch	SPDT	Magnet	Screw Terminal	-	-	-	-	-

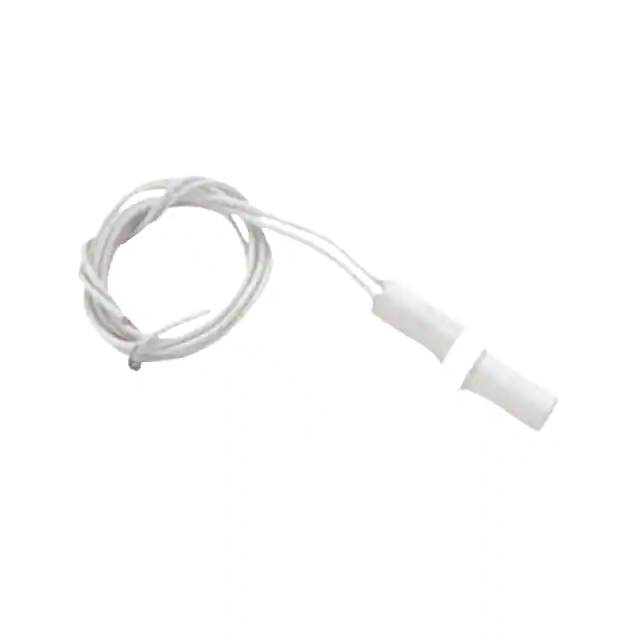

	54-629 SW-MAG REED RECESSED MNT NTE Electronics, Inc	2,804	3.18	RFQ	Datasheet	Bulk	-	Active	Reed Switch	SPST-NO	Magnet	Wire Leads	-	-	-	-	-
