Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	MotorType	Control/DriveType	NumberofMotors	Voltage-Load	Current-Output	Wattage-Load	Voltage-Supply	Interface	MountingType	OperatingTemperature	Features
	MD5-HD14 STEPPER DRIVER 5PH 3A 20-35VDC Autonics	239	457.95	RFQ	Datasheet	Box	MD5	Active	Module	Stepper	Stepper, Bipolar	1	-	3A	-	20 ~ 35VDC	-	Chassis Mount	0°C ~ 40°C	-
	MD5-HF14 STEPPER DRIVER 5PH 3A 100-220VAC Autonics	2,127	611.95	RFQ	Datasheet	Box	MD5	Active	Module	Stepper	Stepper, Bipolar	1	-	3A	-	100 ~ 220VAC	-	Chassis Mount	0°C ~ 50°C	-

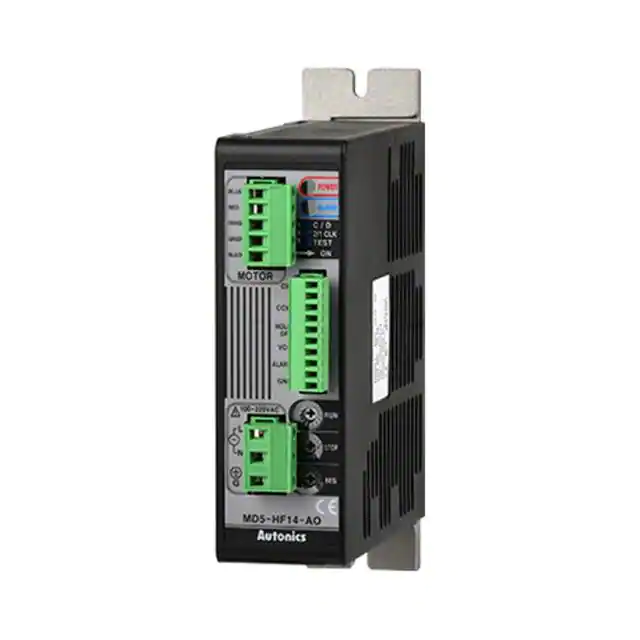

	MD5-HF14-AO STEPPER DRIVER 5PH 3A 100-220VAC Autonics	2,243	611.95	RFQ	Datasheet	Box	MD5	Active	Module	Stepper	Stepper, Bipolar	1	-	3A	-	100 ~ 220VAC	-	Chassis Mount	0°C ~ 50°C	-

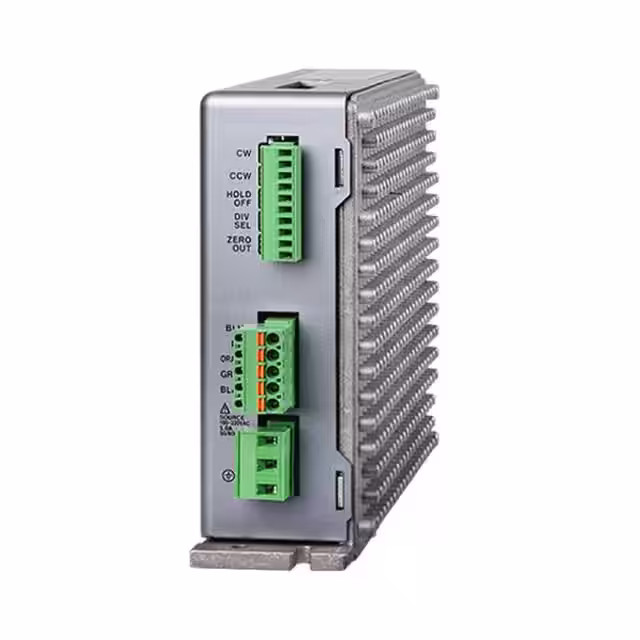

	MD5-HF28 STEPPER DRIVER 5PH 5A 100-220VAC Autonics	2,657	823.95	RFQ	Datasheet	Box	MD5	Active	Module	Stepper	Stepper, Bipolar	1	-	5A	-	100 ~ 220VAC	-	Chassis Mount	0°C ~ 50°C	-

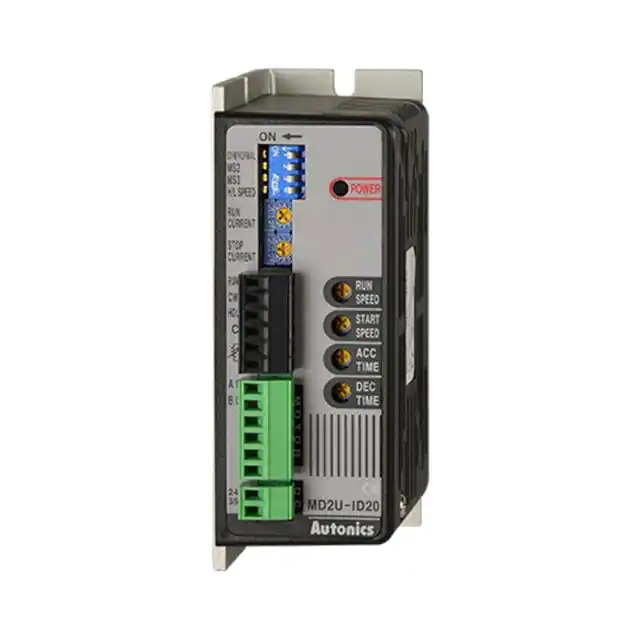

	MD2U-ID20 STEPPER DRIVER 2PH 3A 24-35VDC Autonics	3,261	215.95	RFQ	Datasheet	Box	MD2	Active	Module	Stepper	Stepper, Unipolar	1	-	3A	-	24 ~ 35VDC	-	Chassis Mount	0°C ~ 50°C	-

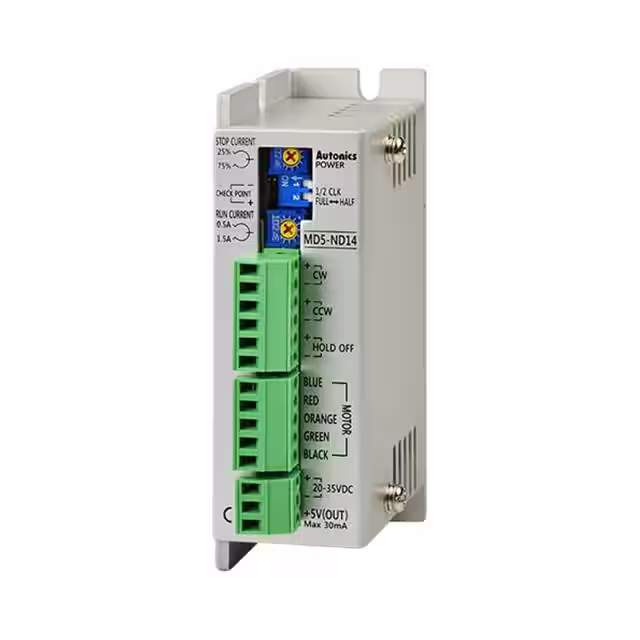

	MD5-ND14 STEPPER DRIVER 5PH 3A 20-35VDC Autonics	3,624	362.95	RFQ	Datasheet	Box	MD5	Active	Module	Stepper	Stepper, Bipolar	1	-	3A	-	20 ~ 35VDC	-	Chassis Mount	0°C ~ 40°C	-

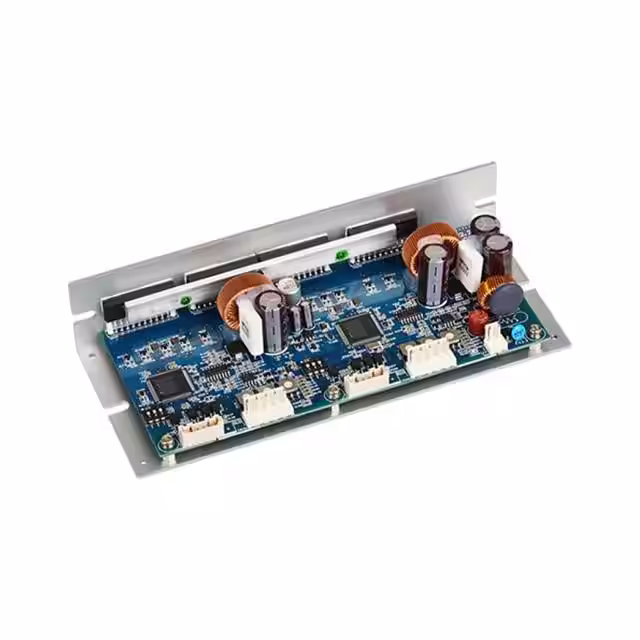

	MD5-HD14-2X STEPPER DRIVER 5PH 5A 20-35VDC Autonics	3,396	673.95	RFQ	Datasheet	Box	MD5	Active	Module	Stepper	Stepper, Bipolar	2	-	5A	-	20 ~ 35VDC	-	Chassis Mount	0°C ~ 40°C	-
