Photo Mfr. Part # Availability Price Quantity Datasheet Packaging Series ProductStatus TransformerType Inductance ET(Volt-Time) TurnsRatio-Primary:Secondary MountingType Size/Dimension Height-Seated(Max)

BC3.5LFB1.4

BC3.5LFB1.4

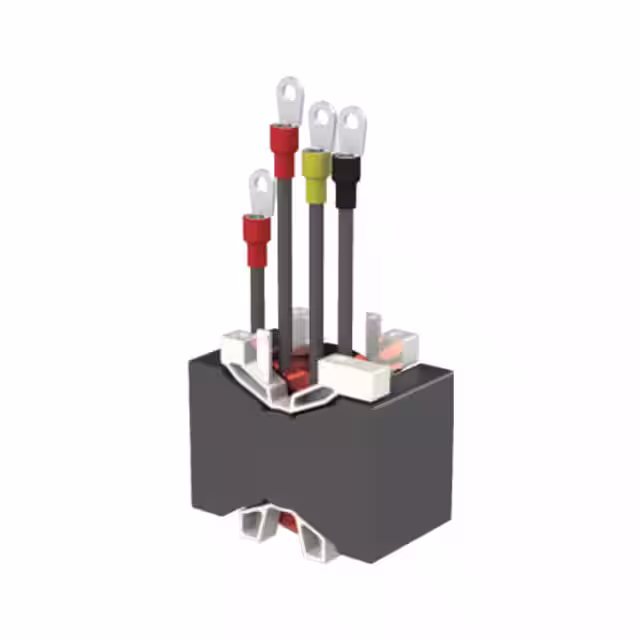

LLC RESONANT 3.5KW HALF-BRIDGE T

2,242

50.00

RFQ

BC3.5LFB1.4

Datasheet

Box

-

Active

-

-

-

-

-

2.402 L x 2.217 W (61.00mm x 56.30mm)

1.378 (35.00mm)
