Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	NumberofCoils	Inductance-ConnectedInParallel	Inductance-ConnectedInSeries	Tolerance	CurrentRating-Parallel	CurrentRating-Series	CurrentSaturation-Parallel	CurrentSaturation-Series	DCResistance(DCR)-Parallel	DCResistance(DCR)-Series	Shielding	Ratings	OperatingTemperature	MountingType	Size/Dimension

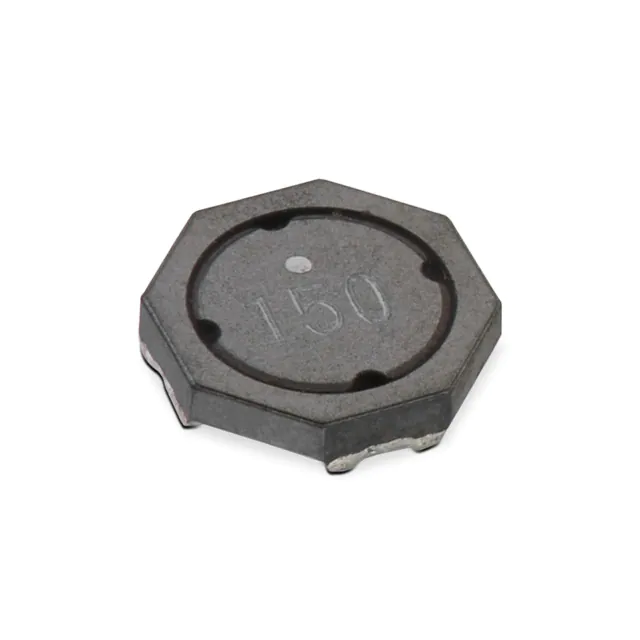

76889430056 INDUCTOR ARRAY 2 COIL 5.6UH SMD Würth Elektronik	3,222	1.47	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-TDC HV	Active	2	5.6 µH	-	±20%	1.4 A	-	2 A	-	234mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
76889430100 INDUCTOR ARRAY 2 COIL 10UH SMD Würth Elektronik	2,512	1.47	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-TDC HV	Active	2	10 µH	-	±20%	1.1 A	-	1.67 A	-	234mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
76889430150 INDUCTOR ARRAY 2 COIL 15UH SMD Würth Elektronik	2,892	1.47	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-TDC HV	Active	2	15 µH	-	±20%	0.95 A	-	1.3 A	-	422mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
76889430220 INDUCTOR ARRAY 2 COIL 22UH SMD Würth Elektronik	2,927	1.47	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-TDC HV	Active	2	22 µH	-	±20%	0.75 A	-	1 A	-	780mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard

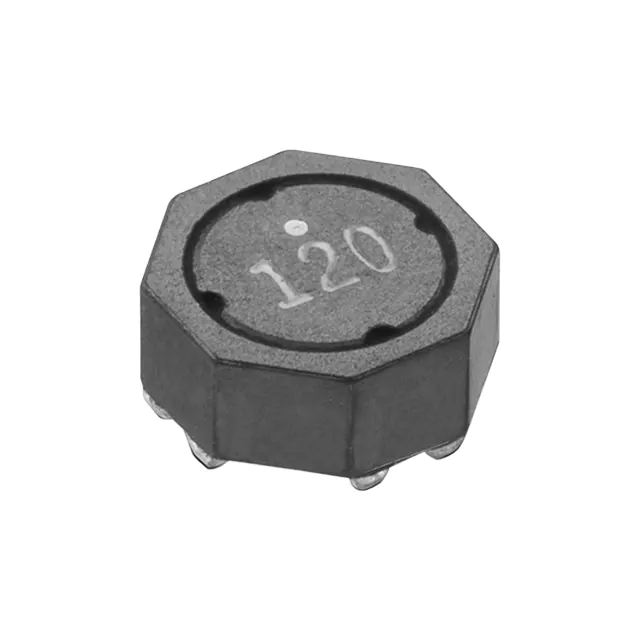

76889440047 INDUCTOR ARRAY 2 COIL 4.7UH SMD Würth Elektronik	3,958	1.47	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-TDC HV	Active	2	4.7 µH	-	±20%	2.45 A	-	4.7 A	-	110mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
76889440100 INDUCTOR ARRAY 2 COIL 10UH SMD Würth Elektronik	3,007	1.47	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-TDC HV	Active	2	10 µH	-	±20%	1.6 A	-	3 A	-	200mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
76889440150 INDUCTOR ARRAY 2 COIL 15UH SMD Würth Elektronik	3,163	1.47	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-TDC HV	Active	2	15 µH	-	±20%	1.25 A	-	2.8 A	-	355mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
76889440220 INDUCTOR ARRAY 2 COIL 22UH SMD Würth Elektronik	2,795	1.47	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-TDC HV	Active	2	22 µH	-	±20%	1 A	-	2.1 A	-	455mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
IHCL4040DZER2R2M5A INDUCT ARRAY 2 COIL 2.2UH SMD Vishay Dale	2,485	2.60	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	IHCL	Active	2	-	-	±20%	-	-	-	-	-	-	Shielded	AEC-Q200	-55°C ~ 155°C	Surface Mount	Nonstandard
7448841015 INDUCT ARRAY 2 COIL 1.5UH SMD Würth Elektronik	2,041	1.62	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-DPC HV	Active	2	1.5 µH	-	±30%	2.7 A	-	3.7 A	-	68mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
7448841033 INDUCT ARRAY 2 COIL 3.3UH SMD Würth Elektronik	2,749	1.62	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-DPC HV	Active	2	3.3 µH	-	±30%	1.9 A	-	2.6 A	-	120mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
7448841082 INDUCT ARRAY 2 COIL 8.2UH SMD Würth Elektronik	3,623	1.62	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-DPC HV	Active	2	8.2 µH	-	±30%	1.3 A	-	1.6 A	-	265mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
DRQ127-R47-R INDUCT ARRAY 2 COIL 419NH SMD Eaton - Electronics Division	700	2.50	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DRQ	Active	2	419 nH	1.676 µH	±20%	17.9 A	8.94 A	56 A	28 A	1.95mOhm	7.8mOhm	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard

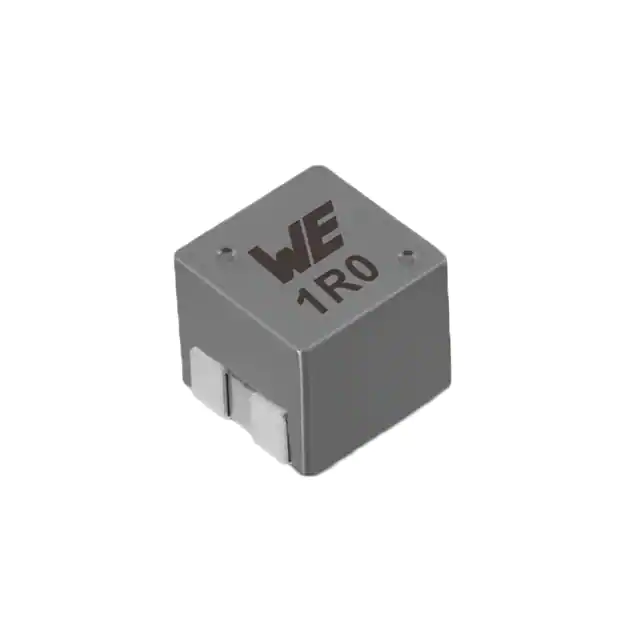

7448991015 SMT MOLDED COUPLED INDUCTOR SIZE Würth Elektronik	3,867	2.34	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-MCRI	Active	2	1.5 µH	-	±20%	11.1 A	-	28.1 A	-	10mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard

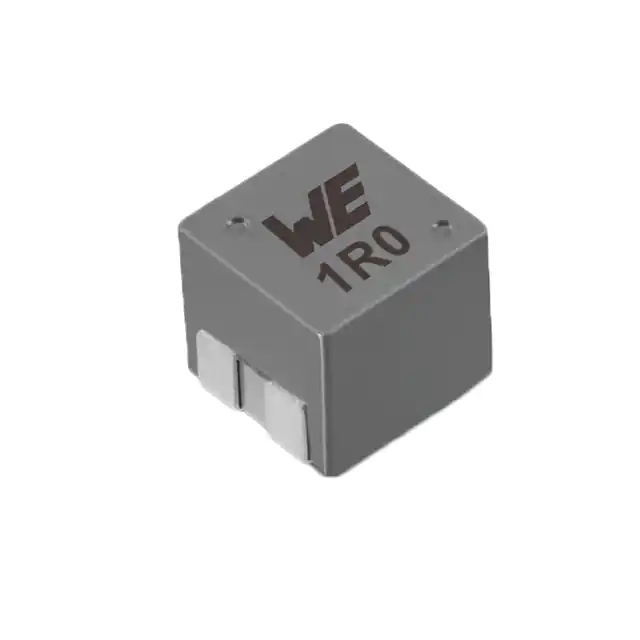

7448991022 SMT MOLDED COUPLED INDUCTOR SIZE Würth Elektronik	2,468	2.34	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-MCRI	Active	2	2.2 µH	-	±20%	8.2 A	-	20.6 A	-	16.5mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard

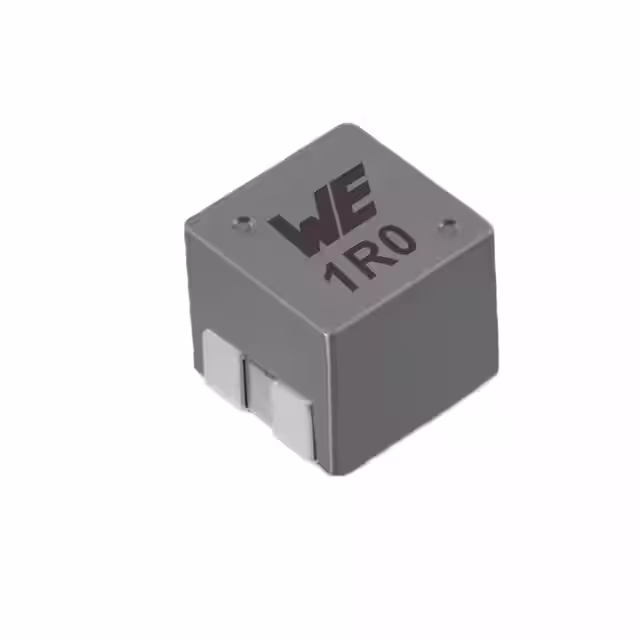

7448991027 SMT MOLDED COUPLED INDUCTOR SIZE Würth Elektronik	2,736	2.34	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-MCRI	Active	2	2.7 µH	-	±20%	7.4 A	-	16.5 A	-	16.8mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard

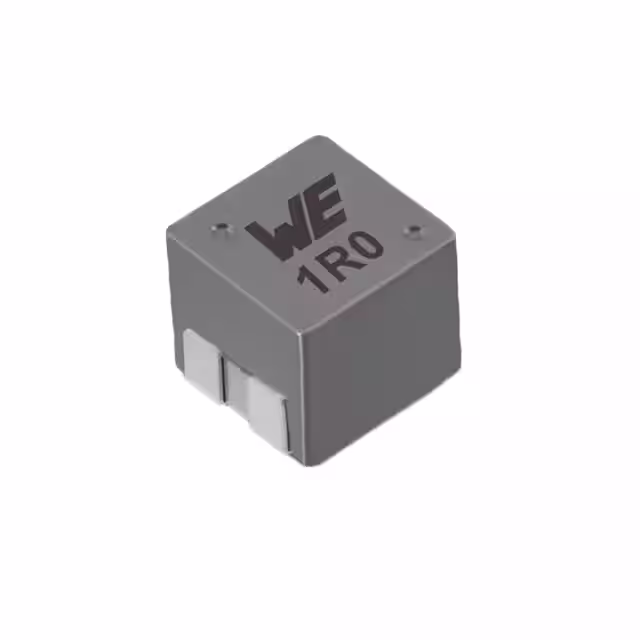

7448991082 SMT MOLDED COUPLED INDUCTOR SIZE Würth Elektronik	2,276	2.34	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-MCRI	Active	2	8.2 µH	-	±20%	4.7 A	-	11.3 A	-	46mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard

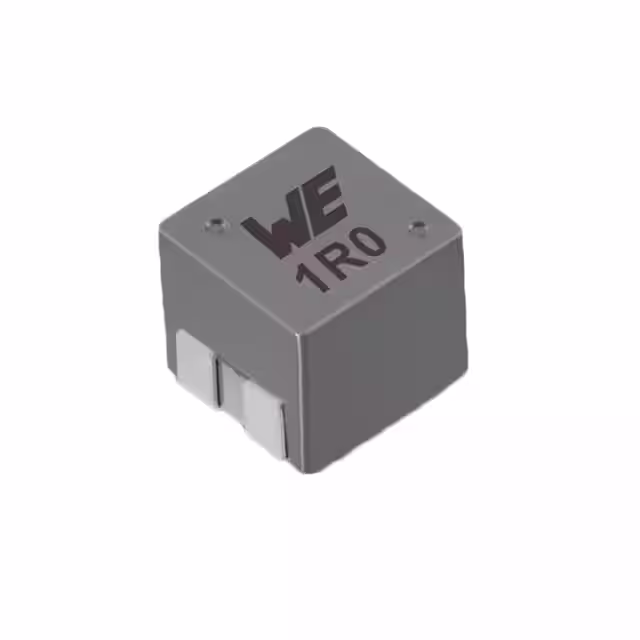

7448991100 SMT MOLDED COUPLED INDUCTOR SIZE Würth Elektronik	2,595	3.72	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-MCRI	Active	2	10 µH	-	±20%	3.7 A	-	9.8 A	-	62mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard

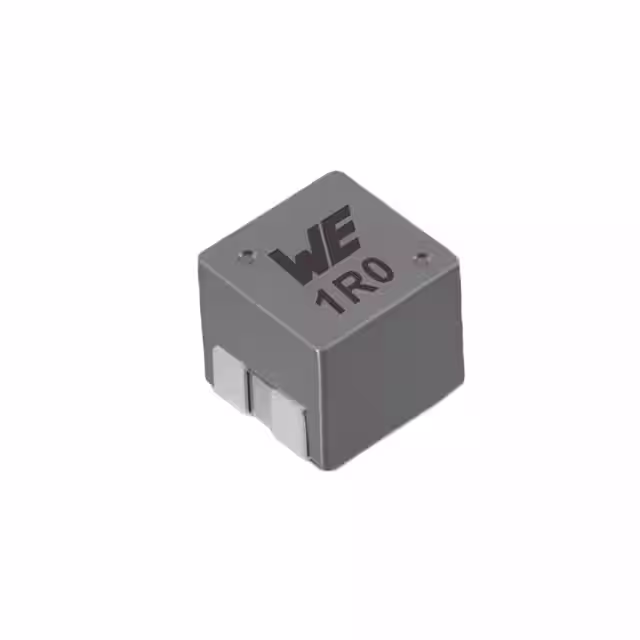

7448991330 SMT MOLDED COUPLED INDUCTOR SIZE Würth Elektronik	3,173	2.34	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-MCRI	Active	2	33 µH	-	±20%	2.05 A	-	5 A	-	230mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
7448990010 INDUCT ARRAY 2 COIL 1UH SMD Würth Elektronik	3,037	3.06	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-MCRI	Active	2	1 µH	-	±20%	17 A	-	43.5 A	-	5.6mOhm	-	Shielded	-	-40°C ~ 125°C	Surface Mount	Nonstandard
