Mfr. Part #	Availability	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	NumberofLABs/CLBs	NumberofLogicElements/Cells	TotalRAMBits	NumberofI/O	NumberofGates	Voltage-Supply	MountingType	OperatingTemperature
XC4013E-2HQ208I IC FPGA 160 I/O 208QFP AMD Xilinx	2,857	RFQ	Datasheet	208-BFQFP Exposed Pad	Tray	XC4000E/X	Obsolete	576	1368	18432	160	13000	4.5V ~ 5.5V	Surface Mount	-40°C ~ 100°C (TJ)
XC4013E-2HQ240C IC FPGA 192 I/O 240QFP AMD Xilinx	3,603	RFQ	Datasheet	240-BFQFP Exposed Pad	Tray	XC4000E/X	Obsolete	576	1368	18432	192	13000	4.75V ~ 5.25V	Surface Mount	0°C ~ 85°C (TJ)
XC4013E-2HQ240I IC FPGA 192 I/O 240QFP AMD Xilinx	3,444	RFQ	Datasheet	240-BFQFP Exposed Pad	Tray	XC4000E/X	Obsolete	576	1368	18432	192	13000	4.5V ~ 5.5V	Surface Mount	-40°C ~ 100°C (TJ)
XC4013E-2PG223C IC FPGA 192 I/O 223CPGA AMD Xilinx	2,410	RFQ	Datasheet	223-BCPGA	Tray	XC4000E/X	Obsolete	576	1368	18432	192	13000	4.75V ~ 5.25V	Through Hole	0°C ~ 85°C (TJ)
XC4013E-2PG223I IC FPGA 192 I/O 223CPGA AMD Xilinx	3,717	RFQ	Datasheet	223-BCPGA	Tray	XC4000E/X	Obsolete	576	1368	18432	192	13000	4.5V ~ 5.5V	Through Hole	-40°C ~ 100°C (TJ)
XC4013E-2PQ160C IC FPGA 129 I/O 160QFP AMD Xilinx	3,354	RFQ	Datasheet	160-BQFP	Tray	XC4000E/X	Obsolete	576	1368	18432	129	13000	4.75V ~ 5.25V	Surface Mount	0°C ~ 85°C (TJ)
XC4013E-2PQ160I IC FPGA 129 I/O 160QFP AMD Xilinx	3,619	RFQ	Datasheet	160-BQFP	Tray	XC4000E/X	Obsolete	576	1368	18432	129	13000	4.5V ~ 5.5V	Surface Mount	-40°C ~ 100°C (TJ)
XC4013E-2PQ208I IC FPGA 160 I/O 208QFP AMD Xilinx	2,034	RFQ	Datasheet	208-BFQFP	Tray	XC4000E/X	Obsolete	576	1368	18432	160	13000	4.5V ~ 5.5V	Surface Mount	-40°C ~ 100°C (TJ)
XC4013E-2PQ240C IC FPGA 192 I/O 240QFP AMD Xilinx	3,314	RFQ	Datasheet	240-BFQFP	Tray	XC4000E/X	Obsolete	576	1368	18432	192	13000	4.75V ~ 5.25V	Surface Mount	0°C ~ 85°C (TJ)
XC4013E-2PQ240I IC FPGA 192 I/O 240QFP AMD Xilinx	2,466	RFQ	Datasheet	240-BFQFP	Tray	XC4000E/X	Obsolete	576	1368	18432	192	13000	4.5V ~ 5.5V	Surface Mount	-40°C ~ 100°C (TJ)

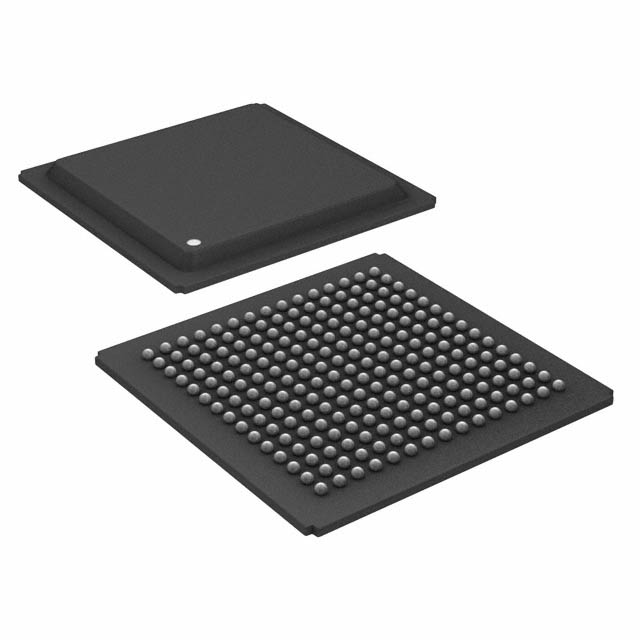

XC4013E-3BG225C IC FPGA 192 I/O 225BGA AMD Xilinx	2,387	RFQ	Datasheet	225-BBGA	Tray	XC4000E/X	Obsolete	576	1368	18432	192	13000	4.75V ~ 5.25V	Surface Mount	0°C ~ 85°C (TJ)
XC4013E-3BG225I IC FPGA 192 I/O 225BGA AMD Xilinx	2,539	RFQ	Datasheet	225-BBGA	Tray	XC4000E/X	Obsolete	576	1368	18432	192	13000	4.5V ~ 5.5V	Surface Mount	-40°C ~ 100°C (TJ)
XC4013E-3HQ208C IC FPGA 160 I/O 208QFP AMD Xilinx	3,533	RFQ	Datasheet	208-BFQFP Exposed Pad	Tray	XC4000E/X	Obsolete	576	1368	18432	160	13000	4.75V ~ 5.25V	Surface Mount	0°C ~ 85°C (TJ)
XC4013E-3HQ208I IC FPGA 160 I/O 208QFP AMD Xilinx	2,048	RFQ	Datasheet	208-BFQFP Exposed Pad	Tray	XC4000E/X	Obsolete	576	1368	18432	160	13000	4.5V ~ 5.5V	Surface Mount	-40°C ~ 100°C (TJ)
XC4013E-3HQ240C IC FPGA 192 I/O 240QFP AMD Xilinx	3,643	RFQ	Datasheet	240-BFQFP Exposed Pad	Tray	XC4000E/X	Obsolete	576	1368	18432	192	13000	4.75V ~ 5.25V	Surface Mount	0°C ~ 85°C (TJ)
XC4013E-3HQ240I IC FPGA 192 I/O 240QFP AMD Xilinx	2,068	RFQ	Datasheet	240-BFQFP Exposed Pad	Tray	XC4000E/X	Obsolete	576	1368	18432	192	13000	4.5V ~ 5.5V	Surface Mount	-40°C ~ 100°C (TJ)
XC4013E-3PG223C IC FPGA 192 I/O 223CPGA AMD Xilinx	3,414	RFQ	Datasheet	223-BCPGA	Tray	XC4000E/X	Obsolete	576	1368	18432	192	13000	4.75V ~ 5.25V	Through Hole	0°C ~ 85°C (TJ)
XC4013E-3PG223I IC FPGA 192 I/O 223CPGA AMD Xilinx	2,863	RFQ	Datasheet	223-BCPGA	Tray	XC4000E/X	Obsolete	576	1368	18432	192	13000	4.5V ~ 5.5V	Through Hole	-40°C ~ 100°C (TJ)
XC4013E-3PQ160I IC FPGA 129 I/O 160QFP AMD Xilinx	2,074	RFQ	Datasheet	160-BQFP	Tray	XC4000E/X	Obsolete	576	1368	18432	129	13000	4.5V ~ 5.5V	Surface Mount	-40°C ~ 100°C (TJ)
XC4013E-3PQ208I IC FPGA 160 I/O 208QFP AMD Xilinx	3,780	RFQ	Datasheet	208-BFQFP	Tray	XC4000E/X	Obsolete	576	1368	18432	160	13000	4.5V ~ 5.5V	Surface Mount	-40°C ~ 100°C (TJ)
