Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	EncoderType	OutputType	PulsesperRevolution	Voltage-Supply	ActuatorType	Detent	BuiltinSwitch	MountingType	Orientation	TerminationStyle
AEAT-8811-Q24 ENHANCE PROG 16BITS IC MAGNETIC Broadcom Limited	657	10.22	RFQ	Datasheet	Tube	-	Active	Magnetic	Commutation, PWM, SPI, Quadrature with index (Incremental)	Programmable	4.5V ~ 5.5V	External Magnet, Not Included	No	No	Surface Mount	Vertical	SMD (SMT) Tab

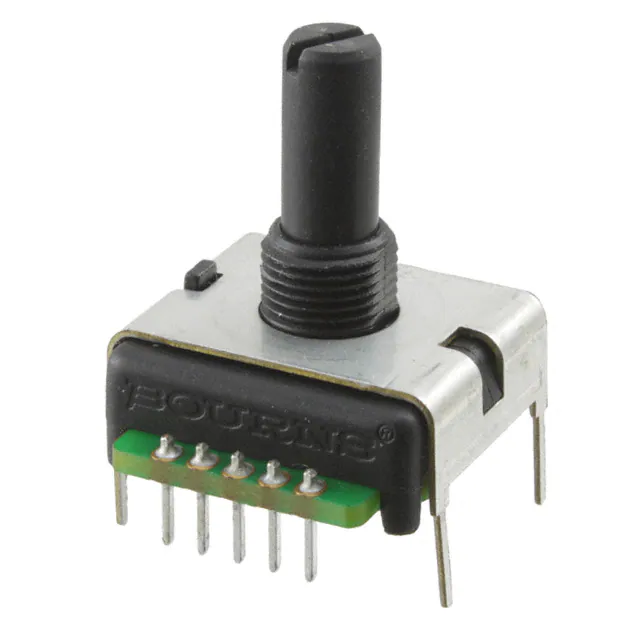

EAW0J-B24-BE0128L ROTARY ENCODER MECHANICAL 128PPR Bourns Inc.	126	10.72	RFQ	Datasheet	Tray	ACE™	Active	Mechanical	Binary (Absolute)	128	-	1/4 Dia Slotted End	No	No	Panel, PCB Through Hole	Vertical	PC Pin
EPS1D-F19-BD0024L ROTARY ENCODER MECHANICAL 24PPR Bourns Inc.	157	11.69	RFQ	Datasheet	Tray	EPS	Active	Mechanical	Quadrature (Incremental)	24	-	4.8mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin
PEC12R-2225F-N0024 ROTARY ENCODER MECHANICAL 24PPR Bourns Inc.	2,755	1.25	RFQ	Datasheet	Tray	PEC12R	Active	Mechanical	Quadrature (Incremental)	24	-	6mm Dia Flatted End	Yes	No	PCB, Through Hole	Right Angle	PC Pin
HEDS-9730#Q50 ROTARY ENCODR OPTICAL 180 LPI Broadcom Limited	766	15.42	RFQ		Tray	HEDS	Active	Optical	Quadrature (Incremental)	180 LPI	2.8V ~ 5.2V	Codestrip Not Included	No	No	Chassis Mount	Vertical	Terminal Pins
EN11-VNB1BQ15 ROTARY ENCODER MECHANICAL 20PPR TT Electronics/BI	2,548	1.31	RFQ	Datasheet	Tray	EN11	Active	Mechanical	Quadrature (Incremental)	20	-	6mm Dia Knurled End	Yes	No	PCB, Through Hole	Right Angle	PC Pin
25LB22-G ROTARY ENCODER MECHANICAL 16PPR Grayhill Inc.	200	24.58	RFQ	Datasheet	Bulk	25L	Active	Mechanical	Gray Code (Absolute)	16	-	1/4 Dia Flatted End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin
EN16-H20AF15 ROTARY ENCODER MECHANICAL 24PPR TT Electronics/BI	2,474	1.64	RFQ	Datasheet	Tray	EN16	Active	Mechanical	Quadrature (Incremental)	24	-	6mm Dia Flatted End	No	No	Panel, PCB Through Hole	Vertical	PC Pin
EN16-V22AF15 ROTARY ENCODER MECHANICAL 24PPR TT Electronics/BI	2,725	1.64	RFQ	Datasheet	Tray	EN16	Active	Mechanical	Quadrature (Incremental)	24	-	6mm Dia Flatted End	Yes	No	Panel, PCB Through Hole	Right Angle	PC Pin

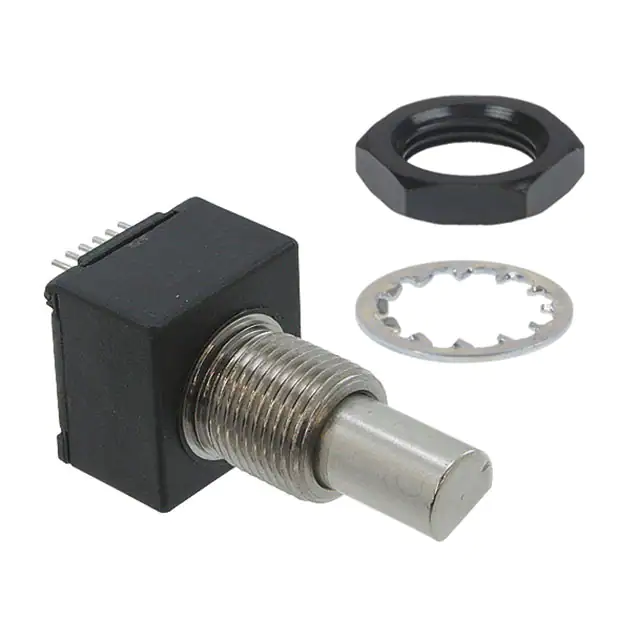

EM14A1D-C24-L008S ROTARY ENCODER OPTICAL 8PPR Bourns Inc.	2,956	32.29	RFQ	Datasheet	Tube	EM14	Active	Optical	Quadrature (Incremental)	8	5V	1/4 Dia Flatted End	Yes	Yes	Panel, PCB Through Hole	Vertical	PC Pin
EN11-HNB0AF20 ROTARY ENCODER MECHANICAL 20PPR TT Electronics/BI	2,203	1.88	RFQ	Datasheet	Tray	EN11	Active	Mechanical	Quadrature (Incremental)	20	-	6mm Dia Flatted End	No	No	PCB, Through Hole	Vertical	PC Pin
EN12-HS11AF25 ROTARY ENCODER MECHANICAL 12PPR TT Electronics/BI	2,841	1.92	RFQ	Datasheet	Tray	EN12	Active	Mechanical	Quadrature (Incremental)	12	-	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin
PEC11R-4220K-N0024 ROTARY ENCODER MECHANICAL 24PPR Bourns Inc.	3,595	2.14	RFQ	Datasheet	Tray	PEC11R	Active	Mechanical	Quadrature (Incremental)	24	-	6mm Dia Knurled End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin

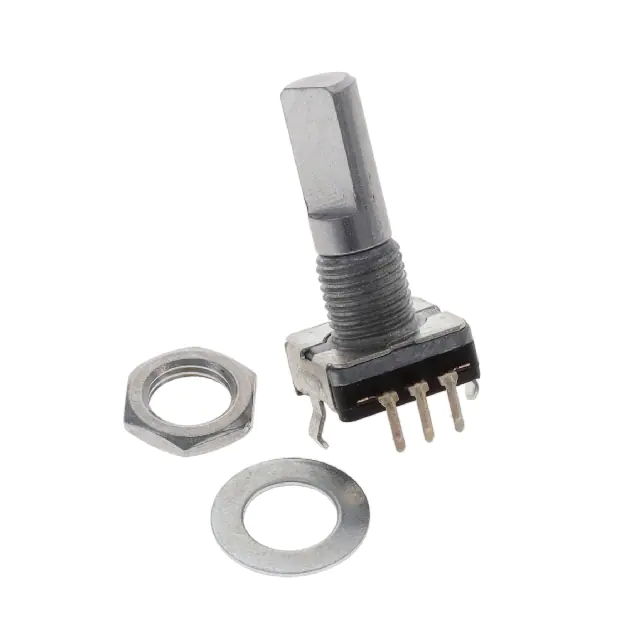

PEC11L-4020F-N0020 ROTARY ENCODER MECHANICAL 20PPR Bourns Inc.	3,454	2.69	RFQ	Datasheet	Tray	PEC11	Active	Mechanical	Quadrature (Incremental)	20	-	6mm Dia Flatted End	No	No	Panel, PCB Through Hole	Vertical	PC Pin
EVQ-V6B00909B ROTARY ENCODER MECHANICAL 9PPR Panasonic Electronic Components	2,483	2.96	RFQ	Datasheet	Bulk	-	Active	Mechanical	Quadrature (Incremental)	9	-	20mm Open Center	Yes	No	PCB, Through Hole	Vertical	PC Pin
PEC11H-4125F-S0020 ROTARY ENCODER WITH BALL/SPRING Bourns Inc.	2,052	2.98	RFQ	Datasheet	Tray	PEC11H	Active	Mechanical	Quadrature (Incremental)	20	-	6mm Dia Flatted End	Yes	Yes	Panel, PCB Through Hole	Vertical	PC Pin
ACZ11BR4E-20KQD1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	2,813	3.58	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Knurled End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin
ACZ11BR1E-20KQD1-20C ROTARY ENCODER INCREMENT 20PPR CUI Devices	778	3.58	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	20	5V	6mm Dia Knurled End	Yes	Yes	Panel, PCB Through Hole	Vertical	PC Pin

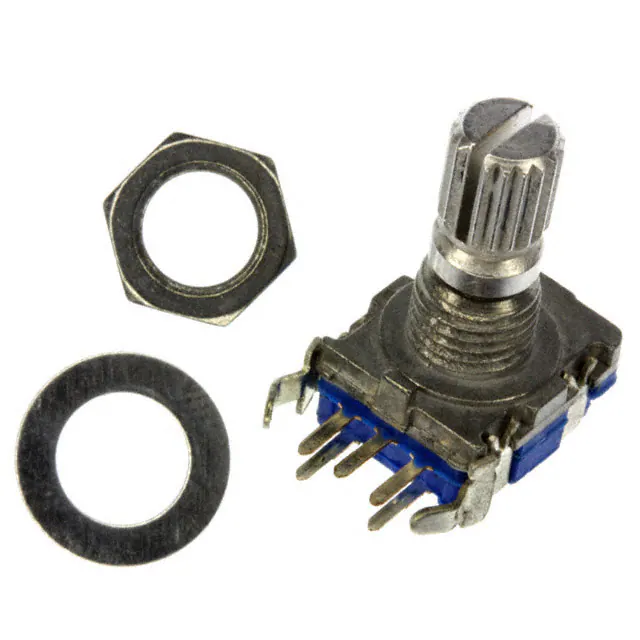

ACZ11BR1E-15KQA1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	469	3.58	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Knurled End	Yes	Yes	Panel, PCB Through Hole	Right Angle	PC Pin

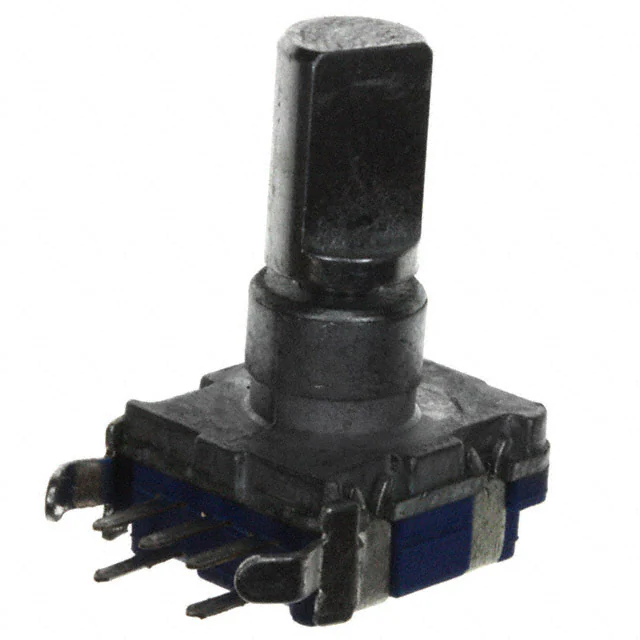

ACZ11BR4E-15FA1-20C ROTARY ENCODER INCREMENT 20PPR CUI Devices	520	3.58	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	20	5V	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Right Angle	PC Pin
