Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	EncoderType	OutputType	PulsesperRevolution	Voltage-Supply	ActuatorType	Detent	BuiltinSwitch	MountingType	Orientation	TerminationStyle

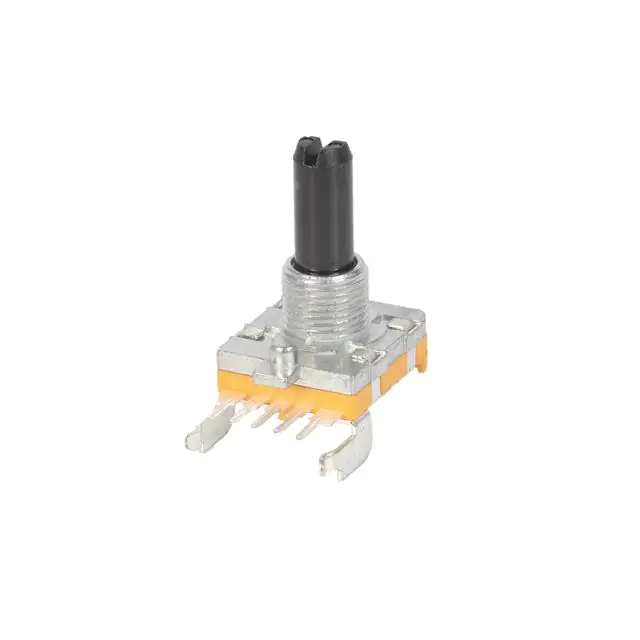

EN16ABVM22B0F20 16 MM ABSOLUTE ENCODER TT Electronics/BI	2,739	2.50	RFQ	Datasheet	Bulk	EN16	Active	Absolute	Binary (Absolute)	-	12V	Shaft	Yes	No	PCB, Through Hole	User Selectable	PC Pin

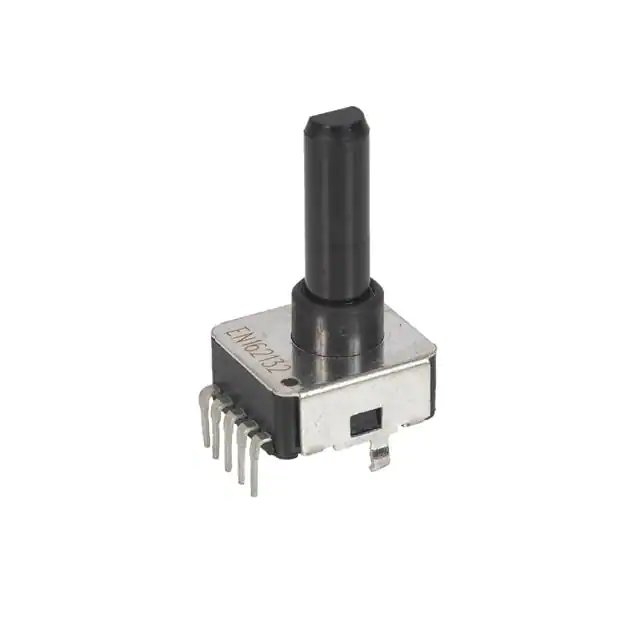

EN16ABHB11AF23 16 MM ABSOLUTE ENCODER TT Electronics/BI	112	2.61	RFQ	Datasheet	Bulk	EN16	Active	Absolute	Binary (Absolute)	-	12V	Shaft	Yes	No	PCB, Through Hole	User Selectable	PC Pin

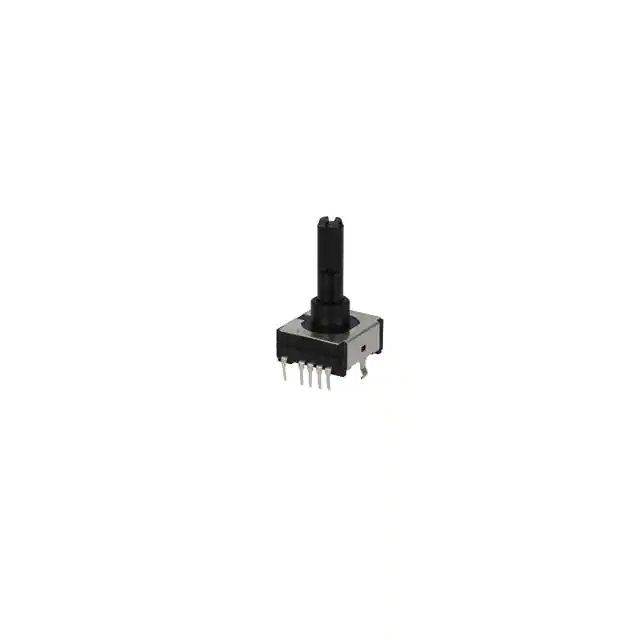

EN18ABHB11A0F26 18 MM ABSOLUTE ENCODER TT Electronics/BI	3,131	2.86	RFQ	Datasheet	Bulk	EN18	Active	Absolute	Binary (Absolute)	-	12V	Shaft	Yes	No	PCB, Through Hole	Horizontal	PC Pin
EN11-VNB0AQ15 ROTARY ENCODER MECHANICAL 20PPR TT Electronics/BI	3,871	0.72	RFQ	Datasheet	Tray	EN11	Active	Mechanical	Quadrature (Incremental)	20	5V	6mm Dia Knurled End	No	No	PCB, Through Hole	Right Angle	PC Pin
EN11-VNM1AF15 ROTARY ENCODER MECHANICAL 20PPR TT Electronics/BI	2,441	0.85	RFQ	Datasheet	Tray	EN11	Active	Mechanical	Quadrature (Incremental)	20	5V	6mm Dia Flatted End	Yes	No	PCB, Through Hole	Right Angle	PC Pin
EN11-VNM1BF15 ROTARY ENCODER MECHANICAL 20PPR TT Electronics/BI	2,594	0.85	RFQ	Datasheet	Tray	EN11	Active	Mechanical	Quadrature (Incremental)	20	5V	6mm Dia Flatted End	Yes	No	PCB, Through Hole	Right Angle	PC Pin
EN12-HN10AF18 ROTARY ENCODER MECHANICAL 12PPR TT Electronics/BI	3,644	0.85	RFQ	Datasheet	Tray	EN12	Active	Mechanical	Quadrature (Incremental)	12	5V	6mm Dia Flatted End	No	No	PCB, Through Hole	Vertical	PC Pin
EN12-HN11AF18 ROTARY ENCODER MECHANICAL 12PPR TT Electronics/BI	2,441	0.85	RFQ	Datasheet	Tray	EN12	Active	Mechanical	Quadrature (Incremental)	12	5V	6mm Dia Flatted End	Yes	No	PCB, Through Hole	Vertical	PC Pin
EN12-HN11AF20 ROTARY ENCODER MECHANICAL 12PPR TT Electronics/BI	3,272	0.85	RFQ	Datasheet	Tray	EN12	Active	Mechanical	Quadrature (Incremental)	12	5V	6mm Dia Flatted End	Yes	No	PCB, Through Hole	Vertical	PC Pin
EN12-HN20AF18 ROTARY ENCODER MECHANICAL 24PPR TT Electronics/BI	3,036	0.85	RFQ	Datasheet	Tray	EN12	Active	Mechanical	Quadrature (Incremental)	24	5V	6mm Dia Flatted End	No	No	PCB, Through Hole	Vertical	PC Pin
EN12-HN22AF20 ROTARY ENCODER MECHANICAL 24PPR TT Electronics/BI	3,363	0.85	RFQ	Datasheet	Tray	EN12	Active	Mechanical	Quadrature (Incremental)	24	5V	6mm Dia Flatted End	Yes	No	PCB, Through Hole	Vertical	PC Pin
EN12-HN22AF23 ROTARY ENCODER MECHANICAL 24PPR TT Electronics/BI	3,707	0.85	RFQ	Datasheet	Tray	EN12	Active	Mechanical	Quadrature (Incremental)	24	5V	6mm Dia Flatted End	Yes	No	PCB, Through Hole	Vertical	PC Pin
EN12-HN22BF23 ROTARY ENCODER MECHANICAL 24PPR TT Electronics/BI	2,447	0.85	RFQ	Datasheet	Tray	EN12	Active	Mechanical	Quadrature (Incremental)	24	5V	6mm Dia Flatted End	Yes	No	PCB, Through Hole	Vertical	PC Pin
EN12-VS11AF20 ROTARY ENCODER MECHANICAL 12PPR TT Electronics/BI	2,350	0.89	RFQ	Datasheet	Tray	EN12	Active	Mechanical	Quadrature (Incremental)	12	5V	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Right Angle	PC Pin
EN12-VS11AF25 ROTARY ENCODER MECHANICAL 12PPR TT Electronics/BI	2,374	0.89	RFQ	Datasheet	Tray	EN12	Active	Mechanical	Quadrature (Incremental)	12	5V	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Right Angle	PC Pin
EN12-VS20A18 ROTARY ENCODER MECHANICAL 24PPR TT Electronics/BI	2,821	0.89	RFQ	Datasheet	Tray	EN12	Active	Mechanical	Quadrature (Incremental)	24	5V	6mm Dia Flatted End	No	Yes	PCB, Through Hole	Right Angle	PC Pin
EN12-VS20AF18 ROTARY ENCODER MECHANICAL 24PPR TT Electronics/BI	2,984	0.89	RFQ	Datasheet	Tray	EN12	Active	Mechanical	Quadrature (Incremental)	24	5V	6mm Dia Flatted End	No	Yes	PCB, Through Hole	Right Angle	PC Pin
EN12-VS20AF20 ROTARY ENCODER MECHANICAL 24PPR TT Electronics/BI	2,457	0.89	RFQ	Datasheet	Tray	EN12	Active	Mechanical	Quadrature (Incremental)	24	5V	6mm Dia Flatted End	No	Yes	PCB, Through Hole	Right Angle	PC Pin
EN12-VS20AF25 ROTARY ENCODER MECHANICAL 24PPR TT Electronics/BI	3,332	0.89	RFQ	Datasheet	Tray	EN12	Active	Mechanical	Quadrature (Incremental)	24	5V	6mm Dia Flatted End	No	Yes	PCB, Through Hole	Right Angle	PC Pin
EN12-VS22A18 ROTARY ENCODER MECHANICAL 24PPR TT Electronics/BI	3,289	0.89	RFQ	Datasheet	Tray	EN12	Active	Mechanical	Quadrature (Incremental)	24	5V	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Right Angle	PC Pin
