Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	EncoderType	OutputType	PulsesperRevolution	Voltage-Supply	ActuatorType	Detent	BuiltinSwitch	MountingType	Orientation	TerminationStyle
E50S8-1000-3-T-5 ENCODER 50MM 1000PPR 5VDC Autonics	2,406	172.95	RFQ	Datasheet	Box	E50S	Active	Incremental	Totem Pole	1000	5V	8mm Dia Flatted End	No	No	Chassis Mount	User Selectable	Cable
E50S8-1800-3-N-24 ENCODER 50MM 1800PPR 12-24VDC Autonics	2,832	172.95	RFQ	Datasheet	Box	E50S	Active	Incremental	NPN - Open Collector	1800	12V ~ 24V	8mm Dia Flatted End	No	No	Chassis Mount	User Selectable	Cable
E50S8-2000-3-T-5 ENCODER 50MM 2000PPR 5VDC Autonics	3,824	172.95	RFQ	Datasheet	Box	E50S	Active	Incremental	Totem Pole	2000	5V	8mm Dia Flatted End	No	No	Chassis Mount	User Selectable	Cable
E40H10-1024-3-N-24 ENCODER 40MM 1024PPR 12-24VDC Autonics	2,036	172.95	RFQ	Datasheet	Box	E40H	Active	Incremental	NPN - Open Collector	1024	12V ~ 24V	Hole for Shaft	No	No	Chassis Mount	User Selectable	Cable
E40H12-1024-3-N-24 ENCODER 40MM 1024PPR 12-24VDC Autonics	3,777	172.95	RFQ	Datasheet	Box	E40H	Active	Incremental	NPN - Open Collector	1024	12V ~ 24V	Hole for Shaft	No	No	Chassis Mount	User Selectable	Cable
E50S8-200-6-L-5 ENCODER 50MM 200PPR 5VDC Autonics	2,777	172.95	RFQ	Datasheet	Box	E50S	Active	Incremental	Quadrature Line Driver with Index (Incremental)	200	5V	8mm Dia Flatted End	No	No	Chassis Mount	User Selectable	Cable
E40H6-600-3-N-24 ENCODER 40MM 600PPR 12-24VDC Autonics	2,554	172.95	RFQ	Datasheet	Box	E40H	Active	Incremental	NPN - Open Collector	600	12V ~ 24V	Hole for Shaft	No	No	Chassis Mount	User Selectable	Cable
E50S8-1200-3-T-24 ENCODER 50MM 1200PPR 12-24VDC Autonics	2,439	172.95	RFQ	Datasheet	Box	E50S	Active	Incremental	Totem Pole	1200	12V ~ 24V	8mm Dia Flatted End	No	No	Chassis Mount	User Selectable	Cable
ENC-1-6-N-24 ENCODER WHEEL 1PPR 12-24VDC Autonics	3,430	174.95	RFQ	Datasheet	Box	ENC	Active	Incremental	NPN - Open Collector	1	12V ~ 24V	-	No	No	Chassis Mount	User Selectable	Cable
ENC-1-1-V-24 ENCODER WHEEL 250PPR 12-24VDC Autonics	2,530	174.95	RFQ	Datasheet	Box	ENC	Active	Incremental	Voltage	250	12V ~ 24V	-	No	No	Chassis Mount	User Selectable	Cable
E40H12-2000-3-V-24 ENCODER 40MM 2000PPR 12-24VDC Autonics	3,162	178.95	RFQ	Datasheet	Box	E40H	Active	Incremental	Voltage	2000	12V ~ 24V	Hole for Shaft	No	No	Chassis Mount	User Selectable	Cable
E40H12-100-6-L-5 ENCODER 40MM 100PPR 5VDC Autonics	3,596	178.95	RFQ	Datasheet	Box	E40H	Active	Incremental	Quadrature Line Driver with Index (Incremental)	100	5V	Hole for Shaft	No	No	Chassis Mount	User Selectable	Cable
E40HB8-1000-6-L-24 ENCODER 40MM 1000PPR 12-24VDC Autonics	2,799	178.95	RFQ	Datasheet	Box	E40H	Active	Incremental	Quadrature Line Driver with Index (Incremental)	1000	12V ~ 24V	Hole for Shaft	No	No	Chassis Mount	User Selectable	Cable
E40H12-2000-3-N-24 ENCODER 40MM 2000PPR 12-24VDC Autonics	2,622	178.95	RFQ	Datasheet	Box	E40H	Active	Incremental	NPN - Open Collector	2000	12V ~ 24V	Hole for Shaft	No	No	Chassis Mount	User Selectable	Cable
E40H12-2048-3-T-24 ENCODER 40MM 2048PPR 12-24VDC Autonics	3,337	178.95	RFQ	Datasheet	Box	E40H	Active	Incremental	Totem Pole	2048	12V ~ 24V	Hole for Shaft	No	No	Chassis Mount	User Selectable	Cable
E40H12-3600-3-N-24 ENCODER 40MM 3600PPR 12-24VDC Autonics	3,093	178.95	RFQ	Datasheet	Box	E40H	Active	Incremental	NPN - Open Collector	3600	12V ~ 24V	Hole for Shaft	No	No	Chassis Mount	User Selectable	Cable
E40S6-2000-6-L-5 ENCODER 40MM 2000PPR 5VDC Autonics	3,221	184.95	RFQ	Datasheet	Box	E40	Active	Incremental	Quadrature Line Driver with Index (Incremental)	2000	5V	6mm Dia Flatted End	No	No	Chassis Mount	User Selectable	Cable
E40H6-1800-6-L-5 ENCODER 40MM 1800PPR 5VDC Autonics	3,453	184.95	RFQ	Datasheet	Box	E40H	Active	Incremental	Quadrature Line Driver with Index (Incremental)	1800	5V	Hole for Shaft	No	No	Chassis Mount	User Selectable	Cable

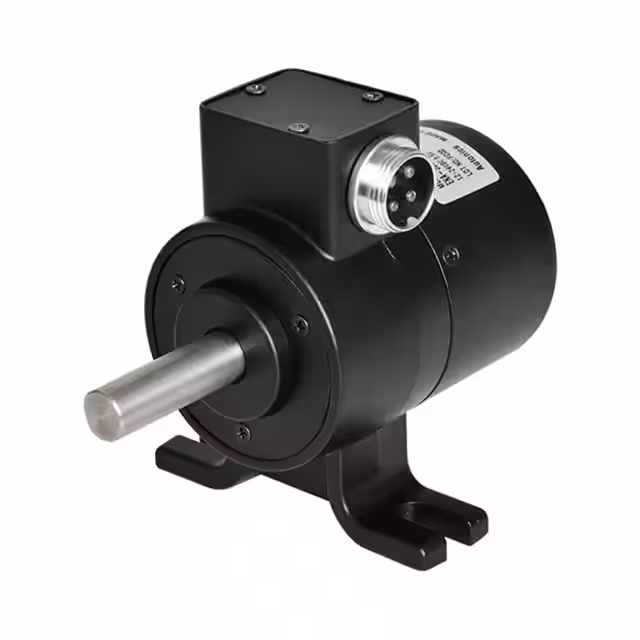

ENA-1000-2-T-24 ENCODER 10 SHAFT 1000PPR 12-24V Autonics	3,987	184.95	RFQ	Datasheet	Box	ENA	Active	Incremental	Totem Pole	1000	12V ~ 24V	10mm Dia Round End	No	No	Chassis Mount	User Selectable	Connector
