Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	EncoderType	OutputType	PulsesperRevolution	Voltage-Supply	ActuatorType	Detent	BuiltinSwitch	MountingType	Orientation	TerminationStyle
AEAT-9922-102 18BITS MAG ENC ON-OFF AXIS TR 10 Broadcom Limited	2,655	12.31	RFQ		Tape & Reel (TR)	-	Active	Magnetic	Commutation, PWM, SPI, Quadrature with index (Incremental)	Programmable	3V ~ 3.6V, 4.5V ~ 5.5V	External Magnet, Not Included	No	No	Surface Mount	Vertical	SMD (SMT) Tab
AEAT-8811-Q24TR ENHANCE PROG 16BITS IC MAGNETIC Broadcom Limited	2,800	10.22	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	-	-	-	Surface Mount	-	-
HEDS-9720#P52 ROTARY ENCODR OPTICAL 150 LPI Broadcom Limited	3,752	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Incremental)	150 LPI	5V	Codestrip Not Included	No	No	Chassis Mount	Vertical	Terminal Pins
HEDS-9700#D55 ROTARY ENCODER OPTICAL 192PPR Broadcom Limited	3,177	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Incremental)	192	5V	Codewheel Not Included	No	No	Chassis Mount	Vertical	Terminal Pins
HEDS-9700#F50 ROTARY ENCODER OPTICAL 256PPR Broadcom Limited	2,555	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Incremental)	256	5V	Codewheel Not Included	No	No	Chassis Mount	Vertical	Terminal Pins
HEDS-9700#F51 ROTARY ENCODER OPTICAL 256PPR Broadcom Limited	3,244	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Incremental)	256	5V	Codewheel Not Included	No	No	Chassis Mount	Vertical	Terminal Pins
HEDS-9700#F52 ROTARY ENCODER OPTICAL 256PPR Broadcom Limited	2,556	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Incremental)	256	5V	Codewheel Not Included	No	No	Chassis Mount	Vertical	Terminal Pins
HEDS-9700#F54 ROTARY ENCODER OPTICAL 256PPR Broadcom Limited	3,049	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Incremental)	256	5V	Codewheel Not Included	No	No	Chassis Mount	Vertical	Terminal Pins
HEDS-9700#H51 ROTARY ENCODER OPTICAL 400PPR Broadcom Limited	3,576	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Incremental)	400	5V	Codewheel Not Included	No	No	Chassis Mount	Vertical	Terminal Pins
HEDS-9700#H52 ROTARY ENCODER OPTICAL 400PPR Broadcom Limited	2,732	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Incremental)	400	5V	Codewheel Not Included	No	No	Chassis Mount	Vertical	Terminal Pins
HEDS-9700#H54 ROTARY ENCODER OPTICAL 400PPR Broadcom Limited	2,931	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Incremental)	400	5V	Codewheel Not Included	No	No	Chassis Mount	Vertical	Terminal Pins

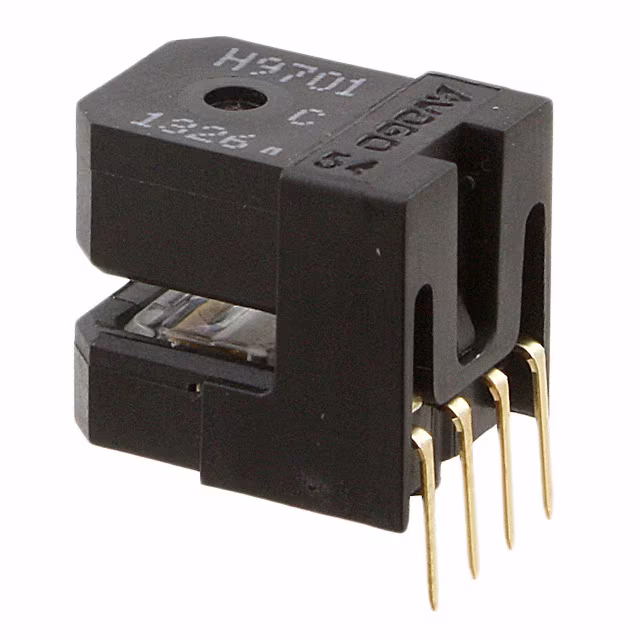

HEDS-9701-C51 ROTARY ENCODER OPTICAL 100PPR Broadcom Limited	2,461	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Incremental)	100	5V	Codewheel Not Included	No	No	Chassis Mount	Right Angle	Terminal Pins
HEDS-9701#C54 ROTARY ENCODER OPTICAL 100PPR Broadcom Limited	3,511	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Incremental)	100	5V	Codewheel Not Included	No	No	Chassis Mount	Right Angle	Terminal Pins
HEDS-9701#E54 ROTARY ENCODER OPTICAL 200PPR Broadcom Limited	2,171	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Incremental)	200	5V	Codewheel Not Included	No	No	Chassis Mount	Right Angle	Terminal Pins
HEDS-9701#F51 ROTARY ENCODER OPTICAL 256PPR Broadcom Limited	2,323	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Incremental)	256	5V	Codewheel Not Included	No	No	Chassis Mount	Right Angle	Terminal Pins
HEDS-9701#H50 ROTARY ENCODER OPTICAL 400PPR Broadcom Limited	3,102	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Incremental)	400	5V	Codewheel Not Included	No	No	Chassis Mount	Right Angle	Terminal Pins
HEDS-9701#H54 ROTARY ENCODER OPTICAL 400PPR Broadcom Limited	2,542	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Incremental)	400	5V	Codewheel Not Included	No	No	Chassis Mount	Right Angle	Terminal Pins
HEDS-9710-150 ROTARY ENCODR OPTICAL 360 LPI Broadcom Limited	3,405	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Analog)	360 LPI	5V	Codestrip Not Included	No	No	Chassis Mount	Vertical	Terminal Pins
HEDS-9710#R50 ROTARY ENCODR OPTICAL 200 LPI Broadcom Limited	3,396	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Analog)	200 LPI	5V	Codestrip Not Included	No	No	Chassis Mount	Vertical	Terminal Pins
HEDS-9711-150 ROTARY ENCODR OPTICAL 360 LPI Broadcom Limited	2,766	8.46	RFQ	Datasheet	Bulk	HEDS	Active	Optical	Quadrature (Analog)	360 LPI	5V	Codestrip Not Included	No	No	Chassis Mount	Right Angle	Terminal Pins
