Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-FD2W155K4CAP FILM 1.5UF 10% 450VDC RADIAL |
3,000 | 0.41 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-F(D) | Active | 1.5 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.366 W (17.50mm x 9.30mm) | 0.492 (12.50mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-HA3C203JCAP FILM 0.02UF 5% 1.6KVDC RAD |
2,998 | 0.41 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 0.02 µF | ±5% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.811 L x 0.343 W (20.60mm x 8.70mm) | 0.575 (14.60mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
 Series Style D 18x7.jpg)
|
ECW-FA2J274JQCAP FILM 0.27UF 5% 630VDC RADIAL |
3,554 | 0.41 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.27 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717 L x 0.307 W (18.20mm x 7.80mm) | 0.705 (17.90mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |

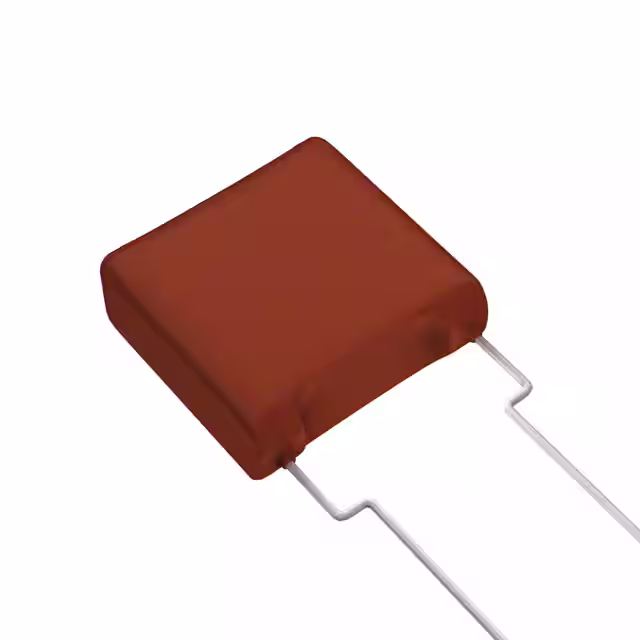

 Series Style B 18x7x17.jpg)
|
ECW-FA2J274JBCAP FILM 0.27UF 5% 630VDC RADIAL |
2,774 | 0.41 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.27 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717 L x 0.307 W (18.20mm x 7.80mm) | 0.705 (17.90mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECQ-E2135RKFCAP FILM 1.3UF 10% 250VDC RADIAL |
3,963 | 0.41 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 1.3 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | - | - | PC Pins | - | General Purpose | - |
|
|
ECW-HA3C223HCAP FILM 0.022UF 3% 1.6KVDC RAD |
3,861 | 0.41 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 0.022 µF | ±3% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.811 L x 0.358 W (20.60mm x 9.10mm) | 0.591 (15.00mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
ECQ-E6224KF3CAP FILM 0.22UF 10% 630VDC RAD |
3,781 | 0.41 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 0.22 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.354 W (18.50mm x 9.00mm) | 0.846 (21.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
ECQ-E2185JFBCAP FILM 1.8UF 5% 250VDC RADIAL |
3,962 | 0.41 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1.8 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.295 W (26.00mm x 7.50mm) | 0.807 (20.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECQ-E2185JFWCAP FILM 1.8UF 5% 250VDC RADIAL |
2,470 | 0.41 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1.8 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.295 W (26.00mm x 7.50mm) | 0.807 (20.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
-Series.jpg)
|
ECW-FD2W185KCCAP FILM 1.8UF 10% 450VDC RADIAL |
3,472 | 0.41 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 1.8 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.398 W (17.50mm x 10.10mm) | 0.524 (13.30mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
 Series Style Straight 18x7.jpg)
|
ECW-FA2J224J5CAP FILM 0.22UF 5% 630VDC RADIAL |
2,560 | 0.41 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-F(A) | Active | 0.22 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717 L x 0.280 W (18.20mm x 7.10mm) | 0.484 (12.30mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-FA2J224J4CAP FILM 0.22UF 5% 630VDC RADIAL |
3,741 | 0.41 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-F(A) | Active | 0.22 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717 L x 0.280 W (18.20mm x 7.10mm) | 0.484 (12.30mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
 Series.jpg)
|
ECW-FE2W155JACAP FILM 1.5UF 5% 450VDC RADIAL |
3,026 | 0.41 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR) | ECWFE | Active | 1.5 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689 L x 0.394 W (17.50mm x 10.00mm) | 0.610 (15.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECQ-E4274EJFCAP FILM 0.27UF 5% 400VDC RADIAL |
3,908 | 0.41 |
RFQ |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 0.27 µF | ±5% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | - | - | PC Pins | - | General Purpose | - | |
|
ECQ-E1564JF9CAP FILM 0.56UF 5% 100VDC RADIAL |
3,536 | 0.41 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR) | ECQ-E(F) | Active | 0.56 µF | ±5% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.217 W (12.00mm x 5.50mm) | 0.626 (15.90mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
|
ECW-H10102HVCAP FILM 1000PF 3% 1KVDC RADIAL |
2,947 | 0.41 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 1000 pF | ±3% | - | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.256 W (18.00mm x 6.50mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-H10103HVCAP FILM 10000PF 3% 1KVDC RADIAL |
2,127 | 0.41 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 10000 pF | ±3% | - | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.256 W (18.00mm x 6.50mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECQ-E12822KFCAP FILM 8200PF 10% 1.25KVDC RAD |
2,952 | 0.41 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 8200 pF | ±10% | 125V | 1250V (1.25kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.827 L x 0.197 W (21.00mm x 5.00mm) | 0.512 (13.00mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
|
ECQ-E12682KFCAP FILM 6800PF 10% 1.25KVDC RAD |
3,288 | 0.41 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 6800 pF | ±10% | 125V | 1250V (1.25kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.295 W (15.50mm x 7.50mm) | 0.630 (16.00mm) | PC Pins | 0.492 (12.50mm) | General Purpose | - |
|
|
ECQ-E12272KFCAP FILM 2700PF 10% 1.25KVDC RAD |
3,588 | 0.41 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 2700 pF | ±10% | 125V | 1250V (1.25kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.256 W (15.50mm x 6.50mm) | 0.512 (13.00mm) | PC Pins | 0.492 (12.50mm) | General Purpose | - |
