Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-H10183RJVCAP FILM 0.018UF 5% 1KVDC RADIAL |
2,166 | 0.49 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-H(V) | Active | 0.018 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.295 W (18.00mm x 7.50mm) | 0.768 (19.50mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-H12102RJVCAP FILM 1000PF 5% 1.25KVDC RAD |
2,567 | 0.49 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-H(V) | Active | 1000 pF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.256 W (18.00mm x 6.50mm) | 0.728 (18.50mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-H12112RJVCAP FILM 1100PF 5% 1.25KVDC RAD |
2,335 | 0.49 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-H(V) | Active | 1100 pF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.256 W (18.00mm x 6.50mm) | 0.728 (18.50mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-H12132RJVCAP FILM 1300PF 5% 1.25KVDC RAD |
3,973 | 0.49 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-H(V) | Active | 1300 pF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.256 W (18.00mm x 6.50mm) | 0.709 (18.00mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-H12122RJVCAP FILM 1200PF 5% 1.25KVDC RAD |
2,860 | 0.49 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-H(V) | Active | 1200 pF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.276 W (18.00mm x 7.00mm) | 0.728 (18.50mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-HA3C333JCAP FILM 0.033UF 5% 1.6KVDC RAD |
3,931 | 0.49 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(A) | Active | 0.033 µF | ±5% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.811 L x 0.441 W (20.60mm x 11.20mm) | 0.669 (17.00mm) | PC Pins | 0.689 (17.50mm) | High Frequency, Switching | - |
|
ECQ-E2125JB3CAP FILM 1.2UF 5% 250VDC RADIAL |
2,713 | 0.49 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(B) | Active | 1.2 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.602 L x 0.299 W (15.30mm x 7.60mm) | 0.772 (19.60mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |

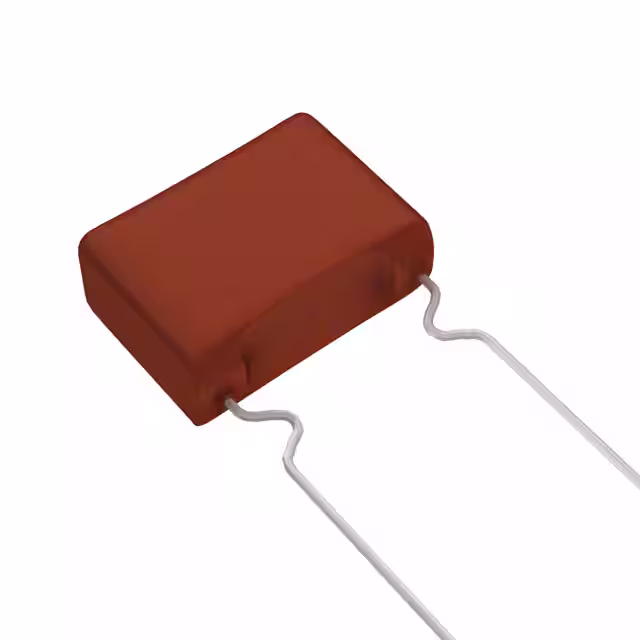

 Series Style B 7-W.jpg)
|
ECW-F2394HABCAP FILM 0.39UF 3% 250VDC RADIAL |
2,660 | 0.49 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.39 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.307 W (13.00mm x 7.80mm) | 0.724 (18.40mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
 Series Style D 7-W.jpg)
|
ECW-F2394HAQCAP FILM 0.39UF 3% 250VDC RADIAL |
2,759 | 0.49 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.39 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.307 W (13.00mm x 7.80mm) | 0.724 (18.40mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |

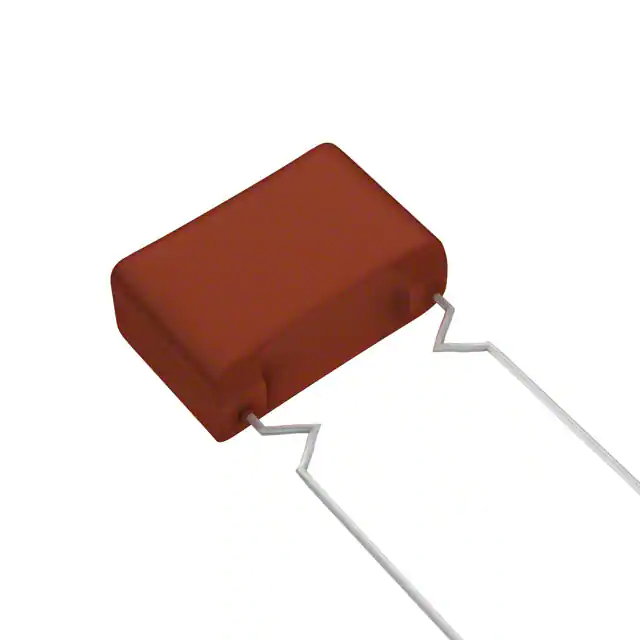

 Series Style D 8-W.jpg)
|
ECW-F2474HAQCAP FILM 0.47UF 3% 250VDC RADIAL |
3,813 | 0.49 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.47 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.331 W (13.00mm x 8.40mm) | 0.752 (19.10mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
 Series Style B 8-W.jpg)
|
ECW-F2474HABCAP FILM 0.47UF 3% 250VDC RADIAL |
2,789 | 0.49 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.47 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.331 W (13.00mm x 8.40mm) | 0.752 (19.10mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECQ-E10103RKFCAP FILM 10000PF 10% 1KVDC RAD |
2,507 | 0.49 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 10000 pF | ±10% | 125V | 1000V (1kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.236 W (15.50mm x 6.00mm) | 0.630 (16.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E10123RKFCAP FILM 0.012UF 10% 1KVDC RAD |
2,165 | 0.49 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 0.012 µF | ±10% | 125V | 1000V (1kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.236 W (15.50mm x 6.00mm) | 0.669 (17.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECW-H12202JVCAP FILM 2000PF 5% 1.25KVDC RAD |
2,341 | 0.49 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 2000 pF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.276 W (18.00mm x 7.00mm) | 0.610 (15.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-H12162JVCAP FILM 1600PF 5% 1.25KVDC RAD |
3,568 | 0.49 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 1600 pF | ±5% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.276 W (18.00mm x 7.00mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
 Series Style B 18x6.jpg)
|
ECW-F2564JABCAP FILM 0.56UF 5% 250VDC RADIAL |
2,819 | 0.49 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.56 µF | ±5% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.713 L x 0.272 W (18.10mm x 6.90mm) | 0.705 (17.90mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
ECW-U2183JC9CAP FILM 0.018UF 5% 250VDC 1913 |
3,269 | 0.50 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.018 µF | ±5% | - | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.087 (2.20mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-U2183V16CAP FILM 0.018UF 5% 250VDC 1913 |
3,970 | 1.33 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(V16) | Active | 0.018 µF | ±5% | - | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.091 (2.30mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-H10132RHVCAP FILM 1300PF 3% 1KVDC RADIAL |
2,147 | 0.50 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-H(V) | Active | 1300 pF | ±3% | - | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.256 W (18.00mm x 6.50mm) | 0.709 (18.00mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-H10432RHVCAP FILM 4300PF 3% 1KVDC RADIAL |
2,441 | 0.50 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-H(V) | Active | 4300 pF | ±3% | - | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.236 W (18.00mm x 6.00mm) | 0.709 (18.00mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
