Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-H12152RHVCAP FILM 1500PF 3% 1.25KVDC RAD |
3,511 | 0.56 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-H(V) | Active | 1500 pF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.256 W (18.00mm x 6.50mm) | 0.728 (18.50mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-H12202RHVCAP FILM 2000PF 3% 1.25KVDC RAD |
3,921 | 0.56 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-H(V) | Active | 2000 pF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.276 W (18.00mm x 7.00mm) | 0.748 (19.00mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-H12182RHVCAP FILM 1800PF 3% 1.25KVDC RAD |
3,070 | 0.56 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-H(V) | Active | 1800 pF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.276 W (18.00mm x 7.00mm) | 0.748 (19.00mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECQ-E12103RKFCAP FILM 10000PF 1.25KVDC RADIAL |
3,122 | 0.57 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 10000 pF | ±10% | 125V | 1250V (1.25kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.827 L x 0.197 W (21.00mm x 5.00mm) | 0.689 (17.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E12123RKFCAP FILM 0.012UF 1.25KVDC RADIAL |
2,120 | 0.57 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 0.012 µF | ±10% | 125V | 1250V (1.25kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.827 L x 0.217 W (21.00mm x 5.50mm) | 0.709 (18.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |

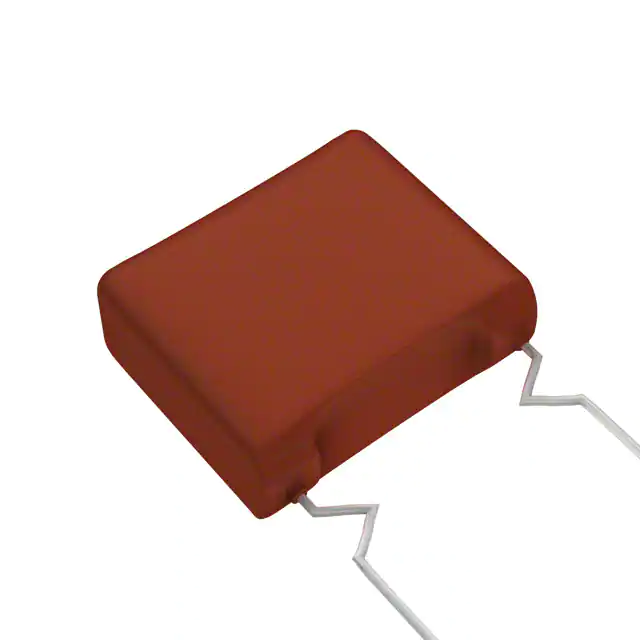

 Series Style Q 26x10.jpg)
|
ECW-FA2J824JQCAP FILM 0.82UF 5% 630VDC RADIAL |
3,235 | 0.57 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 0.82 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.398 W (26.00mm x 10.10mm) | 0.878 (22.30mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|
|
ECQ-E12102RKFCAP FILM 1000PF 10% 1.25KVDC RAD |
3,813 | 0.56 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 1000 pF | ±10% | 125V | 1250V (1.25kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.236 W (15.50mm x 6.00mm) | 0.630 (16.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E12182RKFCAP FILM 1800PF 10% 1.25KVDC RAD |
3,361 | 0.56 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 1800 pF | ±10% | 125V | 1250V (1.25kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.236 W (15.50mm x 6.00mm) | 0.630 (16.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E12222RKFCAP FILM 2200PF 10% 1.25KVDC RAD |
3,364 | 0.56 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 2200 pF | ±10% | 125V | 1250V (1.25kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.236 W (15.50mm x 6.00mm) | 0.650 (16.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E12122RKFCAP FILM 1200PF 10% 1.25KVDC RAD |
2,740 | 0.56 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 1200 pF | ±10% | 125V | 1250V (1.25kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.236 W (15.50mm x 6.00mm) | 0.630 (16.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E12152RKFCAP FILM 1500PF 10% 1.25KVDC RAD |
3,606 | 0.56 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 1500 pF | ±10% | 125V | 1250V (1.25kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.236 W (15.50mm x 6.00mm) | 0.630 (16.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E12822RKFCAP FILM 8200PF 10% 1.25KVDC RAD |
3,812 | 0.56 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 8200 pF | ±10% | 125V | 1250V (1.25kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.827 L x 0.197 W (21.00mm x 5.00mm) | 0.669 (17.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E12472RKFCAP FILM 4700PF 10% 1.25KVDC RAD |
2,241 | 0.56 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 4700 pF | ±10% | 125V | 1250V (1.25kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.276 W (15.50mm x 7.00mm) | 0.689 (17.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E12272RKFCAP FILM 2700PF 10% 1.25KVDC RAD |
3,770 | 0.56 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 2700 pF | ±10% | 125V | 1250V (1.25kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.256 W (15.50mm x 6.50mm) | 0.669 (17.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E12332RKFCAP FILM 3300PF 10% 1.25KVDC RAD |
2,128 | 0.56 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 3300 pF | ±10% | 125V | 1250V (1.25kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.236 W (15.50mm x 6.00mm) | 0.650 (16.50mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
ECQ-E12392RKFCAP FILM 3900PF 10% 1.25KVDC RAD |
3,327 | 0.56 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 3900 pF | ±10% | 125V | 1250V (1.25kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.256 W (15.50mm x 6.50mm) | 0.669 (17.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
ECQ-E2335KFBCAP FILM 3.3UF 10% 250VDC RADIAL |
2,254 | 0.56 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 3.3 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.406 W (26.00mm x 10.30mm) | 0.906 (23.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECQ-E2335KFWCAP FILM 3.3UF 10% 250VDC RADIAL |
3,289 | 0.56 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 3.3 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.406 W (26.00mm x 10.30mm) | 0.906 (23.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECW-FD2J474J4CAP FILM 0.47UF 5% 630VDC RADIAL |
2,550 | 0.56 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR) | ECW-F(D) | Active | 0.47 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701 L x 0.307 W (17.80mm x 7.80mm) | 0.559 (14.20mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-HC3F103JQCAP FILM 10000PF 5% 3KVDC RADIAL |
2,508 | 0.56 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(C) | Active | 10000 pF | ±5% | - | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.012 L x 0.323 W (25.70mm x 8.20mm) | 0.909 (23.10mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
