Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

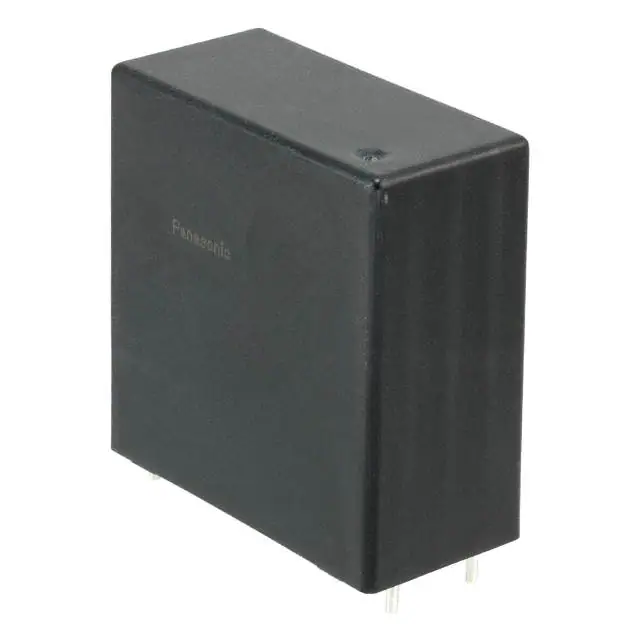

EZP-E50556MTACAP FILM 55UF 10% 500VDC RADIAL |
1,274 | 16.68 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | EZPE | Active | 55 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 4.1 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 1.181 W (41.50mm x 30.00mm) | 2.028 (51.50mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
|

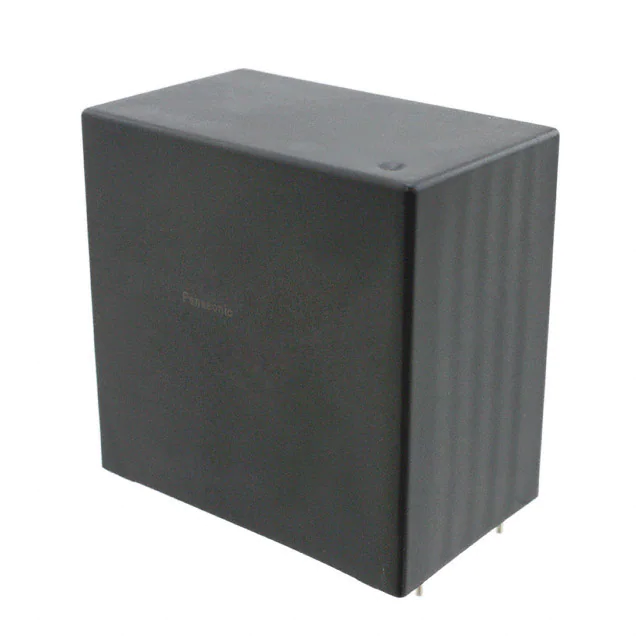

EZP-V80406MTTCAP FILM 40UF 10% 800V RADIAL |
300 | 16.95 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | EZPV | Active | 40 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 1.496 W (42.00mm x 38.00mm) | 2.106 (53.50mm) | PC Pins | 1.476 (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
EZP-E50117MTACAP FILM 110UF 10% 500VDC RADIAL |
238 | 27.97 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | EZPE | Active | 110 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 4.4 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 2.224 (56.50mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering | - |
|
ECH-U1C183JB5CAP FILM 0.018UF 5% 16VDC 1206 |
6,000 | 0.90 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 0.018 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
-H-2.jpg)
|

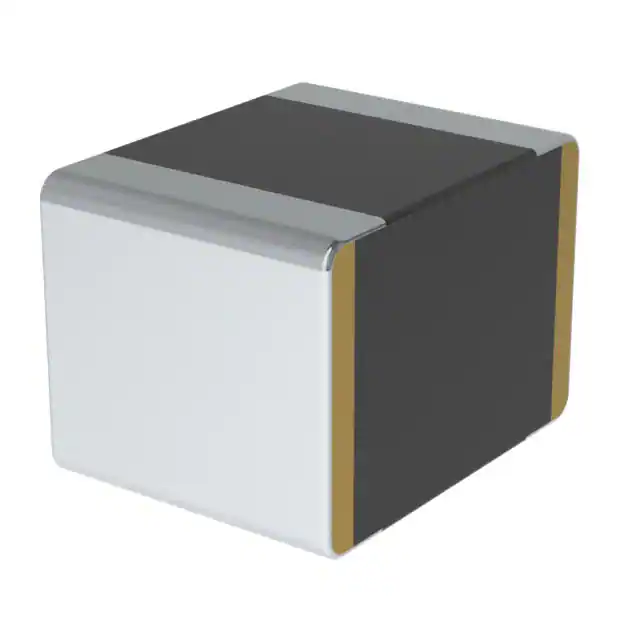

ECW-U1822JX5CAP FILM 8200PF 5% 100VDC 1210 |
7,283 | 0.95 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(X) | Active | 8200 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.091 (2.30mm) | Solder Pads | - | General Purpose | - |
|

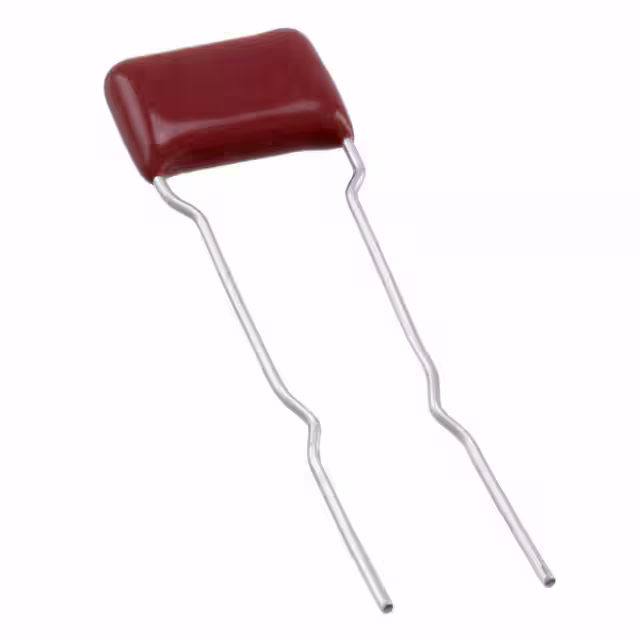

ECW-FD2W124J4CAP FILM 0.12UF 5% 450VDC RADIAL |
2,470 | 0.69 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | ECW-F(D) | Active | 0.12 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496 L x 0.181 W (12.60mm x 4.60mm) | 0.551 (14.00mm) | PC Pins | 0.295 (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
-H-1.jpg)
|
ECW-U1122JX5CAP FILM 1200PF 5% 100VDC 1206 |
15,063 | 0.80 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(X) | Active | 1200 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.051 (1.30mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-U1272JX5CAP FILM 2700PF 5% 100VDC 1206 |
3,311 | 0.80 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(X) | Active | 2700 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.051 (1.30mm) | Solder Pads | - | General Purpose | - |
|
ECH-U1H122JB5CAP FILM 1200PF 5% 50VDC 0805 |
77,800 | 0.79 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 1200 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H821JB5CAP FILM 820PF 5% 50VDC 0805 |
71,693 | 0.84 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 820 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H181JB5CAP FILM 180PF 5% 50VDC 0805 |
11,957 | 0.84 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 180 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H151JB5CAP FILM 150PF 5% 50VDC 0805 |
3,692 | 0.84 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 150 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1C822JB5CAP FILM 8200PF 5% 16VDC 0805 |
70,627 | 0.86 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 8200 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.047 (1.20mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-U1562JX5CAP FILM 5600PF 5% 100VDC 1210 |
166,672 | 0.89 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(X) | Active | 5600 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.067 (1.70mm) | Solder Pads | - | General Purpose | - |
|
ECW-U4682V17CAP FILM 6800PF 5% 400VDC 1913 |
3,312 | 0.95 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-UC(V17) | Active | 6800 pF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.079 (2.00mm) | Solder Pads | - | DC Link, DC Filtering | - |
|
|
ECH-U1H682JB5CAP FILM 6800PF 5% 50VDC 1206 |
5,985 | 0.96 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 6800 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H562JB5CAP FILM 5600PF 5% 50VDC 1206 |
15,188 | 0.98 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 5600 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1C273JB5CAP FILM 0.027UF 5% 16VDC 1206 |
133,630 | 0.92 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 0.027 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.047 (1.20mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H181GB5CAP FILM 180PF 2% 50VDC 0805 |
8,998 | 0.94 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(B) | Active | 180 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-U4182V17CAP FILM 1800PF 5% 400VDC 1913 |
5,906 | 0.95 |
RFQ |
Datasheet |
1913 (4833 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-UC(V17) | Active | 1800 pF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189 L x 0.130 W (4.80mm x 3.30mm) | 0.063 (1.60mm) | Solder Pads | - | DC Link, DC Filtering | - |
