Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

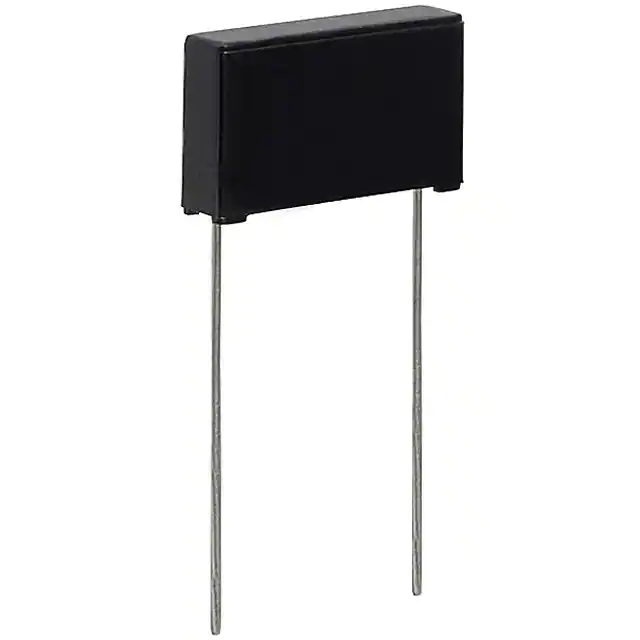

ECQ-U2A822MVCAP FILM 8200PF 20% 250VAC RAD |
2,391 | 0.94 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UV | Obsolete | 8200 pF | ±20% | 250V | - | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.689 L x 0.157 W (17.50mm x 4.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|

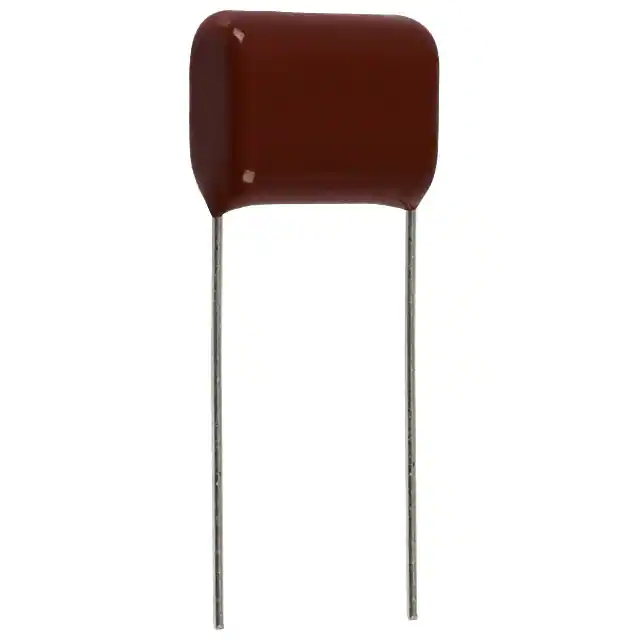

ECQ-E2275RJBCAP FILM 2.7UF 5% 250VDC RADIAL |
2,560 | 0.94 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(B) | Active | 2.7 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819 L x 0.366 W (20.80mm x 9.30mm) | 0.854 (21.70mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |

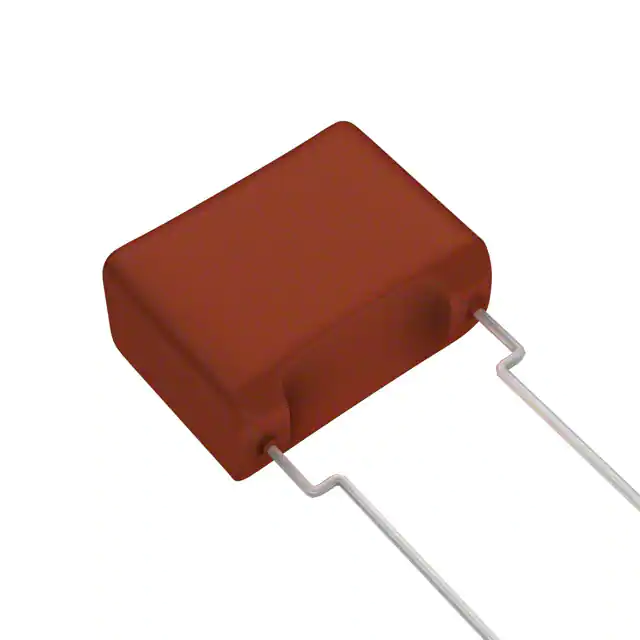

 Series Style Q 26x13.jpg)
|
ECW-FA2J185JQCAP FILM 1.8UF 5% 630VDC RADIAL |
2,004 | 0.94 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 1.8 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.583 W (26.00mm x 14.80mm) | 1.055 (26.80mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |

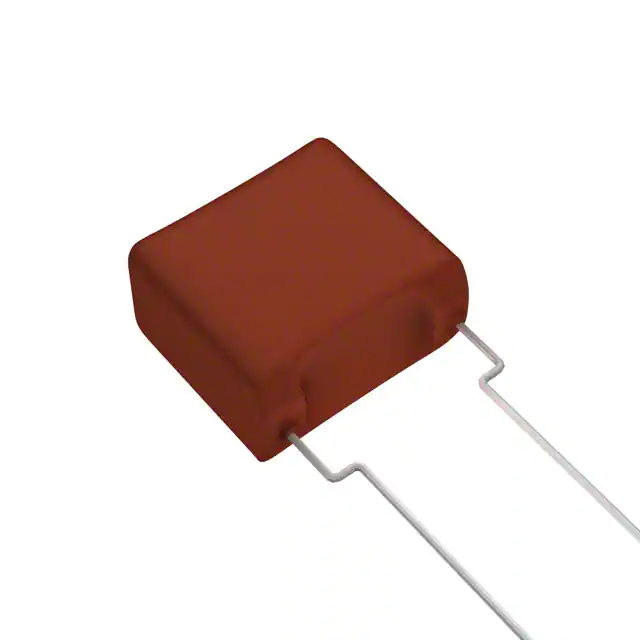

 Series Style B 26x16.jpg)
|
ECW-FA2J185JBCAP FILM 1.8UF 5% 630VDC RADIAL |
2,741 | 0.94 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 1.8 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.583 W (26.00mm x 14.80mm) | 0.976 (24.80mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECQ-E1275JF3CAP FILM 2.7UF 5% 100VDC RADIAL |
2,699 | 0.94 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECQ-E(F) | Active | 2.7 µF | ±5% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.315 W (18.50mm x 8.00mm) | 0.819 (20.80mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
ECW-F4273HLBCAP FILM 0.027UF 3% 400VDC RAD |
3,869 | 0.94 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.027 µF | ±3% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.244 W (12.50mm x 6.20mm) | 0.551 (14.00mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-F4303HLBCAP FILM 0.03UF 3% 400VDC RADIAL |
2,123 | 0.94 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.03 µF | ±3% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.252 W (12.50mm x 6.40mm) | 0.563 (14.30mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECQ-E1335KFBCAP FILM 3.3UF 10% 100VDC RADIAL |
2,273 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 3.3 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.335 W (18.50mm x 8.50mm) | 0.846 (21.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
|
ECQ-E1335KFWCAP FILM 3.3UF 10% 100VDC RADIAL |
3,893 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 3.3 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.335 W (18.50mm x 8.50mm) | 0.846 (21.50mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
|
ECW-F4333RJBCAP FILM 0.033UF 5% 400VDC RAD |
2,101 | 0.95 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-F(B) | Active | 0.033 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.610 L x 0.217 W (15.50mm x 5.50mm) | 0.689 (17.50mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-F6393JLBCAP FILM 0.039UF 5% 630VDC RAD |
3,852 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.039 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.299 W (13.00mm x 7.60mm) | 0.606 (15.40mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-F6433JLBCAP FILM 0.043UF 5% 630VDC RAD |
2,956 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.043 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.311 W (13.00mm x 7.90mm) | 0.618 (15.70mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-H12133RHVCAP FILM 0.013UF 3% 1.25KVDC RAD |
3,225 | 0.95 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-H(V) | Active | 0.013 µF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.354 W (18.00mm x 9.00mm) | 0.807 (20.50mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
ECW-FG70105JACAP FILM 1.0UF 700VDC RADIAL |
2,784 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 1 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.374 W (31.50mm x 9.50mm) | 0.728 (18.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-H12153HVCAP FILM 0.015UF 3% 1.25KVDC RAD |
3,686 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.015 µF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.374 W (18.00mm x 9.50mm) | 0.689 (17.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
|
ECW-H12163HVCAP FILM 0.016UF 3% 1.25KVDC RAD |
2,226 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.016 µF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.295 W (23.00mm x 7.50mm) | 0.689 (17.50mm) | PC Pins | 0.787 (20.00mm) | High Frequency, Switching | - |
|
ECQ-E10224KFCAP FILM 0.22UF 10% 1KVDC RADIAL |
3,505 | 0.95 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.22 µF | ±10% | 125V | 1000V (1kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.965 (24.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
ECW-F4104JLBCAP FILM 0.1UF 5% 400VDC RADIAL |
2,691 | 0.96 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.1 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.256 W (15.50mm x 6.50mm) | 0.630 (16.00mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-F4683JLBCAP FILM 0.068UF 5% 400VDC RAD |
3,651 | 0.96 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.068 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.276 W (13.00mm x 7.00mm) | 0.587 (14.90mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-F4913JLBCAP FILM 0.091UF 5% 400VDC RAD |
2,182 | 0.96 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.091 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512 L x 0.307 W (13.00mm x 7.80mm) | 0.618 (15.70mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
