Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-FG60275JACAP FILM 2.7UF 600VDC RADIAL |
2,127 | 1.28 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 2.7 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.374 W (31.50mm x 9.50mm) | 0.728 (18.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |

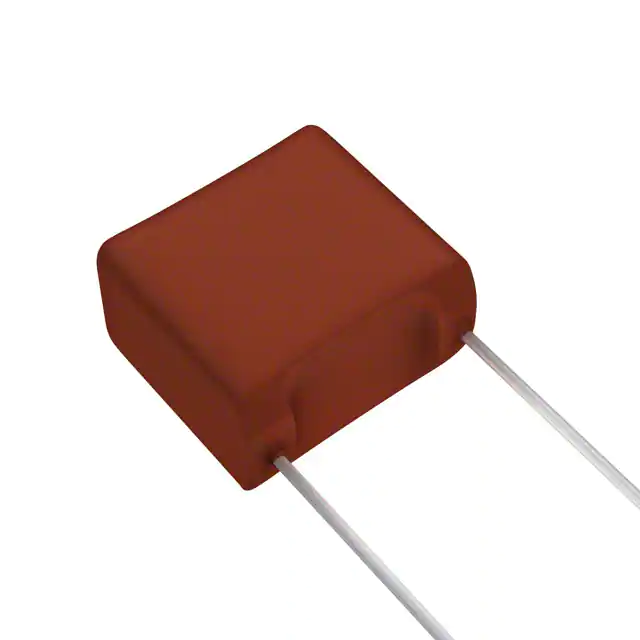

 Series Straight 18x11.jpg)
|
ECW-F2185HACAP FILM 1.8UF 3% 250VDC RADIAL |
2,619 | 1.28 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 1.8 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740 L x 0.449 W (18.80mm x 11.40mm) | 0.709 (18.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
 Series Style B 18x11.jpg)
|
ECW-F2185HABCAP FILM 1.8UF 3% 250VDC RADIAL |
3,746 | 1.28 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 1.8 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740 L x 0.449 W (18.80mm x 11.40mm) | 0.906 (23.00mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |

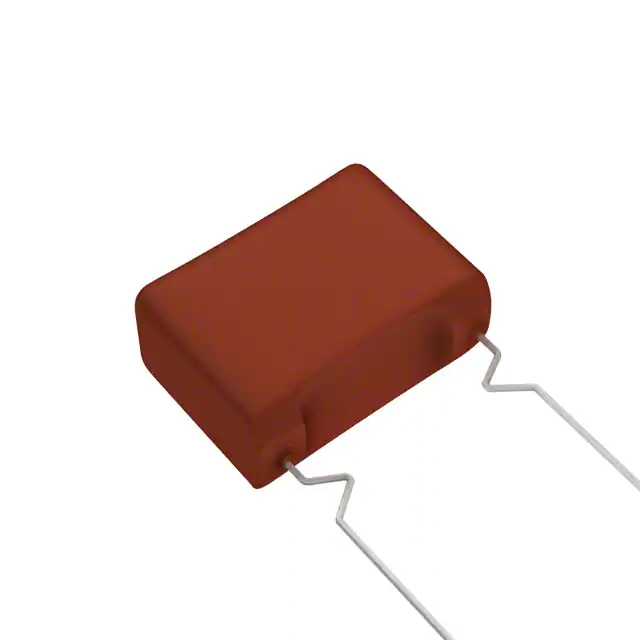

 Series Style D 18x11.jpg)
|
ECW-F2185HAQCAP FILM 1.8UF 3% 250VDC RADIAL |
2,870 | 1.28 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 1.8 µF | ±3% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740 L x 0.449 W (18.80mm x 11.40mm) | 0.984 (25.00mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
ECW-FD2J335JBCAP FILM 3.3UF 5% 630VDC RADIAL |
2,175 | 1.28 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 3.3 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996 L x 0.602 W (25.30mm x 15.30mm) | 1.012 (25.70mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-FD2J335JQCAP FILM 3.3UF 5% 630VDC RADIAL |
2,643 | 1.28 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 3.3 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996 L x 0.602 W (25.30mm x 15.30mm) | 1.091 (27.70mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
ECW-F6623HLBCAP FILM 0.062UF 3% 630VDC RAD |
3,435 | 1.29 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.062 µF | ±3% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.280 W (15.50mm x 7.10mm) | 0.650 (16.50mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-F6563HLBCAP FILM 0.056UF 3% 630VDC RAD |
3,714 | 1.29 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.056 µF | ±3% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610 L x 0.268 W (15.50mm x 6.80mm) | 0.638 (16.20mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-F4434JLBCAP FILM 0.43UF 5% 400VDC RADIAL |
3,038 | 1.29 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.43 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.421 W (18.00mm x 10.70mm) | 0.811 (20.60mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching | - |
|
|
ECW-F4204RJBCAP FILM 0.2UF 5% 400VDC RADIAL |
2,745 | 1.30 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-F(B) | Active | 0.2 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.787 L x 0.354 W (20.00mm x 9.00mm) | 0.827 (21.00mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
ECW-F4115HLCAP FILM 1.1UF 3% 400VDC RADIAL |
2,977 | 1.30 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 1.1 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.535 W (23.00mm x 13.60mm) | 0.866 (22.00mm) | PC Pins | 0.787 (20.00mm) | High Frequency, Switching | - |
|
|
ECW-F6163RJLCAP FILM 0.016UF 5% 630VDC RAD |
2,431 | 1.30 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-F(L) | Active | 0.016 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492 L x 0.236 W (12.50mm x 6.00mm) | 0.547 (13.90mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-F4224RJBCAP FILM 0.22UF 5% 400VDC RADIAL |
2,593 | 1.30 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-F(B) | Active | 0.22 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.787 L x 0.374 W (20.00mm x 9.50mm) | 0.846 (21.50mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-F4364RHLCAP FILM 0.36UF 3% 400VDC RADIAL |
2,323 | 1.31 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-F(L) | Active | 0.36 µF | ±3% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.390 W (18.00mm x 9.90mm) | 0.776 (19.70mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-F4274JBPCAP FILM 0.27UF 5% 400VDC RADIAL |
2,743 | 1.31 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(B) | Active | 0.27 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | - | - | PC Pins | - | High Frequency, Switching | - |
|
ECQ-E2685JFBCAP FILM 6.8UF 5% 250VDC RADIAL |
3,276 | 1.31 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 6.8 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.512 W (31.00mm x 13.00mm) | 1.079 (27.40mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
ECW-F6154RHLCAP FILM 0.15UF 3% 630VDC RADIAL |
3,451 | 1.31 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-F(L) | Active | 0.15 µF | ±3% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709 L x 0.358 W (18.00mm x 9.10mm) | 0.728 (18.50mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-H12273RHVCAP FILM 0.027UF 3% 1.25KVDC RAD |
2,069 | 1.31 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-H(V) | Active | 0.027 µF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.354 W (23.00mm x 9.00mm) | 0.886 (22.50mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-H12303RHVCAP FILM 0.03UF 3% 1.25KVDC RAD |
3,515 | 1.31 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | ECW-H(V) | Active | 0.03 µF | ±3% | - | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906 L x 0.374 W (23.00mm x 9.50mm) | 0.906 (23.00mm) | PC Pins | 0.295 (7.50mm) | High Frequency, Switching | - |
|
|
ECW-F6274JLBCAP FILM 0.27UF 5% 630VDC RADIAL |
3,416 | 1.31 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 0.27 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807 L x 0.409 W (20.50mm x 10.40mm) | 0.854 (21.70mm) | PC Pins | 0.492 (12.50mm) | High Frequency, Switching | - |
