Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E6153JFCAP FILM 0.015UF 5% 630VDC RAD |
188,265 | 0.68 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.015 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472 L x 0.197 W (12.00mm x 5.00mm) | 0.362 (9.20mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|

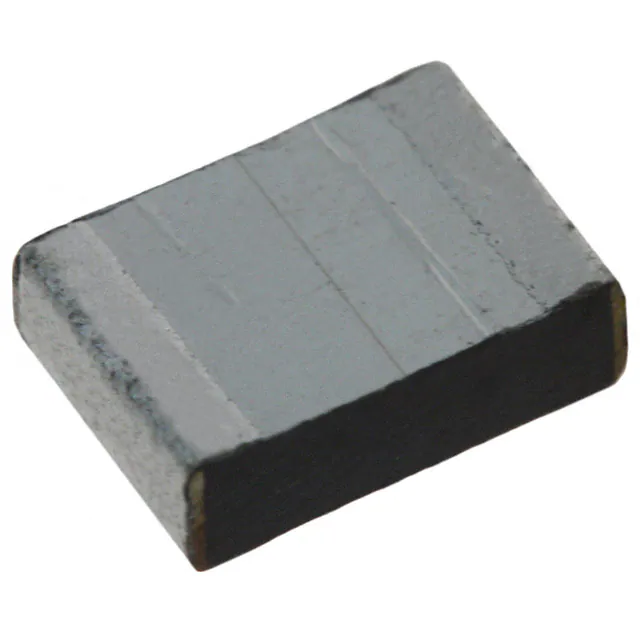

ECH-U1H224GX9CAP FILM 0.22UF 2% 50VDC 2416 |
41,065 | 1.91 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 0.22 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.118 (3.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECH-U1H224JX9CAP FILM 0.22UF 5% 50VDC 2416 |
5,931 | 1.91 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECH-U(X) | Active | 0.22 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.118 (3.00mm) | Solder Pads | - | General Purpose | - |
 Series.jpg)
|

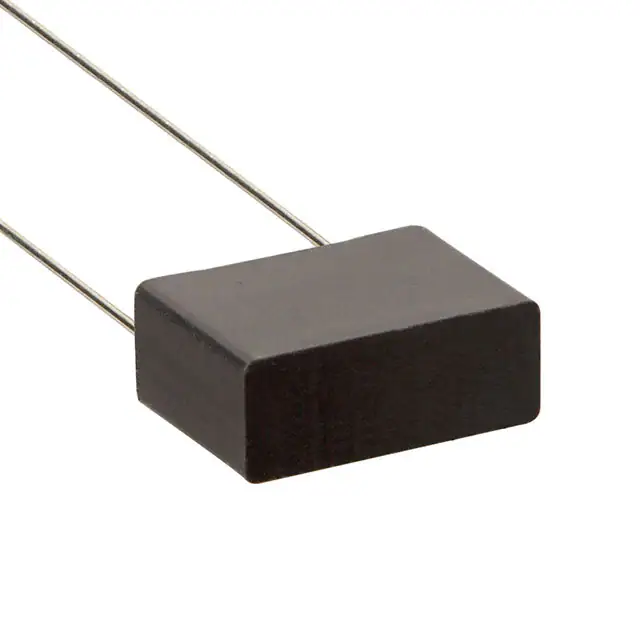

ECW-FE2W105KCAP FILM 1UF 10% 450VDC RADIAL |
59,054 | 0.77 |
RFQ |
Datasheet |
Radial | Bulk | ECWFE | Active | 1 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689 L x 0.276 W (17.50mm x 7.00mm) | 0.512 (13.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-U2473V16CAP FILM 0.047UF 5% 250VDC 2416 |
13,155 | 2.10 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(V16) | Active | 0.047 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.106 (2.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - |
|
ECW-U2104KC9CAP FILM 0.1UF 10% 250VDC 2420 |
16,388 | 2.02 |
RFQ |
Datasheet |
2420 (6050 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.1 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236 L x 0.197 W (6.00mm x 5.00mm) | 0.157 (4.00mm) | Solder Pads | - | General Purpose | - |
|
ECQ-E6104KFCAP FILM 0.1UF 10% 630VDC RADIAL |
4,894 | 0.80 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 0.1 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728 L x 0.248 W (18.50mm x 6.30mm) | 0.591 (15.00mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECW-U1C474JC9CAP FILM 0.47UF 5% 16VDC 2416 |
16,912 | 2.04 |
RFQ |
Datasheet |
2416 (6041 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(C) | Active | 0.47 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236 L x 0.161 W (6.00mm x 4.10mm) | 0.118 (3.00mm) | Solder Pads | - | General Purpose | - |
|
ECW-FD2W105JCAP FILM 1UF 5% 450VDC RADIAL |
139,985 | 0.88 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(D) | Active | 1 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689 L x 0.307 W (17.50mm x 7.80mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - |
|

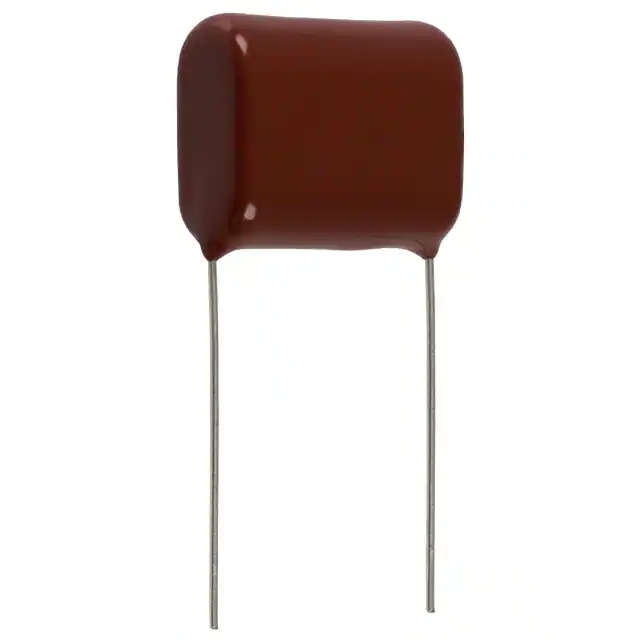

ECQ-E4105KFCAP FILM 1UF 10% 400VDC RADIAL |
8,162 | 1.23 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.335 W (26.00mm x 8.50mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|

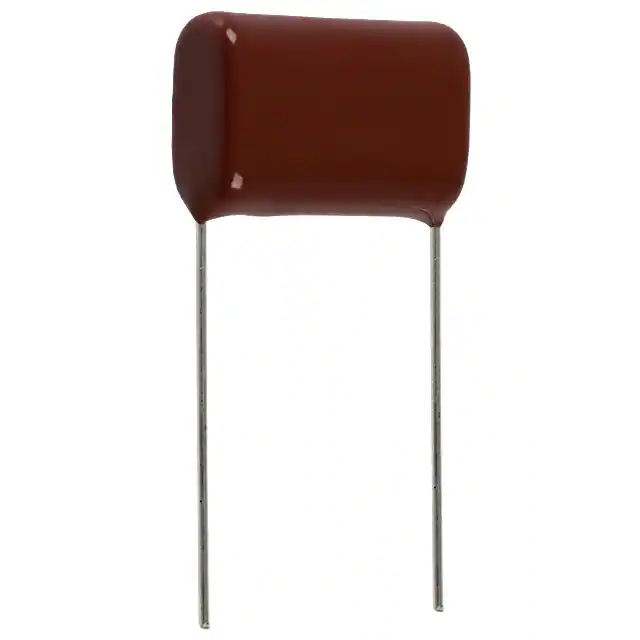

ECQ-E2335KFCAP FILM 3.3UF 10% 250VDC RADIAL |
67,001 | 1.24 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 3.3 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.406 W (26.00mm x 10.30mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
 Series Straight 18x9.jpg)
|
ECW-F2W105JACAP FILM 1UF 5% 450VDC RADIAL |
64,768 | 1.27 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 1 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.713 L x 0.366 W (18.10mm x 9.30mm) | 0.555 (14.10mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|

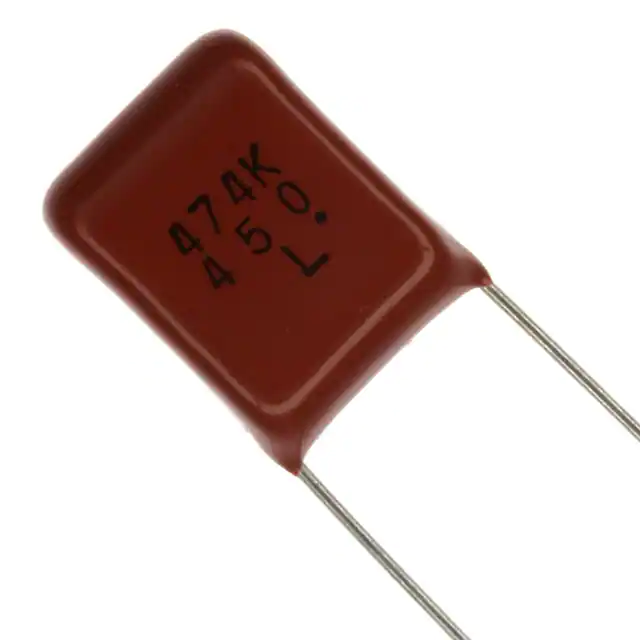

ECQ-E2W474KHCAP FILM 0.47UF 10% 450VDC RAD |
10,773 | 1.29 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(H) | Active | 0.47 µF | ±10% | - | 450V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.500 L x 0.303 W (12.70mm x 7.70mm) | 0.669 (17.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | - |
|
ECQ-E2475KFCAP FILM 4.7UF 10% 250VDC RADIAL |
11,877 | 1.42 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 4.7 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.472 W (26.00mm x 12.00mm) | 0.886 (22.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|

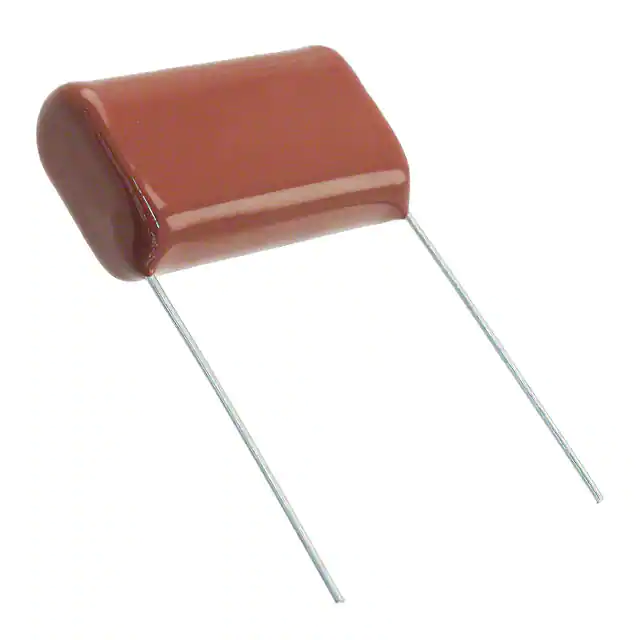

ECQ-E6105KFCAP FILM 1UF 10% 630VDC RADIAL |
9,795 | 1.77 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 1 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.492 W (31.00mm x 12.50mm) | 0.902 (22.90mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
 Series Straight 18x10.jpg)
|
ECW-F2W155JACAP FILM 1.5UF 5% 450VDC RADIAL |
83,520 | 1.97 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 1.5 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740 L x 0.421 W (18.80mm x 10.70mm) | 0.681 (17.30mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
 Series Straight 18x12.jpg)
|
ECW-F2W225JACAP FILM 2.2UF 5% 450VDC RADIAL |
3,883 | 2.29 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 2.2 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740 L x 0.504 W (18.80mm x 12.80mm) | 0.764 (19.40mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|

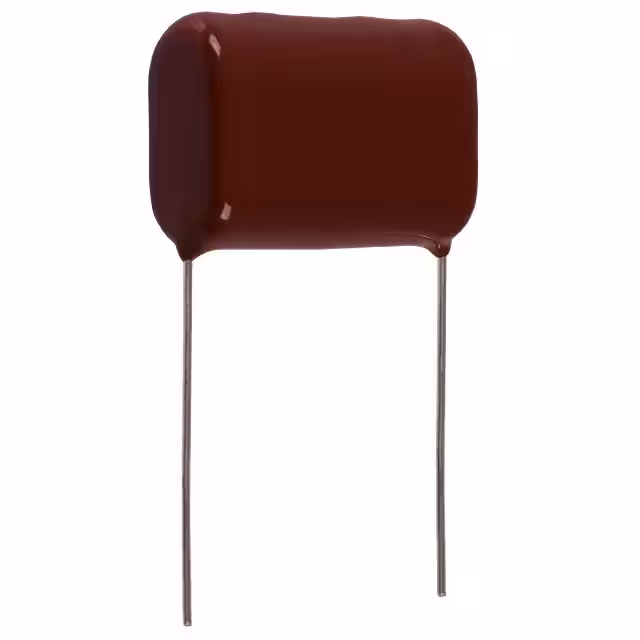

ECQ-E2685KFCAP FILM 6.8UF 10% 250VDC RADIAL |
12,109 | 2.57 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 6.8 µF | ±10% | 150V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220 L x 0.512 W (31.00mm x 13.00mm) | 0.921 (23.40mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
ECQ-E2475KBCAP FILM 4.7UF 10% 250VDC RADIAL |
1,985 | 2.77 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(B) | Active | 4.7 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.819 L x 0.469 W (20.80mm x 11.90mm) | 0.866 (22.00mm) | PC Pins | 0.689 (17.50mm) | General Purpose | - |
|
ECQ-E1106KFCAP FILM 10UF 10% 100VDC RADIAL |
13,149 | 3.72 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 10 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.453 W (26.00mm x 11.50mm) | 0.866 (22.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
