Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EZP-V80106LTUCAP FILM 10UF 10% 800V RADIAL |
198 | 6.72 |
RFQ |
Datasheet |
Radial | Bulk | EZPV | Active | 10 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 11.5 mOhms | -40°C ~ 105°C | Through Hole | 1.220 L x 0.807 W (31.00mm x 20.50mm) | 1.673 (42.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
EZP-V80126LTACAP FILM 12UF 10% 800V RADIAL |
140 | 6.82 |
RFQ |
Datasheet |
Radial | Bulk | EZPV | Active | 12 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 9.9 mOhms | -40°C ~ 105°C | Through Hole | 1.220 L x 0.807 W (31.00mm x 20.50mm) | 1.673 (42.50mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering | - |
|
|
EZP-V80116LTUCAP FILM 11UF 10% 800V RADIAL |
200 | 6.88 |
RFQ |
Datasheet |
Radial | Bulk | EZPV | Active | 11 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 10.6 mOhms | -40°C ~ 105°C | Through Hole | 1.220 L x 0.807 W (31.00mm x 20.50mm) | 1.673 (42.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
EZP-V80905LTACAP FILM 9UF 10% 800V RADIAL |
200 | 6.88 |
RFQ |
Datasheet |
Radial | Bulk | EZPV | Active | 9 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 12.6 mOhms | -40°C ~ 105°C | Through Hole | 1.220 L x 0.807 W (31.00mm x 20.50mm) | 1.673 (42.50mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering | - |
|
|
EZP-V80126LTUCAP FILM 12UF 10% 800V RADIAL |
189 | 7.08 |
RFQ |
Datasheet |
Radial | Bulk | EZPV | Active | 12 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 9.9 mOhms | -40°C ~ 105°C | Through Hole | 1.220 L x 0.807 W (31.00mm x 20.50mm) | 1.673 (42.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
EZP-V80136LTACAP FILM 13UF 10% 800V RADIAL |
150 | 7.44 |
RFQ |
Datasheet |
Radial | Bulk | EZPV | Active | 13 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 9.2 mOhms | -40°C ~ 105°C | Through Hole | 1.220 L x 1.024 W (31.00mm x 26.00mm) | 1.654 (42.00mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering | - |
|
|
EZP-V80146LTACAP FILM 14UF 10% 800V RADIAL |
150 | 7.61 |
RFQ |
Datasheet |
Radial | Bulk | EZPV | Active | 14 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 8.7 mOhms | -40°C ~ 105°C | Through Hole | 1.220 L x 1.024 W (31.00mm x 26.00mm) | 1.654 (42.00mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering | - |
|
|
EZP-V80136LTUCAP FILM 13UF 10% 800V RADIAL |
150 | 7.70 |
RFQ |
Datasheet |
Radial | Bulk | EZPV | Active | 13 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 9.2 mOhms | -40°C ~ 105°C | Through Hole | 1.220 L x 1.024 W (31.00mm x 26.00mm) | 1.654 (42.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
EZP-Q60225LTACAP FILM 2.2UF 10% 600VAC RADIAL |
900 | 8.82 |
RFQ |
Datasheet |
Radial | Bulk | EZPQ | Active | 2.2 µF | ±10% | 600V | - | Polypropylene (PP), Metallized | 13.3 mOhms | -40°C ~ 105°C | Through Hole | 1.634 L x 1.024 W (41.50mm x 26.00mm) | 1.614 (41.00mm) | PC Pins | 1.476 (37.50mm) | General Purpose | - |
|
|
EZP-V80186LTACAP FILM 18UF 10% 800V RADIAL |
300 | 8.85 |
RFQ |
Datasheet |
Radial | Bulk | EZPV | Active | 18 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 7.8 mOhms | -40°C ~ 105°C | Through Hole | 1.220 L x 0.866 W (31.00mm x 22.00mm) | 2.146 (54.50mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering | - |
|
|
EZP-V80186LTUCAP FILM 18UF 10% 800V RADIAL |
300 | 8.92 |
RFQ |
Datasheet |
Radial | Bulk | EZPV | Active | 18 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 7.8 mOhms | -40°C ~ 105°C | Through Hole | 1.220 L x 0.866 W (31.00mm x 22.00mm) | 2.146 (54.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
|
EZP-Q60335MTBCAP FILM 3.3UF 10% 600VAC RADIAL |
110 | 11.58 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | EZPQ | Active | 3.3 µF | ±10% | 600V | - | Polypropylene (PP), Metallized | 9.4 mOhms | -40°C ~ 105°C | Through Hole | 1.634 L x 1.083 W (41.50mm x 27.50mm) | 1.673 (42.50mm) | PC Pins | 1.476 (37.50mm) | General Purpose | - |
|

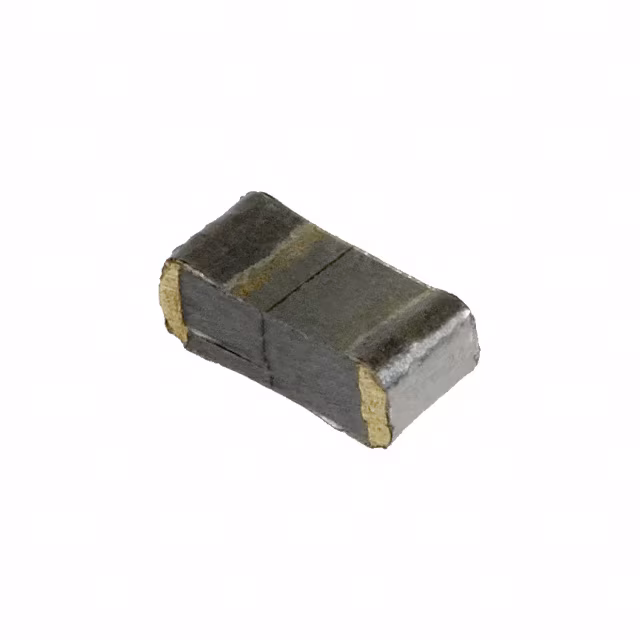

ECW-U1H562JB5CAP FILM 5600PF 5% 50VDC 1206 |
10,272 | 0.61 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(B) | Obsolete | 5600 pF | ±5% | - | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
ECW-U1H822JB5CAP FILM 8200PF 5% 50VDC 1206 |
2,970 | 0.22 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(B) | Obsolete | 8200 pF | ±5% | - | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.047 (1.20mm) | Solder Pads | - | General Purpose | - |
|
ECW-U1H393JB5CAP FILM 0.039UF 5% 50VDC 1210 |
13,000 | 0.72 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | ECW-U(B) | Obsolete | 0.039 µF | ±5% | - | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) | 0.087 (2.20mm) | Solder Pads | - | General Purpose | - |
|

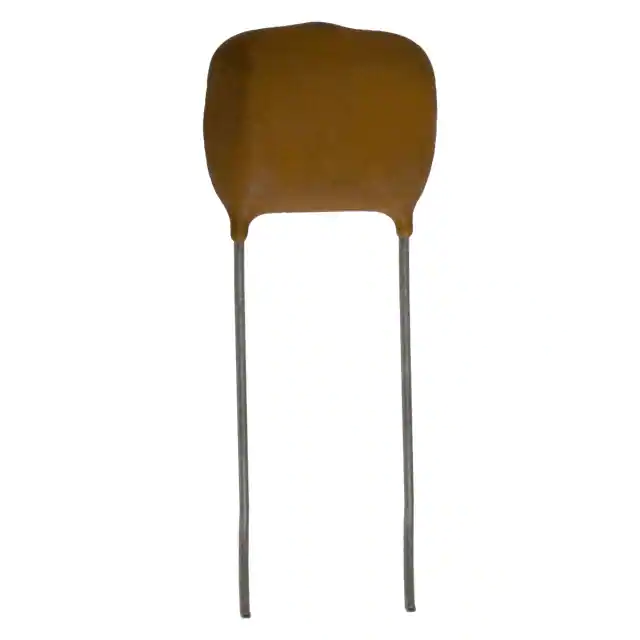

ECQ-M2563KZCAP FILM 0.056UF 10% 200VDC RAD |
1,999 | 0.32 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-M | Obsolete | 0.056 µF | ±10% | - | 200V | Polyester | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | 0.571 (14.50mm) | General Purpose | - |
|

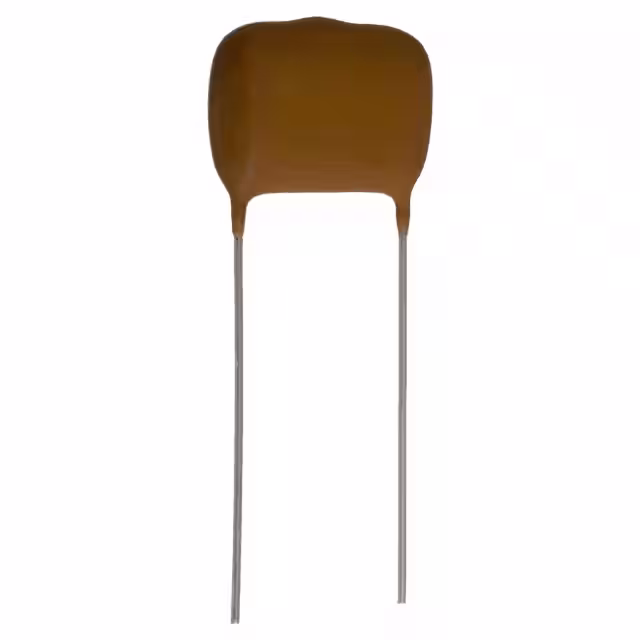

ECQ-M4273KZCAP FILM 0.027UF 10% 400VDC RAD |
1,173 | 0.30 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-M | Obsolete | 0.027 µF | ±10% | - | 400V | Polyester | - | -40°C ~ 85°C | Through Hole | 0.787 L x 0.276 W (20.00mm x 7.00mm) | 0.689 (17.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
ECQ-M2683KZCAP FILM 0.068UF 10% 200VDC RAD |
1,464 | 0.34 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-M | Obsolete | 0.068 µF | ±10% | - | 200V | Polyester | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | 0.571 (14.50mm) | General Purpose | - |
|

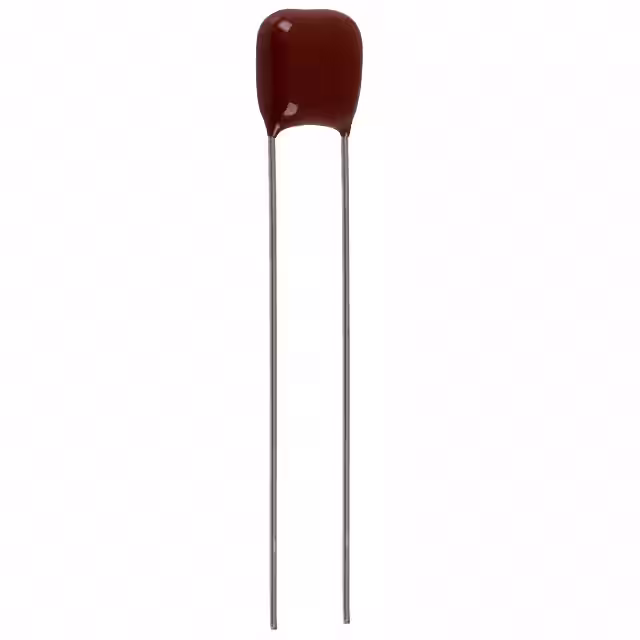

ECQ-E1563KFCAP FILM 0.056UF 10% 100VDC RAD |
36,845 | 0.40 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Obsolete | 0.056 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.307 L x 0.189 W (7.80mm x 4.80mm) | 0.350 (8.90mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
|
ECQ-E1683KFCAP FILM 0.068UF 10% 100VDC RAD |
8,274 | 0.40 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Obsolete | 0.068 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.307 L x 0.189 W (7.80mm x 4.80mm) | 0.350 (8.90mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
