Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-UAAF335SACAP FILM 3.3UF 20% 275VAC RAD |
296 | 2.93 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 3.3 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220 L x 0.748 W (31.00mm x 19.00mm) | 1.161 (29.50mm) | PC Pins | 1.083 (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
|
ECW-FG2J475KCAP FILM 4.7UF 10% 630VDC RADIAL |
200 | 2.94 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 4.7 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.689 W (31.50mm x 17.50mm) | 1.299 (33.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
ECW-H12683JVCAP FILM 0.068UF 5% 1.25KVDC RAD |
144 | 2.94 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.068 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.492 W (28.00mm x 12.50mm) | 0.906 (23.00mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
ECQ-E1825JFCAP FILM 8.2UF 5% 100VDC RADIAL |
590 | 3.09 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 8.2 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.846 (21.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
ECW-H12823JVCAP FILM 0.082UF 5% 1.25KVDC RAD |
779 | 3.11 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.082 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.551 W (28.00mm x 14.00mm) | 0.945 (24.00mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
|
ECW-H16333JVCAP FILM 0.033UF 5% 1.6KVDC RAD |
108 | 3.13 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.033 µF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.453 W (28.00mm x 11.50mm) | 0.866 (22.00mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
|
ECW-H16563JVCAP FILM 0.056UF 5% 1.6KVDC RAD |
550 | 3.16 |
RFQ |
Datasheet |
Radial | Bulk | ECW-H(V) | Active | 0.056 µF | ±5% | 424V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.630 W (28.00mm x 16.00mm) | 1.024 (26.00mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|

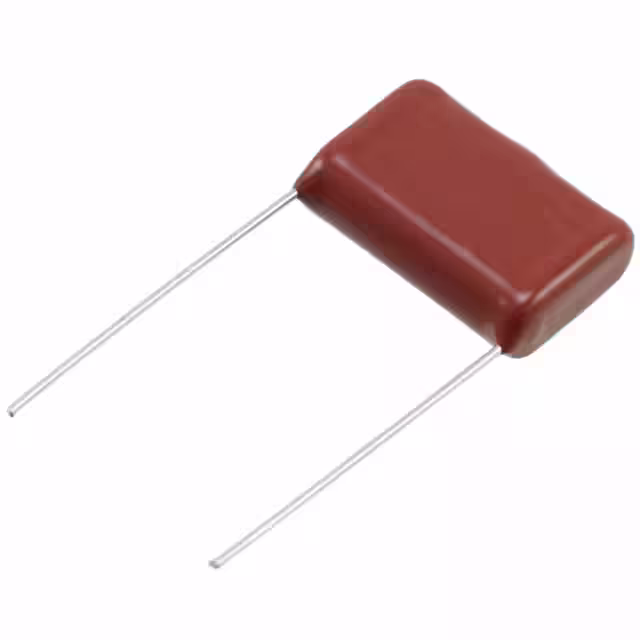

ECQ-E1685JFCAP FILM 6.8UF 5% 100VDC RADIAL |
2,663 | 3.20 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-E(F) | Active | 6.8 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.354 W (26.00mm x 9.00mm) | 0.768 (19.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
ECW-F4155JBCAP FILM 1.5UF 5% 400VDC RADIAL |
184 | 3.25 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(B) | Active | 1.5 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 1.102 L x 0.728 W (28.00mm x 18.50mm) | 1.063 (27.00mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
|
ECQ-UAAF475KCAP FILM 4.7UF 10% 275VAC RADIAL |
3,211 | 3.25 |
RFQ |
Datasheet |
Radial | Bulk | ECQ-UA | Active | 4.7 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220 L x 0.906 W (31.00mm x 23.00mm) | 1.319 (33.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
ECW-FG1B335JCAP FILM 3.3UF 5% 1.1KVDC RAD |
215 | 3.37 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 3.3 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.630 W (31.50mm x 16.00mm) | 1.181 (30.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-FG1B305JACAP FILM 3UF 5% 1.1KVDC RADIAL |
159 | 3.40 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 3 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.630 W (31.50mm x 16.00mm) | 1.181 (30.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-F4155HLCAP FILM 1.5UF 3% 400VDC RADIAL |
947 | 3.47 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 1.5 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.539 W (28.00mm x 13.70mm) | 0.874 (22.20mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
|
ECW-F4245JLCAP FILM 2.4UF 5% 400VDC RADIAL |
960 | 3.62 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 2.4 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.689 W (28.00mm x 17.50mm) | 1.035 (26.30mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
 Series Straight 26x13.jpg)
|

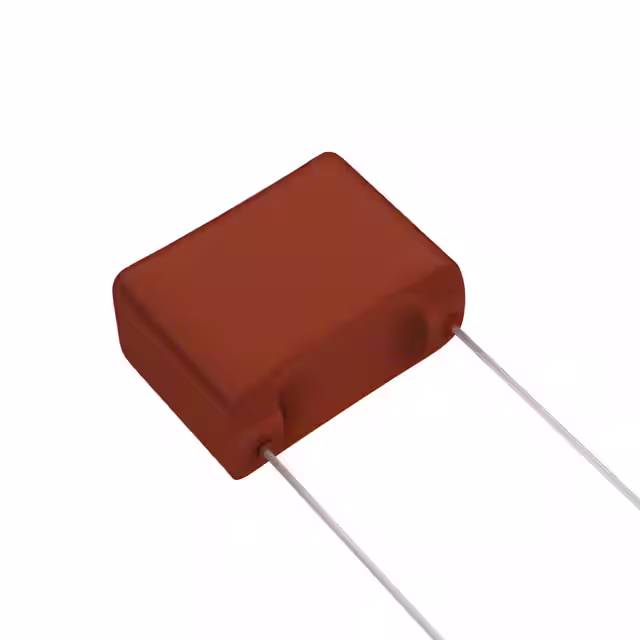

ECW-F2W395JACAP FILM 3.9UF 5% 450VDC RADIAL |
265 | 3.66 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(A) | Active | 3.9 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.035 L x 0.496 W (26.30mm x 12.60mm) | 0.783 (19.90mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|
|
ECW-FG1B405JACAP FILM 4UF 5% 1.1KVDC RADIAL |
2,253 | 3.74 |
RFQ |
Datasheet |
Radial | Bulk | ECWFG | Active | 4 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240 L x 0.689 W (31.50mm x 17.50mm) | 1.299 (33.00mm) | PC Pins | 1.083 (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 |
|
|
ECW-F6135HLCAP FILM 1.3UF 3% 630VDC RADIAL |
818 | 3.76 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 1.3 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.693 W (28.00mm x 17.60mm) | 1.020 (25.91mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
|
ECW-F4245HLCAP FILM 2.4UF 3% 400VDC RADIAL |
867 | 3.82 |
RFQ |
Datasheet |
Radial | Bulk | ECW-F(L) | Active | 2.4 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102 L x 0.689 W (28.00mm x 17.50mm) | 1.035 (26.30mm) | PC Pins | 0.984 (25.00mm) | High Frequency, Switching | - |
|
DS441505-BACAP FILM 5UF 10% 440VAC CHAS MT |
3,198 | 8.37 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMF | Active | 5 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.969 L x 1.051 W (50.00mm x 26.70mm) | 1.516 (38.50mm) | Quick Connect - 0.187 (4.7mm) | - | Motor Run | - |
|
EZP-Q38805LTCCAP FILM 8UF 5% 380VAC RADIAL |
2,420 | 8.38 |
RFQ |
Datasheet |
Radial | Bulk | EZPQ | Active | 8 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.634 L x 1.043 W (41.50mm x 26.50mm) | 1.654 (42.00mm) | PC Pins | 1.476 (37.50mm) | General Purpose | - |
