Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
475MKP275KHCAP FILM 4.7UF 10% 310VAC RADIAL |
1,831 | 3.90 |
RFQ |
Datasheet |
Radial | Bulk | MKP | Active | 4.7 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220 L x 0.787 W (31.00mm x 20.00mm) | 1.213 (30.80mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
105MWR630KCAP FILM 1UF 10% 630VDC AXIAL |
306 | 3.93 |
RFQ |
Datasheet |
Axial | Bulk | MWR | Active | 1 µF | ±10% | 220V | 630V | Polyester, Metallized | 1.415 Ohms | -40°C ~ 105°C | Through Hole | 0.866 Dia x 1.339 L (22.00mm x 34.00mm) | - | PC Pins | - | General Purpose | - |
|
105PHC600KCAP FILM 1UF 10% 600VDC AXIAL |
2,791 | 4.27 |
RFQ |
Datasheet |
Axial | Bulk | PHC | Active | 1 µF | ±10% | 330V | 600V | Polypropylene (PP), Metallized | 6.1 mOhms | -40°C ~ 85°C | Through Hole | 0.689 Dia x 1.339 L (17.50mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
305PHC250KCAP FILM 3UF 10% 250VDC AXIAL |
1,657 | 5.16 |
RFQ |
Datasheet |
Axial | Bulk | PHC | Active | 3 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 4.8 mOhms | -40°C ~ 85°C | Through Hole | 0.591 Dia x 1.339 L (15.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
106MWR100KCAP FILM 10UF 10% 100VDC AXIAL |
589 | 5.31 |
RFQ |
Datasheet |
Axial | Bulk | MWR | Active | 10 µF | ±10% | 63V | 100V | Polyester, Metallized | 177 mOhms | -40°C ~ 105°C | Through Hole | 0.709 Dia x 1.339 L (18.00mm x 34.00mm) | - | PC Pins | - | General Purpose | - |
|
|
106MWR050KCAP FILM 10UF 10% 50VDC AXIAL |
1,089 | 5.47 |
RFQ |
Datasheet |
Axial | Bulk | MWR | Active | 10 µF | ±10% | 30V | 50V | Polyester, Metallized | 177 mOhms | -40°C ~ 105°C | Through Hole | 0.531 Dia x 0.807 L (13.50mm x 20.50mm) | - | PC Pins | - | General Purpose | - |
|
|
305PHC400KCAP FILM 3UF 10% 400VDC AXIAL |
3,909 | 5.85 |
RFQ |
Datasheet |
Axial | Bulk | PHC | Active | 3 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 85°C | Through Hole | 0.827 Dia x 1.339 L (21.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - |
|
224PPA202KCAP FILM 0.22UF 10% 2KVDC AXIAL |
244 | 6.75 |
RFQ |
Datasheet |
Axial | Bulk | PPA | Active | 0.22 µF | ±10% | 650V | 2000V (2kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 85°C | Through Hole | 0.906 Dia x 1.811 L (23.00mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - |
|
|
104PPA202KCAP FILM 0.1UF 10% 2KVDC AXIAL |
486 | 6.78 |
RFQ |
Datasheet |
Axial | Bulk | PPA | Active | 0.1 µF | ±10% | 650V | 2000V (2kV) | Polypropylene (PP), Metallized | 8.4 mOhms | -55°C ~ 85°C | Through Hole | 0.787 Dia x 1.339 L (20.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - |
|
|
685PHC400KCAP FILM 6.8UF 10% 400VDC AXIAL |
170 | 8.54 |
RFQ |
Datasheet |
Axial | Bulk | PHC | Active | 6.8 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 6.4 mOhms | -40°C ~ 85°C | Through Hole | 1.024 Dia x 1.811 L (26.00mm x 46.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
226MWR100KCAP FILM 22UF 10% 100VDC AXIAL |
2,107 | 9.85 |
RFQ |
Datasheet |
Axial | Bulk | MWR | Active | 22 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.866 Dia x 1.811 L (22.00mm x 46.00mm) | - | PC Pins | - | General Purpose | - |
|
MPX256K305RCAP FILM 25UF 10% 305VAC RAD |
181 | 10.74 |
RFQ |
Datasheet |
Radial | Tray | MPX | Active | 25 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.791 (45.50mm) | PC Pins | 2.067 (52.50mm) | EMI, RFI Suppression | X2 |
|
|
106PHC600KCAP FILM 10UF 10% 600VDC AXIAL |
501 | 10.79 |
RFQ |
Datasheet |
Axial | Bulk | PHC | Active | 10 µF | ±10% | 330V | 600V | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Through Hole | 1.378 Dia x 2.165 L (35.00mm x 55.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
206PHC400KCAP FILM 20UF 10% 400VDC AXIAL |
123 | 12.42 |
RFQ |
Datasheet |
Axial | Bulk | PHC | Active | 20 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 4.3 mOhms | -40°C ~ 85°C | Through Hole | 1.378 Dia x 2.323 L (35.00mm x 59.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
205PPA152KSCAP FILM 2UF 10% 1.5KVDC AXIAL |
132 | 23.38 |
RFQ |
Datasheet |
Axial | Bulk | PPA | Active | 2 µF | ±10% | 600V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 85°C | Through Hole | 1.654 Dia x 2.323 L (42.00mm x 59.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - |
|

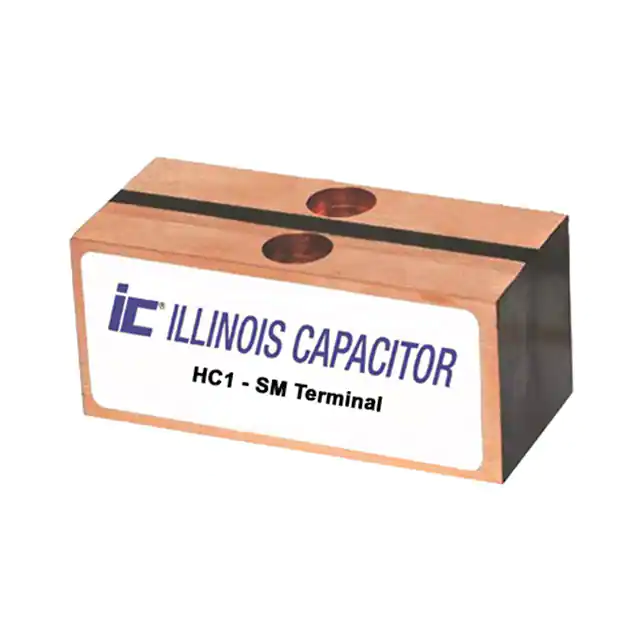

504HC1700K2SM6CAP FILM 0.5UF 10% 700VAC CHASS |
3,803 | 119.85 |
RFQ |
Datasheet |
Nonstandard | Bulk | HC1 | Active | 0.5 µF | ±10% | 700V | - | Polypropylene (PP) | 1 mOhms | -40°C ~ 85°C | Chassis Mount | 2.677 L x 1.189 W (68.00mm x 30.20mm) | 1.201 (30.50mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - |
|
|
503HC1102K2SM6CAP FILM 0.05UF 10% 1KVAC CHASS |
2,553 | 119.85 |
RFQ |
Datasheet |
Nonstandard | Bulk | HC1 | Active | 0.05 µF | ±10% | 1000V (1kV) | - | Polypropylene (PP) | 1.5 mOhms | -40°C ~ 85°C | Chassis Mount | 2.677 L x 1.189 W (68.00mm x 30.20mm) | 1.201 (30.50mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - |
|
154MMR250KCAP FILM 0.15UF 10% 250VDC RAD |
1,052 | 0.42 |
RFQ |
Datasheet |
Radial | Bulk | MMR | Active | 0.15 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.413 L x 0.256 W (10.50mm x 6.50mm) | 0.433 (11.00mm) | PC Pins | 0.295 (7.50mm) | General Purpose | - |
|
|
MPX103K305DCAP FILM 10000PF 10% 305VAC RAD |
3,392 | 0.43 |
RFQ |
Datasheet |
Radial | Tray | MPX | Active | 10000 pF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.453 (11.50mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | X2 |
|
|
MPX333K305DCAP FILM 0.033UF 10% 305VAC RAD |
2,415 | 0.43 |
RFQ |
Datasheet |
Radial | Tray | MPX | Active | 0.033 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.453 (11.50mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | X2 |
