Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R46KI368045P1MCAP FILM 0.68UF 20% 560VDC RAD |
2,792 | 0.98 |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 0.68 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.394 W (18.00mm x 10.00mm) | 0.634 (16.10mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
PHE845VY6220MR30L2CAP FILM 0.22UF 20% 1.5KVDC RAD |
3,538 | 3.40 |
RFQ |
Datasheet |
Radial | Tray | PHE845 | Active | 0.22 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024 L x 0.610 W (26.00mm x 15.50mm) | 0.965 (24.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X1 |
|

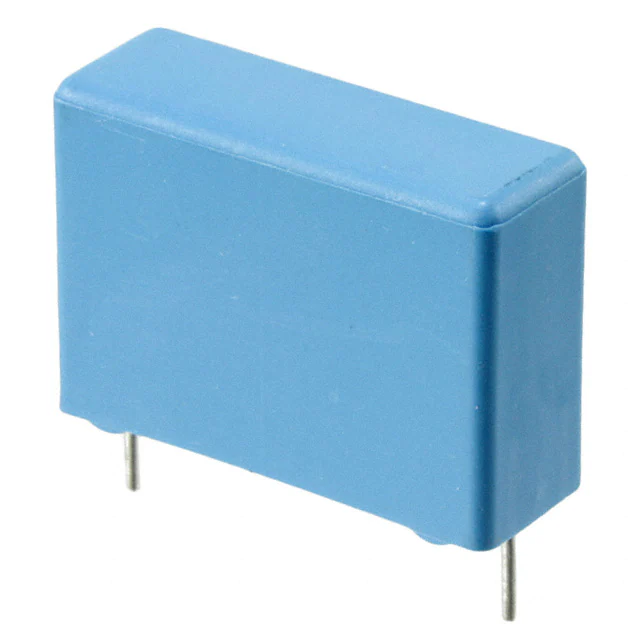

PHE450XD5100JD15R06L2CAP FILM 10000PF 5% 3KVDC RADIAL |
3,314 | 3.62 |
RFQ |
Datasheet |
Radial | Bulk | PHE450 | Active | 10000 pF | ±5% | 1000V (1kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.354 W (26.00mm x 9.00mm) | 0.728 (18.50mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|
PHE450RD6220JR06L2CAP FILM 0.22UF 5% 1.6KVDC RAD |
3,954 | 4.38 |
RFQ |
Datasheet |
Radial | Bulk | PHE450 | Active | 0.22 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.610 W (26.00mm x 15.50mm) | 0.965 (24.50mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|
R474W42205001KCAP FILM 2.2UF 10% 1KVDC RADIAL |
3,830 | 6.20 |
RFQ |
Datasheet |
Radial | Tray | R47 | Active | 2.2 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.579 (40.10mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X2 |
|
PHE844RR7220MR06L2CAP FILM 2.2UF 20% 1KVDC RADIAL |
3,290 | 7.63 |
RFQ |
Datasheet |
Radial | Bulk | PHE844 | Active | 2.2 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.614 L x 0.827 W (41.00mm x 21.00mm) | 1.496 (38.00mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X1 |
|
PHE845VW7100MR06L2CAP FILM 1UF 20% 1.5KVDC RADIAL |
2,957 | 9.37 |
RFQ |
Datasheet |
Radial | Bulk | PHE845 | Active | 1 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.614 L x 0.827 W (41.00mm x 21.00mm) | 1.496 (38.00mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X1 |
|

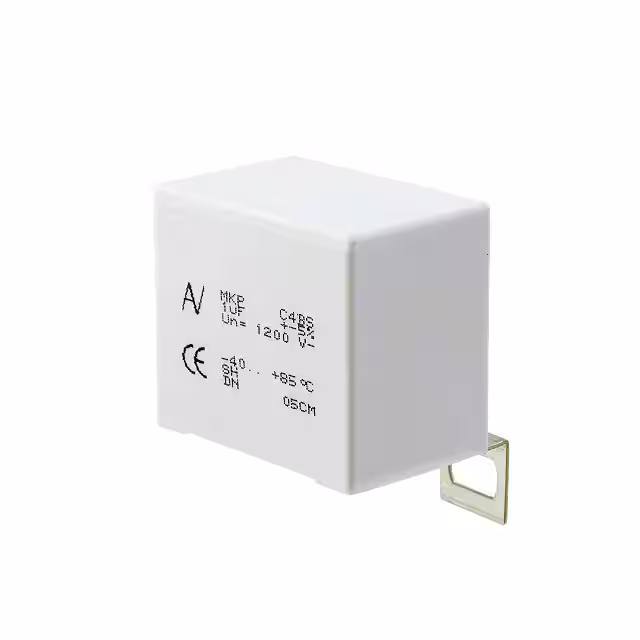

C4BSPBX4100ZAJJCAP FILM 1UF 5% 1.2KVDC SCREW |
2,299 | 12.88 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 1 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.102 W (42.50mm x 28.00mm) | 1.457 (37.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|
PHE850EA4470MA03R17T0CAP FILM 4700PF 20% 1.25KVDC RAD |
2,918 | 0.75 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR),Cut Tape (CT) | PHE850 | Active | 4700 pF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | Y2 |
|

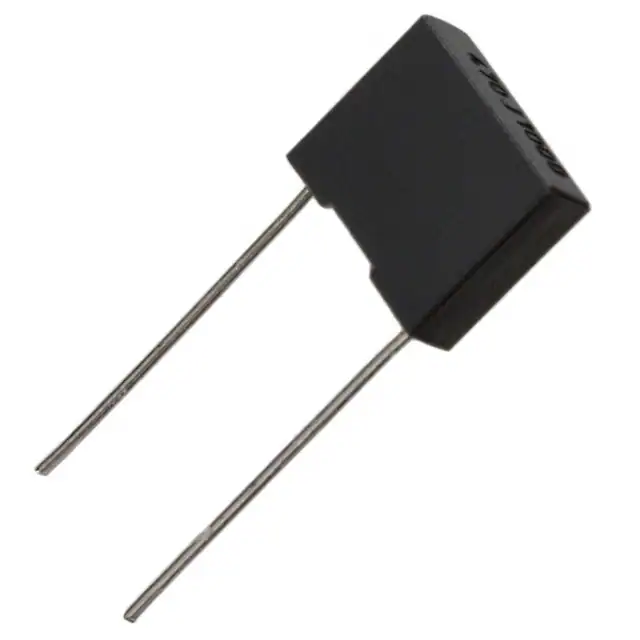

R75QD0470DQ30JCAP FILM 470PF 5% 1KVDC RADIAL |
3,718 | 0.83 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | R75 | Active | 470 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394 L x 0.118 W (10.00mm x 3.00mm) | 0.319 (8.10mm) | PC Pins | 0.295 (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
PHE426MJ4220JR05CAP FILM 2200PF 5% 630VDC RADIAL |
2,027 | 0.41 |
RFQ |
Datasheet |
Radial | Box | PHE426 | Active | 2200 pF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
PHE426DJ4390JR05CAP FILM 3900PF 5% 100VDC RADIAL |
3,042 | 0.44 |
RFQ |
Datasheet |
Radial | Box | PHE426 | Active | 3900 pF | ±5% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
PHE426DJ5100JR05CAP FILM 10000PF 5% 100VDC RAD |
3,555 | 0.45 |
RFQ |
Datasheet |
Radial | Box | PHE426 | Active | 10000 pF | ±5% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
|
MMK5105K100J06L16.5TR18CAP FILM 1UF 10% 100VDC RADIAL |
3,769 | 1.20 |
RFQ |
Datasheet |
Radial | Tape & Reel (TR),Cut Tape (CT) | MMK | Active | 1 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.283 W (7.20mm x 7.20mm) | 0.512 (13.00mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
R46KI310050M1KCAP FILM 0.1UF 10% 560VDC RADIAL |
2,177 | 0.53 |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 0.1 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.236 W (18.00mm x 6.00mm) | 0.437 (11.10mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
R46KF3100JMP0KCAP FILM 0.1UF 10% 560VDC RADIAL |
3,577 | 0.53 |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 0.1 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512 L x 0.236 W (13.00mm x 6.00mm) | 0.476 (12.10mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | X2 |
|
R75RF13305040JCAP FILM 3300PF 5% 1.25KVDC RAD |
2,755 | 0.54 |
RFQ |
Datasheet |
Radial | Bulk | R75 | Active | 3300 pF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 241.1 mOhms | -55°C ~ 105°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.358 (9.10mm) | PC Pins | 0.394 (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
R76QF082050H0JCAP FILM 820PF 5% 1KVDC RADIAL |
3,356 | 0.55 |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 820 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.329 Ohms | -55°C ~ 125°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.358 (9.10mm) | PC Pins | 0.394 (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
R76QF122050H0JCAP FILM 2200PF 5% 1KVDC RADIAL |
3,749 | 0.56 |
RFQ |
Datasheet |
Radial | Bulk | R76H | Active | 2200 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 289 mOhms | -55°C ~ 125°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.358 (9.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
R46KI310040H1MCAP FILM 0.1UF 20% 560VDC RADIAL |
2,722 | 0.58 |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 0.1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709 L x 0.236 W (18.00mm x 6.00mm) | 0.476 (12.10mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
