Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQIBW5450A3MJCAP FILM 45UF 5% 800VDC RADIAL |
3,988 | 11.31 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AQ | Active | 45 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 4.4 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.783 (45.30mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
C4BSPBX3470ZBFJCAP FILM 0.47UF 5% 1.2KVDC SCREW |
3,881 | 11.57 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 0.47 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 6.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 0.866 (22.00mm) | DC Link, DC Filtering; Snubber | - |
|
C4AF3BW5100A3MKCAP FILM 10UF 10% 400VAC RADIAL |
2,324 | 12.01 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AF | Active | 10 µF | ±10% | 400V | - | Polypropylene (PP), Metallized | 1.9 mOhms | -55°C ~ 105°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.783 (45.30mm) | PC Pins | 2.067 (52.50mm) | Automotive | AEC-Q200 |
|

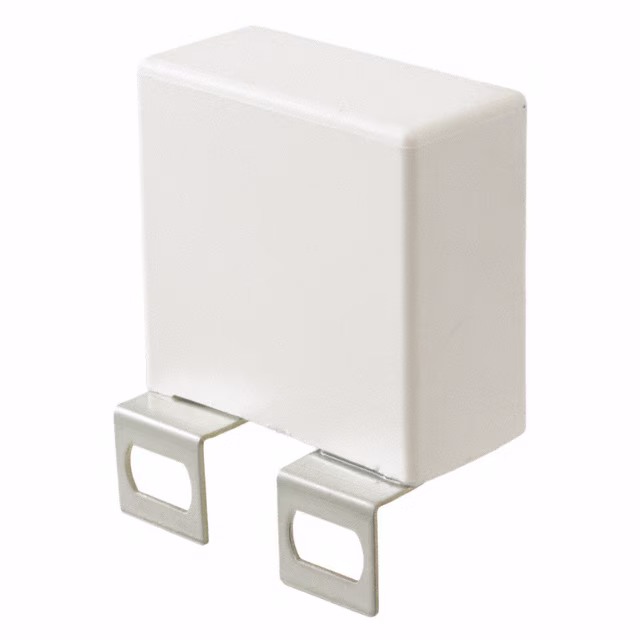

C4BSPBX3680ZAFJCAP FILM 0.68UF 5% 1.2KVDC SCREW |
2,258 | 12.13 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 0.68 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 4.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|
C4BSPBX4100ZBJJCAP FILM 1UF 5% 1.2KVDC SCREW |
3,752 | 12.88 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 1 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.102 W (42.50mm x 28.00mm) | 1.457 (37.00mm) | Screw Terminals | 0.866 (22.00mm) | DC Link, DC Filtering; Snubber | - |
|
C4ATDBW5300A30JCAP FILM 30UF 5% 250VDC RADIAL |
3,399 | 13.25 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AT | Active | 30 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 2.6 mOhms | -40°C ~ 85°C | Through Hole | 1.673 L x 1.181 W (42.50mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
C4ATFBW5200A3LJCAP FILM 20UF 5% 400VDC RADIAL |
2,671 | 13.36 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AT | Active | 20 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 1.4 mOhms | -40°C ~ 85°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
R75IW533050H4JCAP FILM 33UF 5% 250VDC RADIAL |
3,398 | 13.40 |
RFQ |
Datasheet |
Radial | Tray | R75H | Active | 33 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 1.4 mOhms | -55°C ~ 125°C | Through Hole | 1.634 L x 1.181 W (41.50mm x 30.00mm) | 1.776 (45.10mm) | PC Pins | 1.476 (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
C4BSYBX3330ZALJCAP FILM 0.33UF 5% 3KVDC SCREW |
2,977 | 13.44 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 0.33 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|

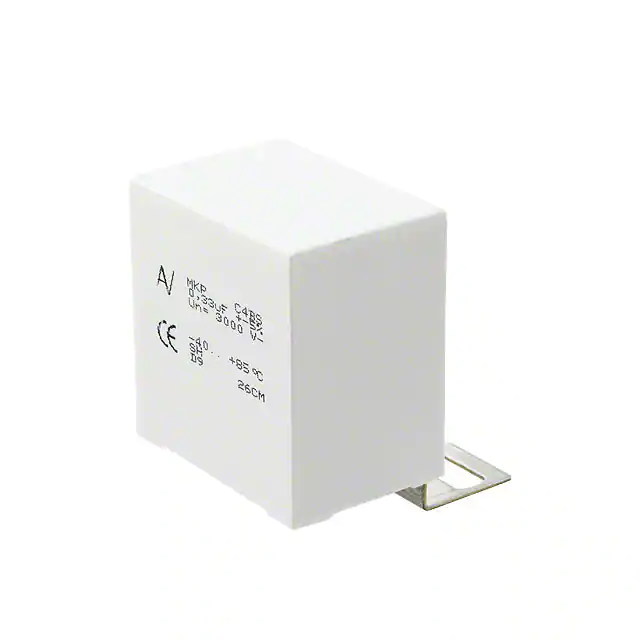

C4BSYBX3330ZBLJCAP FILM 0.33UF 5% 3KVDC SCREW |
2,693 | 13.44 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 0.33 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | 0.866 (22.00mm) | DC Link, DC Filtering; Snubber | - |
|
R76TW382050H3JCAP FILM 0.82UF 5% 1.6KVDC RAD |
2,534 | 13.72 |
RFQ |
Datasheet |
Radial | Tray | R76 | Active | 0.82 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 125°C | Through Hole | 1.634 L x 0.945 W (41.50mm x 24.00mm) | 1.736 (44.10mm) | PC Pins | 1.476 (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|

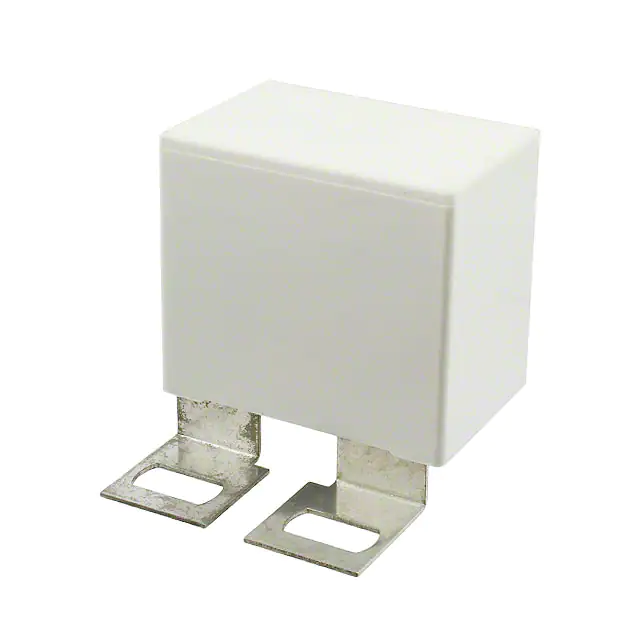

C4BSNBX4150ZBJJCAP FILM 1.5UF 5% 1KVDC SCREW |
3,352 | 14.93 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 1.5 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.102 W (42.50mm x 28.00mm) | 1.457 (37.00mm) | Screw Terminals | 0.866 (22.00mm) | DC Link, DC Filtering; Snubber | - |
|
C4AEOBW5300A3MJCAP FILM 30UF 5% 900VDC RADIAL |
2,887 | 15.75 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AE | Active | 30 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 4.2 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.783 (45.30mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
C4AQQEW5550A3AJCAP FILM 55UF 5% 1.1KVDC RAD |
3,470 | 15.99 |
RFQ |
Datasheet |
Radial - 4 Leads | Box | C4AQ | Active | 55 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.6 mOhms | -55°C ~ 105°C | Through Hole | 2.264 L x 1.772 W (57.50mm x 45.00mm) | 2.217 (56.30mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
C4AEHBW5300A3JJCAP FILM 30UF 5% 600VDC RADIAL |
3,021 | 16.28 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AE | Active | 30 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 3.6 mOhms | -40°C ~ 85°C | Through Hole | 1.673 L x 1.102 W (42.50mm x 28.00mm) | 1.465 (37.20mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
C4AQUEW5380A3AJCAP FILM 38UF 5% 1.3KVDC RAD |
3,049 | 16.42 |
RFQ |
Datasheet |
Radial - 4 Leads | Box | C4AQ | Active | 38 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 3.1 mOhms | -55°C ~ 105°C | Through Hole | 2.264 L x 1.772 W (57.50mm x 45.00mm) | 2.217 (56.30mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|

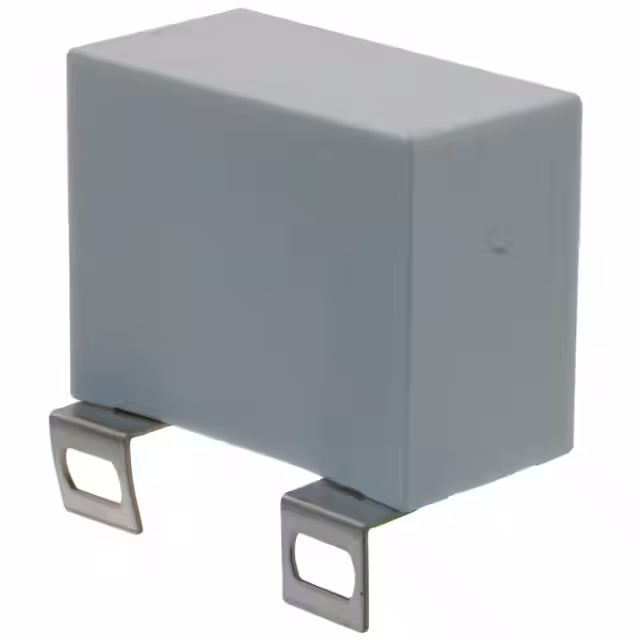

C4BSNBX4300ZAMJCAP FILM 3UF 5% 1KVDC SCREW |
2,179 | 16.61 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 3 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | 1.614 (41.00mm) | DC Link, DC Filtering; Snubber | - |
|
|
C4AQSEW5320A3AJCAP FILM 32UF 5% 1.5KVDC RAD |
3,748 | 16.77 |
RFQ |
Datasheet |
Radial - 4 Leads | Box | C4AQ | Active | 32 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 3.4 mOhms | -55°C ~ 105°C | Through Hole | 2.264 L x 1.772 W (57.50mm x 45.00mm) | 2.217 (56.30mm) | PC Pins | 2.067 (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 |
|
C4BSWBX4150ZANJCAP FILM 1.5UF 5% 2KVDC SCREW |
2,291 | 17.54 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 1.5 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 3.5 Ohms | -40°C ~ 85°C | Chassis Mount | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | Screw Terminals | 1.614 (41.00mm) | DC Link, DC Filtering; Snubber | - |
|
C4AEQBW5250A3NJCAP FILM 25UF 5% 1.1KVDC RADIAL |
2,204 | 19.08 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AE | Active | 25 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 5.2 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
