Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4GADUD5300AA3JCAP FILM 30UF 5% 250VDC AXIAL |
324 | 10.92 |
RFQ |
Datasheet |
Axial | Bulk | C4G | Active | 30 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Through Hole | 1.142 Dia x 2.283 L (29.00mm x 58.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
C4ASPBW3470A3GJCAP FILM 0.47UF 5% 1.2KVDC RAD |
225 | 11.00 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AS | Active | 0.47 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Through Hole | 1.260 L x 0.866 W (32.00mm x 22.00mm) | 1.457 (37.00mm) | PC Pins | 1.083 (27.50mm) | Snubber | - |
|
C4ASPBW4100A3FJCAP FILM 1UF 5% 1.2KVDC RADIAL |
694 | 11.12 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AS | Active | 1 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | PC Pins | 1.476 (37.50mm) | Snubber | - |
|
C4AEQBW5100A3JJCAP FILM 10UF 5% 1.1KVDC RADIAL |
108 | 11.12 |
RFQ |
Datasheet |
Radial | Box | C4AE | Active | 10 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 85°C | Through Hole | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.465 (37.20mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
C4BSWBX3220ZAFJCAP FILM 0.22UF 5% 2KVDC SCREW |
106 | 11.20 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 0.22 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 10.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; Snubber | - |
|
C4ASPBW4120A3JJCAP FILM 1.2UF 5% 1.2KVDC RADIAL |
106 | 11.27 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AS | Active | 1.2 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Through Hole | 1.673 L x 1.102 W (42.50mm x 28.00mm) | 1.457 (37.00mm) | PC Pins | 1.476 (37.50mm) | Snubber | - |
|
274AC35200SA0JCAP FILM 20UF 5% 470VAC RADIAL |
316 | 11.74 |
RFQ |
Datasheet |
Radial, Can | Bulk | C274 | Active | 20 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772 Dia (45.00mm) | 2.992 (76.00mm) | Quick Connect - 0.250 (6.3mm) | 0.528 (13.40mm) | Motor Run; Motor Start | - |
|
C4BSNBX4100ZBFJCAP FILM 1UF 5% 1KVDC SCREW |
135 | 11.95 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.575 (40.00mm) | Screw Terminals | 0.866 (22.00mm) | DC Link, DC Filtering; Snubber | - |
|
C4ATJBW5100A3MJCAP FILM 10UF 5% 700VDC RADIAL |
270 | 12.28 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AT | Active | 10 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
R76PW433050H3JCAP FILM 3.3UF 5% 630VDC RAD |
178 | 13.26 |
RFQ |
Datasheet |
Radial | Tray | R76 | Active | 3.3 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | 1.2 mOhms | -55°C ~ 125°C | Through Hole | 1.634 L x 0.945 W (41.50mm x 24.00mm) | 1.736 (44.10mm) | PC Pins | 1.476 (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
R75GW533050H0JCAP FILM 33UF 5% 160VDC RADIAL |
140 | 13.40 |
RFQ |
Datasheet |
Radial | Tray | R75H | Active | 33 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 1.4 mOhms | -55°C ~ 125°C | Through Hole | 1.634 L x 1.181 W (41.50mm x 30.00mm) | 1.776 (45.10mm) | PC Pins | 1.476 (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
|
C4ATHBW5200A3NJCAP FILM 20UF 5% 600VDC RADIAL |
157 | 13.63 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AT | Active | 20 µF | ±5% | 350V | 600V | Polypropylene (PP), Metallized | 1.9 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
SMR15475J50B14L16.5CBULKCAP FILM 4.7UF 5% 50VDC RADIAL |
288 | 13.85 |
RFQ |
Datasheet |
Radial | Bulk | SMR | Active | 4.7 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.709 L x 0.374 W (18.00mm x 9.50mm) | 0.689 (17.50mm) | PC Pins | 0.591 (15.00mm) | General Purpose | - |
|
|
C4ATGBW5200A3MJCAP FILM 20UF 5% 450VDC RADIAL |
270 | 14.26 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AT | Active | 20 µF | ±5% | 275V | 450V | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
C4BTJBX4500ZAJJCAP FILM 5UF 5% 700VDC SCREW |
216 | 14.67 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BT | Active | 5 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 2.6 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.457 (37.00mm) | Screw Terminals | 1.004 (25.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
C4ATMBW5100A3NJCAP FILM 10UF 5% 850VDC RADIAL |
771 | 14.93 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AT | Active | 10 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 3.8 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
C4BSYBX3470ZBMJCAP FILM 0.47UF 5% 3KVDC SCREW |
3,257 | 14.93 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 0.47 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 7.5 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | 1.457 (37.00mm) | DC Link, DC Filtering; Snubber | - |
|
C4AEJBW5300A3LJCAP FILM 30UF 5% 700VDC RADIAL |
170 | 15.01 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AE | Active | 30 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 3.2 mOhms | -40°C ~ 85°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|

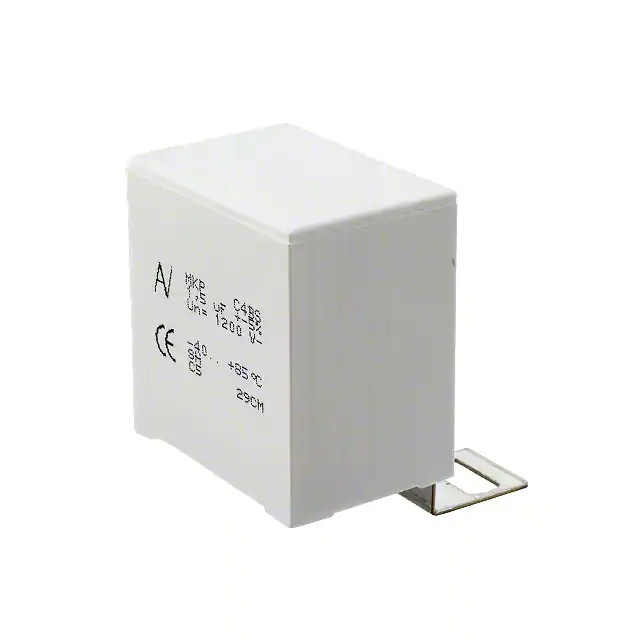

C4BSPBX4150ZBLJCAP FILM 1.5UF 5% 1.2KVDC SCREW |
128 | 16.05 |
RFQ |
Datasheet |
Rectangular Box | Bulk | C4BS | Active | 1.5 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | 0.866 (22.00mm) | DC Link, DC Filtering; Snubber | - |
|
|
C4AEHBW5400A3LJCAP FILM 40UF 5% 600VDC RADIAL |
108 | 19.82 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | C4AE | Active | 40 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
