Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHE450SB4560JR06CAP FILM 5600PF 5% 2KVDC RADIAL |
2,000 | 1.02 |
RFQ |
Datasheet |
Radial | Bulk | PHE450 | Active | 5600 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.217 W (18.00mm x 5.50mm) | 0.413 (10.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching | - |
|
R76MI2820SE30KCAP FILM 0.08UF 10% 400VDC RAD |
1,737 | 1.02 |
RFQ |
Datasheet |
Radial | Bag | R76 | Active | 0.08 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 125°C | Through Hole | 0.709 L x 0.236 W (18.00mm x 6.00mm) | 0.476 (12.10mm) | PC Pins | 0.591 (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
R46KN410040N2MCAP FILM 1UF 20% 560VDC RAD |
2,495 | 1.03 |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043 L x 0.394 W (26.50mm x 10.00mm) | 0.732 (18.60mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
F862BP184K310ALR0LCAP FILM 0.18UF 10% 630VDC RAD |
2,598 | 1.04 |
RFQ |
Datasheet |
Radial | Bulk | F862 | Active | 0.18 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.335 W (18.00mm x 8.50mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | EMI, RFI Suppression | X2 |
|
R73UI0100SE03KCAP FILM 100PF 10% 2KVDC RADIAL |
1,998 | 1.05 |
RFQ |
Datasheet |
Radial | Bulk | R73 | Active | 100 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
R60EF4100506AJCAP FILM 1UF 5% 100VDC RADIAL |
1,927 | 1.06 |
RFQ |
Datasheet |
Radial | Bulk | R60 | Active | 1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512 L x 0.197 W (13.00mm x 5.00mm) | 0.437 (11.10mm) | PC Pins | 0.394 (10.00mm) | Automotive | AEC-Q200 |
|
R75RI23305030JCAP FILM 0.033UF 5% 1.25KVDC RAD |
1,498 | 1.07 |
RFQ |
Datasheet |
Radial | Bulk | R75 | Active | 0.033 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.394 W (18.00mm x 10.00mm) | 0.634 (16.10mm) | PC Pins | 0.591 (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
|
F862DO564K310ZV054CAP FILM 0.56UF 10% 630VDC RAD |
1,188 | 1.08 |
RFQ |
Datasheet |
Radial | Bulk | F862 | Active | 0.56 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024 L x 0.394 W (26.00mm x 10.00mm) | 0.728 (18.50mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|
LDEPE2330KA5N00CAP FILM 0.033UF 10% 630VDC 2824 |
2,425 | 2.62 |
RFQ |
Datasheet |
2824 (7260 Metric) | Tape & Reel (TR),Cut Tape (CT) | LDE | Active | 0.033 µF | ±10% | 200V | 630V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287 L x 0.240 W (7.30mm x 6.10mm) | 0.185 (4.70mm) | Solder Pads | - | Automotive | AEC-Q200 |
|
PHE850ED5470MD13R06L2CAP FILM .047UF 20% 1.25KVDC RAD |
968 | 1.11 |
RFQ |
Datasheet |
Radial | Bulk | PHE850 | Active | 0.047 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024 L x 0.256 W (26.00mm x 6.50mm) | 0.571 (14.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | Y2 |
|
|
F862BZ564K310ZV054CAP FILM 0.56UF 10% 630VDC RAD |
1,276 | 1.12 |
RFQ |
Datasheet |
Radial | Bulk | F862 | Active | 0.56 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709 L x 0.472 W (18.00mm x 12.00mm) | 0.787 (20.00mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 |
|

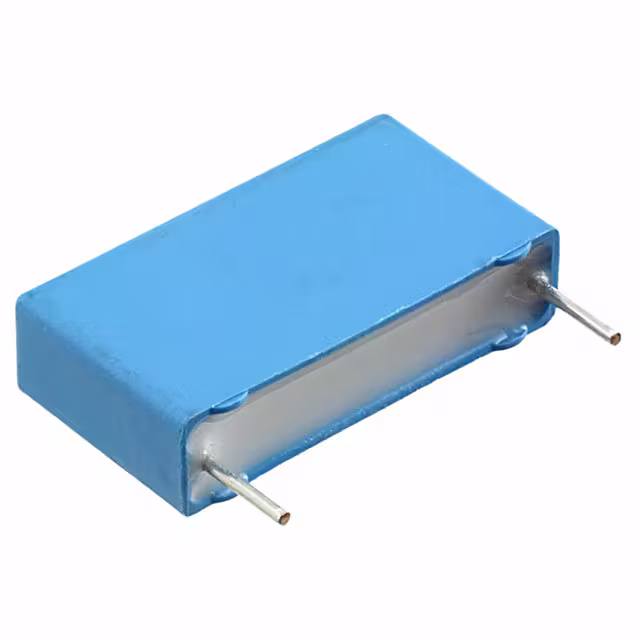

PHE840MD6220MD13R06L2CAP FILM 0.22UF 20% 760VDC RAD |
5,798 | 1.16 |
RFQ |
Datasheet |
Radial | Bulk | PHE840M | Active | 0.22 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024 L x 0.256 W (26.00mm x 6.50mm) | 0.571 (14.50mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
PFR5221J1000J11L4BULKCAP FILM 220PF 5% 1KVDC RADIAL |
3,006 | 1.17 |
RFQ |
Datasheet |
Radial | Box | PFR | Active | 220 pF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.177 W (7.20mm x 4.50mm) | 0.236 (6.00mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
MMK5394M50J01L4BULKCAP FILM 0.39UF 20% 50VDC RADIAL |
1,998 | 1.17 |
RFQ |
Datasheet |
Radial | Box | MMK | Active | 0.39 µF | ±20% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.098 W (7.20mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | General Purpose | - |
|
PFR5102J100J11L4BULKCAP FILM 1000PF 5% 100VDC RADIAL |
2,000 | 1.19 |
RFQ |
Datasheet |
Radial | Bulk | PFR | Active | 1000 pF | ±5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283 L x 0.177 W (7.20mm x 4.50mm) | 0.236 (6.00mm) | PC Pins | 0.197 (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
R46KN347050N0KCAP FILM 0.47UF 10% 560VDC RAD |
2,095 | 1.20 |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 0.47 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043 L x 0.276 W (26.50mm x 7.00mm) | 0.634 (16.10mm) | PC Pins | 0.886 (22.50mm) | EMI, RFI Suppression | X2 |
|
R413N24700000KCAP FILM 0.047UF 10% 1KVDC RAD |
7,675 | 1.21 |
RFQ |
Datasheet |
Radial | Bulk | R41 | Active | 0.047 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043 L x 0.236 W (26.50mm x 6.00mm) | 0.594 (15.10mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 |
|
R76PI24704030JCAP FILM 0.047UF 5% 630VDC RAD |
2,100 | 1.21 |
RFQ |
Datasheet |
Radial | Bulk | R76 | Active | 0.047 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709 L x 0.295 W (18.00mm x 7.50mm) | 0.535 (13.60mm) | PC Pins | 0.591 (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
R463R34704001MCAP FILM 0.47UF 20% 630VDC RAD |
1,005 | 1.25 |
RFQ |
Datasheet |
Radial | Bulk | R46 | Active | 0.47 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260 L x 0.354 W (32.00mm x 9.00mm) | 0.673 (17.10mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|
PHE426HB6470JR06CAP FILM 0.47UF 5% 250VDC RADIAL |
5,996 | 1.29 |
RFQ |
Datasheet |
Radial | Bulk | PHE426 | Active | 0.47 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709 L x 0.295 W (18.00mm x 7.50mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
