Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
150225K100LECAP FILM 2.2UF 10% 100VDC AXIAL |
1,997 | 4.38 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 2.2 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.453 Dia x 1.102 L (11.50mm x 28.00mm) | - | PC Pins | - | General Purpose | - |
|
715P22358LD3CAP FILM 0.022UF 5% 800VDC RAD |
1,367 | 4.38 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.022 µF | ±5% | 450V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.441 Dia x 1.252 L (11.20mm x 31.80mm) | 0.752 (19.10mm) | PC Pins | 0.720 (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|

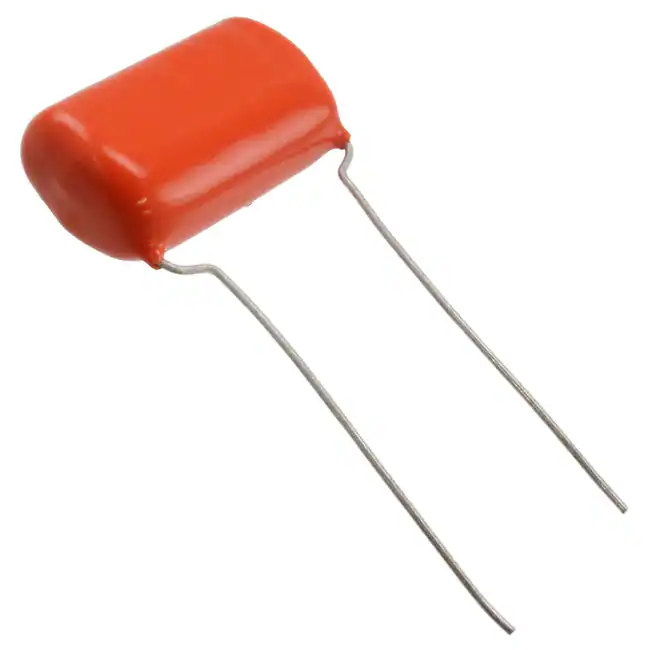

225P47492YD3CAP FILM 0.47UF 10% 200VDC RAD |
1,253 | 4.44 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.47 µF | ±10% | 140V | 200V | Polyester | - | -55°C ~ 85°C | Through Hole | 1.250 L x 0.500 W (31.75mm x 12.70mm) | 0.831 (21.10mm) | PC Pins | 0.720 (18.30mm) | Audio; DC Link, DC Filtering | - |
|

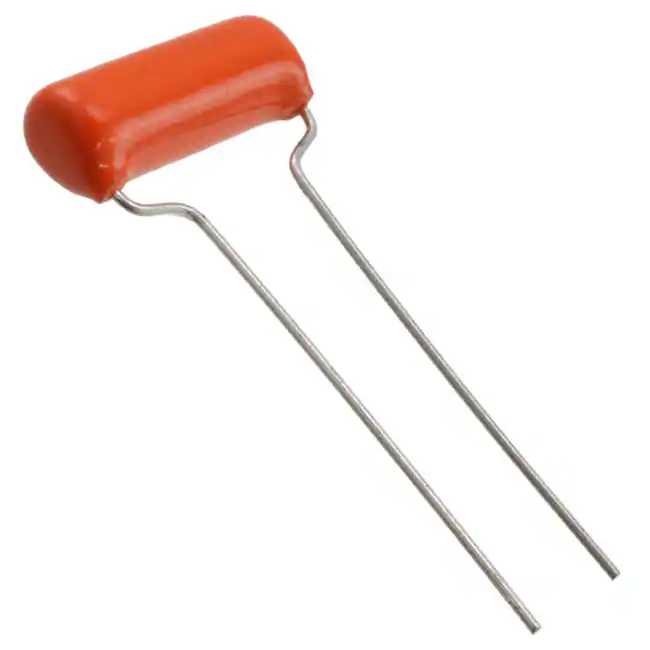

715P47352KD3CAP FILM 0.047UF 5% 200VDC RAD |
3,333 | 4.51 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.047 µF | ±5% | 155V | 200V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.339 Dia x 0.902 L (8.60mm x 22.90mm) | 0.654 (16.60mm) | PC Pins | 0.374 (9.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|

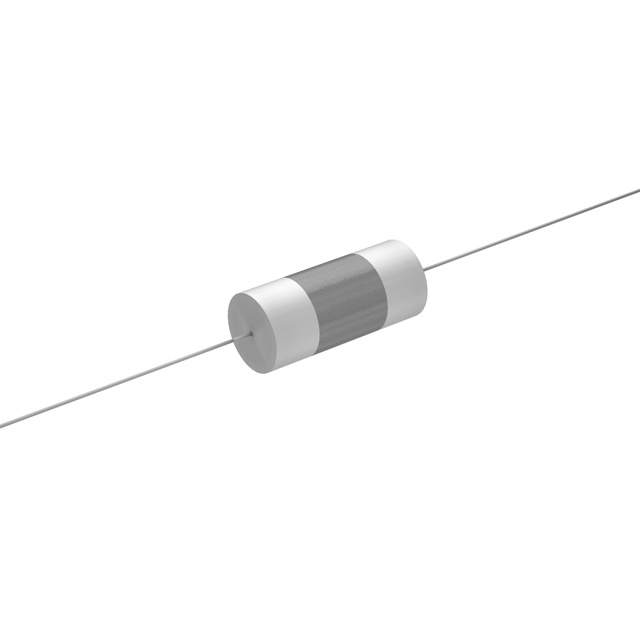

150105J400QFCAP FILM 1UF 5% 400VDC AXIAL |
1,588 | 4.51 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 1 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.571 Dia x 1.299 L (14.50mm x 33.00mm) | - | PC Pins | - | General Purpose | - |
|
715P33356LD3CAP FILM 0.033UF 5% 600VDC RAD |
877 | 4.51 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.033 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.461 Dia x 1.252 L (11.70mm x 31.80mm) | 0.752 (19.10mm) | PC Pins | 0.720 (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
940C30S47K-FCAP FILM 0.047UF 10% 3KVDC AXIAL |
217 | 5.13 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.047 µF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 105°C | Through Hole | 0.650 Dia x 1.811 L (16.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
225P39391WD3CAP FILM 0.039UF 10% 100VDC RAD |
154 | 4.60 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.039 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.701 L x 0.299 W (17.80mm x 7.60mm) | 0.421 (10.70mm) | PC Pins | 0.375 (9.52mm) | Audio; DC Link, DC Filtering | - |
|

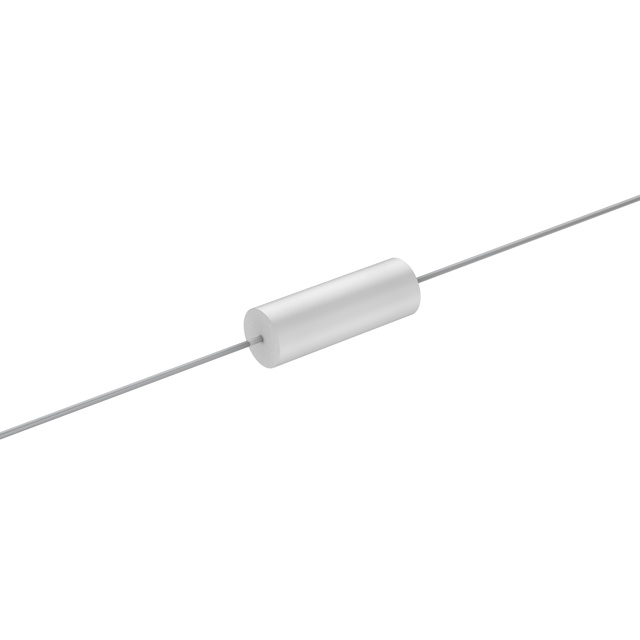

MMWA2P1K-FCAP FILM 0.1UF 10% 250VDC AXIAL |
766 | 4.63 |
RFQ |
Datasheet |
Axial | Bulk | MMWA | Active | 0.1 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.240 Dia x 0.685 L (6.10mm x 17.40mm) | - | PC Pins | - | General Purpose | - |
|
150474K630RFCAP FILM 0.47UF 10% 630VDC AXIAL |
171 | 4.67 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 0.47 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.591 Dia x 1.299 L (15.00mm x 33.00mm) | - | PC Pins | - | General Purpose | - |
|
715P103516LD3CAP FILM 10000PF 5% 1.6KVDC RAD |
819 | 4.77 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 10000 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.319 Dia x 1.252 L (8.10mm x 31.80mm) | 0.902 (22.90mm) | PC Pins | 0.720 (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
MMP6P47K-FCAP FILM 0.47UF 10% 630VDC AXIAL |
1,353 | 4.80 |
RFQ |
Datasheet |
Axial | Bulk | MMP | Active | 0.47 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.689 W, 0.472 T x 1.378 L (17.50mm, 12.00mm x 35.00mm) | - | PC Pins | - | General Purpose | - |
|
942C20S33K-FCAP FILM 0.033UF 10% 2KVDC AXIAL |
937 | 4.82 |
RFQ |
Datasheet |
Axial | Bulk | 942C | Active | 0.033 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 0.768 Dia x 1.339 L (19.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
|
940C12P15K-FCAP FILM 0.15UF 1.2KVDC AXIAL |
243 | 4.82 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.15 µF | ±10% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 0.728 Dia x 1.339 L (18.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|

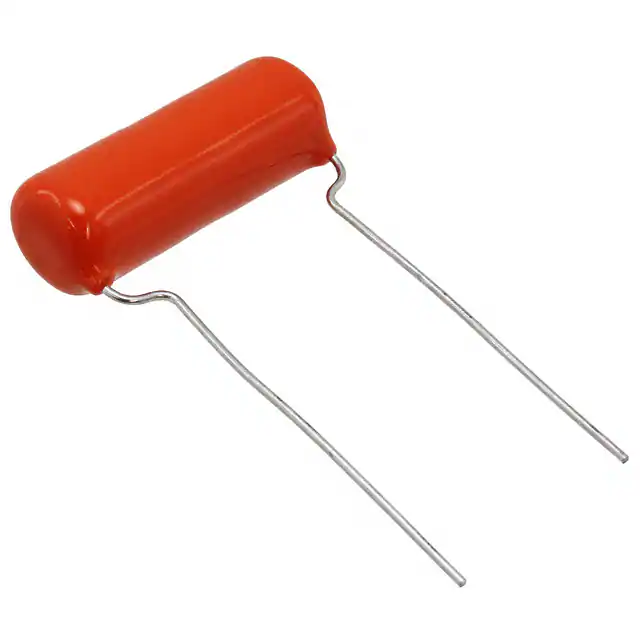

715P47358MD3CAP FILM 0.047UF 5% 800VDC RAD |
226 | 4.82 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.047 µF | ±5% | 450V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.500 Dia x 1.650 L (12.70mm x 41.90mm) | 0.811 (20.60mm) | PC Pins | 1.094 (27.80mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
225P10496YA3CAP FILM 0.1UF 10% 600VDC RADIAL |
1,077 | 4.96 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.1 µF | ±10% | - | 600V | Polyester | - | -55°C ~ 85°C | Through Hole | 1.252 L x 0.559 W (31.80mm x 14.20mm) | 0.909 (23.10mm) | PC Pins | 0.969 (24.60mm) | Audio; DC Link, DC Filtering | - |
|
|
715P10356KD3CAP FILM 10000PF 5% 600VDC RAD |
9,033 | 4.99 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 10000 pF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.358 Dia x 0.902 L (9.10mm x 22.90mm) | 0.654 (16.60mm) | PC Pins | 0.374 (9.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|

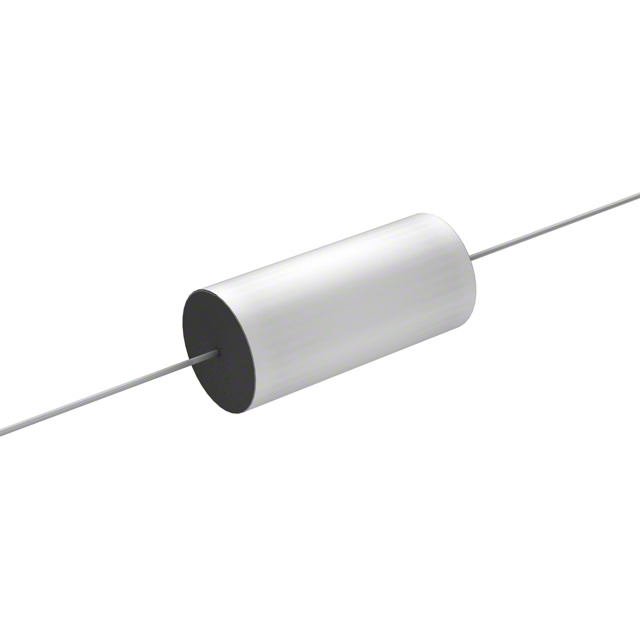

WMF4P1K-FCAP FILM 0.1UF 10% 400VDC AXIAL |
5,490 | 5.10 |
RFQ |
Datasheet |
Axial | Bulk | WMF | Active | 0.1 µF | ±10% | 200V | 400V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.488 Dia x 1.063 L (12.40mm x 27.00mm) | - | PC Pins | - | General Purpose | - |
|

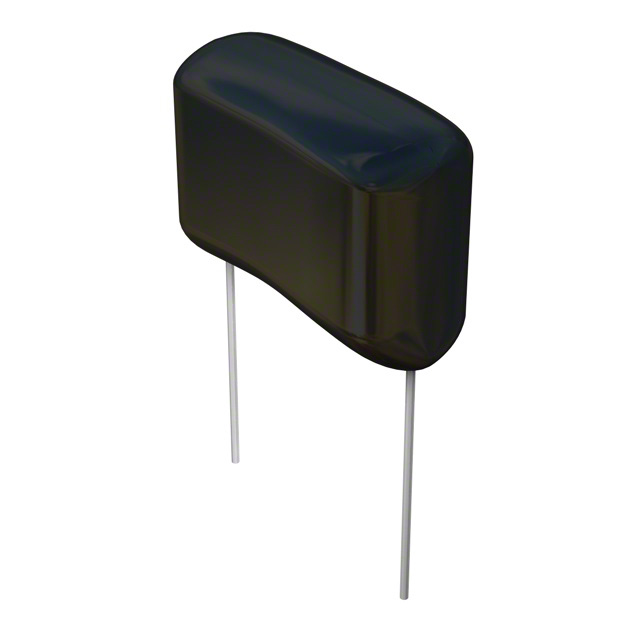

DME6W1K-FCAP FILM 1UF 10% 630VDC RADIAL |
161 | 5.10 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 1 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.220 L x 0.512 W (31.00mm x 13.00mm) | 0.925 (23.50mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
|
942C20S47K-FCAP FILM 0.047UF 10% 2KVDC AXIAL |
146 | 5.28 |
RFQ |
Datasheet |
Axial | Bulk | 942C | Active | 0.047 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 105°C | Through Hole | 0.709 Dia x 1.811 L (18.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
