Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMWA4P1K-FCAP FILM 0.1UF 10% 400VDC AXIAL |
3,739 | 2.17 |
RFQ |
Datasheet |
Axial | Bulk | MMWA | Active | 0.1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.319 Dia x 0.685 L (8.10mm x 17.40mm) | - | PC Pins | - | General Purpose | - |
|
FCN3925A564K-VCAP FILM 0.56UF 10% 100VDC 3925 |
2,182 | 2.18 |
RFQ |
Datasheet |
3925 (9863 Metric) | Tape & Reel (TR) | FCN | Active | 0.56 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.386 L x 0.248 W (9.80mm x 6.30mm) | 0.126 (3.20mm) | Solder Pads | - | General Purpose | - |
|
160334K630P-FCAP FILM 0.33UF 10% 630VDC RAD |
2,230 | 2.18 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 0.33 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.433 W (32.00mm x 11.00mm) | 0.787 (20.00mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
171155J160O-FCAP FILM 1.5UF 5% 160VDC RADIAL |
3,883 | 2.18 |
RFQ |
Datasheet |
Radial | Bulk | 171 | Active | 1.5 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 20 mOhms | -55°C ~ 105°C | Through Hole | 1.043 L x 0.394 W (26.50mm x 10.00mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | High Pulse, DV/DT | - |
|

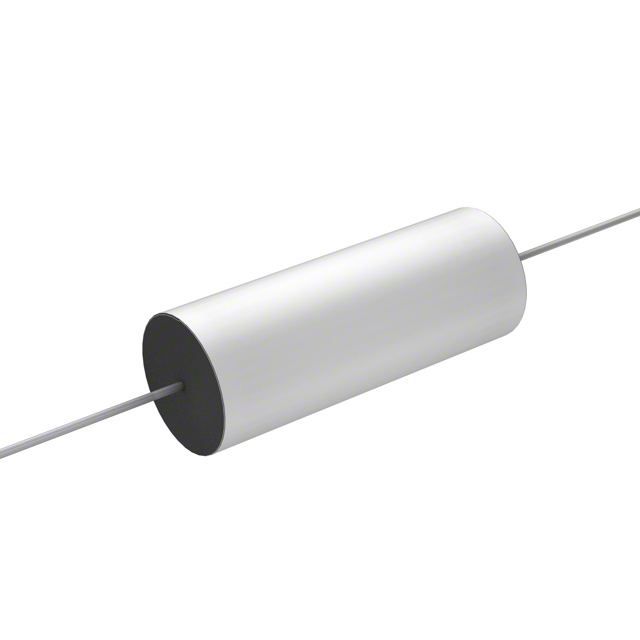

WMF05P47K-FCAP FILM 0.47UF 10% 50VDC AXIAL |
2,216 | 2.21 |
RFQ |
Datasheet |
Axial | Bulk | WMF | Active | 0.47 µF | ±10% | 35V | 50V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.406 Dia x 1.063 L (10.30mm x 27.00mm) | - | PC Pins | - | General Purpose | - |
|
730P334X9100CAP FILM 0.33UF 10% 100VDC AXIAL |
3,685 | 2.21 |
RFQ |
Datasheet |
Axial | Bulk | 730P | Active | 0.33 µF | ±10% | - | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.323 Dia x 0.748 L (8.20mm x 19.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
|
715P15432LD3CAP FILM 0.15UF 3% 200VDC RADIAL |
2,975 | 2.22 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.15 µF | ±3% | 155V | 200V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.441 Dia x 1.252 L (11.20mm x 31.80mm) | 0.752 (19.10mm) | PC Pins | 0.720 (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
716P473912MA3CAP FILM 0.047UF 10% 1.2KVDC RAD |
3,170 | 2.22 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 716P | Active | 0.047 µF | ±10% | 475V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.650 L x 0.618 W (41.90mm x 15.70mm) | 1.012 (25.70mm) | PC Pins | 1.406 (35.70mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
FCN2825E224K-YCAP FILM 0.22UF 10% 250VDC 2825 |
2,957 | 2.23 |
RFQ |
Datasheet |
2825 (7163 Metric) | Tape & Reel (TR) | FCN | Active | 0.22 µF | ±10% | - | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.280 L x 0.248 W (7.10mm x 6.30mm) | 0.209 (5.30mm) | Solder Pads | - | General Purpose | - |
|
|
160225J250P-FCAP FILM 2.2UF 5% 250VDC RADIAL |
2,031 | 2.26 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 2.2 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.433 W (32.00mm x 11.00mm) | 0.787 (20.00mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
|
160394K630P-FCAP FILM 0.39UF 10% 630VDC RAD |
2,309 | 2.26 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 0.39 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.433 W (32.00mm x 11.00mm) | 0.787 (20.00mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
171105J250P-FCAP FILM 1UF 5% 250VDC RADIAL |
3,454 | 2.26 |
RFQ |
Datasheet |
Radial | Bulk | 171 | Active | 1 µF | ±5% | 90V | 250V | Polypropylene (PP), Metallized | 28 mOhms | -55°C ~ 105°C | Through Hole | 1.260 L x 0.433 W (32.00mm x 11.00mm) | 0.787 (20.00mm) | PC Pins | 1.083 (27.50mm) | High Pulse, DV/DT | - |
|

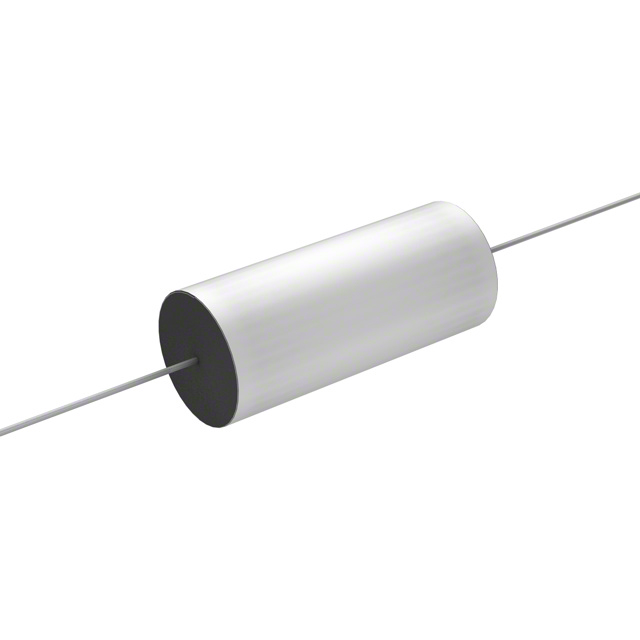

WMF4P15K-FCAP FILM 0.15UF 10% 400VDC AXIAL |
3,269 | 2.26 |
RFQ |
Datasheet |
Axial | Bulk | WMF | Active | 0.15 µF | ±10% | 200V | 400V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.535 Dia x 1.248 L (13.60mm x 31.70mm) | - | PC Pins | - | General Purpose | - |
|
|
730P474X5100CAP FILM 0.47UF 5% 100VDC AXIAL |
2,437 | 2.33 |
RFQ |
Datasheet |
Axial | Bulk | 730P | Active | 0.47 µF | ±5% | - | 100V | Polypropylene (PP), Metallized | 37 mOhms | -55°C ~ 85°C | Through Hole | 0.378 Dia x 0.748 L (9.60mm x 19.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
|
730P474X9100CAP FILM 0.47UF 10% 100VDC AXIAL |
3,844 | 2.33 |
RFQ |
Datasheet |
Axial | Bulk | 730P | Active | 0.47 µF | ±10% | - | 100V | Polypropylene (PP), Metallized | 37 mOhms | -55°C ~ 85°C | Through Hole | 0.378 Dia x 0.748 L (9.60mm x 19.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
|
715P10454LD2CAP FILM 0.1UF 5% 400VDC RADIAL |
3,437 | 2.30 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.1 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.480 Dia x 1.252 L (12.20mm x 31.80mm) | 0.791 (20.10mm) | PC Pins | 0.720 (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
716P10456LA3CAP FILM 0.1UF 5% 600VDC RADIAL |
3,325 | 2.30 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 716P | Active | 0.1 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.252 L x 0.539 W (31.80mm x 13.70mm) | 1.181 (30.00mm) | PC Pins | 1.031 (26.20mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
716P103912LA1CAP FILM 10000PF 10% 1.2KVDC RAD |
2,137 | 2.30 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 716P | Active | 10000 pF | ±10% | 475V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.252 L x 0.421 W (31.80mm x 10.70mm) | 0.953 (24.20mm) | PC Pins | 1.031 (26.20mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
160225K250P-FCAP FILM 2.2UF 10% 250VDC RADIAL |
3,410 | 2.32 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 2.2 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260 L x 0.433 W (32.00mm x 11.00mm) | 0.787 (20.00mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
|
716P22436MD3CAP FILM 0.22UF 3% 600VDC RADIAL |
3,483 | 2.34 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 716P | Active | 0.22 µF | ±3% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.650 L x 0.650 W (41.90mm x 16.50mm) | 1.264 (32.10mm) | PC Pins | 1.094 (27.79mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
