Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
715P33354KD3CAP FILM 0.033UF 5% 400VDC RAD |
283 | 3.54 |
RFQ |
Datasheet |
Radial | Bulk,Bulk | Orange Drop® 715P | Active | 0.033 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.382 Dia x 0.902 L (9.70mm x 22.90mm) | 0.693 (17.60mm) | PC Pins | 0.374 (9.50mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|

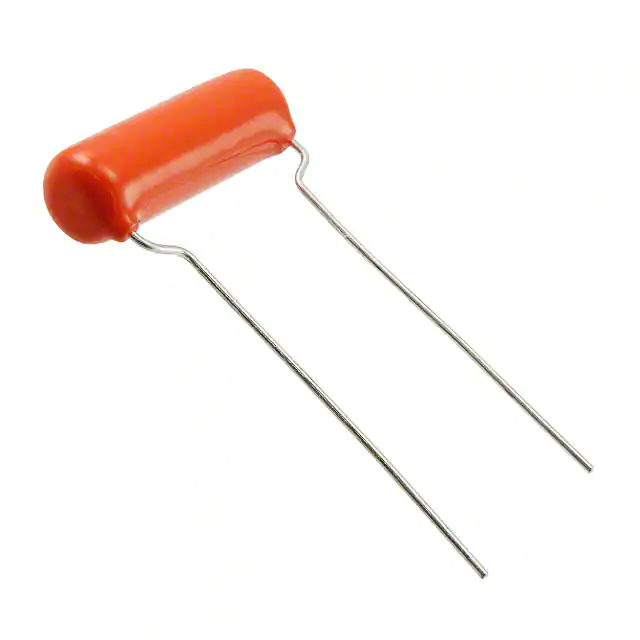

715P47354LD3CAP FILM 0.047UF 5% 400VDC RAD |
488 | 3.79 |
RFQ |
Datasheet |
Radial | Bulk,Bulk | Orange Drop® 715P | Active | 0.047 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.370 Dia x 1.252 L (9.40mm x 31.80mm) | 0.681 (17.30mm) | PC Pins | 0.720 (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
225P47391WD3CAP FILM 0.047UF 10% 100VDC RAD |
2,112 | 3.85 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 0.047 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.701 L x 0.299 W (17.80mm x 7.60mm) | 0.421 (10.70mm) | PC Pins | 0.374 (9.50mm) | Audio; DC Link, DC Filtering | - |
|
940C6P1K-FCAP FILM 0.1UF 10% 600VDC AXIAL |
2,211 | 4.13 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.1 µF | ±10% | 275V | 600V | Polypropylene (PP), Metallized | 28 mOhms | -55°C ~ 105°C | Through Hole | 0.354 Dia x 1.339 L (9.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
942C20S1K-FCAP FILM 10000PF 10% 2KVDC AXIAL |
3,627 | 4.38 |
RFQ |
Datasheet |
Axial | Bulk | 942C | Active | 10000 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 50 mOhms | -55°C ~ 105°C | Through Hole | 0.472 Dia x 1.339 L (12.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
936C4W4P7K-FCAP FILM 4.7UF 10% 400VDC AXIAL |
3,995 | 4.95 |
RFQ |
Datasheet |
Axial | Bulk | 936C | Active | 4.7 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 0.880 W, 0.640 T x 1.750 L (22.35mm, 16.26mm x 44.45mm) | - | PC Pins | - | General Purpose | - |
|
715P22454MD3CAP FILM 0.22UF 5% 400VDC RADIAL |
3,678 | 5.63 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.22 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.579 Dia x 1.650 L (14.70mm x 41.90mm) | 0.894 (22.70mm) | PC Pins | 1.094 (27.80mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
940C20P33K-FCAP FILM 0.33UF 10% 2KVDC AXIAL |
3,775 | 10.57 |
RFQ |
Datasheet |
Axial | Bulk,Bulk | 940C | Active | 0.33 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 1.063 Dia x 1.811 L (27.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
|
940C10P68K-FCAP FILM 0.68UF 10% 1KVDC AXIAL |
2,489 | 10.82 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.68 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.102 Dia x 1.339 L (28.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
SCRN233R-FCAP FILM 1UF 10% 1KVPK RADIAL |
2,615 | 73.12 |
RFQ |
Datasheet |
Radial, Can | Bulk | SCR | Active | 1 µF | ±10% | 1000Vpk (1KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160 L x 1.310 W (54.86mm x 33.27mm), Lip | 2.190 (55.63mm) | Threaded, Male | 0.810 (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - |
.jpg)
|
944U221K801ACMCAP FILM 220UF 10% 800VDC RADIAL |
3,638 | 89.93 |
RFQ |
Datasheet |
Radial, Can | Bulk | 944U | Active | 220 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327 Dia (84.50mm) | 2.559 (65.00mm) | Threaded, Male | 1.772 (45.00mm) | DC Link, DC Filtering | - |
|
947C361K801CAMSCAP FILM 360UF 10% 800VDC RADIAL |
2,352 | 95.54 |
RFQ |
Datasheet |
Radial, Can | Bulk,Bulk | 947C | Active | 360 µF | ±10% | 230V | 800V | Polypropylene (PP), Metallized | 1.9 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543 Dia (90.00mm) | 3.898 (99.00mm) | Threaded, Male | 1.772 (45.00mm) | DC Link, DC Filtering | - |
|

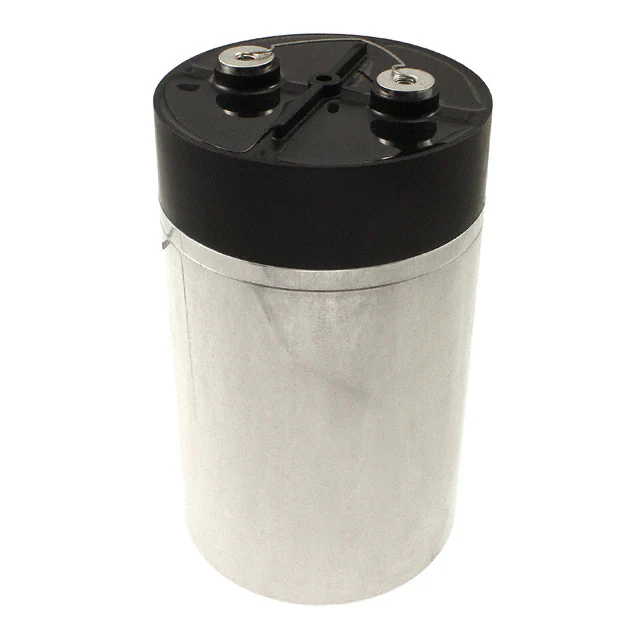

947D501K112BJMSNCAP FILM 500UF 10% 1.1KVDC RAD |
3,594 | 115.24 |
RFQ |
Datasheet |
Radial, Can | Bulk | 947D | Active | 500 µF | ±10% | 230V | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.4 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.543 Dia (90.00mm) | 5.945 (151.00mm) | Threaded, Female | 1.772 (45.00mm) | DC Link, DC Filtering | - |
|

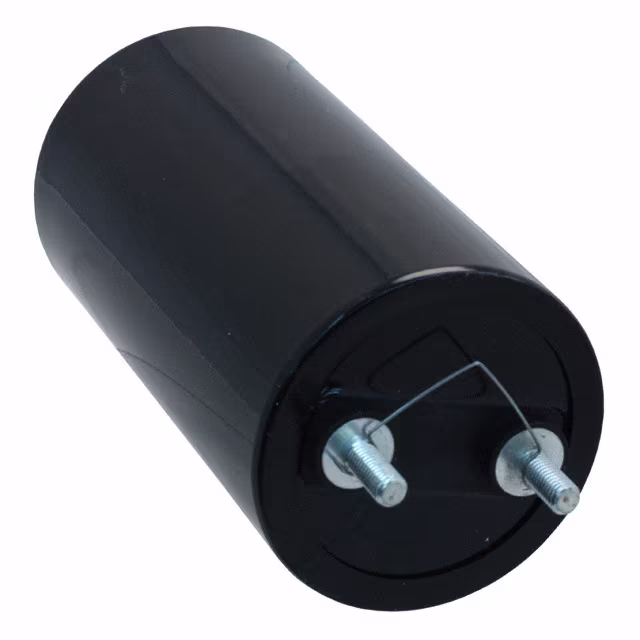

947C471K102CDMSCAP FILM 470UF 10% 1KVDC RADIAL |
2,177 | 119.31 |
RFQ |
Datasheet |
Radial, Can | Bulk,Bulk | 947C | Active | 470 µF | ±10% | 230V | 1000V (1kV) | Polypropylene (PP), Metallized | 4.3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543 Dia (90.00mm) | 6.772 (172.00mm) | Threaded, Male | 1.772 (45.00mm) | DC Link, DC Filtering | - |
|
FCA1206C154M-H1CAP FILM 0.15UF 20% 16VDC 1206 |
3,482 | 1.05 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | FCA | Active | 0.15 µF | ±20% | 12V | 16V | Acrylic, Metallized | - | -40°C ~ 85°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.039 (1.00mm) | Solder Pads | - | General Purpose | - |
|
|
FCA1206C334M-H2CAP FILM 0.33UF 20% 16VDC 1206 |
2,807 | 1.21 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | FCA | Active | 0.33 µF | ±20% | 12V | 16V | Acrylic, Metallized | - | -40°C ~ 85°C | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | 0.047 (1.20mm) | Solder Pads | - | General Purpose | - |
|

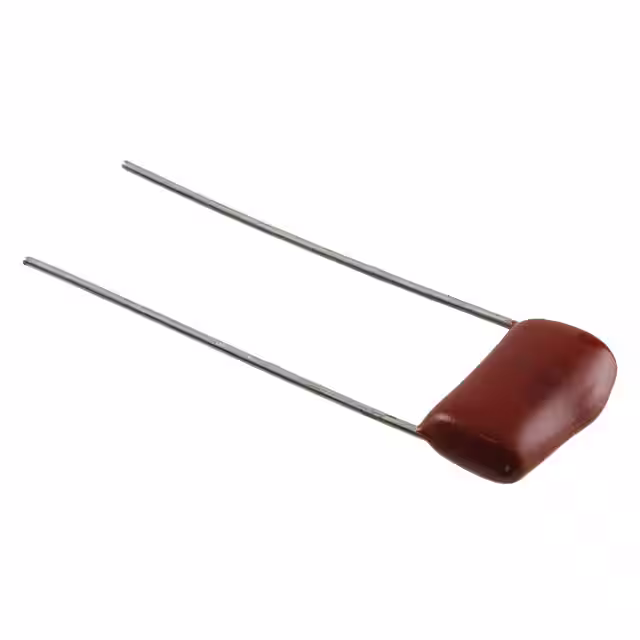

DME4S47K-FCAP FILM 0.047UF 10% 400VDC RAD |
3,329 | 1.30 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 0.047 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.492 L x 0.217 W (12.50mm x 5.50mm) | 0.394 (10.00mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
DMT1S1K-FCAP FILM 10000PF 10% 100VDC RAD |
441 | 1.46 |
RFQ |
Datasheet |
Radial | Bulk,Bulk | DMT | Active | 10000 pF | ±10% | 65V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.512 L x 0.220 W (13.00mm x 5.60mm) | 0.448 (11.37mm) | PC Pins | 0.394 (10.00mm) | General Purpose | - |
|
MMP6S1K-FCAP FILM 10000PF 630VDC AXIAL |
2,584 | 1.77 |
RFQ |
Datasheet |
Axial | Bulk | MMP | Active | 10000 pF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.354 W, 0.197 T x 0.669 L (9.00mm, 5.00mm x 17.00mm) | - | PC Pins | - | General Purpose | - |
|
150223J630DBCAP FILM 0.022UF 5% 630VDC AXIAL |
2,064 | 1.85 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 0.022 µF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.276 Dia x 0.650 L (7.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - |
