Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
940C6P22K-FCAP FILM 0.22UF 10% 600VDC AXIAL |
175 | 3.81 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.22 µF | ±10% | 275V | 600V | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 0.453 Dia x 1.339 L (11.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
|
940C30S15K-FCAP FILM 0.015UF 10% 3KVDC AXIAL |
174 | 3.81 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.015 µF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | 40 mOhms | -55°C ~ 105°C | Through Hole | 0.531 Dia x 1.339 L (13.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
715P68256JD3CAP FILM 6800PF 5% 600VDC RADIAL |
1,344 | 4.01 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 6800 pF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.382 Dia x 0.701 L (9.70mm x 17.80mm) | 0.673 (17.10mm) | PC Pins | 0.375 (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
715P47256JD3CAP FILM 4700PF 5% 600VDC RADIAL |
1,036 | 4.01 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 4700 pF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.339 Dia x 0.701 L (8.60mm x 17.80mm) | 0.634 (16.10mm) | PC Pins | 0.375 (9.52mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|

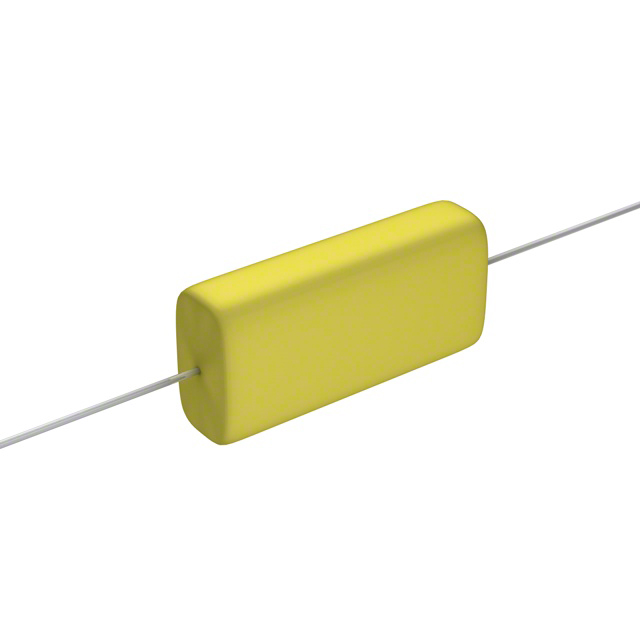

MMP2W1K-FCAP FILM 1UF 10% 250VDC AXIAL |
4,686 | 4.13 |
RFQ |
Datasheet |
Axial | Bulk | MMP | Active | 1 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.531 W, 0.295 T x 1.102 L (13.50mm, 7.50mm x 28.00mm) | - | PC Pins | - | General Purpose | - |
|
942C16S47K-FCAP FILM 0.047UF 1.6KVDC AXIAL |
785 | 4.27 |
RFQ |
Datasheet |
Axial | Bulk | 942C | Active | 0.047 µF | ±10% | 460V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 0.650 Dia x 1.339 L (16.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
|
940C20S22K-FCAP FILM 0.022UF 10% 2KVDC AXIAL |
535 | 4.45 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.022 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 35 mOhms | -55°C ~ 105°C | Through Hole | 0.453 Dia x 1.339 L (11.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
715P10452LD3CAP FILM 0.1UF 5% 200VDC RADIAL |
1,945 | 4.52 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.1 µF | ±5% | 155V | 200V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.382 Dia x 1.252 L (9.70mm x 31.80mm) | 0.693 (17.60mm) | PC Pins | 0.720 (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
715P10496LD3CAP FILM 0.1UF 10% 600VDC RADIAL |
2,176 | 4.53 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.1 µF | ±10% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.709 Dia x 1.252 L (18.00mm x 31.80mm) | 1.008 (25.60mm) | PC Pins | 0.720 (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
715P47454MD3CAP FILM 0.47UF 5% 400VDC RADIAL |
690 | 4.60 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.47 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.819 Dia x 1.650 L (20.80mm x 41.90mm) | 1.134 (28.80mm) | PC Pins | 1.094 (27.80mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
940C6P47K-FCAP FILM 0.47UF 10% 600VDC AXIAL |
195 | 4.70 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.47 µF | ±10% | 275V | 600V | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 0.610 Dia x 1.339 L (15.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
DMT4P1K-FCAP FILM 0.1UF 10% 400VDC RADIAL |
4,194 | 4.92 |
RFQ |
Datasheet |
Radial | Bulk | DMT | Active | 0.1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.882 L x 0.472 W (22.40mm x 12.00mm) | 0.763 (19.37mm) | PC Pins | 0.732 (18.60mm) | General Purpose | - |
|

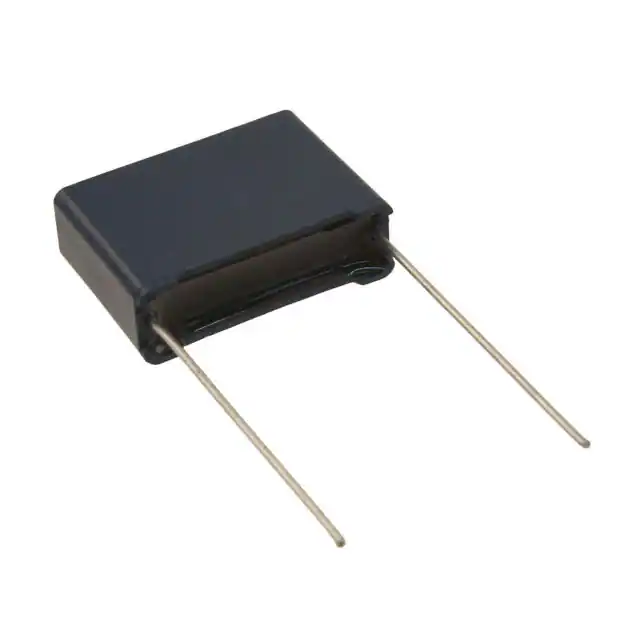

158X474CAP FILM 0.47UF 20% 275VAC RAD |
3,967 | 5.00 |
RFQ |
Datasheet |
Radial | Bulk | 158X | Active | 0.47 µF | ±20% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.181 L x 0.433 W (30.00mm x 11.00mm) | 0.886 (22.50mm) | PC Pins | 1.083 (27.50mm) | EMI, RFI Suppression | X2 |
|

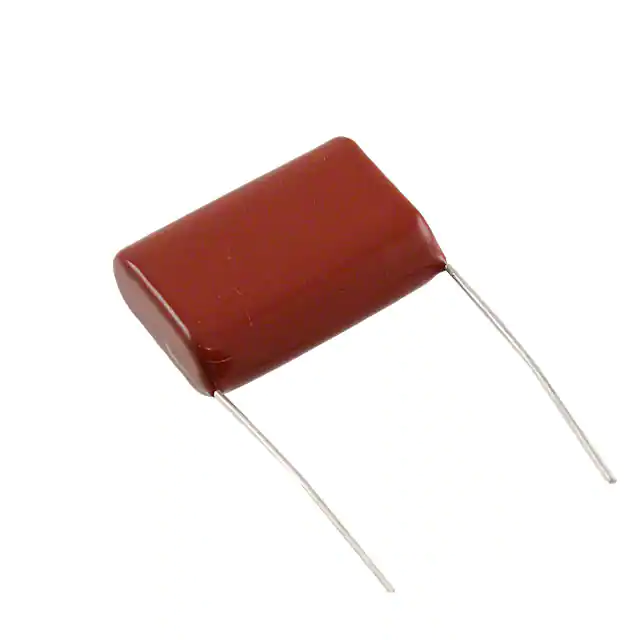

DME4W2P2K-FCAP FILM 2.2UF 10% 400VDC RADIAL |
737 | 5.18 |
RFQ |
Datasheet |
Radial | Bulk | DME | Active | 2.2 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.220 L x 0.453 W (31.00mm x 11.50mm) | 0.925 (23.50mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|

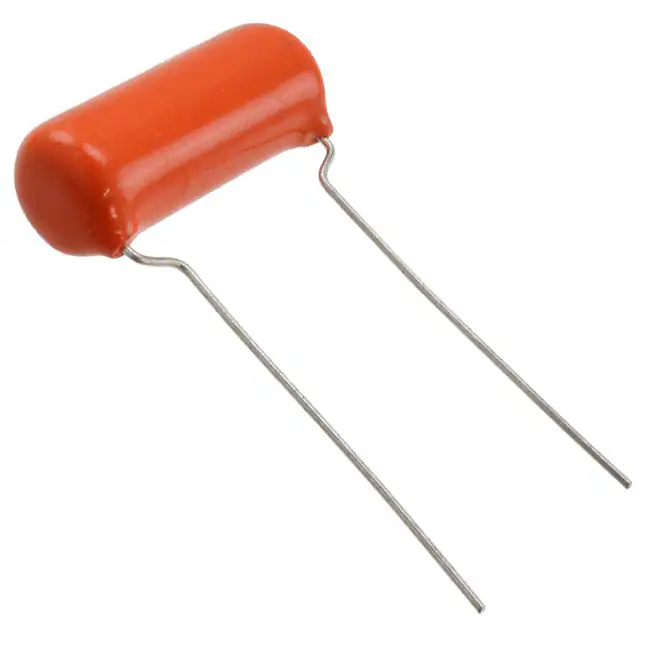

715P10454LD3CAP FILM 0.1UF 5% 400VDC RADIAL |
836 | 5.33 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.1 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.480 Dia x 1.252 L (12.20mm x 31.80mm) | 0.791 (20.10mm) | PC Pins | 0.720 (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
940C10P22K-FCAP FILM 0.22UF 10% 1KVDC AXIAL |
350 | 5.66 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.22 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 0.689 Dia x 1.339 L (17.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
|
940C16P1K-FCAP FILM 0.1UF 10% 1.6KVDC AXIAL |
1,073 | 5.68 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.1 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 0.709 Dia x 1.339 L (18.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|

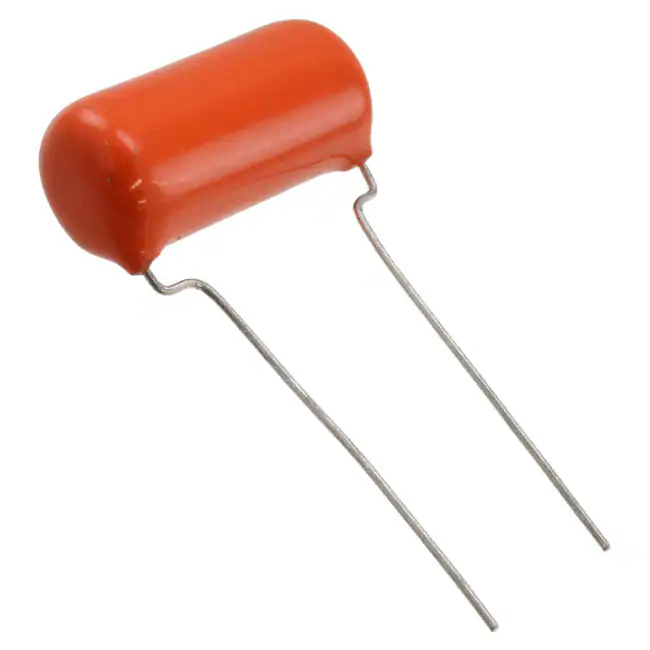

715P47356LD3CAP FILM 0.047UF 5% 600VDC RAD |
1,300 | 5.76 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 0.047 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.520 Dia x 1.252 L (13.20mm x 31.80mm) | 0.811 (20.60mm) | PC Pins | 0.720 (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
940C30S68K-FCAP FILM 0.068UF 10% 3KVDC AXIAL |
978 | 5.82 |
RFQ |
Datasheet |
Axial | Bulk | 940C | Active | 0.068 µF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 0.748 Dia x 1.811 L (19.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
|
942C16P1K-FCAP FILM 0.1UF 10% 1.6KVDC AXIAL |
2,671 | 5.96 |
RFQ |
Datasheet |
Axial | Bulk | 942C | Active | 0.1 µF | ±10% | 460V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 105°C | Through Hole | 0.886 Dia x 1.339 L (22.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - |
