Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
160224K630N-FCAP FILM 0.22UF 10% 630VDC RAD |
2,602 | 1.33 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 0.22 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043 L x 0.335 W (26.50mm x 8.50mm) | 0.669 (17.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
160564J400O-FCAP FILM 0.56UF 5% 400VDC RADIAL |
2,385 | 1.33 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 0.56 µF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043 L x 0.394 W (26.50mm x 10.00mm) | 0.748 (19.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
715P47296JA3CAP FILM 4700PF 10% 600VDC RAD |
2,941 | 1.34 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 4700 pF | ±10% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.339 Dia x 0.701 L (8.60mm x 17.80mm) | 0.634 (16.10mm) | PC Pins | 0.500 (12.70mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
716P221320KA3CAP FILM 220PF 3% 2KVDC RADIAL |
3,242 | 1.34 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 716P | Active | 220 pF | ±3% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.850 L x 0.252 W (21.60mm x 6.40mm) | 0.634 (16.10mm) | PC Pins | 0.657 (16.70mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
150224K630LECAP FILM 0.22UF 10% 630VDC AXIAL |
2,418 | 1.35 |
RFQ |
Datasheet |
Axial | Bulk | 150 | Active | 0.22 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.453 Dia x 1.102 L (11.50mm x 28.00mm) | - | PC Pins | - | General Purpose | - |
|

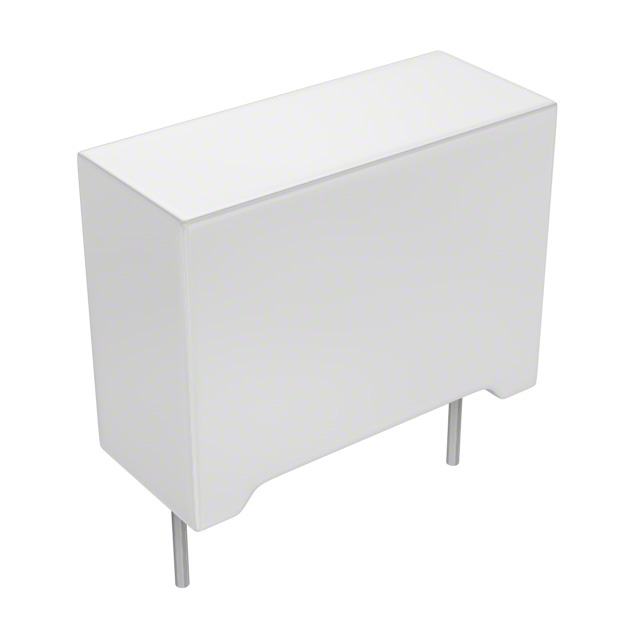

171474J160H-FCAP FILM 0.47UF 5% 160VDC RADIAL |
2,398 | 1.35 |
RFQ |
Datasheet |
Radial | Bulk | 171 | Active | 0.47 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 37 mOhms | -55°C ~ 105°C | Through Hole | 0.709 L x 0.295 W (18.00mm x 7.50mm) | 0.532 (13.50mm) | PC Pins | 0.591 (15.00mm) | High Pulse, DV/DT | - |
|
|
225P10391WA3CAP FILM 10000PF 10% 100VDC RAD |
3,023 | 1.35 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 10000 pF | ±10% | - | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700 L x 0.252 W (17.78mm x 6.40mm) | 0.350 (8.90mm) | PC Pins | 0.563 (14.30mm) | Audio; DC Link, DC Filtering | - |
|
|
225P10391WF1CAP FILM 10000PF 10% 100VDC RAD |
2,852 | 1.35 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 10000 pF | ±10% | - | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.701 L x 0.252 W (17.80mm x 6.40mm) | 0.350 (8.90mm) | PC Pins | 0.394 (10.00mm) | Audio; DC Link, DC Filtering | - |
|
|
225P22294XD3CAP FILM 2200PF 10% 400VDC RAD |
3,193 | 1.35 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 225P | Active | 2200 pF | ±10% | - | 400V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799 L x 0.252 W (20.30mm x 6.40mm) | 0.551 (14.00mm) | PC Pins | 0.374 (9.50mm) | Audio; DC Link, DC Filtering | - |
|
|
418P104910MA2CAP FILM 0.1UF 10% 1KVDC RADIAL |
3,407 | 1.35 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 418P | Active | 0.1 µF | ±10% | - | 1000V (1kV) | Polyester | - | -55°C ~ 85°C | Through Hole | 0.850 Dia x 1.598 L (21.60mm x 40.60mm) | 1.087 (27.60mm) | PC Pins | 1.343 (34.10mm) | Audio | - |
|
|
418P22492LD3CAP FILM 0.22UF 10% 200VDC RAD |
3,456 | 1.35 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 418P | Active | 0.22 µF | ±10% | - | 200V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.500 Dia x 1.201 L (12.70mm x 30.50mm) | 0.736 (18.70mm) | PC Pins | 0.720 (18.30mm) | Audio | - |
|
WMC2P1K-FCAP FILM 0.1UF 10% 250VDC AXIAL |
2,859 | 1.36 |
RFQ |
Datasheet |
Axial | Bulk | WMC | Active | 0.1 µF | ±10% | 125V | 250V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.382 Dia x 0.657 L (9.70mm x 16.70mm) | - | PC Pins | - | High Pulse, DV/DT | - |
|
|
225P10292XD3CAP FILM 1000PF 10% 200VDC RAD |
4,409 | 1.35 |
RFQ |
Datasheet |
Radial | Bulk,Bulk | Orange Drop® 225P | Active | 1000 pF | ±10% | - | 200V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799 L x 0.252 W (20.30mm x 6.40mm) | 0.551 (14.00mm) | PC Pins | 0.374 (9.50mm) | Audio; DC Link, DC Filtering | - |
|

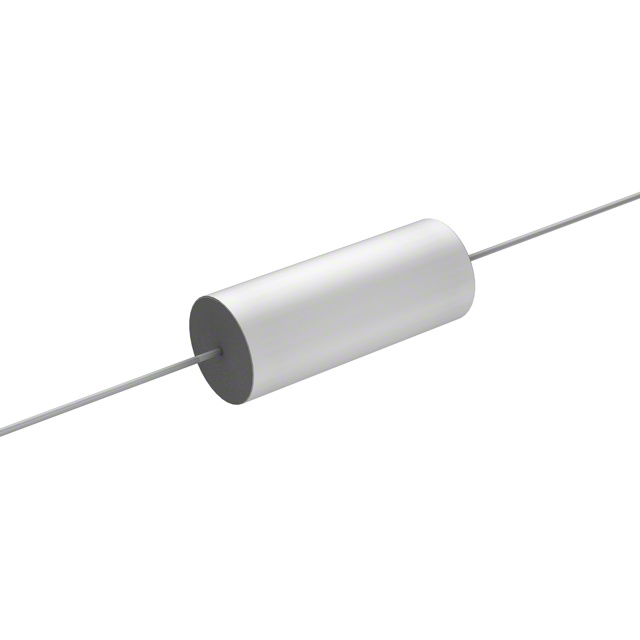

WMF2P15K-FCAP FILM 0.15UF 10% 250VDC AXIAL |
2,837 | 1.38 |
RFQ |
Datasheet |
Axial | Bulk | WMF | Active | 0.15 µF | ±10% | 125V | 250V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.374 Dia x 0.937 L (9.50mm x 23.80mm) | - | PC Pins | - | General Purpose | - |
|
|
715P1825800LD3CAP FILM 1800PF 5% 1.8KVDC RAD |
2,328 | 1.38 |
RFQ |
Datasheet |
Radial | Bulk | Orange Drop® 715P | Active | 1800 pF | ±5% | 800V | 1800V (1.8kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.319 Dia x 1.122 L (8.10mm x 28.50mm) | 0.634 (16.10mm) | PC Pins | 0.591 (15.00mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
160334K400M-FCAP FILM 0.33UF 10% 400VDC RAD |
3,067 | 1.39 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 0.33 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043 L x 0.276 W (26.50mm x 7.00mm) | 0.650 (16.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
|
160274K400M-FCAP FILM 0.27UF 10% 400VDC RAD |
2,542 | 1.39 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 0.27 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043 L x 0.276 W (26.50mm x 7.00mm) | 0.650 (16.50mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
FCN2420E124K-BCAP FILM 0.12UF 10% 250VDC 2420 |
3,565 | 1.40 |
RFQ |
Datasheet |
2420 (6050 Metric) | Tape & Reel (TR) | FCN | Active | 0.12 µF | ±10% | - | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.236 L x 0.197 W (6.00mm x 5.00mm) | 0.185 (4.70mm) | Solder Pads | - | General Purpose | - |
|
|
160474K400N-FCAP FILM 0.47UF 10% 400VDC RAD |
2,685 | 1.40 |
RFQ |
Datasheet |
Radial | Bulk | 160 | Active | 0.47 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043 L x 0.335 W (26.50mm x 8.50mm) | 0.669 (17.00mm) | PC Pins | 0.886 (22.50mm) | General Purpose | - |
|
171334K250L-FCAP FILM 0.33UF 10% 250VDC RAD |
2,306 | 1.40 |
RFQ |
Datasheet |
Radial | Bulk | 171 | Active | 0.33 µF | ±10% | 90V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043 L x 0.236 W (26.50mm x 6.00mm) | 0.591 (15.00mm) | PC Pins | 0.886 (22.50mm) | High Pulse, DV/DT | - |
