Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

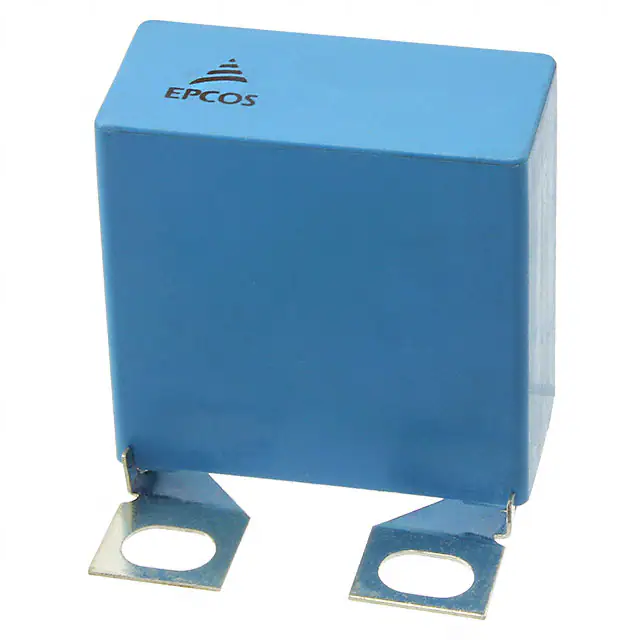

B32656S7564K562CAP FILM 0.56UF 1.25KVDC SCREW |
3,808 | 8.38 |
RFQ |
Datasheet |
Rectangular Box | Bulk | B3265* - MKP General Purpose | Active | 0.56 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654 L x 0.787 W (42.00mm x 20.00mm) | 1.555 (39.50mm) | Screw Terminals | 0.866 (22.00mm) | Snubber | AEC-Q200 |
|
B32656S7564K566CAP FILM 0.56UF 1.25KVDC QC TERM |
3,559 | 8.38 |
RFQ |
Datasheet |
Rectangular Box | Bulk | B3265* - MKP General Purpose | Active | 0.56 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654 L x 0.787 W (42.00mm x 20.00mm) | 1.555 (39.50mm) | Screw Terminals | 0.945 (24.00mm) | Snubber | AEC-Q200 |
|
|
B32656S7474J564CAP FILM 0.47UF 5% 1.25KVDC SCRW |
3,364 | 8.33 |
RFQ |
Datasheet |
Rectangular Box | Bulk | B3265* - MKP General Purpose | Active | 0.47 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 100°C | Chassis Mount | - | - | Screw Terminals | 0.984 (25.00mm) | Snubber | - |
|
|
B32656S8155J561CAP FILM 1.5UF 5% 850VDC SCREW |
3,426 | 8.33 |
RFQ |
Datasheet |
Rectangular Box | Bulk | B3265* - MKP General Purpose | Active | 1.5 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.717 L x 1.220 W (43.60mm x 31.00mm) | 1.043 (26.50mm) | Screw Terminals | 1.004 (25.50mm) | Snubber | AEC-Q200 |
|
|
B32656S7474K565CAP FILM 0.47UF 1.25KVDC QC TERM |
3,038 | 8.33 |
RFQ |
Datasheet |
Rectangular Box | Bulk | B3265* - MKP General Purpose | Active | 0.47 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 8.5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654 L x 0.709 W (42.00mm x 18.00mm) | 1.280 (32.50mm) | Screw Terminals | 0.866 (22.00mm) | Snubber | AEC-Q200 |
|
|
B32656S8155K562CAP FILM 1.5UF 10% 850VDC SCREW |
2,910 | 8.33 |
RFQ |
Datasheet |
Rectangular Box | Bulk | B3265* - MKP General Purpose | Active | 1.5 µF | ±10% | 450V | 850V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.717 L x 1.220 W (43.60mm x 31.00mm) | 1.043 (26.50mm) | Screw Terminals | 0.866 (22.00mm) | Snubber | AEC-Q200 |
|
|
B32656S0105J565CAP FILM 1UF 5% 1KVDC SCREW |
3,438 | 8.33 |
RFQ |
Datasheet |
Rectangular Box | Bulk | B3265* - MKP General Purpose | Active | 1 µF | ±5% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654 L x 0.787 W (42.00mm x 20.00mm) | 1.555 (39.50mm) | Screw Terminals | 0.866 (22.00mm) | Snubber | AEC-Q200 |
|
|
B32758G7306K000CAP FILM 30UF 10% 550VDC RADIAL |
2,923 | 8.42 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | B3275* - MKP AC-Filter | Active | 30 µF | ±10% | 275V | 550V | Polypropylene (PP), Metallized | 2.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | Automotive | AEC-Q200 |
|
|
B32656S7105J563CAP FILM 1UF 5% 1.25KVDC SCREW |
3,411 | 8.47 |
RFQ |
Datasheet |
Rectangular Box | Bulk | B3265* - MKP General Purpose | Active | 1 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.457 (37.00mm) | Screw Terminals | 2.244 (57.00mm) | Snubber | AEC-Q200 |
|
B32678G1156K000CAP FILM 15UF 10% 750VDC RADIAL |
2,832 | 8.47 |
RFQ |
Datasheet |
Radial | Bulk | B3267* - MKP DC-Link High Power | Active | 15 µF | ±10% | - | 750V | Polypropylene (PP), Metallized | 4.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering | AEC-Q200 |
|
|
B32916A5225K000CAP FILM 2.2UF 10% 530VAC RADIAL |
3,945 | 8.47 |
RFQ |
Datasheet |
Radial | Bulk | B3291*A/B5 - X1 530V | Active | 2.2 µF | ±10% | 530V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654 L x 0.787 W (42.00mm x 20.00mm) | 1.555 (39.50mm) | PC Pins | 1.476 (37.50mm) | EMI, RFI Suppression | X1 |
|
B32776G1805J000CAP FILM 8UF 5% 1.3KVDC RADIAL |
3,157 | 8.53 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | B3277* - MKP DC-Link | Active | 8 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.634 L x 0.787 W (41.50mm x 20.00mm) | 1.555 (39.50mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
|
B32656S2104K565CAP FILM 0.1UF 10% 2KVDC SCREW |
3,320 | 8.55 |
RFQ |
Datasheet |
Rectangular Box | Bulk | B3265* - MKP General Purpose | Active | 0.1 µF | ±10% | 800V | 2000V (2kV) | Polypropylene (PP), Metallized | 15 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654 L x 0.551 W (42.00mm x 14.00mm) | 0.984 (25.00mm) | Screw Terminals | 0.866 (22.00mm) | Snubber | AEC-Q200 |
|
B32776E4356K000CAP FILM 35UF 10% 450VDC RADIAL |
2,377 | 8.62 |
RFQ |
Datasheet |
Radial | Bulk | B3277* - MKP DC-Link | Active | 35 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 9 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.457 (37.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
|
|
B32776G8226J000CAP FILM 22UF 5% 800VDC RADIAL |
3,155 | 8.62 |
RFQ |
Datasheet |
Radial | Bulk | B3277* - MKP DC-Link | Active | 22 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.457 (37.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
|
|
B32656A7125J000CAP FILM 1.2UF 5% 1.25KVDC RAD |
2,641 | 8.62 |
RFQ |
Datasheet |
Radial | Bulk | B3265* - MKP General Purpose | Active | 1.2 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634 L x 1.102 W (41.50mm x 28.00mm) | 1.673 (42.50mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - |
|
|
B32656J2334J000CAP FILM 0.33UF 5% 2KVDC RADIAL |
3,742 | 8.62 |
RFQ |
Datasheet |
Radial | Bulk | B3265* - MKP General Purpose | Active | 0.33 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.457 (37.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - |
|
|
B32656A7125K000CAP FILM 1.2UF 10% 1.25KVDC RAD |
2,785 | 8.62 |
RFQ |
Datasheet |
Radial | Bulk | B3265* - MKP General Purpose | Active | 1.2 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.673 (42.50mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 |
|
|
B32656J2334K000CAP FILM 0.33UF 10% 2KVDC RADIAL |
2,702 | 8.62 |
RFQ |
Datasheet |
Radial | Bulk | B3265* - MKP General Purpose | Active | 0.33 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654 L x 1.102 W (42.00mm x 28.00mm) | 1.457 (37.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 |
|
|
B32776E1146K000CAP FILM 14UF 10% 1.3KVDC RADIAL |
2,076 | 8.64 |
RFQ |
Datasheet |
Radial | Bulk | B3277* - MKP DC-Link | Active | 14 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 105°C | Through Hole | 1.654 L x 1.181 W (42.00mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering | - |
