Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B25620B1406K981CAP FILM 40UF 10% 1.98KVDC RAD |
2,185 | 60.42 |
RFQ |
Datasheet |
Radial, Can | Bulk | MKP DC Link | Active | 40 µF | ±10% | - | 1980V (1.98kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 85°C | Chassis, Stud Mount | 3.346 Dia (85.00mm) | 3.071 (78.00mm) | Threaded, Female | 1.260 (32.00mm) | DC Link, DC Filtering | - |
|
|
B25620B1118K103CAP FILM 1100UF 10% 1.1KVDC RAD |
2,742 | 171.04 |
RFQ |
Datasheet |
Radial, Can | Bulk | MKP DC Link | Active | 1100 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 75°C | Chassis, Stud Mount | 4.567 Dia (116.00mm) | 9.094 (231.00mm) | Threaded, Female | 1.969 (50.00mm) | DC Link, DC Filtering | - |
|
B25690C2807K003CAP FILM 800UF 10% 2KV RADIAL |
2,284 | 234.66 |
RFQ |
Datasheet |
Radial, Can | Bulk | MKP DC Link - Resin Top | Active | 800 µF | ±10% | - | 2000V (2kV) | - | 1 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354 Dia (136.00mm) | 14.567 (370.00mm) | Threaded, Female | 1.969 (50.00mm) | General Purpose | - |
|
B32921C3104M289CAP FILM 0.1UF 20% 630VDC RADIAL |
680 | 0.20 |
RFQ |
Datasheet |
Radial | Tape & Box (TB) | B3292*C/D - X2 Standard | Active | 0.1 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.512 L x 0.236 W (13.00mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | X2 |
|
B32021A3102M000CAP FILM 1000PF 20% 1.5KVDC RAD |
110 | 0.64 |
RFQ |
Datasheet |
Radial | Bulk | B3202* - Y2 Standard | Active | 1000 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512 L x 0.157 W (13.00mm x 4.00mm) | 0.354 (9.00mm) | PC Pins | 0.394 (10.00mm) | EMI, RFI Suppression | Y2 |
|
B32529C1473J000CAP FILM 0.047UF 5% 100VDC RAD |
689 | 0.35 |
RFQ |
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Active | 0.047 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.287 L x 0.098 W (7.30mm x 2.50mm) | 0.256 (6.50mm) | PC Pins | 0.197 (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 |
|
B32672Z4104K000CAP FILM 0.1UF 10% 450VDC RADIAL |
928 | 0.48 |
RFQ |
Datasheet |
Radial | Bulk | B3267*Z* - High Current PFC | Active | 0.1 µF | ±10% | 220V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.413 (10.50mm) | PC Pins | 0.591 (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 |
|
B32520C1334J000CAP FILM 0.33UF 5% 100VDC RADIAL |
906 | 0.63 |
RFQ |
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Active | 0.33 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.394 L x 0.157 W (10.00mm x 4.00mm) | 0.335 (8.50mm) | PC Pins | 0.295 (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 |
|
B32529C8103J000CAP FILM 10000PF 5% 630VDC RAD |
177 | 0.65 |
RFQ |
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Active | 10000 pF | ±5% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.295 L x 0.197 W (7.50mm x 5.00mm) | 0.394 (10.00mm) | PC Pins | 0.197 (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 |
|

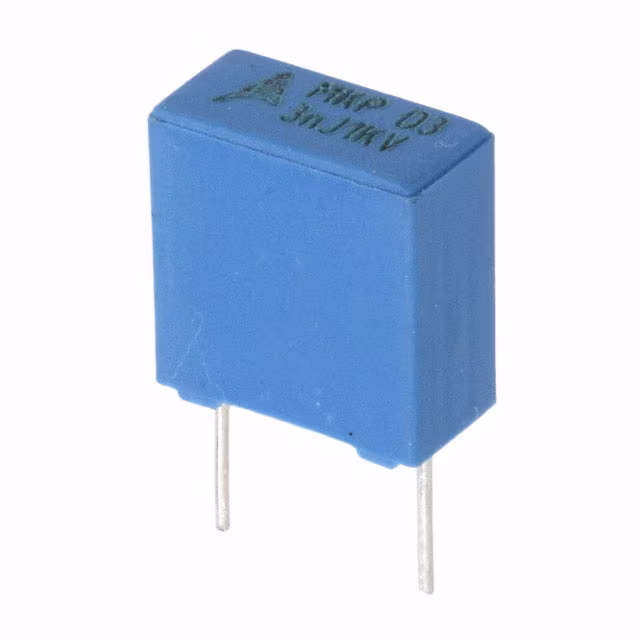

B32620A0302J000CAP FILM 3000PF 5% 1KVDC RADIAL |
108 | 0.68 |
RFQ |
Datasheet |
Radial | Bulk | B3262* - MKP High Pulse (stacked) | Active | 3000 pF | ±5% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | 0.295 (7.50mm) | High Pulse, DV/DT | - |
|
B32652A3224K000CAP FILM 0.22UF 10% 250VDC RAD |
558 | 0.69 |
RFQ |
Datasheet |
Radial | Bulk | B3265* - MKP General Purpose | Active | 0.22 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709 L x 0.236 W (18.00mm x 6.00mm) | 0.433 (11.00mm) | PC Pins | 0.591 (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 |
|
|
B32671L6473K000CAP FILM 0.047UF 10% 630VDC RAD |
135 | 0.76 |
RFQ |
Datasheet |
Radial | Bulk | B3267*L* - MKP High Current | Active | 0.047 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512 L x 0.236 W (13.00mm x 6.00mm) | 0.472 (12.00mm) | PC Pins | 0.394 (10.00mm) | High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
|
B32672L7473J000CAP FILM 0.047UF 5% 1.3KVDC RAD |
1,000 | 0.80 |
RFQ |
Datasheet |
Radial | Bulk | B3267*L* - MKP High Current | Active | 0.047 µF | ±5% | 500V | 1300V (1.3kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709 L x 0.354 W (18.00mm x 9.00mm) | 0.689 (17.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 |
|
B32522Q8104J000CAP FILM 0.1UF 5% 630VDC RADIAL |
494 | 0.83 |
RFQ |
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Active | 0.1 µF | ±5% | 200V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709 L x 0.276 W (18.00mm x 7.00mm) | 0.492 (12.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | - |
|
B32672L1223J000CAP FILM 0.022UF 5% 1.6KVDC RAD |
140 | 1.04 |
RFQ |
Datasheet |
Radial | Bulk | B3267*L* - MKP High Current | Active | 0.022 µF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709 L x 0.335 W (18.00mm x 8.50mm) | 0.571 (14.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|
|
B32522C1105J000CAP FILM 1UF 5% 100VDC RADIAL |
118 | 1.07 |
RFQ |
Datasheet |
Radial | Bulk | B3252* - MKT General Purpose | Active | 1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709 L x 0.197 W (18.00mm x 5.00mm) | 0.413 (10.50mm) | PC Pins | 0.591 (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 |
|
|
B32672L8223J000CAP FILM 0.022UF 5% 2KVDC RADIAL |
798 | 1.16 |
RFQ |
Datasheet |
Radial | Bulk | B3267*L* - MKP High Current | Active | 0.022 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709 L x 0.354 W (18.00mm x 9.00mm) | 0.689 (17.50mm) | PC Pins | 0.591 (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - |
|

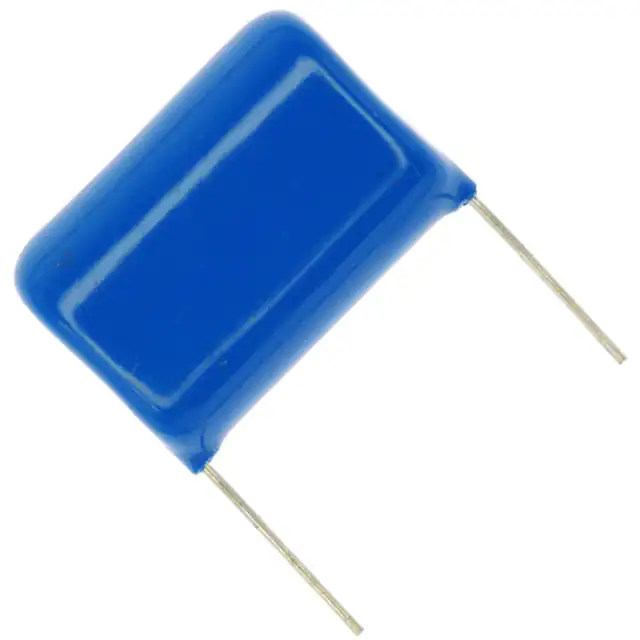

B32594C6225J008CAP FILM 2.2UF 5% 400VDC RADIAL |
136 | 1.98 |
RFQ |
Datasheet |
Radial | Bulk | B32594 | Active | 2.2 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET) - Stacked | - | -55°C ~ 125°C | Through Hole | 1.240 L x 0.531 W (31.50mm x 13.50mm) | 0.866 (22.00mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
B32023H3224M000CAP FILM 0.22UF 20% 1.5KVDC RAD |
115 | 2.51 |
RFQ |
Datasheet |
Radial | Bulk | B3202*H/J - Y2 Auto-Grade | Active | 0.22 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043 L x 0.472 W (26.50mm x 12.00mm) | 0.866 (22.00mm) | PC Pins | 0.886 (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 |
|
B32562J6105K000CAP FILM 1UF 10% 400VDC 2DIP |
785 | 1.54 |
RFQ |
Datasheet |
2-DIP | Bulk | B3256* - MKT SilverCap™ | Not For New Designs | 1 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | - | - | PC Pins | 0.591 (15.00mm) | General Purpose | - |
