Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

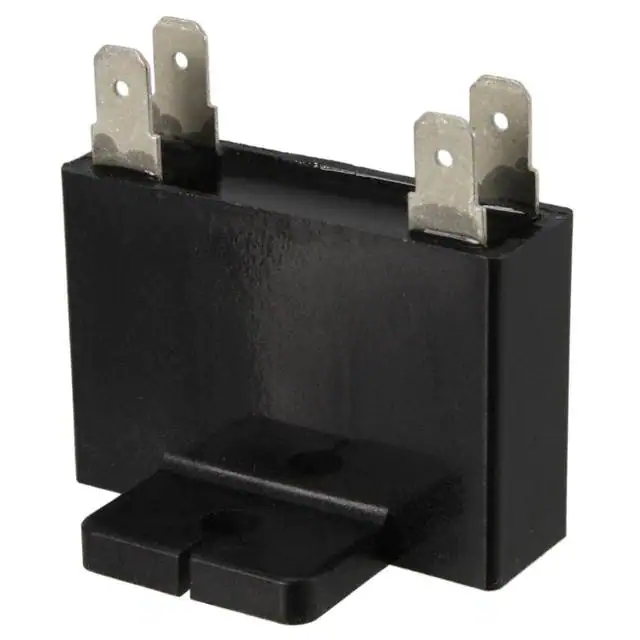

EEC2E405HQA401CAP FILM 4UF 250VAC QC TERM |
100 | 7.16 |
RFQ |
Datasheet |
Rectangular Box | Bulk | EEC | Active | 4 µF | -5%, +10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis Mount | 1.457 L x 0.453 W (37.00mm x 11.50mm) | 1.024 (26.00mm) | Quick Connect, Disconnect | - | Motor Run | - |
|
EEC2E605HQA402CAP FILM 6UF 250VAC QC TERM |
100 | 7.91 |
RFQ |
Datasheet |
Rectangular Box | Bulk | EEC | Active | 6 µF | -5%, +10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis Mount | 1.457 L x 0.531 W (37.00mm x 13.50mm) | 1.102 (28.00mm) | Quick Connect, Disconnect | - | Motor Run | - |
|
QAK2J335KTPCAP FILM 3.3UF 10% 630VDC AXIAL |
2,102 | 8.27 |
RFQ |
Datasheet |
Axial | Bulk | QAK | Active | 3.3 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 1.240 W, 0.827 T x 1.969 L (31.50mm, 21.00mm x 50.00mm) | - | PC Pins | - | General Purpose | - |
|
MABA013470KHSCAP FILM 0.47UF 10% 800VDC RAD |
421 | 2.23 |
RFQ |
Datasheet |
Radial | Bulk | MAB | Active | 0.47 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.260 L x 0.433 W (32.00mm x 11.00mm) | 0.787 (20.00mm) | PC Pins | 1.083 (27.50mm) | Motor Run | - |
|
PWS2201470KG2000V, 0.0047UF, 10 PERCENT, AXI |
711 | 1.73 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PWS | Active | 4700 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Chassis Mount | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
MABA013150KGSCAP FILM 0.15UF 10% 800VDC RAD |
650 | 1.73 |
RFQ |
Datasheet |
Radial | Bulk | MAB | Active | 0.15 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.043 L x 0.335 W (26.50mm x 8.50mm) | 0.669 (17.00mm) | PC Pins | 0.886 (22.50mm) | Motor Run | - |
|
|
PWS2151330KD1500V, 0.0033UF, 10 PERCENT, AXI |
933 | 1.76 |
RFQ |
Datasheet |
Axial | Bulk | PWS | Active | 3300 pF | ±10% | 450V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.492 Dia x 1.260 L (12.50mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
MABA013100KGSCAP FILM 0.1UF 10% 800VDC RAD |
900 | 1.76 |
RFQ |
Datasheet |
Radial | Bulk | MAB | Active | 0.1 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.043 L x 0.276 W (26.50mm x 7.00mm) | 0.630 (16.00mm) | PC Pins | 0.886 (22.50mm) | Motor Run | - |
|
|
PWS2102150KG1000V, 0.015UF, 10 PERCENT, AXIA |
588 | 1.81 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PWS | Active | 0.015 µF | ±10% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Chassis Mount | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
PHC1403680KJ400V, 0.68UF, 10 PERCENT, AXIAL |
359 | 1.81 |
RFQ |
Datasheet |
Axial | Bulk | PHC | Active | 0.68 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 8.9 mOhms | -40°C ~ 85°C | Through Hole | 0.394 Dia x 1.260 L (10.00mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
|
PWS2201220KD2000V, 0.0022UF, 10 PERCENT, AXI |
583 | 1.85 |
RFQ |
Datasheet |
Axial | Bulk | PWS | Active | 2200 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.866 Dia x 1.260 L (22.00mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PWS2152150KG1500V, 0.015UF, 10 PERCENT, AXIA |
278 | 1.92 |
RFQ |
Datasheet |
Axial | Bulk | PWS | Active | 0.015 µF | ±10% | 450V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.610 Dia x 1.260 L (15.50mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
MABA033820KGSCAP FILM 0.82UF 10% 500VDC RAD |
636 | 2.00 |
RFQ |
Datasheet |
Radial | Bulk | MAB | Active | 0.82 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.043 L x 0.335 W (26.50mm x 8.50mm) | 0.669 (17.00mm) | PC Pins | 0.886 (22.50mm) | Motor Run | - |
|
|
MABA013390KHSCAP FILM 0.39UF 10% 800VDC RAD |
448 | 2.00 |
RFQ |
Datasheet |
Radial | Bulk | MAB | Active | 0.39 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.260 L x 0.433 W (32.00mm x 11.00mm) | 0.787 (20.00mm) | PC Pins | 1.083 (27.50mm) | Motor Run | - |
|
|
MABA013620KHSCAP FILM 0.62UF 10% 800VDC RAD |
207 | 2.35 |
RFQ |
Datasheet |
Radial | Bulk | MAB | Active | 0.62 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.220 L x 0.433 W (31.00mm x 11.00mm) | 0.787 (20.00mm) | PC Pins | 1.083 (27.50mm) | Motor Run | - |
|
|
MABA013680KHSCAP FILM 0.68UF 10% 800VDC RAD |
448 | 2.42 |
RFQ |
Datasheet |
Radial | Bulk | MAB | Active | 0.68 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.260 L x 0.433 W (32.00mm x 11.00mm) | 0.787 (20.00mm) | PC Pins | 1.083 (27.50mm) | Motor Run | - |
|
|
MABA034150KGSCAP FILM 1.5UF 10% 500VDC RAD |
374 | 2.58 |
RFQ |
Datasheet |
Radial | Bulk | MAB | Active | 1.5 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.043 L x 0.512 W (26.50mm x 13.00mm) | 0.866 (22.00mm) | PC Pins | 0.886 (22.50mm) | Motor Run | - |
|
|
MABA013750KHSCAP FILM 0.75UF 10% 800VDC RAD |
320 | 2.58 |
RFQ |
Datasheet |
Radial | Bulk | MAB | Active | 0.75 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.866 (22.00mm) | PC Pins | 1.083 (27.50mm) | Motor Run | - |
|
|
MABA013820KHSCAP FILM 0.82UF 10% 800VDC RAD |
377 | 2.85 |
RFQ |
Datasheet |
Radial | Bulk | MAB | Active | 0.82 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.866 (22.00mm) | PC Pins | 1.083 (27.50mm) | Motor Run | - |
|
|
MABA024150KHSCAP FILM 1.5UF 10% 600VDC RAD |
377 | 2.85 |
RFQ |
Datasheet |
Radial | Bulk | MAB | Active | 1.5 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.866 (22.00mm) | PC Pins | 1.083 (27.50mm) | Motor Run | - |
