Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEC2G156HQA416CAP FILM 15UF 400VAC QC TERM |
3,361 | 18.43 |
RFQ |
Datasheet |
Rectangular Box | Bulk | EEC | Active | 15 µF | -5%, +10% | 400V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis Mount | 2.283 L x 1.181 W (58.00mm x 30.00mm) | 1.772 (45.00mm) | Quick Connect, Disconnect | - | Motor Run | - |
|
PHB1603680KHS600V,0.68UF,10 PERCENT, RADIAL S |
2,046 | 3.61 |
RFQ |
Datasheet |
Radial | Bulk | PHB | Active | 0.68 µF | ±10% | 350V | 600V | Polypropylene (PP), Metallized | 7.6 mOhms | -40°C ~ 85°C | Through Hole | 1.043 L x 0.335 W (26.50mm x 8.50mm) | 0.669 (17.00mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|
PHC1604300KN600V, 3UF, 10 PERCENT, AXIAL SWI |
3,545 | 3.93 |
RFQ |
Datasheet |
Axial | Bulk | PHC | Active | 3 µF | ±10% | 330V | 600V | Polypropylene (PP), Metallized | 4.2 mOhms | -40°C ~ 85°C | Through Hole | 0.866 Dia x 1.732 L (22.00mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
|
PHC1404330KJ400V, 3.3UF, 10 PERCENT, AXIAL S |
3,108 | 4.28 |
RFQ |
Datasheet |
Axial | Bulk | PHC | Active | 3.3 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Through Hole | 0.787 Dia x 1.260 L (20.00mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
MABA014220KJSCAP FILM 2.2UF 10% 800VDC RAD |
3,719 | 4.66 |
RFQ |
Datasheet |
Radial | Bulk | MAB | Active | 2.2 µF | ±10% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.673 L x 0.669 W (42.50mm x 17.00mm) | 1.102 (28.00mm) | PC Pins | 1.476 (37.50mm) | Motor Run | - |
|
PSB2203100KHS2000V,0.1UF,10 PERCENT, RADIAL S |
3,531 | 4.72 |
RFQ |
Datasheet |
Radial | Bulk | PSB | Active | 0.1 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 8.4 mOhms | -40°C ~ 85°C | Through Hole | 1.260 L x 0.433 W (32.00mm x 11.00mm) | 0.787 (20.00mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PHB1404470KJS400V,4.7UF,10 PERCENT, RADIAL SW |
3,553 | 5.80 |
RFQ |
Datasheet |
Radial | Bulk | PHB | Active | 4.7 µF | ±10% | 275V | 400V | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 85°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.866 (22.00mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching | - |
|

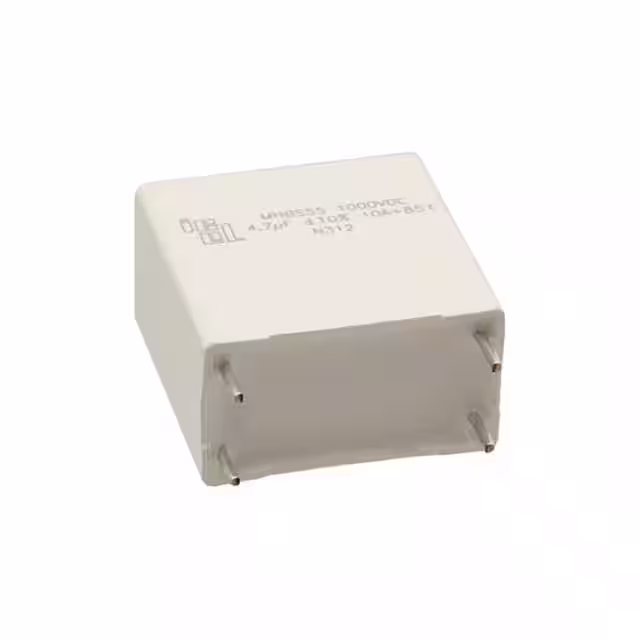

MHBS554470KHSD1000V,4.7UF,10 PERCENT, RADIAL B |
3,795 | 8.20 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | MHBS | Active | 4.7 µF | ±10% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | 7.7 mOhms | -40°C ~ 85°C | Through Hole | 2.264 L x 1.378 W (57.50mm x 35.00mm) | 1.969 (50.00mm) | PC Pins | 2.067 (52.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
|
PMB2123560KSR1200V,0.56UF,10 PERCENT, LUG MOU |
3,291 | 8.27 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 0.56 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 0.965 W (42.50mm x 24.50mm) | 1.083 (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB1854100KSR850V,1UF,10 PERCENT, LUG MOUNT S |
3,552 | 8.91 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 1 µF | ±10% | 500V | 850V | Polypropylene (PP), Metallized | 2.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 0.965 W (42.50mm x 24.50mm) | 1.083 (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB1854150KSR850V,1.5UF,10 PERCENT, LUG MOUNT |
2,012 | 10.28 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 1.5 µF | ±10% | 500V | 850V | Polypropylene (PP), Metallized | 2.2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.319 W (42.50mm x 33.50mm) | 1.398 (35.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PHB1405150KJS400V,15UF,10 PERCENT, RADIAL SWI |
2,416 | 11.00 |
RFQ |
Datasheet |
Radial | Bulk | PHB | Active | 15 µF | ±10% | 275V | 400V | Polypropylene (PP), Metallized | 2.4 mOhms | -40°C ~ 85°C | Through Hole | 1.673 L x 0.669 W (42.50mm x 17.00mm) | 1.102 (28.00mm) | PC Pins | 1.476 (37.50mm) | High Frequency, Switching | - |
|
|
PMB2124150KSR1200V,1.5UF,10 PERCENT, LUG MOUN |
2,113 | 11.72 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 1.5 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.299 W (42.50mm x 33.00mm) | 1.772 (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2104200KSR1000V,2UF,10 PERCENT, LUG MOUNT |
2,754 | 12.69 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 2 µF | ±10% | 575V | 1000V (1kV) | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.299 W (42.50mm x 33.00mm) | 1.772 (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2104200KSP1000V,2UF,10 PERCENT, LUG MOUNT |
3,456 | 14.21 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 2 µF | ±10% | 575V | 1000V (1kV) | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.299 W (42.50mm x 33.00mm) | 1.772 (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2124150KVR1200V,1.5UF,10 PERCENT, LUG MOUN |
3,700 | 14.86 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 1.5 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.299 W (42.50mm x 33.00mm) | 1.772 (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2154100KVP1500V,1UF,10 PERCENT, LUG MOUNT |
3,220 | 15.32 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 1 µF | ±10% | 650V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.299 W (42.50mm x 33.00mm) | 1.772 (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB1854250KSP850V,2.5UF,10 PERCENT, LUG MOUNT |
3,577 | 15.57 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 2.5 µF | ±10% | 500V | 850V | Polypropylene (PP), Metallized | 1.9 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.299 W (42.50mm x 33.00mm) | 1.772 (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2104200KVR1000V,2UF,10 PERCENT, LUG MOUNT |
3,577 | 15.97 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 2 µF | ±10% | 575V | 1000V (1kV) | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.299 W (42.50mm x 33.00mm) | 1.772 (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2104200KVP1000V,2UF,10 PERCENT, LUG MOUNT |
3,521 | 15.97 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 2 µF | ±10% | 575V | 1000V (1kV) | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.299 W (42.50mm x 33.00mm) | 1.772 (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
