Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMB2123470KVR1200V,0.47UF,10 PERCENT, LUG MOU |
144 | 10.72 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 0.47 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 4.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 0.965 W (42.50mm x 24.50mm) | 1.083 (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2123470KVP1200V,0.47UF,10 PERCENT, LUG MOU |
132 | 10.72 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 0.47 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 4.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 0.965 W (42.50mm x 24.50mm) | 1.083 (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
PHB1604900KJSD600V,9UF,10 PERCENT, RADIAL SWIT |
112 | 10.88 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | PHB | Active | 9 µF | ±10% | 350V | 600V | Polypropylene (PP), Metallized | 1.9 mOhms | -40°C ~ 85°C | Through Hole | 1.634 L x 0.945 W (41.50mm x 24.00mm) | 1.732 (44.00mm) | PC Pins | 1.476 (37.50mm) | High Frequency, Switching | - |
|
|
PMB2153330KVR1500V,0.33UF,10 PERCENT, LUG MOU |
144 | 11.00 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 0.33 µF | ±10% | 650V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 4.6 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 0.965 W (42.50mm x 24.50mm) | 1.083 (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2203220KVP2000V,0.22UF,10 PERCENT, LUG MOU |
144 | 11.00 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 0.22 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 0.965 W (42.50mm x 24.50mm) | 1.083 (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2203220KVR2000V,0.22UF,10 PERCENT, LUG MOU |
141 | 11.00 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 0.22 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 0.965 W (42.50mm x 24.50mm) | 1.083 (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2153330KVP1500V,0.33UF,10 PERCENT, LUG MOU |
129 | 11.00 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 0.33 µF | ±10% | 650V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 4.6 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 0.965 W (42.50mm x 24.50mm) | 1.083 (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2123560KVR1200V,0.56UF,10 PERCENT, LUG MOU |
143 | 11.22 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 0.56 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 0.965 W (42.50mm x 24.50mm) | 1.083 (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2123560KVP1200V,0.56UF,10 PERCENT, LUG MOU |
129 | 11.22 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 0.56 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 0.965 W (42.50mm x 24.50mm) | 1.083 (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB1854150KSP850V,1.5UF,10 PERCENT, LUG MOUNT |
113 | 11.52 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 1.5 µF | ±10% | 500V | 850V | Polypropylene (PP), Metallized | 2.2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.319 W (42.50mm x 33.50mm) | 1.398 (35.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|

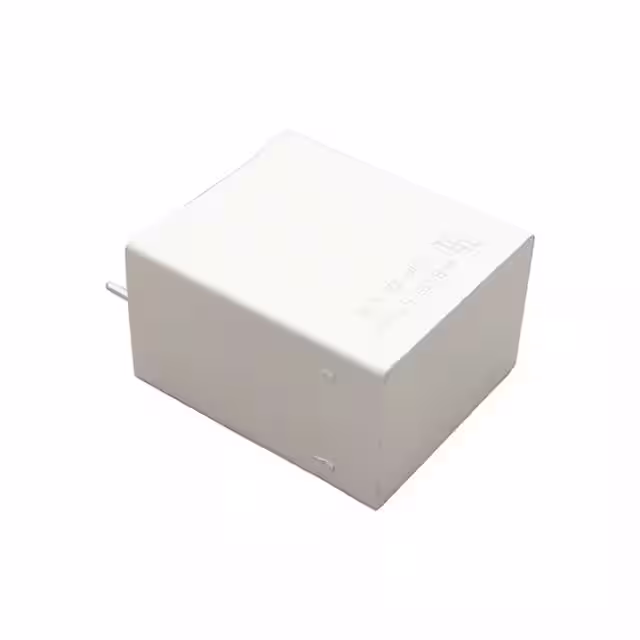

MHBS355150KHS575V,15UF,10 PERCENT, RADIAL BOX |
224 | 11.97 |
RFQ |
Datasheet |
Radial | Bulk | MHBS | Active | 15 µF | ±10% | 240V | 575V | Polypropylene (PP), Metallized | 5.6 mOhms | -40°C ~ 85°C | Through Hole | 1.260 L x 0.866 W (32.00mm x 22.00mm) | 1.457 (37.00mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
|
PHC1405250KS400V, 25UF, 10 PERCENT, AXIAL SW |
109 | 12.51 |
RFQ |
Datasheet |
Axial | Bulk | PHC | Active | 25 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 4.2 mOhms | -40°C ~ 85°C | Through Hole | 1.457 Dia x 2.244 L (37.00mm x 57.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
|
PMB2203560KSP2000V,0.56UF,10 PERCENT, LUG MOU |
196 | 13.76 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 0.56 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.299 W (42.50mm x 33.00mm) | 1.772 (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
PPA2204100KR2000V, 1UF, 10 PERCENT, AXIAL SN |
120 | 13.98 |
RFQ |
Datasheet |
Axial | Bulk | PPA | Active | 1 µF | ±10% | 650V | 2000V (2kV) | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Through Hole | 0.709 Dia x 1.260 L (18.00mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2124150KVP1200V,1.5UF,10 PERCENT, LUG MOUN |
192 | 14.86 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 1.5 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.299 W (42.50mm x 33.00mm) | 1.772 (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|

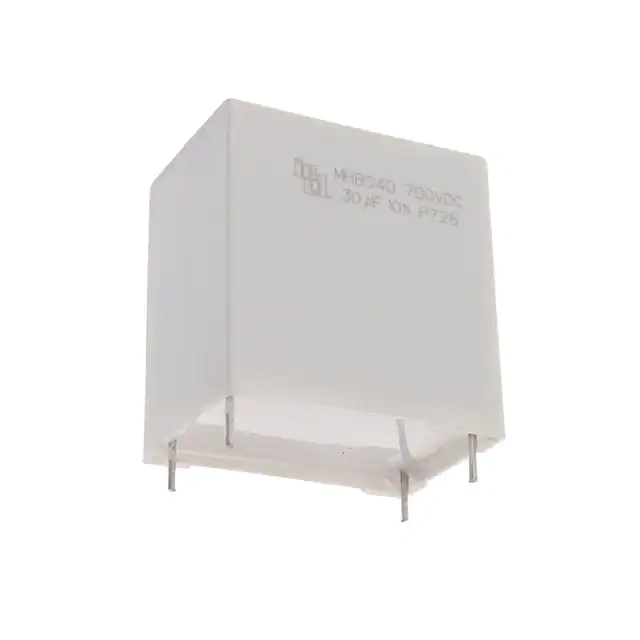

MHBS405300KJSD700V,30UF,10 PERCENT, RADIAL BOX |
122 | 15.77 |
RFQ |
Datasheet |
Radial - 4 Leads | Bulk | MHBS | Active | 30 µF | ±10% | 285V | 700V | Polypropylene (PP), Metallized | 3.4 mOhms | -40°C ~ 85°C | Through Hole | 1.673 L x 1.181 W (42.50mm x 30.00mm) | 1.772 (45.00mm) | PC Pins | 1.476 (37.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - |
|
|
PMB1704350KVP700V,3.5UF,10 PERCENT, LUG MOUNT |
192 | 17.96 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 3.5 µF | ±10% | 420V | 700V | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673 L x 1.299 W (42.50mm x 33.00mm) | 1.772 (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PMB2124200KVR1200V,2UF,10 PERCENT, LUG MOUNT |
114 | 19.82 |
RFQ |
Datasheet |
Rectangular Box | Bulk | PMB | Active | 2 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.4 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264 L x 1.181 W (57.50mm x 30.00mm) | 1.772 (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
QYX1H333JTP3TACAP FILM 0.033UF 5% 50VDC RADIAL |
1,090 | 0.47 |
RFQ |
Datasheet |
Radial | Cut Tape (CT),Tape & Box (TB) | QYX | Active | 0.033 µF | ±5% | - | 50V | Polyester | - | -40°C ~ 85°C | Through Hole | 0.276 Dia x 0.157 W (7.00mm x 4.00mm) | 0.413 (10.50mm) | PC Pins | 0.138 (3.50mm) | General Purpose | - |
|
QYX1H562KTPCAP FILM 5600PF 10% 50VDC RADIAL |
473 | 0.29 |
RFQ |
Datasheet |
Radial | Bulk | QYX | Active | 5600 pF | ±10% | - | 50V | Polyester | - | -40°C ~ 85°C | Through Hole | 0.236 L x 0.118 W (6.00mm x 3.00mm) | 0.335 (8.50mm) | PC Pins | 0.138 (3.50mm) | General Purpose | - |
