Upload BOM| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | VoltageRating-AC | VoltageRating-DC | DielectricMaterial | ESR(EquivalentSeriesResistance) | OperatingTemperature | MountingType | Size/Dimension | Height-Seated(Max) | Termination | LeadSpacing | Applications | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSB2252330KHSFILM CAP BOXED RADIAL |
2,477 | 1.92 |
RFQ |
Datasheet |
Radial | Bulk | PSB | Active | 0.033 µF | ±10% | 725V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 22.5 mOhms | -40°C ~ 85°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.866 (22.00mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
PHC1704100KJFILM CAP CYLINDRICAL AXIAL |
3,377 | 1.92 |
RFQ |
Datasheet |
Axial | Bulk | PHC | Active | 1 µF | ±10% | 400V | 700V | Polypropylene (PP), Metallized | 4.5 mOhms | -40°C ~ 85°C | Through Hole | 0.768 Dia x 1.260 L (19.50mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching | - |
|
|
PSB2302150KGSFILM CAP BOXED RADIAL |
3,456 | 1.92 |
RFQ |
Datasheet |
Radial | Bulk | PSB | Active | 0.015 µF | ±10% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 33 mOhms | -40°C ~ 85°C | Through Hole | 1.043 L x 0.512 W (26.50mm x 13.00mm) | 0.866 (22.00mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PSB2302150KGLFILM CAP BOXED RADIAL |
3,148 | 1.92 |
RFQ |
Datasheet |
Radial | Bulk | PSB | Active | 0.015 µF | ±10% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 33 mOhms | -40°C ~ 85°C | Through Hole | 1.043 L x 0.512 W (26.50mm x 13.00mm) | 0.866 (22.00mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
MHBS454220KHLFILM CAP RADIAL |
3,416 | 1.92 |
RFQ |
Datasheet |
Radial | Bulk | MHBS | Active | 2.2 µF | ±10% | 315V | 800V | Polypropylene (PP), Metallized | 15.3 mOhms | -40°C ~ 85°C | Through Hole | 1.260 L x 0.433 W (32.00mm x 11.00mm) | 0.787 (20.00mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
|
MHBS454220KHSFILM CAP RADIAL |
2,966 | 1.92 |
RFQ |
Datasheet |
Radial | Bulk | MHBS | Active | 2.2 µF | ±10% | 315V | 800V | Polypropylene (PP), Metallized | 15.3 mOhms | -40°C ~ 85°C | Through Hole | 1.260 L x 0.433 W (32.00mm x 11.00mm) | 0.787 (20.00mm) | PC Pins | 1.083 (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - |
|
QXP2G474JRPTCAP FILM 0.47UF 5% 400VDC RAD |
2,955 | 1.92 |
RFQ |
Datasheet |
Radial | Bulk | QXP | Active | 0.47 µF | ±5% | 160V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.043 L x 0.409 W (26.50mm x 10.40mm) | 0.835 (21.20mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|
QXK2J684JTP7FXCAP FILM 0.68UF 5% 630VDC RAD |
2,753 | 1.92 |
RFQ |
Datasheet |
Radial | Bulk | QXK | Active | 0.68 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.004 L x 0.445 W (25.50mm x 11.30mm) | 0.988 (25.10mm) | PC Pins | 1.083 (27.50mm) | General Purpose | - |
|
|
QXP2K334KRP7FXCAP FILM 0.33UF 10% 800VDC RAD |
2,893 | 1.93 |
RFQ |
Datasheet |
Radial | Bulk | QXP | Active | 0.33 µF | ±10% | 250V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240 L x 0.476 W (31.50mm x 12.10mm) | 1.043 (26.50mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching | - |
|
PPA2252470KJFILM CAP CYLINDRICAL AXIAL |
2,304 | 1.94 |
RFQ |
Datasheet |
Axial | Bulk | PPA | Active | 0.047 µF | ±10% | 700V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 16.5 mOhms | -40°C ~ 85°C | Through Hole | 0.591 Dia x 1.260 L (15.00mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PPA1703330KGFILM CAP CYLINDRICAL AXIAL |
2,482 | 1.95 |
RFQ |
Datasheet |
Axial | Bulk | PPA | Active | 0.33 µF | ±10% | 420V | 700V | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Through Hole | 0.610 Dia x 1.063 L (15.50mm x 27.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
MABA014150KHLFILM CAP BOXED RADIAL |
3,990 | 1.95 |
RFQ |
Datasheet |
Radial | Bulk | MAB | Active | 1.5 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.299 (33.00mm) | PC Pins | 1.083 (27.50mm) | Motor Run | - |
|
|
MABA014150KHSFILM CAP BOXED RADIAL |
3,184 | 1.95 |
RFQ |
Datasheet |
Radial | Bulk | MAB | Active | 1.5 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.260 L x 0.709 W (32.00mm x 18.00mm) | 1.299 (33.00mm) | PC Pins | 1.083 (27.50mm) | Motor Run | - |
|
|
QXP2E105JRP7FTCAP FILM 1UF 5% 250VDC RAD |
2,148 | 1.97 |
RFQ |
Datasheet |
Radial | Bulk | QXP | Active | 1 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.043 L x 0.390 W (26.50mm x 9.90mm) | 0.953 (24.20mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|
|
QXP2G684JRP7FPCAP FILM 0.68UF 5% 400VDC RAD |
3,440 | 1.97 |
RFQ |
Datasheet |
Radial | Bulk | QXP | Active | 0.68 µF | ±5% | 160V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.043 L x 0.484 W (26.50mm x 12.30mm) | 1.047 (26.60mm) | PC Pins | 0.886 (22.50mm) | High Frequency, Switching | - |
|

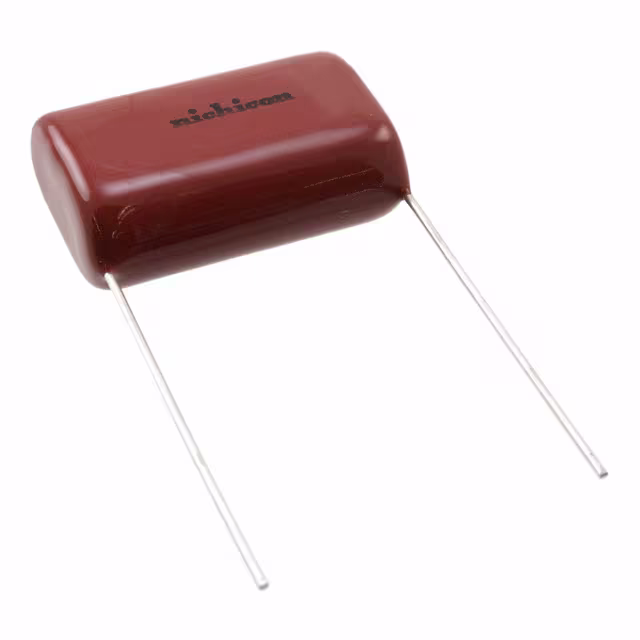

QXP2J684KRPTCAP FILM 0.68UF 10% 630VDC RAD |
2,233 | 1.98 |
RFQ |
Datasheet |
Radial | Bulk | QXP | Active | 0.68 µF | ±10% | 200V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240 L x 0.520 W (31.50mm x 13.20mm) | 0.906 (23.00mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching | - |
|
|
QXP2J684KRP7FXCAP FILM 0.68UF 10% 630VDC RAD |
2,248 | 1.98 |
RFQ |
Datasheet |
Radial | Bulk | QXP | Active | 0.68 µF | ±10% | 200V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240 L x 0.520 W (31.50mm x 13.20mm) | 1.083 (27.50mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching | - |
|
|
QAK2E474JTPCAP FILM 0.47UF 5% 250VDC AXIAL |
3,070 | 1.98 |
RFQ |
Datasheet |
Axial | Bulk | QAK | Active | 0.47 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.472 W, 0.217 T x 0.984 L (12.00mm, 5.50mm x 25.00mm) | - | PC Pins | - | General Purpose | - |
|
|
PSB2153100KHLFILM CAP BOXED RADIAL |
3,793 | 1.99 |
RFQ |
Datasheet |
Radial | Bulk | PSB | Active | 0.1 µF | ±10% | 650V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 9.5 mOhms | -40°C ~ 85°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.866 (22.00mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
|
|
PSB2153100KHSFILM CAP BOXED RADIAL |
3,822 | 1.99 |
RFQ |
Datasheet |
Radial | Bulk | PSB | Active | 0.1 µF | ±10% | 650V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 9.5 mOhms | -40°C ~ 85°C | Through Hole | 1.260 L x 0.512 W (32.00mm x 13.00mm) | 0.866 (22.00mm) | PC Pins | 1.083 (27.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - |
