Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	InsertionLoss	Frequency	Specifications	Size/Dimension

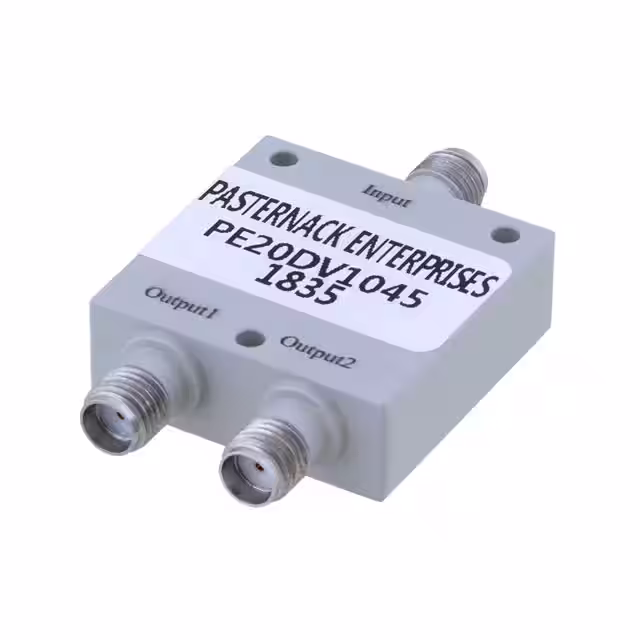

PE20DV1045 2 WAY 30W DIV SMA 4-8GHZ Pasternack	3,597	167.99	RFQ	Datasheet	Bag	-	Active	0.3dB	4 GHz ~ 8 GHz	Isolation (Min) 20dB, 3° Imbalance (Max), 1.25 VSWR (Max)	1.102 L x 1.102 W x 0.414 H (28.00mm x 28.00mm x 10.51mm)

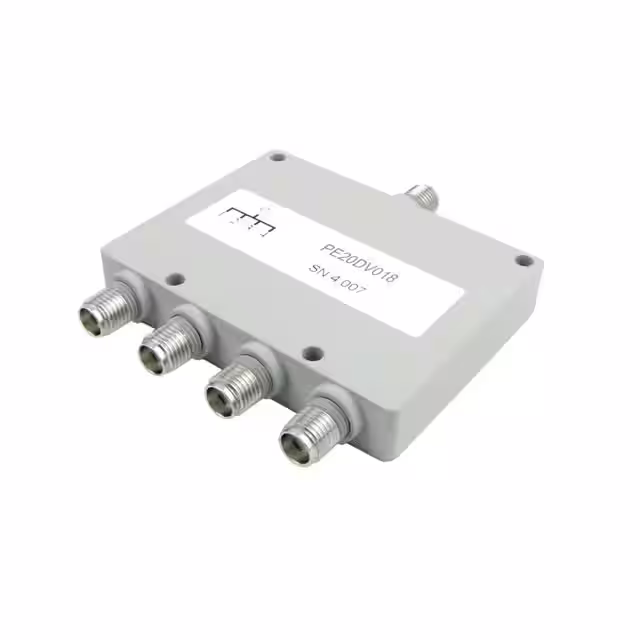

PE20DV018 4 WAY 30W DIV SMA 2-4GHZ Pasternack	3,793	237.99	RFQ	Datasheet	Bag	-	Active	6.4dB	2 GHz ~ 4 GHz	Isolation (Min) 20dB, 3° Imbalance (Max), 1.3 VSWR (Max)	2.205 L x 1.693 W x 0.404 H (56.00mm x 43.00mm x 10.25mm)

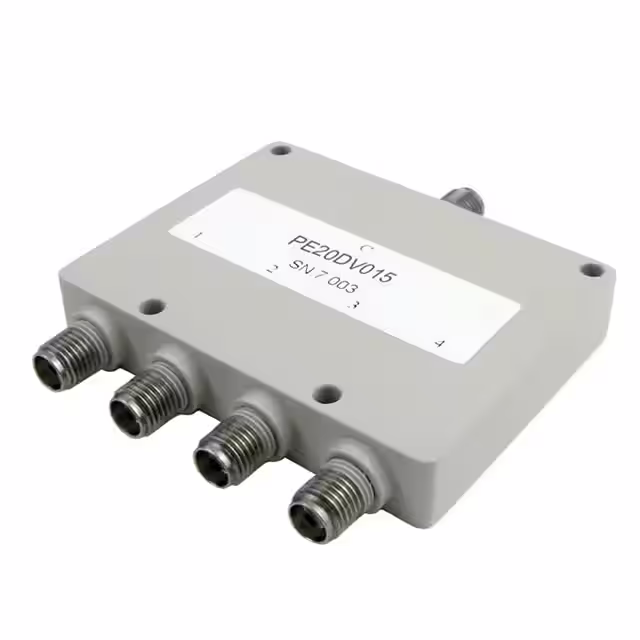

PE20DV015 4 WAY 30W DIV SMA 1-2GHZ Pasternack	2,717	247.99	RFQ	Datasheet	Bag	-	Active	0.6dB	1 GHz ~ 2 GHz	Isolation (Min) 20dB, 3° Imbalance (Max), 1.3 VSWR (Max)	2.209 L x 1.689 W x 0.404 H (56.10mm x 42.90mm x 10.25mm)

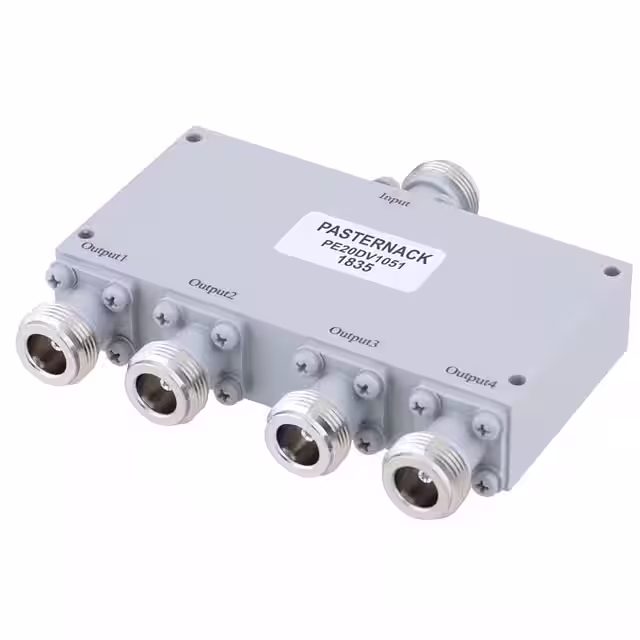

PE20DV1051 4 WAY 30W DIV N-TYPE 1-4GHZ Pasternack	3,952	385.99	RFQ	Datasheet	Bag	-	Active	0.9dB	1 GHz ~ 4 GHz	Isolation (Min) 20dB, 5° Imbalance (Max), 1.4 VSWR (Max)	3.819 L x 1.929 W x 0.807 H (97.00mm x 49.00mm x 20.51mm)

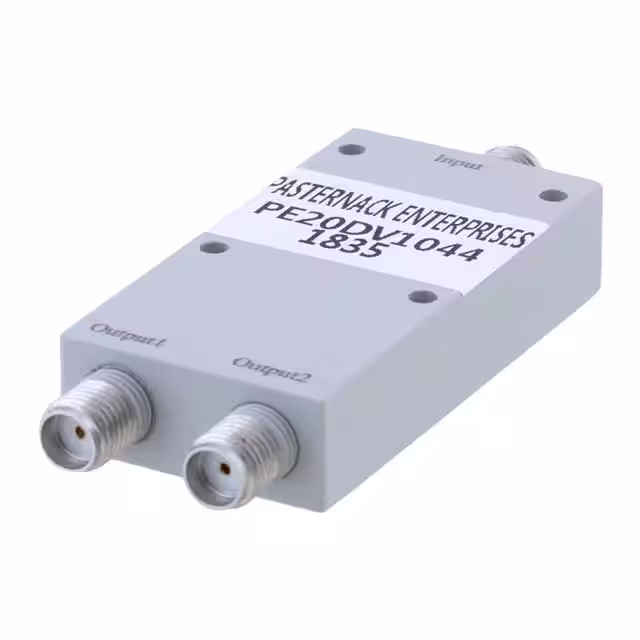

PE20DV1044 2 WAY 30W DIV SMA 2-18GHZ Pasternack	3,023	423.99	RFQ	Datasheet	Bag	-	Active	0.8dB	2 GHz ~ 18 GHz	Isolation (Min) 16dB, 5° Imbalance (Max), 1.5 VSWR (Max)	1.850 L x 0.945 W x 0.414 H (47.00mm x 24.00mm x 10.51mm)

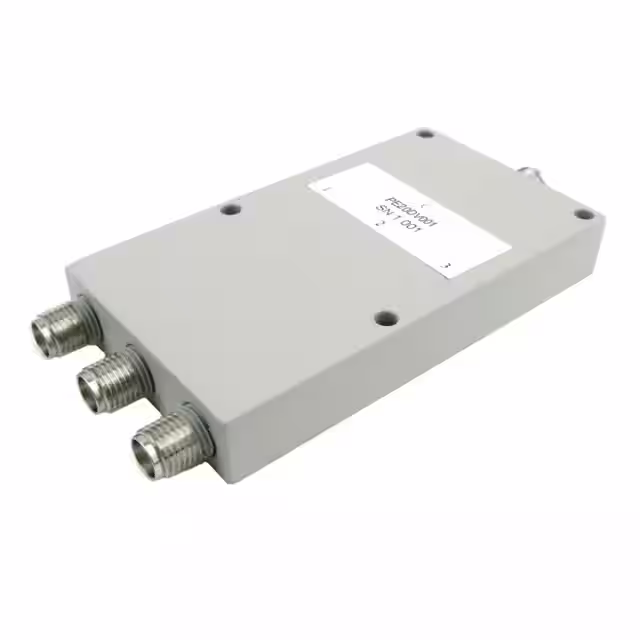

PE20DV001 3 WAY 30W DIV SMA 2-8GHZ Pasternack	3,550	427.99	RFQ	Datasheet	Bag	-	Active	6.1dB	2 GHz ~ 8 GHz	Isolation (Min) 18dB, 5° Imbalance (Max), 1.4 VSWR (Max)	2.618 L x 1.476 W x 0.404 H (66.50mm x 37.50mm x 10.25mm)

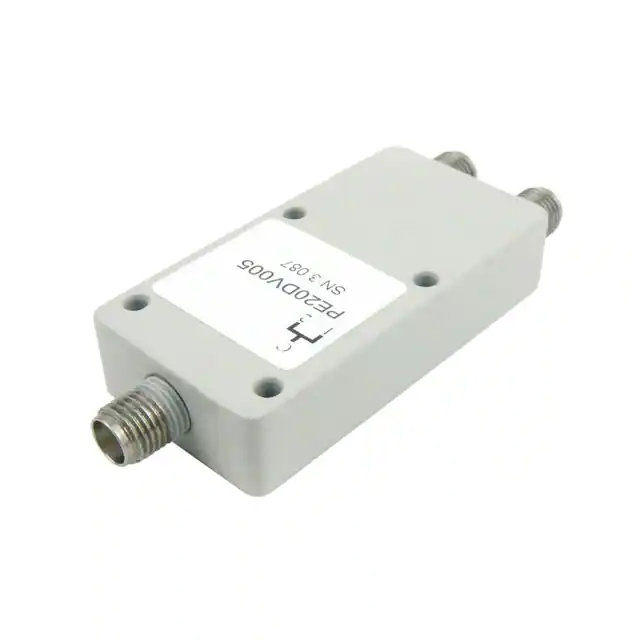

PE20DV005 2 WAY 20W DIV SMA 2-18GHZ Pasternack	2,407	481.99	RFQ	Datasheet	Bag	-	Active	4.1dB	2 GHz ~ 18 GHz	Isolation (Min) 16dB, 5° Imbalance (Max), 1.5 VSWR (Max)	1.850 L x 0.945 W x 0.404 H (47.00mm x 24.00mm x 10.25mm)

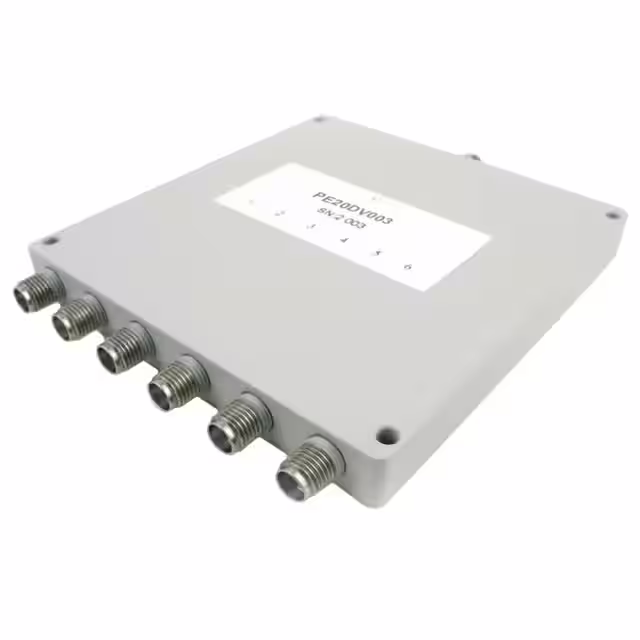

PE20DV003 6 WAY 30W DIV SMA 2-8GHZ Pasternack	2,078	585.00	RFQ	Datasheet	Bag	-	Active	9.4dB	2 GHz ~ 8 GHz	Isolation (Min) 17dB, 8° Imbalance (Max), 1.4 VSWR (Max)	3.465 L x 3.268 W x 0.404 H (88.00mm x 83.00mm x 10.25mm)

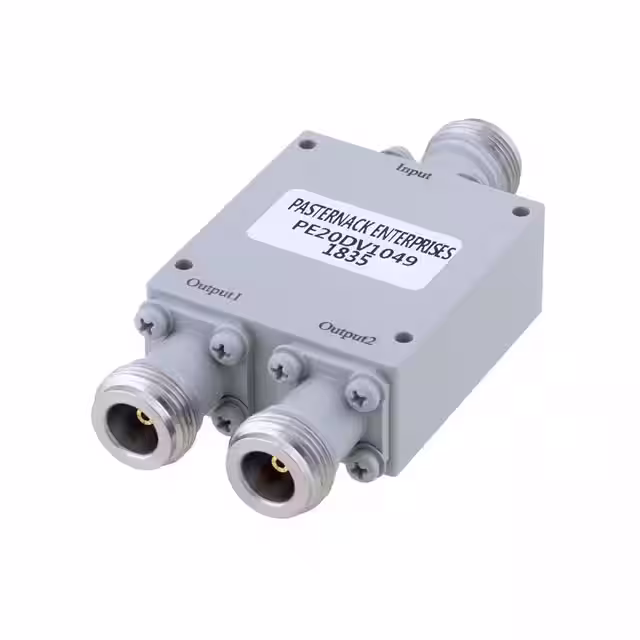

PE20DV1049 2 WAY 30W DIV N-TYPE 2-18GHZ Pasternack	3,810	715.00	RFQ	Datasheet	Bag	-	Active	0.9dB	2 GHz ~ 18 GHz	Isolation (Min) 16dB, 5° Imbalance (Max), 1.5 VSWR (Max)	1.850 L x 1.654 W x 0.807 H (47.00mm x 42.00mm x 20.51mm)

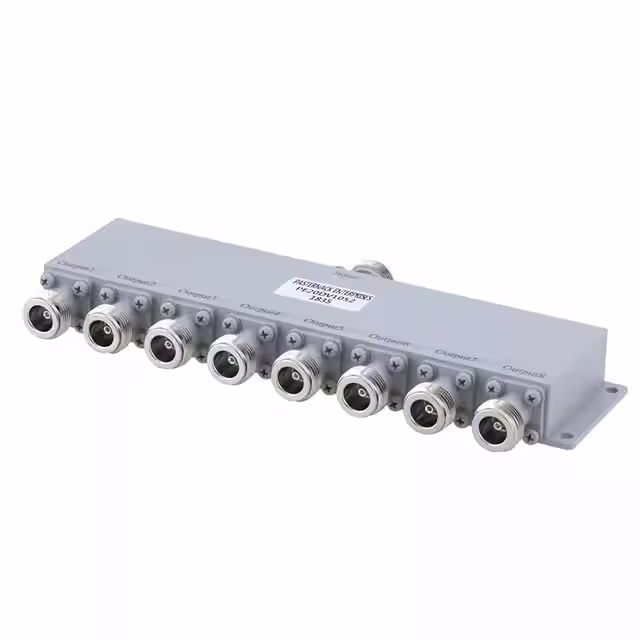

PE20DV1052 8 WAY 10W DIV N-TYPE 5-500MHZ Pasternack	3,177	740.00	RFQ	Datasheet	Bag	-	Active	1.8dB	5 MHz ~ 500 MHz	Isolation (Min) 20dB, 2° Imbalance (Max), 1.4 VSWR (Max)	7.008 L x 1.811 W x 0.807 H (178.00mm x 46.00mm x 20.51mm)

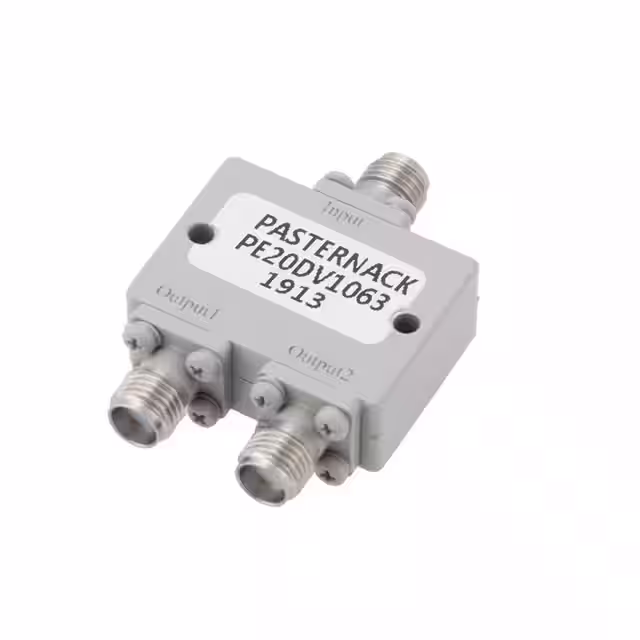

PE20DV1063 2 WAY 20W DIV SMA 15-26.5GHZ Pasternack	2,713	795.00	RFQ	Datasheet	Bag	-	Active	0.8dB	15 GHz ~ 26.5 GHz	Isolation (Min) 16dB, 5° Imbalance (Max), 1.5 VSWR (Max)	1.024 L x 0.748 W x 0.404 H (26.00mm x 19.00mm x 10.25mm)

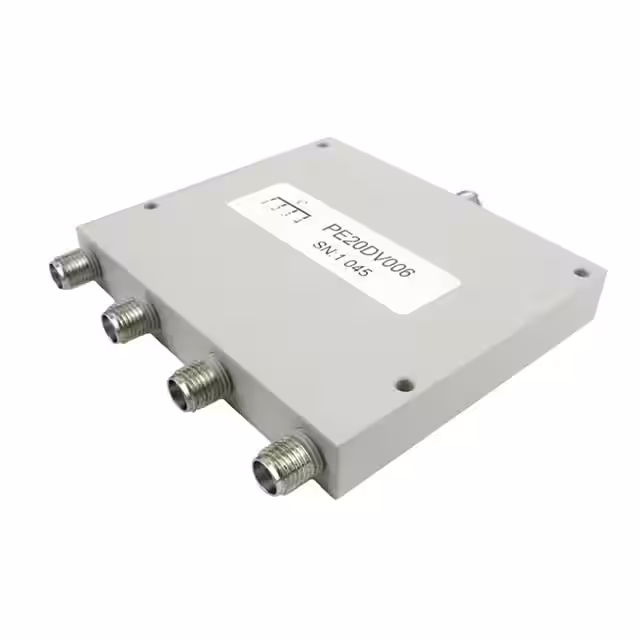

PE20DV006 4 WAY 30W DIV SMA 2-18GHZ Pasternack	2,598	1020.00	RFQ	Datasheet	Bag	-	Active	8.2dB	2 GHz ~ 18 GHz	Isolation (Min) 16dB, 10° Imbalance (Max), 1.65 VSWR (Max)	2.717 L x 2.362 W x 0.404 H (69.00mm x 60.00mm x 10.25mm)

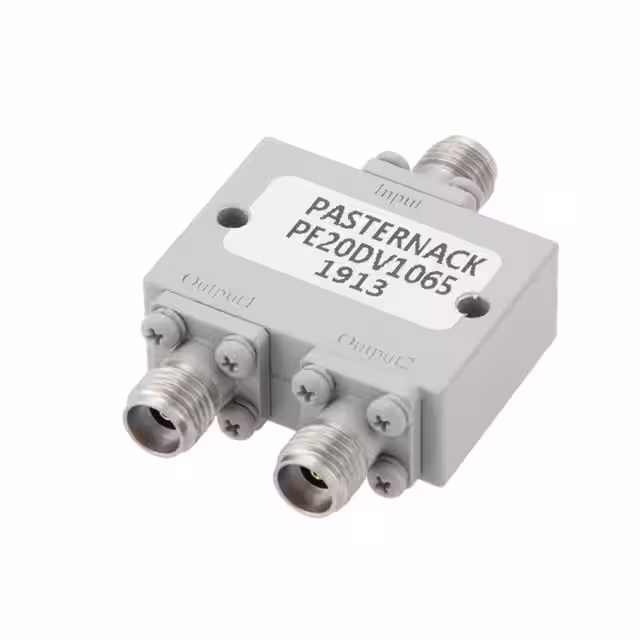

PE20DV1065 2 WAY 20W DIV 2.92MM 26.5-40GHZ Pasternack	3,189	1060.00	RFQ	Datasheet	Bag	-	Active	1.3dB	26.5 GHz ~ 40 GHz	Isolation (Min) 16dB, 4° Imbalance (Max), 1.6 VSWR (Max)	1.024 L x 0.748 W x 0.404 H (26.00mm x 19.00mm x 10.25mm)

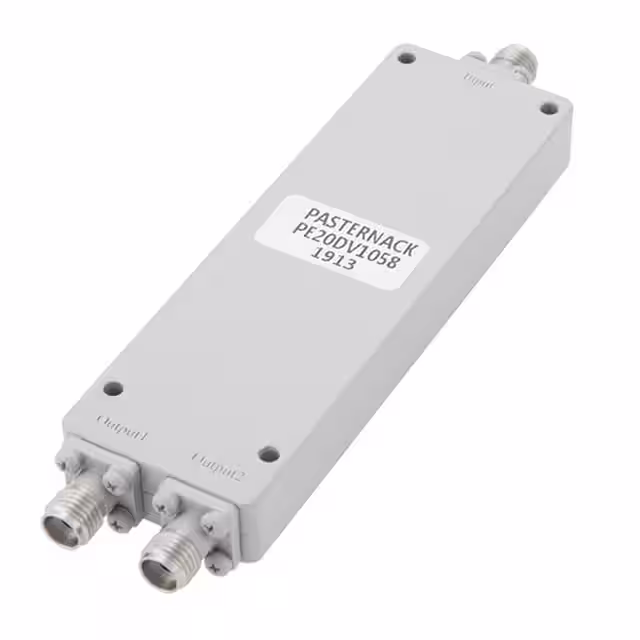

PE20DV1058 2 WAY 20W DIV 2.92MM 1-26.5GHZ Pasternack	2,318	1190.00	RFQ	Datasheet	Bag	-	Active	1.2dB	1 GHz ~ 26.5 GHz	Isolation (Min) 16dB, 6° Imbalance (Max), 1.7 VSWR (Max)	3.189 L x 1.024 W x 0.404 H (81.00mm x 26.00mm x 10.25mm)

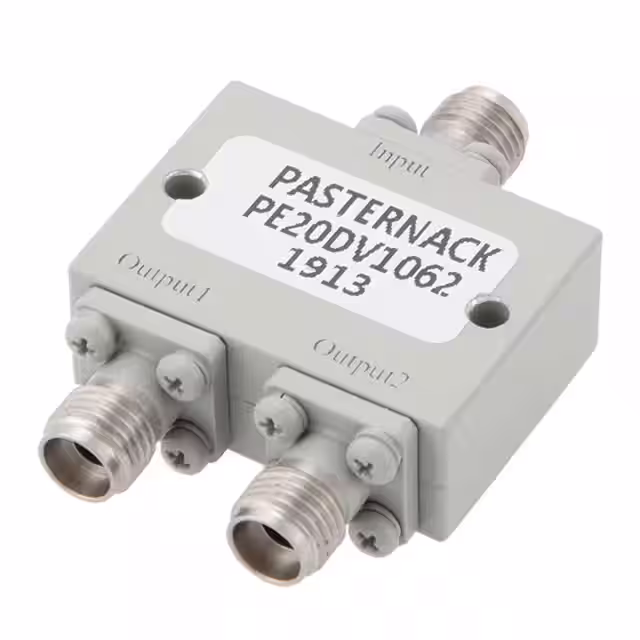

PE20DV1062 2 WAY 20W DIV 2.92MM 10-43.3GHZ Pasternack	2,077	1330.00	RFQ	Datasheet	Bag	-	Active	1.3dB	10 GHz ~ 43.3 GHz	Isolation (Min) 16dB, 5° Imbalance (Max), 1.7 VSWR (Max)	1.024 L x 0.748 W x 0.404 H (26.00mm x 19.00mm x 10.25mm)

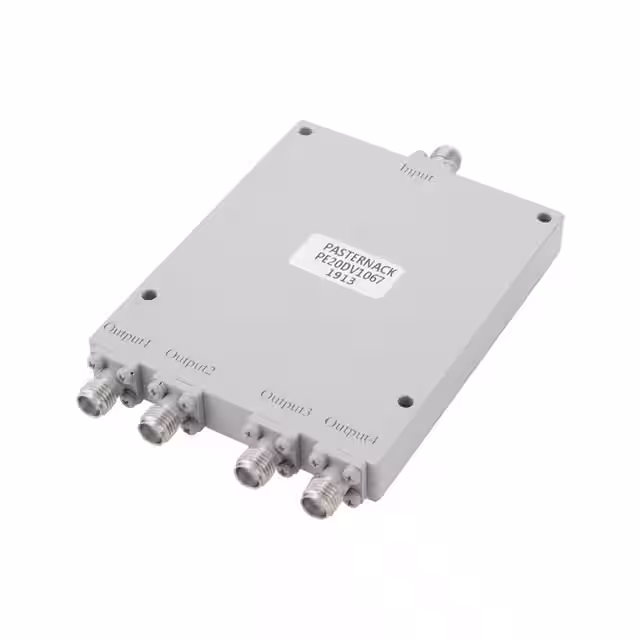

PE20DV1067 4 WAY 20W DIV SMA 2-26.5GHZ Pasternack	3,282	1330.00	RFQ	Datasheet	Bag	-	Active	2.6dB	2 GHz ~ 26.5 GHz	Isolation (Min) 16dB, 6° Imbalance (Max)	2.874 L x 2.323 W x 0.404 H (73.00mm x 59.00mm x 10.25mm)

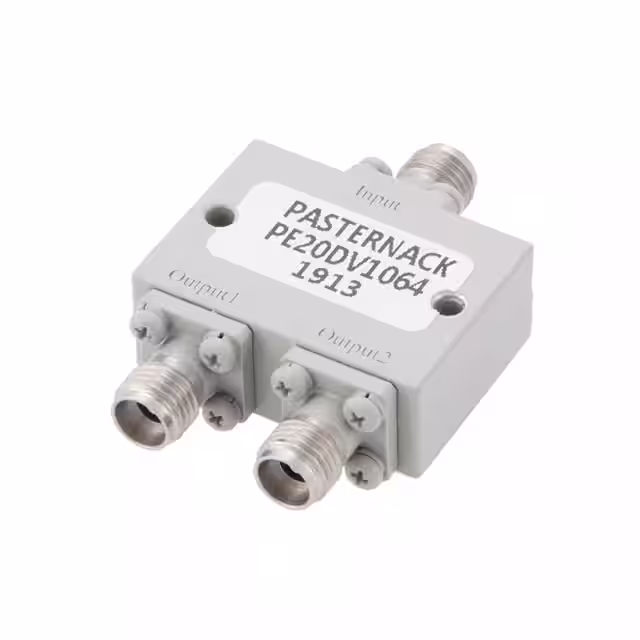

PE20DV1064 2 WAY 20W DIV 2.92MM 18-40GHZ Pasternack	3,419	1400.00	RFQ	Datasheet	Bag	-	Active	1.2dB	18 GHz ~ 40 GHz	Isolation (Min) 16dB, 4° Imbalance (Max), 1.5 VSWR (Max)	1.024 L x 0.748 W x 0.404 H (26.00mm x 19.00mm x 10.25mm)

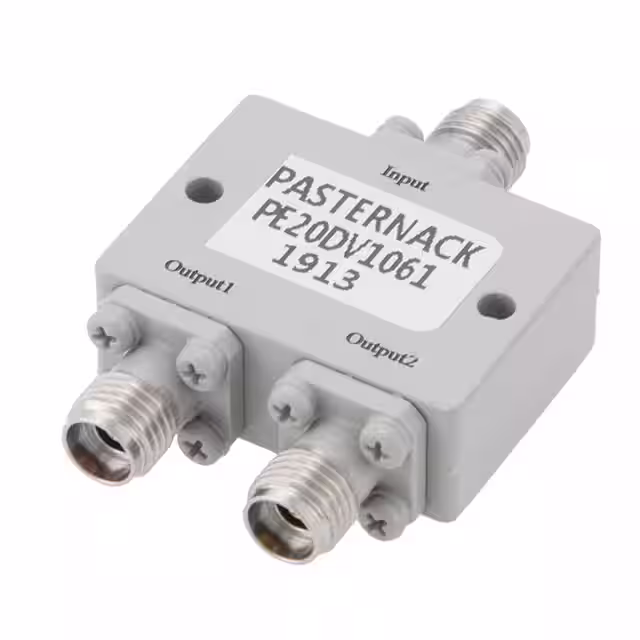

PE20DV1061 2 WAY 20W DIV 2.92MM 6-40GHZ Pasternack	3,227	1460.00	RFQ	Datasheet	Bag	-	Active	1.3dB	6 GHz ~ 40 GHz	Isolation (Typ) 19dB, 5° Imbalance (Max)	1.024 L x 0.748 W x 0.404 H (26.00mm x 19.00mm x 10.25mm)

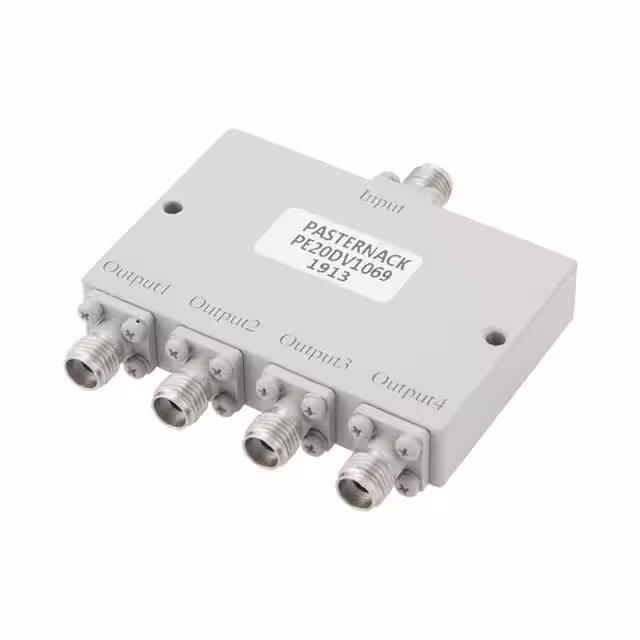

PE20DV1069 4 WAY 20W DIV 2.92MM 18-40GHZ Pasternack	2,199	1590.00	RFQ	Datasheet	Bag	-	Active	1.6dB	18 GHz ~ 40 GHz	Isolation (Min) 16dB, 8° Imbalance (Max), 1.7 VSWR (Max)	2.047 L x 1.378 W x 0.404 H (52.00mm x 35.00mm x 10.25mm)

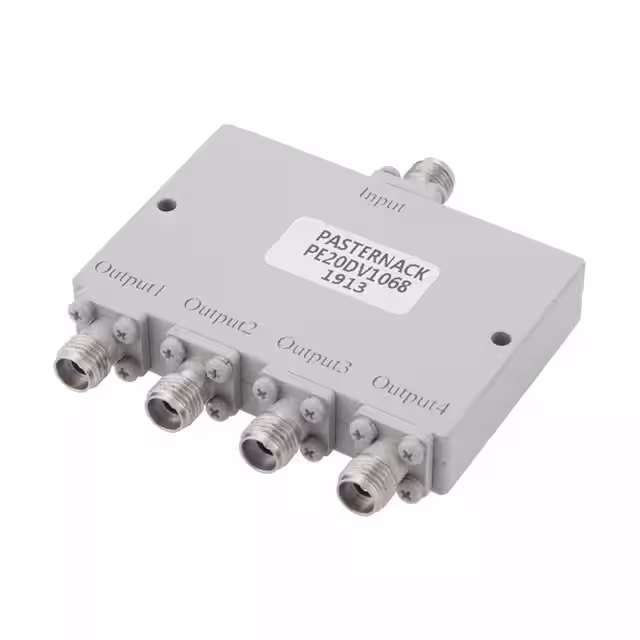

PE20DV1068 4 WAY 20W DIV 2.92MM 6-40GHZ Pasternack	2,592	1720.00	RFQ	Datasheet	Bag	-	Active	2dB	6 GHz ~ 40 GHz	Isolation (Min) 15dB, 8° Imbalance (Max)	2.047 L x 1.378 W x 0.404 H (52.00mm x 35.00mm x 10.25mm)
