Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Resistance(Ohms)	Tolerance	Power(Watts)	BuiltinSwitch	NumberofTurns	Features	Taper	NumberofGangs	AdjustmentType	TemperatureCoefficient	Rotation	ResistiveMaterial	TerminationStyle	ActuatorType	ActuatorLength	ActuatorDiameter	BushingThread

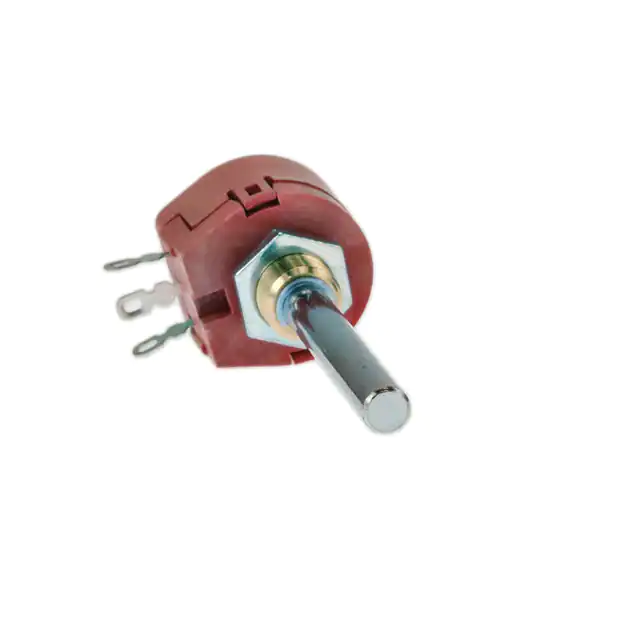

3109604000 POT 1W WIREWOUND LINEAR KYOCERA AVX	3,036	9.39	RFQ	Datasheet	Bulk	ABW 1	Active	-	-	1W	None	1	-	Linear	1	User Defined	-	285°	Wirewound	Solder Lug	Round	1.969 (50.00mm)	0.236 (6.00mm)	M10 x 0.75
3114303605 POT 2W WIREWOUND LINEAR KYOCERA AVX	3,710	10.38	RFQ	Datasheet	Bulk	ABW 2	Active	-	-	2W	None	1	-	Linear	1	User Defined	-	300°	Wirewound	Solder Lug	Round	1.969 (50.00mm)	0.236 (6.00mm)	M10 x 0.75
3114304000 POT 2W WIREWOUND LINEAR KYOCERA AVX	3,986	10.38	RFQ	Datasheet	Bulk	ABW 2	Active	-	-	2W	None	1	-	Linear	1	User Defined	-	300°	Wirewound	Solder Lug	Round	1.969 (50.00mm)	0.236 (6.00mm)	M10 x 0.75
3114304798 POT 2W WIREWOUND LINEAR KYOCERA AVX	2,798	10.38	RFQ	Datasheet	Bulk	ABW 2	Active	-	-	2W	None	1	-	Linear	1	User Defined	-	300°	Wirewound	Solder Lug	Round	1.969 (50.00mm)	0.236 (6.00mm)	M10 x 0.75
3114307999 POT 2W WIREWOUND LINEAR KYOCERA AVX	2,033	10.38	RFQ	Datasheet	Bulk	ABW 2	Active	-	-	2W	None	1	-	Linear	1	User Defined	-	300°	Wirewound	Solder Lug	Round	1.969 (50.00mm)	0.236 (6.00mm)	M10 x 0.75
3114306004 POT 2W WIREWOUND LINEAR KYOCERA AVX	3,771	10.38	RFQ	Datasheet	Bulk	ABW 2	Active	-	-	2W	None	1	-	Linear	1	User Defined	-	300°	Wirewound	Solder Lug	Round	1.969 (50.00mm)	0.236 (6.00mm)	M10 x 0.75

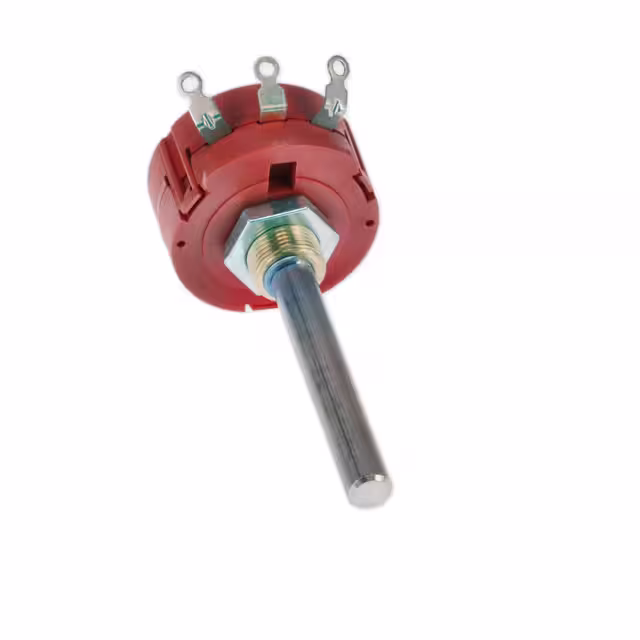

3114308788 POT 2W WIREWOUND LINEAR KYOCERA AVX	2,755	10.38	RFQ	Datasheet	Bulk	ABW 2	Active	-	-	2W	None	1	-	Linear	1	User Defined	-	300°	Wirewound	Solder Lug	Round	1.969 (50.00mm)	0.236 (6.00mm)	M10 x 0.75
104703564 POT 10K OHM 1/2W CARBON LINEAR KYOCERA AVX	3,170	18.45	RFQ	Datasheet	Bulk	45	Active	10k	±20%	0.5W, 1/2W	None	1	-	Linear	1	User Defined	±500ppm/°C	300°	Carbon	Solder Lug	Round	0.764 (19.40mm)	-	M10 x 0.75
104701780 POT 1K OHM 1/2W CARBON LINEAR KYOCERA AVX	2,756	18.45	RFQ	Datasheet	Bulk	45	Active	1k	±20%	0.5W, 1/2W	None	1	-	Linear	1	User Defined	±500ppm/°C	300°	Carbon	Solder Lug	Round	0.764 (19.40mm)	-	M10 x 0.75
104703565 POT 10K OHM 1/2W CARBON LINEAR KYOCERA AVX	2,268	18.45	RFQ	Datasheet	Bulk	45	Active	10k	±20%	0.5W, 1/2W	None	1	-	Linear	1	User Defined	±500ppm/°C	300°	Carbon	Solder Lug	Round	0.764 (19.40mm)	-	M10 x 0.75
3101106140 POT 1W WIREWOUND LINEAR KYOCERA AVX	2,353	75.23	RFQ	Datasheet	Bulk	CLR 1100	Active	-	±10%	1W	None	1	-	Linear	1	User Defined	-	285°	Wirewound	Solder Lug	Round	-	0.236 (6.00mm)	3/8-32
3104001160 POT 3W WIREWOUND CLR KYOCERA AVX	2,315	48.90	RFQ	Datasheet	Bulk	CLR 4000	Active	-	±10%	3W	None	1	-	-	-	User Defined	-	290°	Wirewound	Solder Lug	Round	-	0.236 (6.00mm)	3/8-32

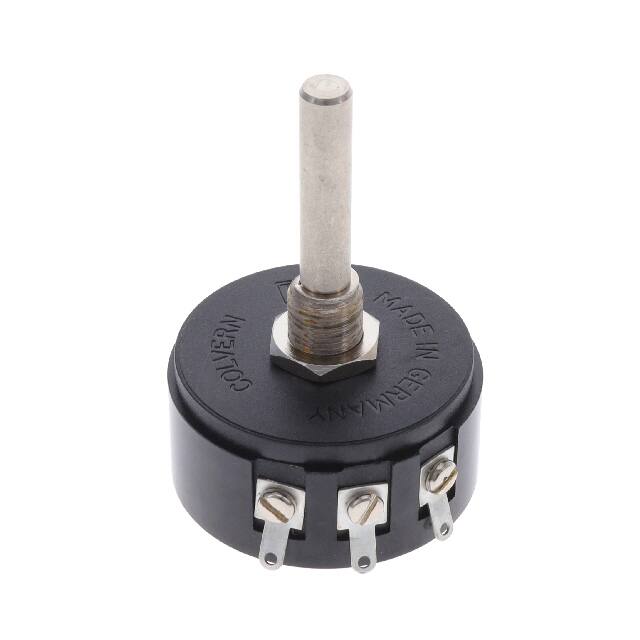

3104001240 POT 3W WIREWOUND CLR KYOCERA AVX	3,668	48.90	RFQ	Datasheet	Bulk	CLR 4000	Active	-	±10%	3W	None	1	-	-	-	User Defined	-	290°	Wirewound	Solder Lug	Round	-	0.236 (6.00mm)	3/8-32
3104001170 POT 3W WIREWOUND CLR KYOCERA AVX	3,397	48.90	RFQ	Datasheet	Bulk	CLR 4000	Active	-	±10%	3W	None	1	-	-	-	User Defined	-	290°	Wirewound	Solder Lug	Round	-	0.236 (6.00mm)	3/8-32
3121205950 POT 60W WIREWOUND LINEAR KYOCERA AVX	3,088	0.00	RFQ	Datasheet	Bulk	60 W	Obsolete	-	±10%	60W	None	1	-	Linear	1	User Defined	-	282°	Wirewound	Solder Lug	Round	0.866 (22.00mm)	0.236 (6.00mm)	M10 x 0.75
3121205912 POT 60W WIREWOUND LINEAR KYOCERA AVX	2,180	0.00	RFQ	Datasheet	Bulk	60 W	Obsolete	-	±10%	60W	None	1	-	Linear	1	User Defined	-	282°	Wirewound	Solder Lug	Round	0.866 (22.00mm)	0.236 (6.00mm)	M10 x 0.75
3121103900 POT 30W WIREWOUND LINEAR KYOCERA AVX	3,636	0.00	RFQ	Datasheet	Bulk	30 W	Obsolete	-	±10%	30W	None	1	-	Linear	1	User Defined	-	287°	Wirewound	Solder Lug	Round	0.945 (24.00mm)	0.236 (6.00mm)	M10 x 0.75
3121106900 POT 30W WIREWOUND LINEAR KYOCERA AVX	3,639	0.00	RFQ	Datasheet	Bulk	30 W	Obsolete	-	±10%	30W	None	1	-	Linear	1	User Defined	-	287°	Wirewound	Solder Lug	Round	0.945 (24.00mm)	0.236 (6.00mm)	M10 x 0.75
3121000600 POT 10W WIREWOUND LINEAR KYOCERA AVX	3,287	0.00	RFQ	Datasheet	Bulk	10 W	Obsolete	-	±10%	10W	None	1	-	Linear	1	User Defined	-	266°	Wirewound	Solder Lug	Round	0.945 (24.00mm)	0.236 (6.00mm)	M10 x 0.75
3121205903 POT 60W WIREWOUND LINEAR KYOCERA AVX	2,729	0.00	RFQ	Datasheet	Bulk	60 W	Obsolete	-	±10%	60W	None	1	-	Linear	1	User Defined	-	282°	Wirewound	Solder Lug	Round	0.866 (22.00mm)	0.236 (6.00mm)	M10 x 0.75
