Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	InsertionLoss	Frequency	Specifications	Size/Dimension

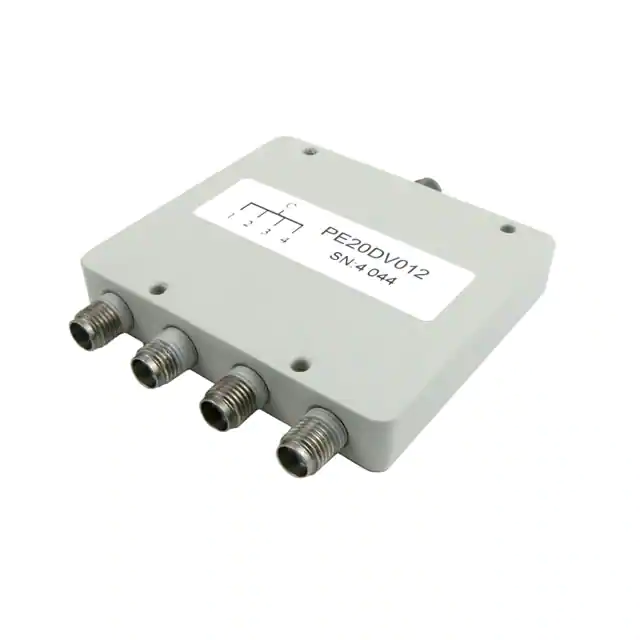

PE20DV012 4 WAY 20W DIV SMA 800MHZ-2.5GHZ Pasternack	3,737	175.99	RFQ	Datasheet	Bag	-	Active	6.7dB	800 MHz ~ 2.5 GHz	Isolation (Min) 20dB, 6° Imbalance (Max), 1.3 VSWR (Max)	2.220 L x 1.969 W x 0.404 H (56.40mm x 50.00mm x 10.25mm)

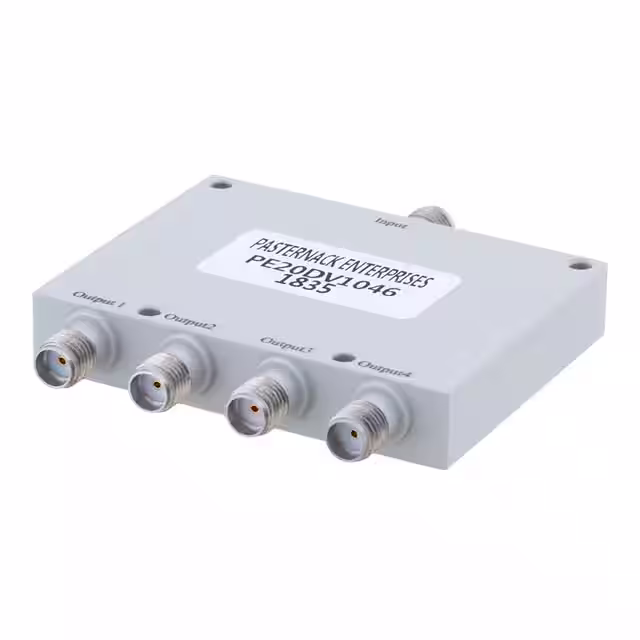

PE20DV1046 4 WAY 30W DIV SMA 2-4GHZ Pasternack	3,543	247.99	RFQ	Datasheet	Bag	-	Active	0.4dB	2 GHz ~ 4 GHz	Isolation (Min) 20dB, 3° Imbalance (Max), 1.25 VSWR (Max)	2.205 L x 1.693 W x 0.414 H (56.00mm x 43.00mm x 10.51mm)

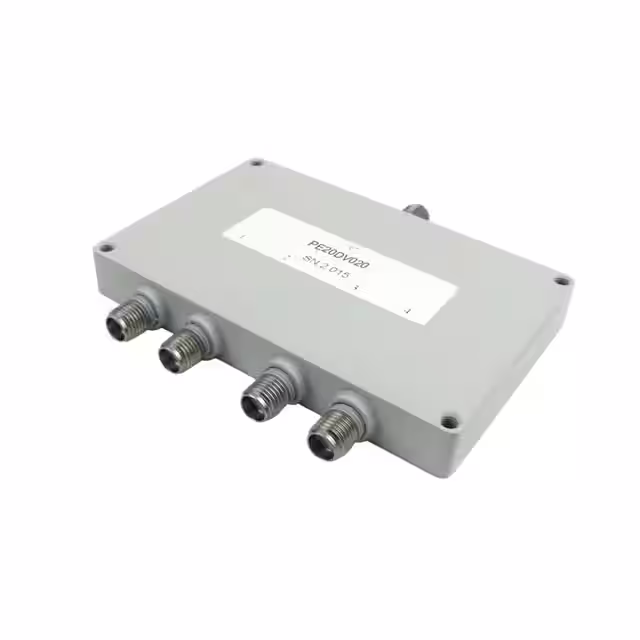

PE20DV020 4 WAY 30W DIV SMA 500MHZ-1GHZ Pasternack	2,764	247.99	RFQ	Datasheet	Bag	-	Active	0.6dB	500 MHz ~ 1 GHz	Isolation (Min) 20dB, 3° Imbalance (Max), 1.25 VSWR (Max)	3.071 L x 1.969 W x 0.404 H (78.00mm x 50.00mm x 10.25mm)

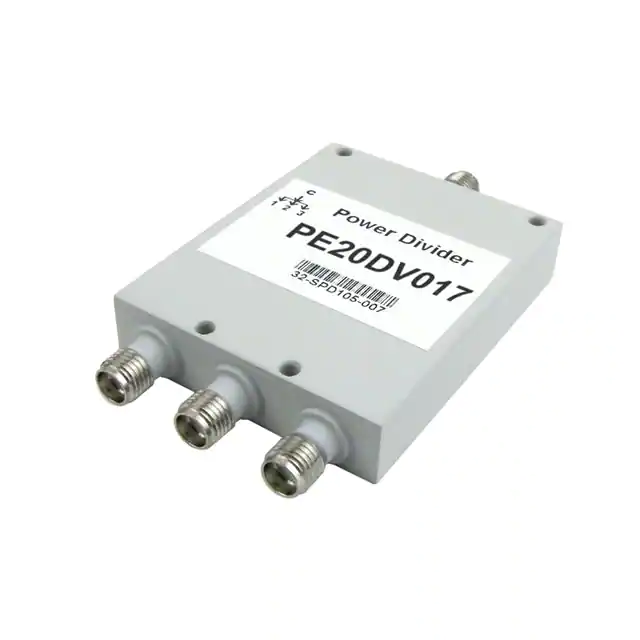

PE20DV017 3 WAY 30W DIV SMA 2-4GHZ Pasternack	3,918	255.99	RFQ	Datasheet	Bag	-	Active	0.6dB	2 GHz ~ 4 GHz	Isolation (Min) 18dB, 1.3 VSWR (Max)	2.047 L x 1.614 W x 0.414 H (52.00mm x 41.00mm x 10.51mm)

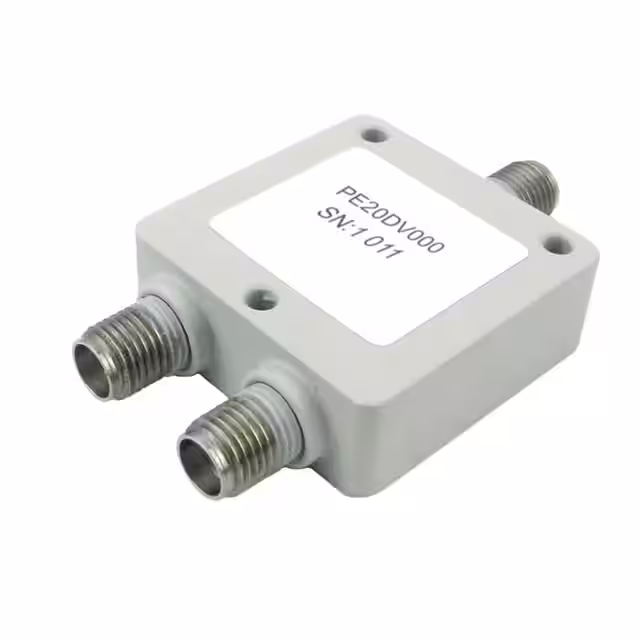

PE20DV000 2 WAY 30W DIV SMA 2-8GHZ Pasternack	3,415	341.99	RFQ	Datasheet	Bag	-	Active	4dB	2 GHz ~ 8 GHz	Isolation (Min) 20dB, 4° Imbalance (Max), 1.4 VSWR (Max)	1.102 L x 1.102 W x 0.404 H (28.00mm x 28.00mm x 10.25mm)

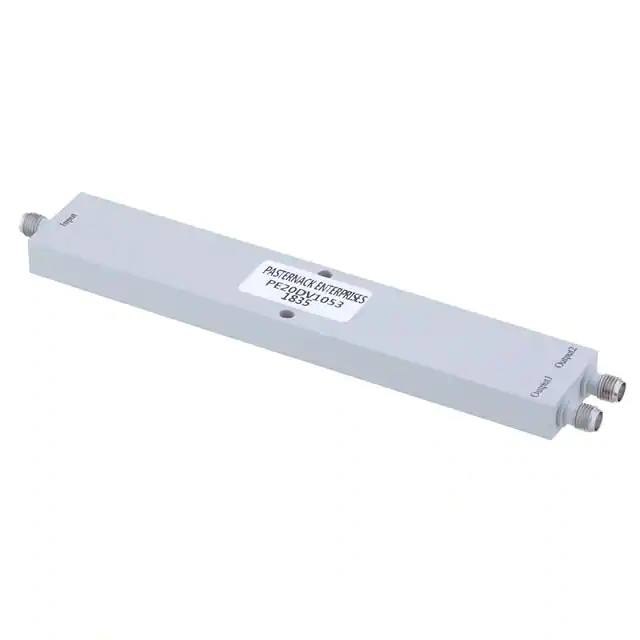

PE20DV1053 2 WAY 30W DIV SMA 350MHZ-6GHZ Pasternack	3,211	353.99	RFQ	Datasheet	Bag	-	Active	0.6dB	350 MHz ~ 6 GHz	Isolation (Min) 18dB, 3° Imbalance (Max), 1.4 VSWR (Max)	5.591 L x 0.984 W x 0.414 H (142.00mm x 25.00mm x 10.51mm)

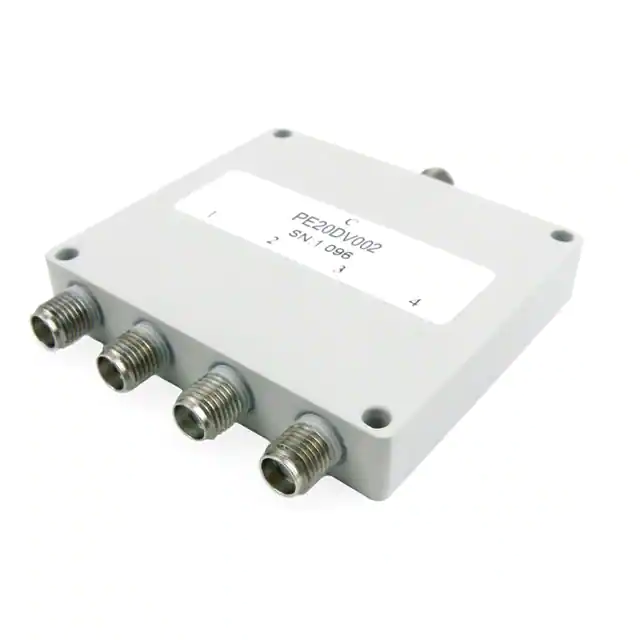

PE20DV002 4 WAY 30W DIV SMA 2-8GHZ Pasternack	3,121	433.99	RFQ	Datasheet	Bag	-	Active	7.5dB	2 GHz ~ 8 GHz	Isolation (Min) 17dB, 5° Imbalance (Max), 1.4 VSWR (Max)	2.205 L x 1.969 W x 0.406 H (56.00mm x 50.00mm x 10.30mm)

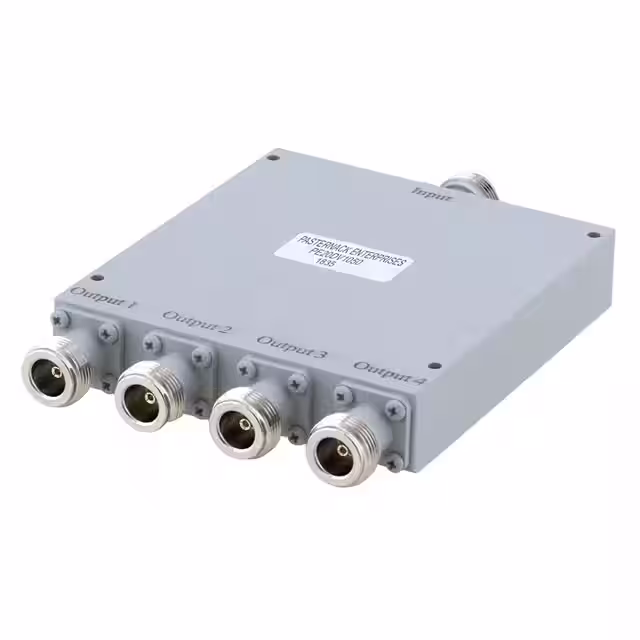

PE20DV1050 4 WAY 30W DIV N-TYPE 0.375-4GHZ Pasternack	3,317	565.00	RFQ	Datasheet	Bag	-	Active	2dB	375 MHz ~ 6 GHz	Isolation (Min) 19dB, 4° Imbalance (Max), 1.5 VSWR (Max)	3.937 L x 3.622 W x 0.807 H (100.00mm x 92.00mm x 20.51mm)

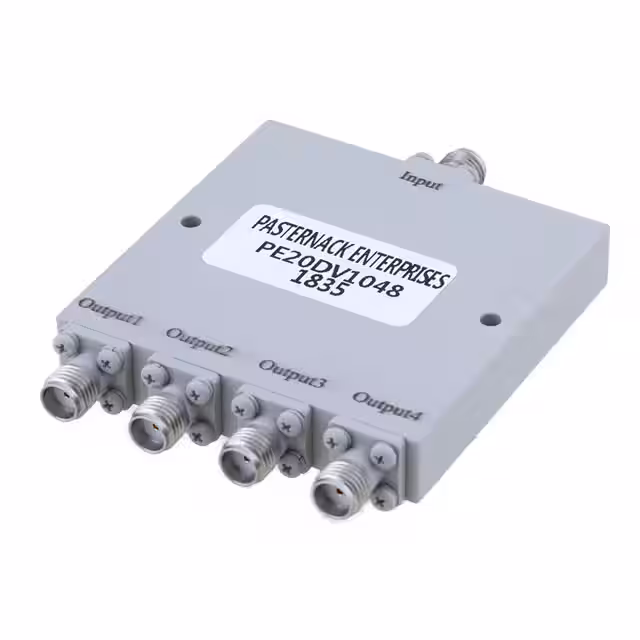

PE20DV1048 4 WAY 30W DIV SMA 6-18GHZ Pasternack	2,694	565.00	RFQ	Datasheet	Bag	-	Active	0.7dB	6 GHz ~ 18 GHz	Isolation (Min) 16dB, 6° Imbalance (Max), 1.55 VSWR (Max)	2.000 L x 2.000 W x 0.398 H (50.80mm x 50.80mm x 10.11mm)

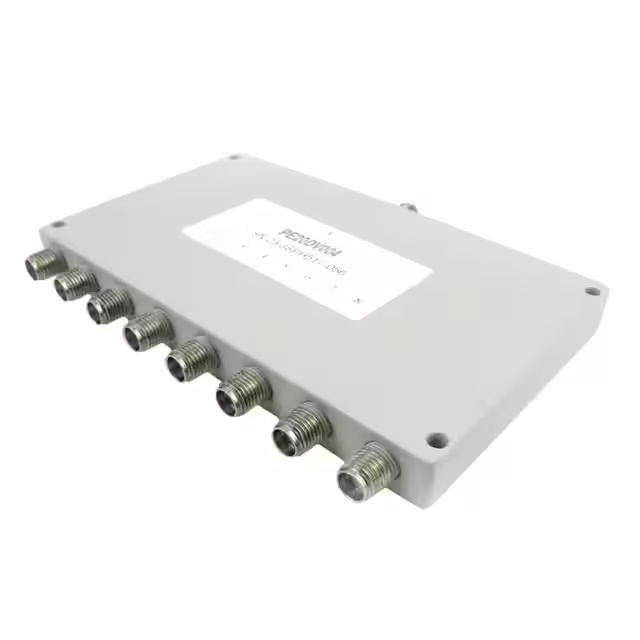

PE20DV004 8 WAY 30W DIV SMA 2-8GHZ Pasternack	3,199	805.00	RFQ	Datasheet	Bag	-	Active	11dB	2 GHz ~ 8 GHz	Isolation (Min) 17dB, 7° Imbalance (Max), 1.65 VSWR (Max)	4.252 L x 2.480 W x 0.404 H (108.00mm x 63.00mm x 10.25mm)

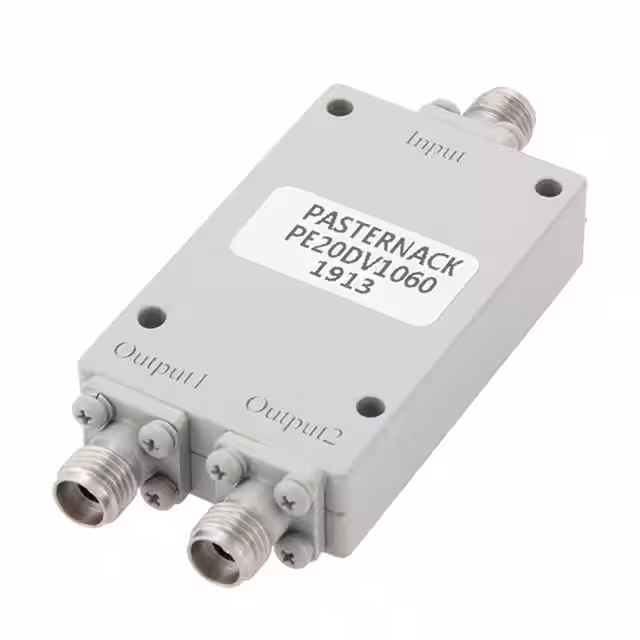

PE20DV1060 2 WAY 20W DIV 2.92MM 2-40GHZ Pasternack	3,745	1590.00	RFQ	Datasheet	Bag	-	Active	1.8dB	2 GHz ~ 40 GHz	Isolation (Typ) 17dB, 6° Imbalance (Max)	1.654 L x 1.024 W x 0.404 H (42.00mm x 26.00mm x 10.25mm)

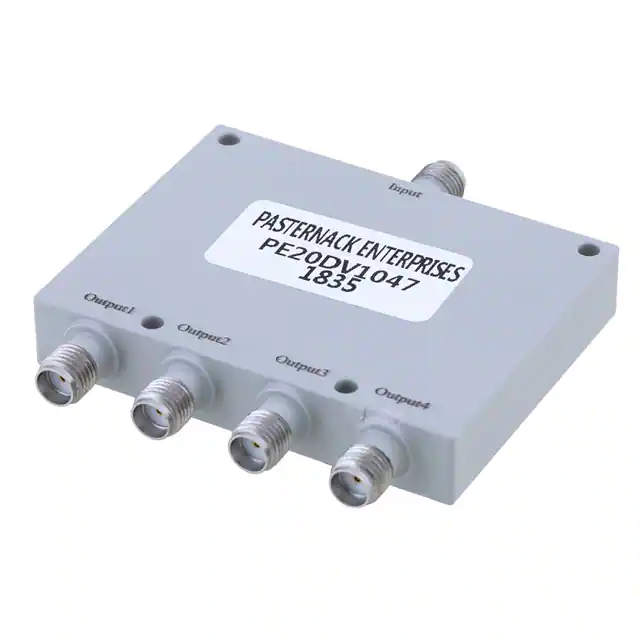

PE20DV1047 4 WAY 30W DIV SMA 4-8GHZ Pasternack	3,214	257.99	RFQ	Datasheet	Bag	-	Active	0.6dB	4 GHz ~ 8 GHz	Isolation (Min) 20dB, 3° Imbalance (Max), 1.3 VSWR (Max)	2.205 L x 1.693 W x 0.414 H (56.00mm x 43.00mm x 10.51mm)

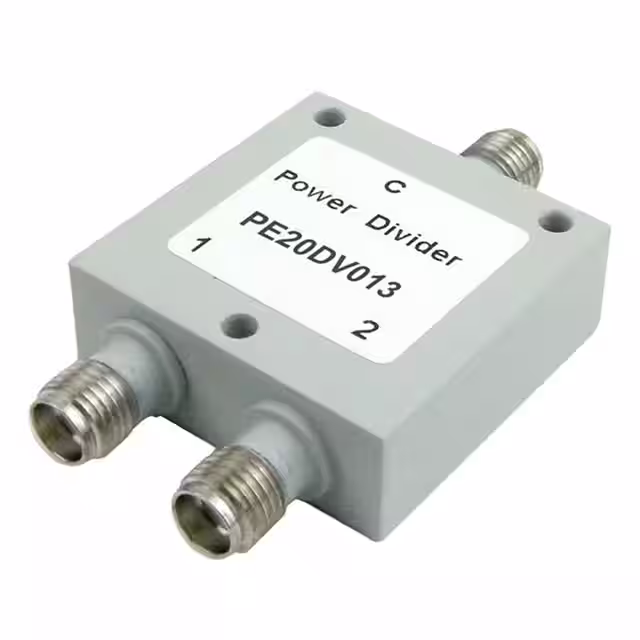

PE20DV013 2 WAY 20W DIV SMA 1-4GHZ Pasternack	3,101	277.99	RFQ	Datasheet	Bag	-	Active	3.5dB	1 GHz ~ 4 GHz	Isolation (Min) 20dB, 2° Imbalance (Max), 1.3 VSWR (Max)	1.102 L x 1.102 W x 0.404 H (28.00mm x 28.00mm x 10.25mm)

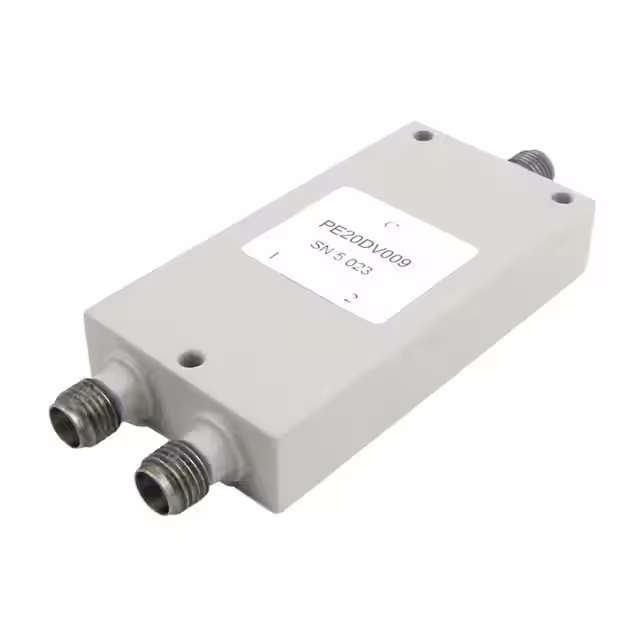

PE20DV009 2 WAY 20W DIV SMA 500MHZ-2GHZ Pasternack	3,690	277.99	RFQ	Datasheet	Bag	-	Active	3.4dB	500 MHz ~ 2 GHz	Isolation (Min) 22dB, 3° Imbalance (Max), 1.25 VSWR (Max)	2.126 L x 1.102 W x 0.404 H (54.00mm x 28.00mm x 10.25mm)

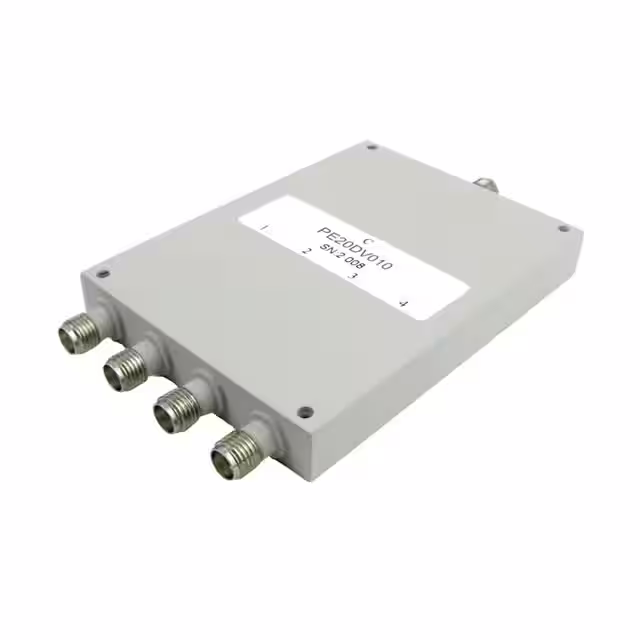

PE20DV010 4 WAY 30W DIV SMA 500MHZ-2GHZ Pasternack	2,224	295.99	RFQ	Datasheet	Bag	-	Active	7dB	500 MHz ~ 2 GHz	Isolation (Min) 20dB, 5° Imbalance (Max), 1.3 VSWR (Max)	2.992 L x 2.205 W x 0.404 H (76.00mm x 56.00mm x 10.25mm)

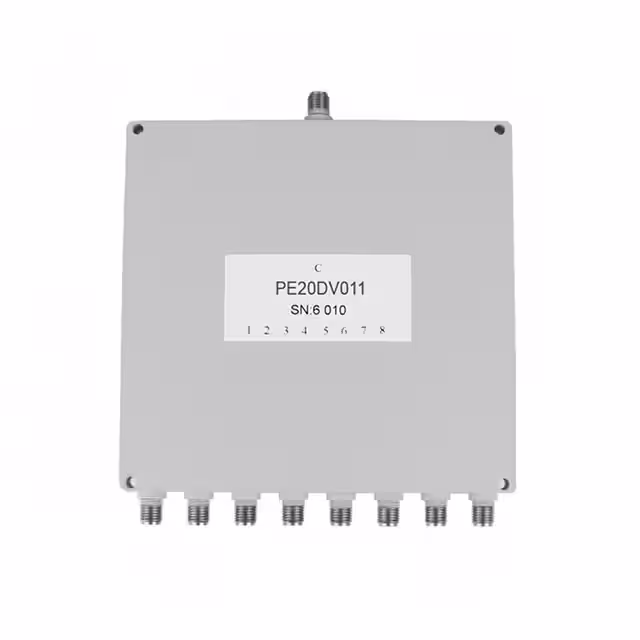

PE20DV011 8 WAY 30W DIV SMA 500MHZ-2GHZ Pasternack	3,163	365.99	RFQ	Datasheet	Bag	-	Active	10.5dB	500 MHz ~ 2 GHz	Isolation (Min) 20dB, 4° Imbalance (Max), 1.4 VSWR (Max)	4.252 L x 4.055 W x 0.404 H (108.00mm x 103.00mm x 10.25mm)
PE20DV008 2 WAY 20W DIV SMA 800MHZ-2.4GHZ Pasternack	3,793	141.99	RFQ	Datasheet	Bag	-	Active	3.4dB	800 MHz ~ 2.4 GHz	Isolation (Min) 20dB, 2° Imbalance (Max), 1.3 VSWR (Max)	1.378 L x 0.984 W x 0.404 H (35.00mm x 25.00mm x 10.25mm)

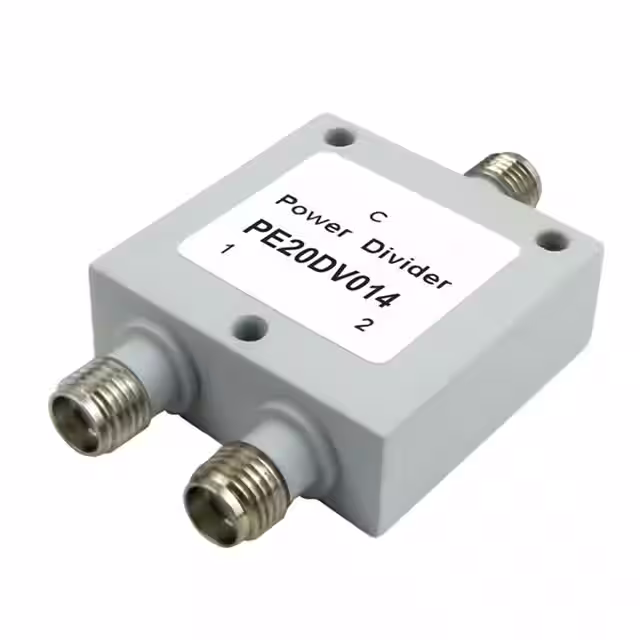

PE20DV014 2 WAY 30W DIV SMA 1-2GHZ Pasternack	2,206	155.99	RFQ	Datasheet	Bag	-	Active	0.35dB	1 GHz ~ 2 GHz	Isolation (Min) 20dB, 2° Imbalance (Max), 1.2 VSWR (Max)	1.098 L x 1.098 W x 0.404 H (27.90mm x 27.90mm x 10.25mm)

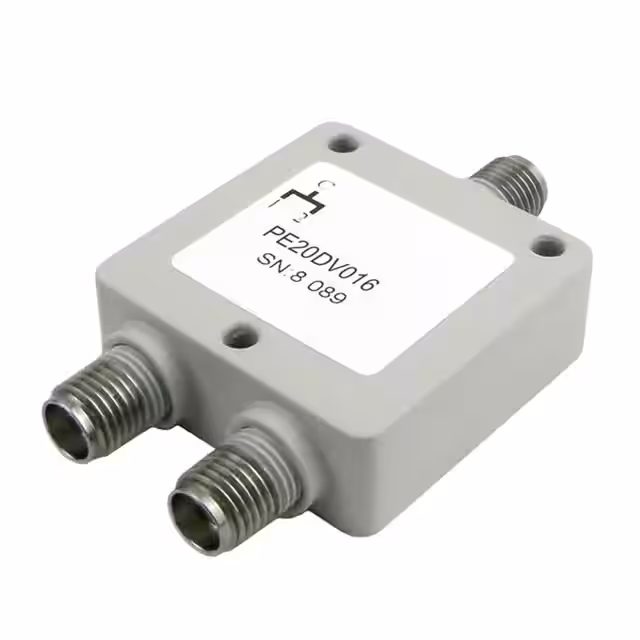

PE20DV016 2 WAY 30W DIV SMA 2-4GHZ Pasternack	3,956	155.99	RFQ	Datasheet	Bag	-	Active	3.35dB	2 GHz ~ 4 GHz	Isolation (Min) 20dB, 2° Imbalance (Max), 1.25 VSWR (Max)	1.098 L x 1.098 W x 0.404 H (27.90mm x 27.90mm x 10.25mm)

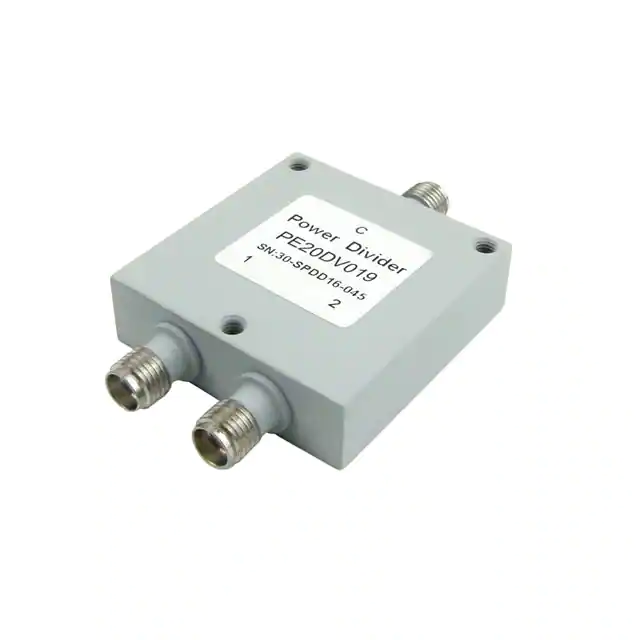

PE20DV019 2 WAY 30W DIV SMA 500MHZ-1GHZ Pasternack	2,765	155.99	RFQ	Datasheet	Bag	-	Active	0.35dB	500 MHz ~ 1 GHz	Isolation (Min) 20dB	1.378 L x 1.339 W x 0.404 H (35.00mm x 34.00mm x 10.25mm)
