Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	EncoderType	OutputType	PulsesperRevolution	Voltage-Supply	ActuatorType	Detent	BuiltinSwitch	MountingType	Orientation	TerminationStyle
ACZ16BR1E-20FD1-24C ROTARY ENCODER INCREMENT 24PPR CUI Devices	3,444	1.41	RFQ	Datasheet	Box	ACZ16	Active	Incremental	Quadrature (Incremental)	24	5V	6mm Dia Flatted End	Yes	Yes	Panel, PCB Through Hole	Vertical	PC Pin

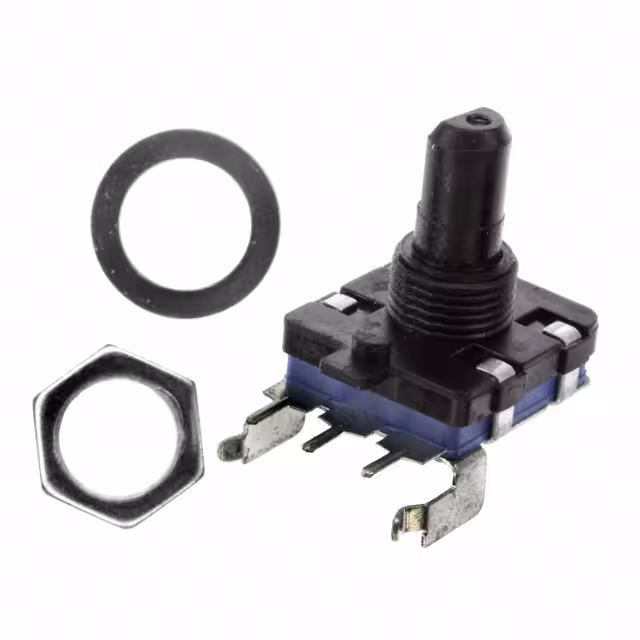

ACZ16NBR1E-15KQA1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	3,735	1.24	RFQ	Datasheet	Box	ACZ16	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Knurled End	Yes	No	Panel, PCB Through Hole	Right Angle	PC Pin
ACZ16NBR1E-20KQA1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	3,035	1.24	RFQ	Datasheet	Box	ACZ16	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Knurled End	Yes	No	Panel, PCB Through Hole	Right Angle	PC Pin
ACZ16NBR1E-15FA1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	3,969	1.24	RFQ	Datasheet	Box	ACZ16	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Flatted End	Yes	No	Panel, PCB Through Hole	Right Angle	PC Pin
ACZ16NBR1E-20FA1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	2,739	1.24	RFQ	Datasheet	Box	ACZ16	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Flatted End	Yes	No	Panel, PCB Through Hole	Right Angle	PC Pin
ACZ16NBR1E-15KQA1-24C ROTARY ENCODER INCREMENT 24PPR CUI Devices	701	2.05	RFQ	Datasheet	Box,Box	ACZ16	Active	Incremental	Quadrature (Incremental)	24	5V	6mm Dia Knurled End	Yes	No	Panel, PCB Through Hole	Right Angle	PC Pin
ACZ16NBR1E-20KQA1-24C ROTARY ENCODER INCREMENT 24PPR CUI Devices	3,790	1.24	RFQ	Datasheet	Box	ACZ16	Active	Incremental	Quadrature (Incremental)	24	5V	6mm Dia Knurled End	Yes	No	Panel, PCB Through Hole	Right Angle	PC Pin

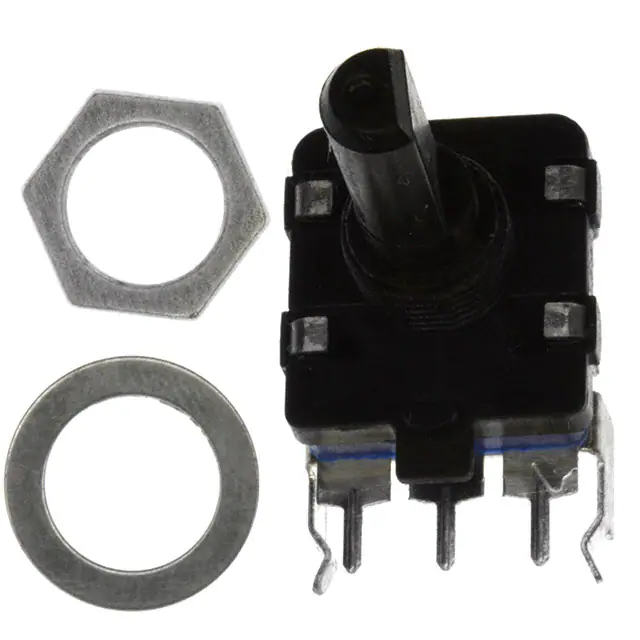

ACZ16NBR1E-20FA1-24C ROTARY ENCODER INCREMENT 24PPR CUI Devices	2,733	1.24	RFQ	Datasheet	Box	ACZ16	Active	Incremental	Quadrature (Incremental)	24	5V	6mm Dia Flatted End	Yes	No	Panel, PCB Through Hole	Right Angle	PC Pin

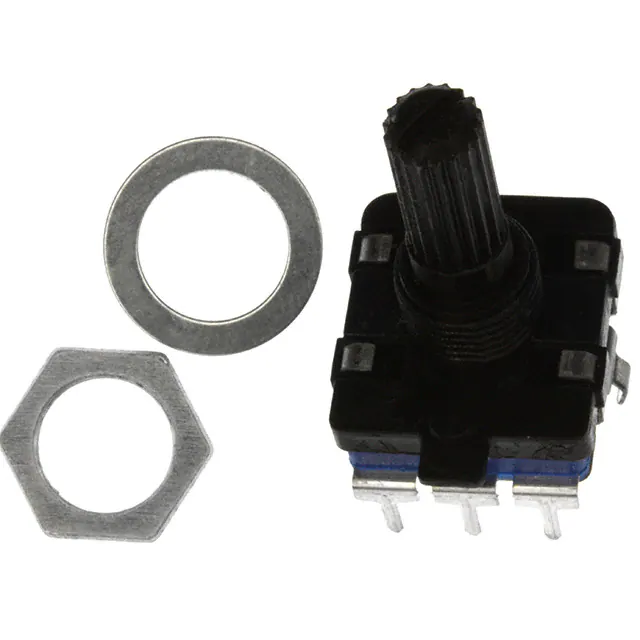

ACZ16NBR1E-15KQD1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	2,294	1.24	RFQ	Datasheet	Box	ACZ16	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Knurled End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin
ACZ16NBR1E-20FD1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	3,273	1.24	RFQ	Datasheet	Box	ACZ16	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Flatted End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin
ACZ16NBR1E-20KQD1-24C ROTARY ENCODER INCREMENT 24PPR CUI Devices	3,481	1.24	RFQ	Datasheet	Box	ACZ16	Active	Incremental	Quadrature (Incremental)	24	5V	6mm Dia Knurled End	Yes	No	Panel, PCB Through Hole	Vertical	PC Pin
ACZ16BR2E-25FD1-24C ROTARY ENCODER INCREMENT 24PPR CUI Devices	2,432	1.41	RFQ	Datasheet	Bulk	ACZ16	Active	Incremental	Quadrature (Incremental)	24	5V	6mm Dia Flatted End	Yes	Yes	Panel, PCB Through Hole	Vertical	PC Pin
ACZ11BR1E-20KQA1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	3,008	1.61	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Knurled End	Yes	Yes	Panel, PCB Through Hole	Right Angle	PC Pin
ACZ11BR4E-15KQA1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	3,424	1.61	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Knurled End	Yes	Yes	PCB, Through Hole	Right Angle	PC Pin
ACZ11BR4E-20KQA1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	2,093	1.61	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Knurled End	Yes	Yes	PCB, Through Hole	Right Angle	PC Pin
ACZ11BR1E-20FA1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	2,194	1.61	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Flatted End	Yes	Yes	Panel, PCB Through Hole	Right Angle	PC Pin
ACZ11BR4E-15FA1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	2,692	1.61	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Right Angle	PC Pin
ACZ11BR4E-20FA1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	2,879	1.61	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Right Angle	PC Pin
ACZ11BR1E-15KQA1-20C ROTARY ENCODER INCREMENT 20PPR CUI Devices	2,319	1.61	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	20	5V	6mm Dia Knurled End	Yes	Yes	Panel, PCB Through Hole	Right Angle	PC Pin
ACZ11BR1E-20KQA1-20C ROTARY ENCODER INCREMENT 20PPR CUI Devices	2,957	1.61	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	20	5V	6mm Dia Knurled End	Yes	Yes	Panel, PCB Through Hole	Right Angle	PC Pin
