Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	EncoderType	OutputType	PulsesperRevolution	Voltage-Supply	ActuatorType	Detent	BuiltinSwitch	MountingType	Orientation	TerminationStyle

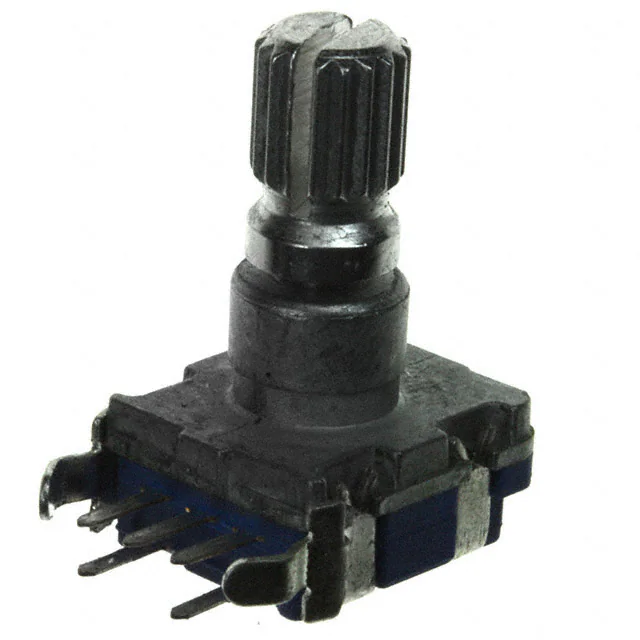

ACZ11BR4E-15KQA1-20C ROTARY ENCODER INCREMENT 20PPR CUI Devices	3,830	1.61	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	20	5V	6mm Dia Knurled End	Yes	Yes	PCB, Through Hole	Right Angle	PC Pin

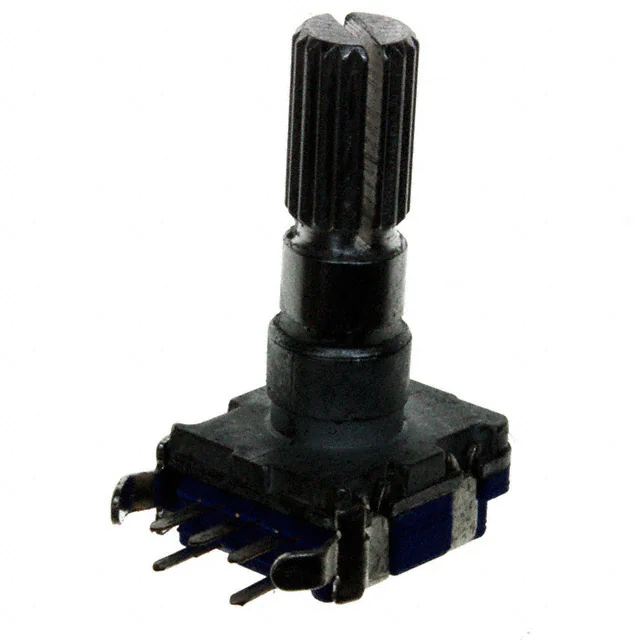

ACZ11BR4E-20KQA1-20C ROTARY ENCODER INCREMENT 20PPR CUI Devices	2,279	1.61	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	20	5V	6mm Dia Knurled End	Yes	Yes	PCB, Through Hole	Right Angle	PC Pin

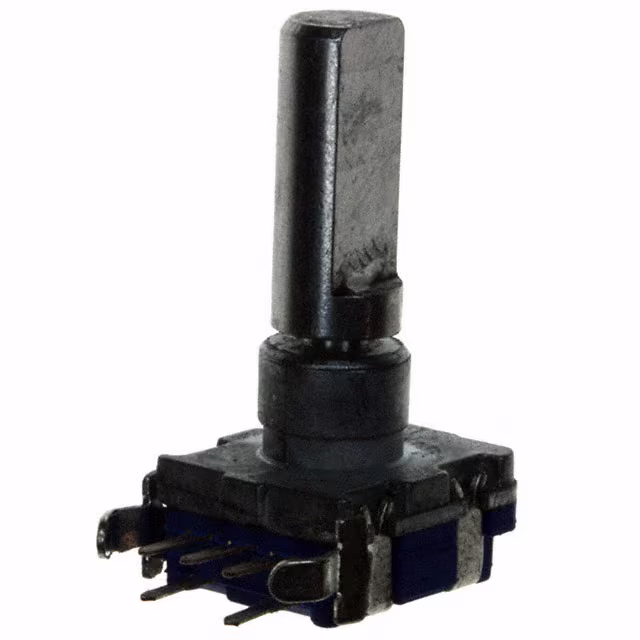

ACZ11BR4E-20FA1-20C ROTARY ENCODER INCREMENT 20PPR CUI Devices	3,902	1.61	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	20	5V	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Right Angle	PC Pin

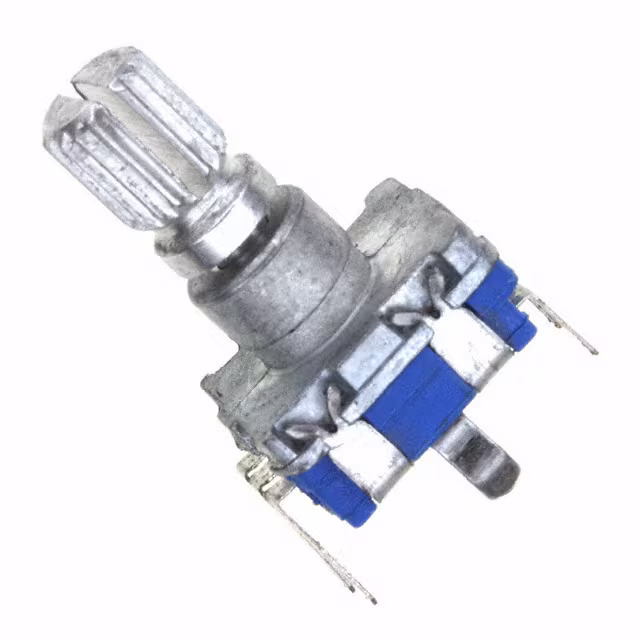

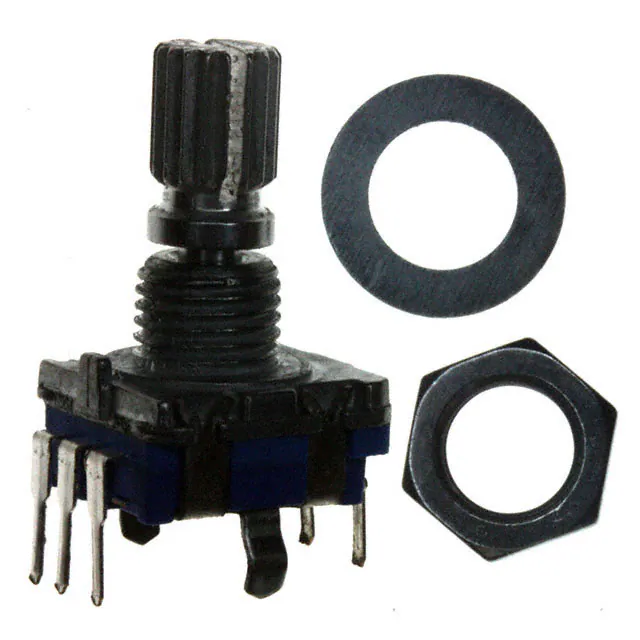

ACZ11BR1E-15KQD1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	2,675	1.61	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Knurled End	Yes	Yes	Panel, PCB Through Hole	Vertical	PC Pin

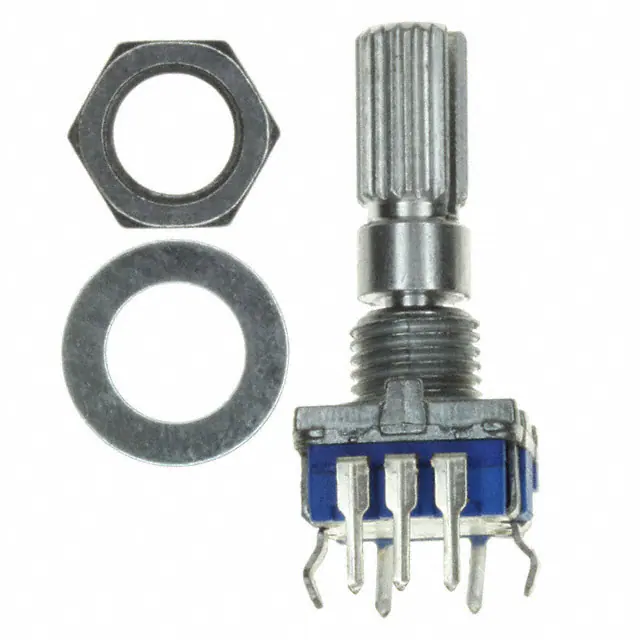

ACZ11BR1E-20KQD1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	3,670	1.61	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Knurled End	Yes	Yes	Panel, PCB Through Hole	Vertical	PC Pin
ACZ11BR4E-15KQD1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	2,322	1.61	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Knurled End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin

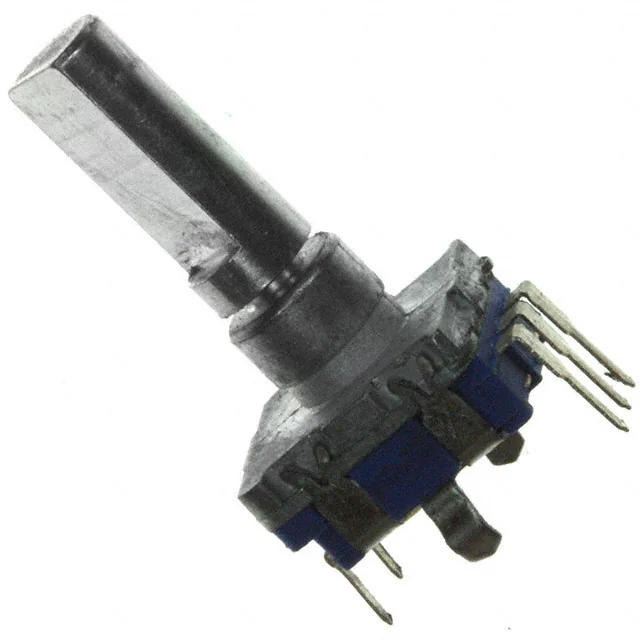

ACZ11BR4E-15FD1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	2,602	1.61	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin
ACZ11BR4E-20FD1-12C ROTARY ENCODER INCREMENT 12PPR CUI Devices	2,043	1.61	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	12	5V	6mm Dia Flatted End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin
ACZ11BR4E-15KQD1-20C ROTARY ENCODER INCREMENT 20PPR CUI Devices	2,409	1.61	RFQ	Datasheet	Box	ACZ11	Active	Incremental	Quadrature (Incremental)	20	5V	6mm Dia Knurled End	Yes	Yes	PCB, Through Hole	Vertical	PC Pin
ACZ09BR1E-15FD1-20C ROTARY ENCODER INCREMENT 20PPR CUI Devices	3,915	2.35	RFQ	Datasheet	Box	ACZ09	Active	Incremental	Quadrature (Incremental)	20	5V	6mm Dia Flatted End	Yes	Yes	Panel, PCB Through Hole	Vertical	PC Pin
ACZ09BR1E-15KQD1-20C ROTARY ENCODER INCREMENT 20PPR CUI Devices	2,349	2.35	RFQ	Datasheet	Box	ACZ09	Active	Incremental	Quadrature (Incremental)	20	5V	6mm Dia Knurled End	Yes	Yes	Panel, PCB Through Hole	Vertical	PC Pin
ACZ09BR1E-20FA1-20C ROTARY ENCODER INCREMENT 20PPR CUI Devices	2,001	2.35	RFQ	Datasheet	Box	ACZ09	Active	Incremental	Quadrature (Incremental)	20	5V	6mm Dia Flatted End	Yes	Yes	Panel, PCB Through Hole	Right Angle	PC Pin
ACZ09BR1E-20FD1-20C ROTARY ENCODER INCREMENT 20PPR CUI Devices	2,956	2.35	RFQ	Datasheet	Box	ACZ09	Active	Incremental	Quadrature (Incremental)	20	5V	6mm Dia Flatted End	Yes	Yes	Panel, PCB Through Hole	Vertical	PC Pin
ACZ09BR1E-15FD1-20C10P ROTARY ENCODER INCREMENT 10PPR CUI Devices	3,316	2.35	RFQ	Datasheet	Box	ACZ09	Active	Incremental	Quadrature (Incremental)	10	5V	6mm Dia Flatted End	Yes	Yes	Panel, PCB Through Hole	Vertical	PC Pin
ACZ09BR2E-15KQA1-20C10P ROTARY ENCODER INCREMENT 10PPR CUI Devices	3,175	2.57	RFQ	Datasheet	Box,Box	ACZ09	Active	Incremental	Quadrature (Incremental)	10	5V	6mm Dia Knurled End	Yes	Yes	Panel, PCB Through Hole	Right Angle	PC Pin
ACZ09BR1E-15KQA1-20C ROTARY ENCODER INCREMENT 20PPR CUI Devices	2,161	2.35	RFQ	Datasheet	Box	ACZ09	Active	Incremental	Quadrature (Incremental)	20	5V	6mm Dia Knurled End	Yes	Yes	Panel, PCB Through Hole	Right Angle	PC Pin
ACZ09BR2E-15FD1-20C ROTARY ENCODER INCREMENT 20PPR CUI Devices	2,859	2.35	RFQ	Datasheet	Box	ACZ09	Active	Incremental	Quadrature (Incremental)	20	5V	6mm Dia Flatted End	Yes	Yes	Panel, PCB Through Hole	Vertical	PC Pin

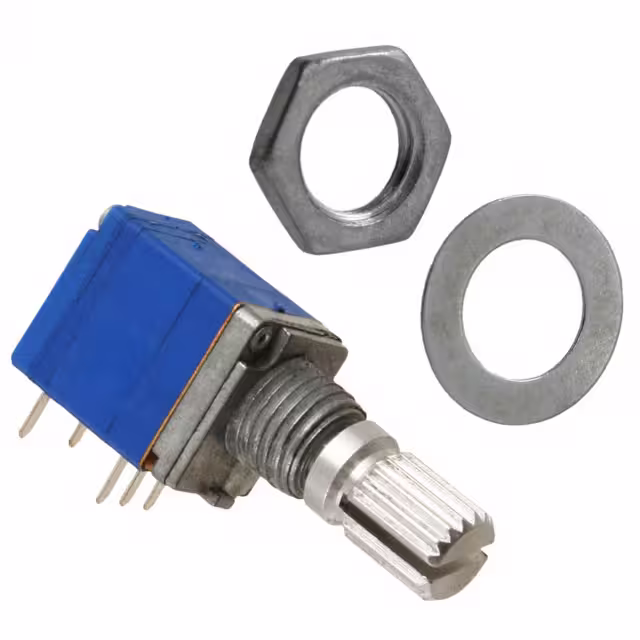

ACZ09BR1E-15KQA1-30C15P ROTARY ENCODER INCREMENT 15PPR CUI Devices	3,811	2.35	RFQ	Datasheet	Box	ACZ09	Active	Incremental	Quadrature (Incremental)	15	5V	6mm Dia Knurled End	Yes	Yes	Panel, PCB Through Hole	Right Angle	PC Pin
ACZ09BR2E-15KQD1-30C15P ROTARY ENCODER INCREMENT 15PPR CUI Devices	2,479	2.35	RFQ	Datasheet	Box	ACZ09	Active	Incremental	Quadrature (Incremental)	15	5V	6mm Dia Knurled End	Yes	Yes	Panel, PCB Through Hole	Vertical	PC Pin
ACZ09BR1E-15FA1-30C15P ROTARY ENCODER INCREMENT 15PPR CUI Devices	2,959	2.35	RFQ	Datasheet	Box	ACZ09	Active	Incremental	Quadrature (Incremental)	15	5V	6mm Dia Flatted End	Yes	Yes	Panel, PCB Through Hole	Right Angle	PC Pin
